Without Scan Tool

DTC CLEAR (WHEN USING SST CHECK WIRE)

DTC clear

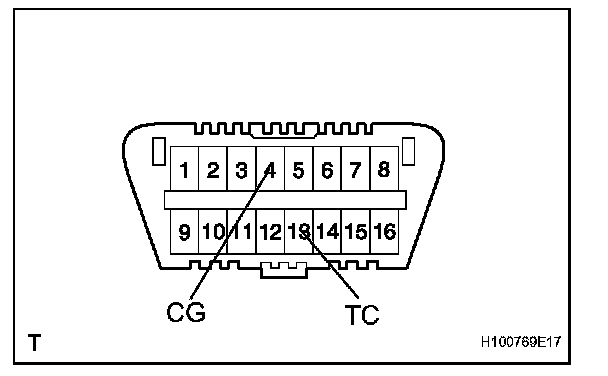

1. Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.

SST 09843-18040

2. Turn the engine switch on (IG).

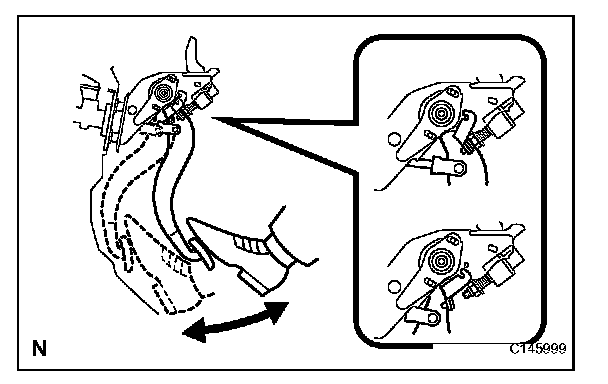

3. Clear the DTCs stored in the ECU by depressing the brake pedal 8 times or more within 5 seconds.
4. Check that the warning light and multiinformation display indicate the normal system code.
5. Remove SST from the terminals of the DLC3.

HINT: Clearing the DTCs cannot be performed by removing the battery cable or the ECU-IG fuse.

END OF DTC CLEAR (WHEN USING SST CHECK WIRE)

a. Turn the engine switch on (IG).
b. Check that the ABS warning light, brake warning light / yellow (minor malfunction) and brake hold standby indicator light illuminate. After the engine is started, check that they turn off.
