TC and CG Terminal Circuit

TC and CG Terminal Circuit

DESCRIPTION

Wiring Diagram:

Connecting terminals TC and CG of the DLC3 causes the ECU to display the DTC by blinking the ABS warning light.

Step 1:

Step 1(Continued)-3:

Step 3(Continued)-6:

Step 6(Continued):

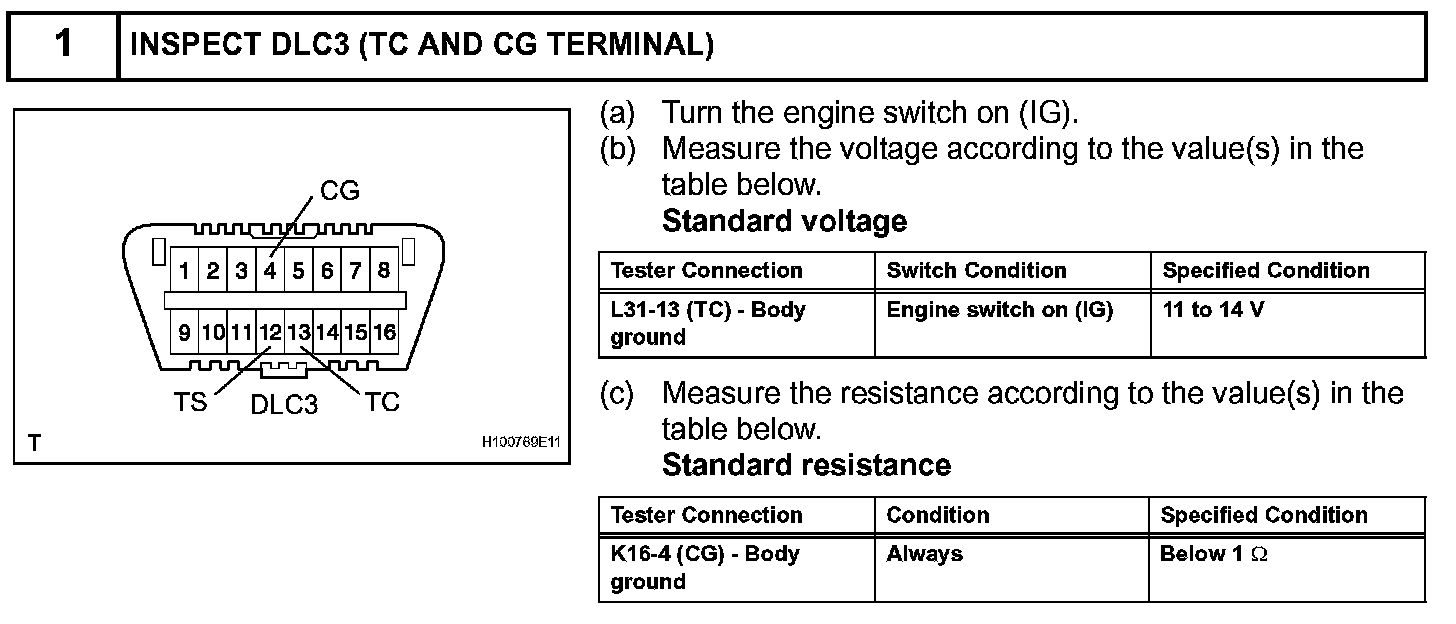

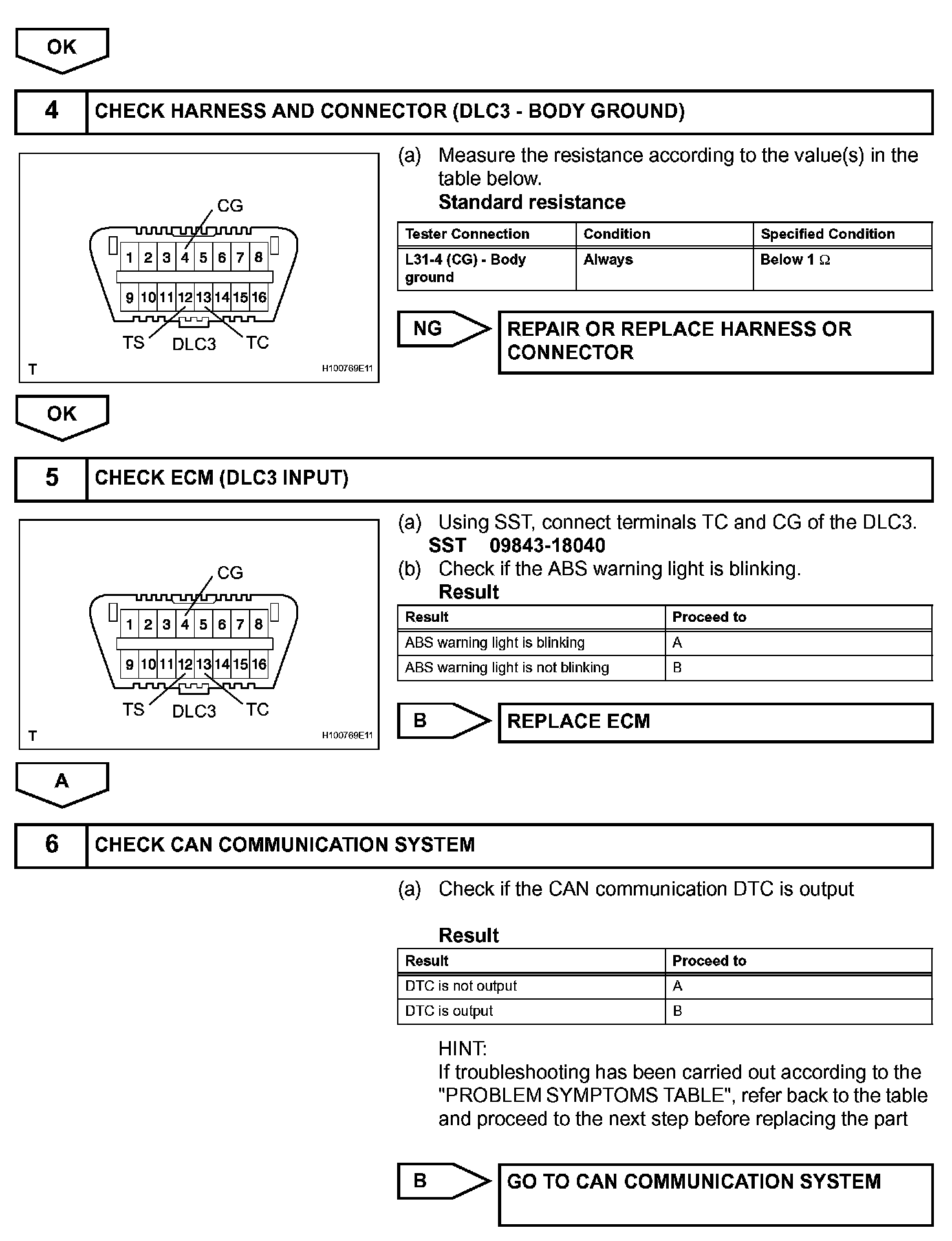

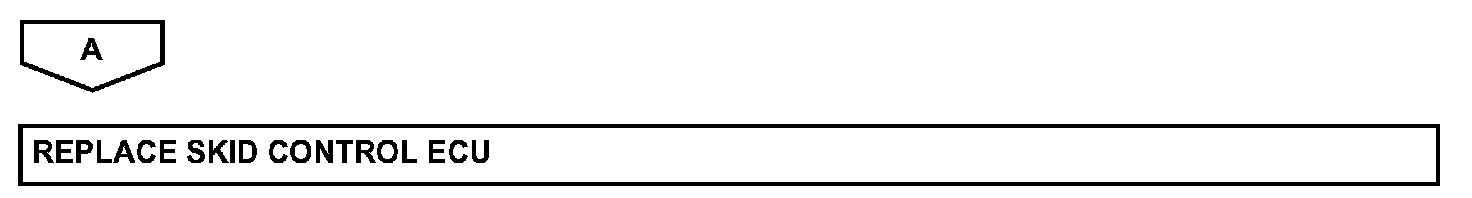

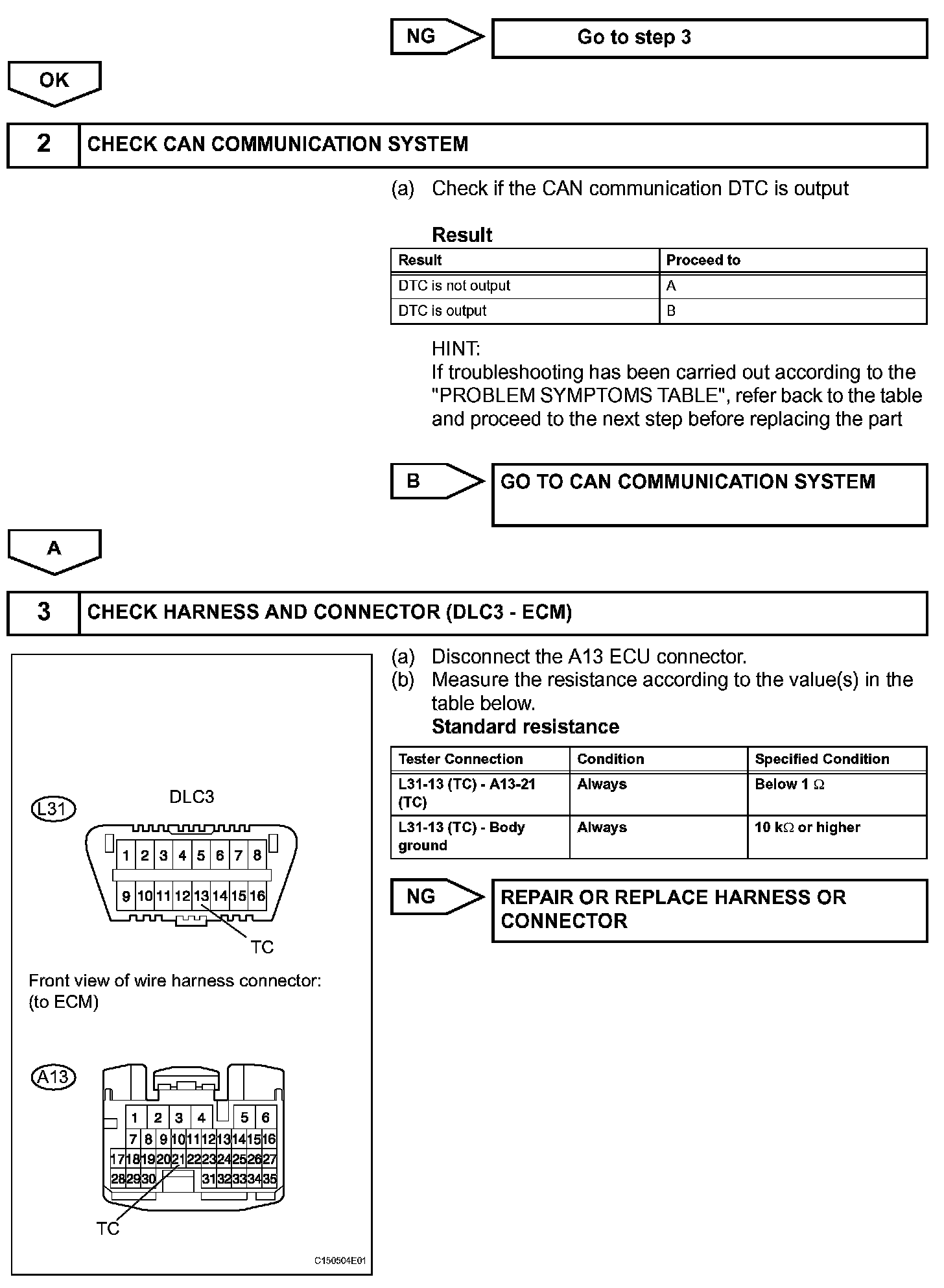

INSPECTION PROCEDURE

NOTE:
- When replacing the skid control ECU, perform initialization of linear solenoid valve calibration. Initialization
- If the ECM has been replaced, it is necessary to register the ECU.
