Skid Control Buzzer Circuit

Skid Control Buzzer Circuit

DESCRIPTION

The skid control buzzer sounds while the accumulator pressure is abnormally low or an abnormality causing low fluid pressure occurs, and then the VSC is activated.

If the skid control buzzer circuit accumulator pressure is abnormally low, or an abnormal fluid pressure drop is occurring, the skid control buzzer sounds. Also, during VSC operation, the skid control buzzer sounds.

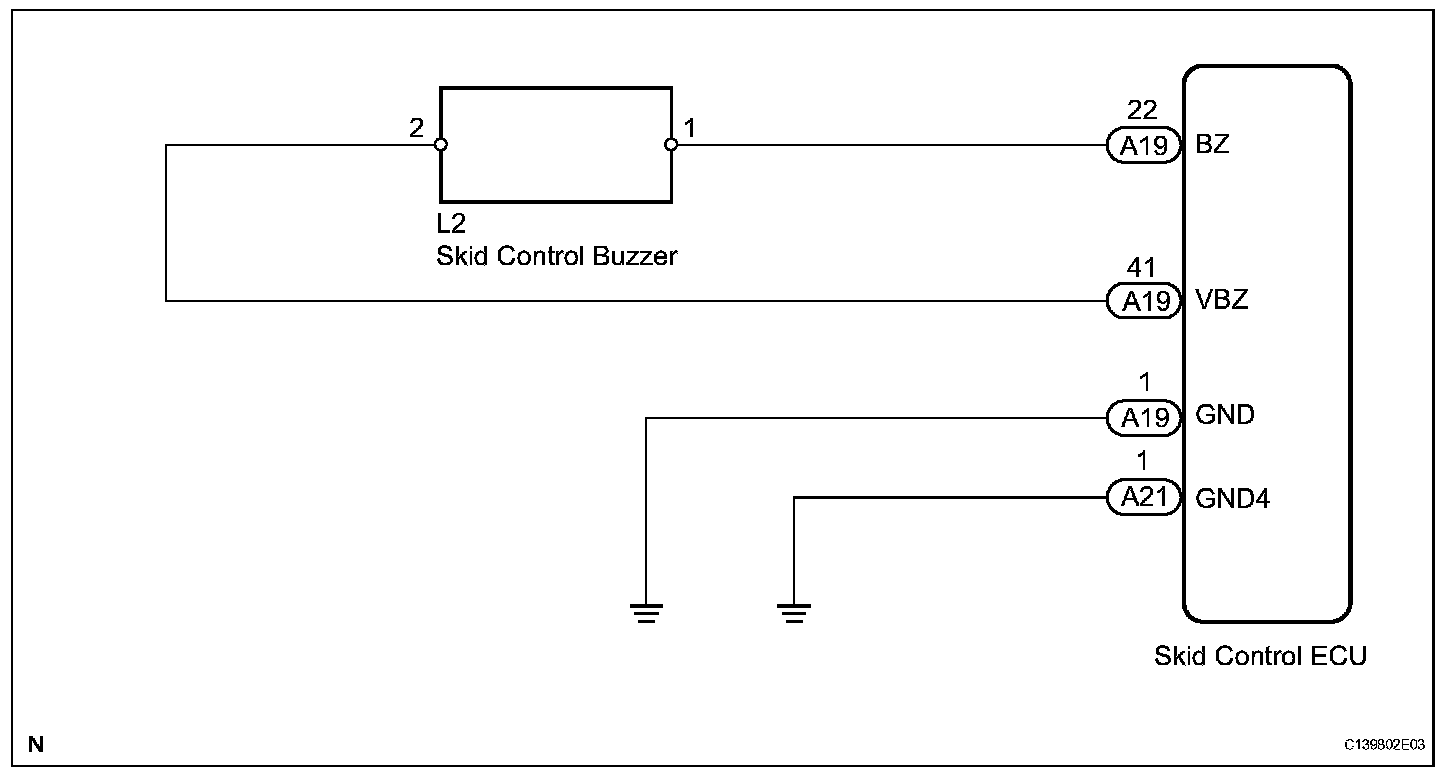

Wiring Diagram:

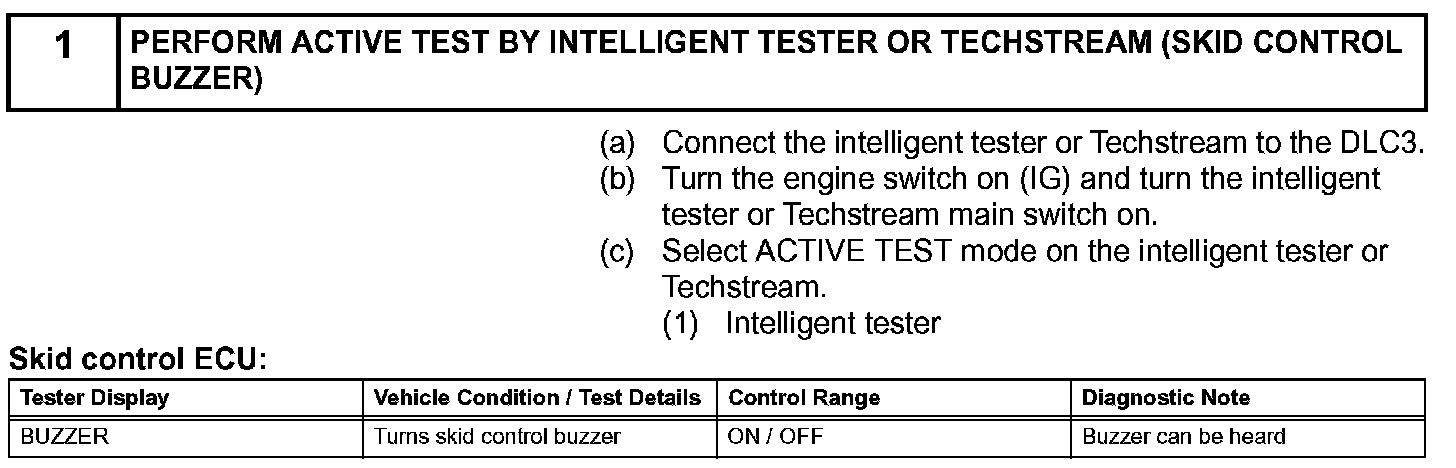

Step 1:

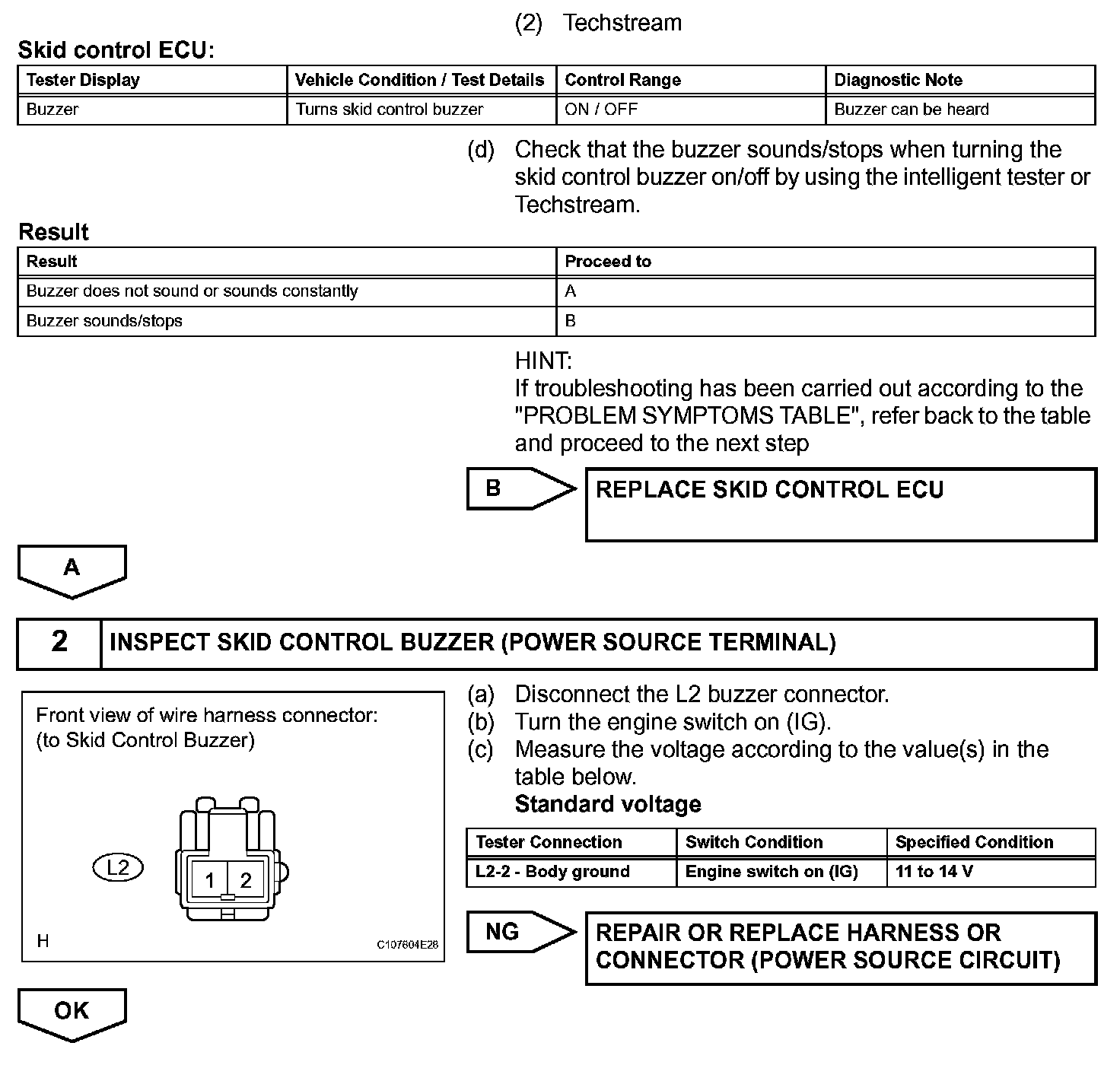

Step 1(Continued)-2:

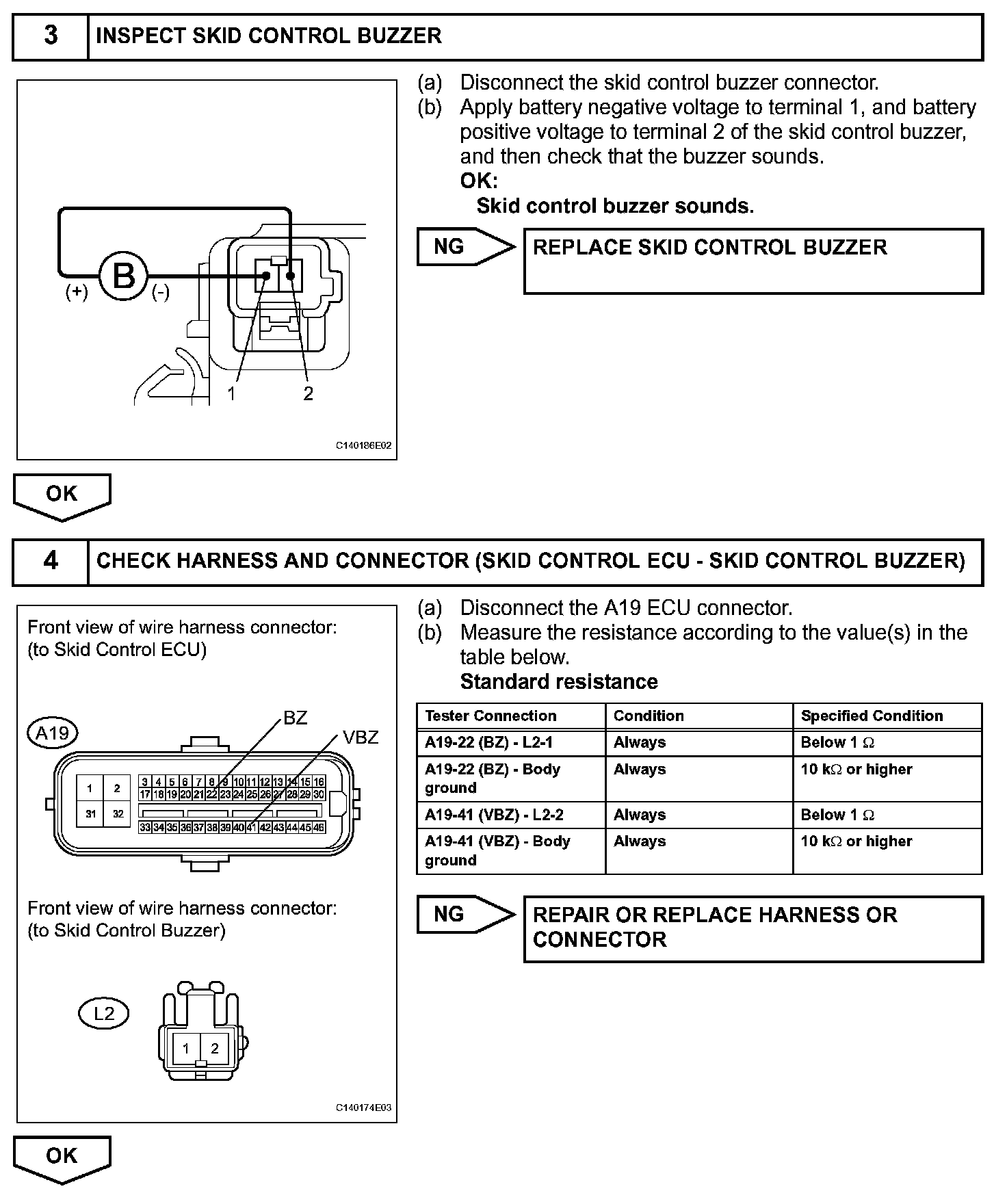

Step 3-4:

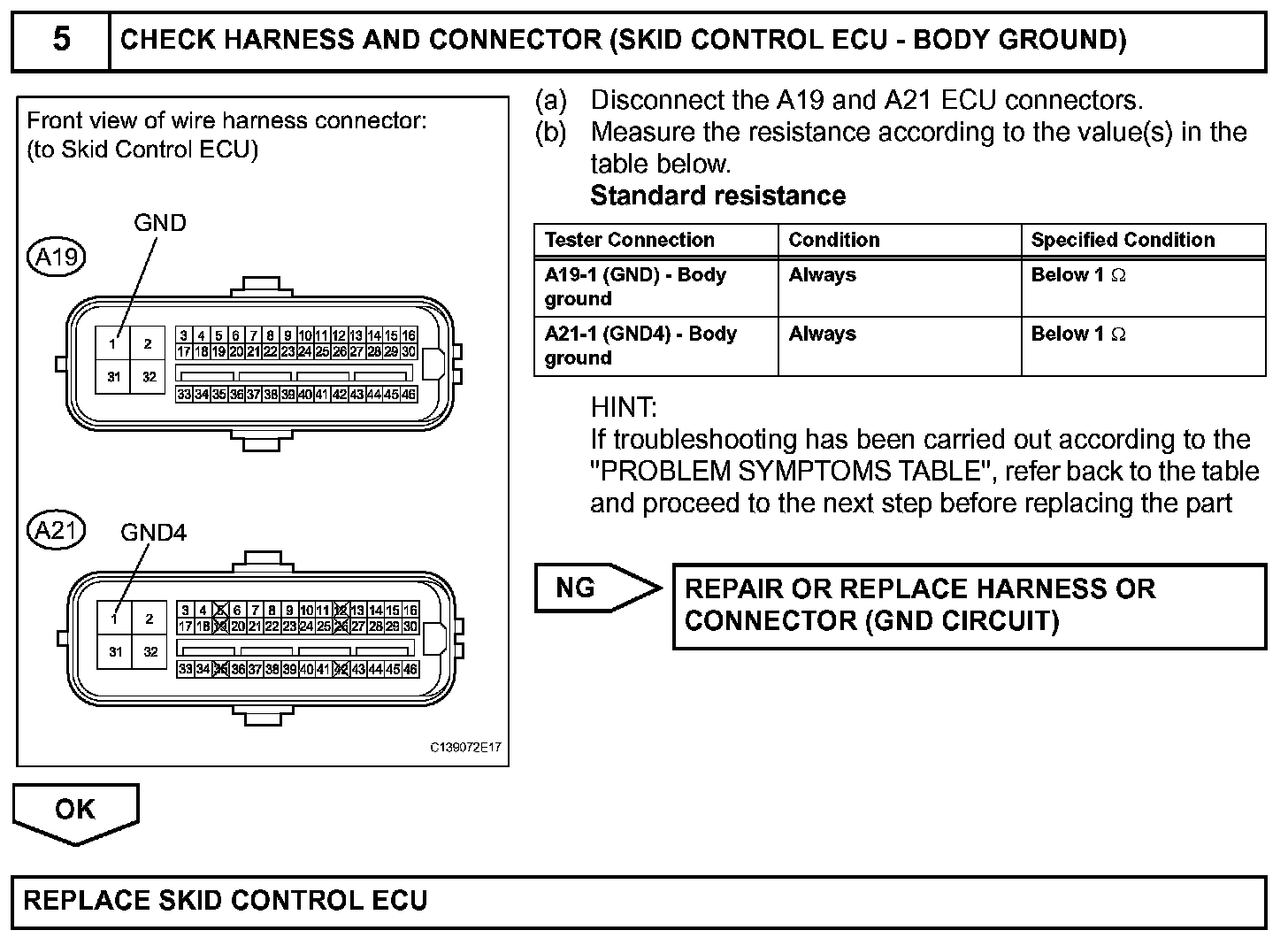

Step 5:

INSPECTION PROCEDURE

NOTE: When replacing the skid control ECU, perform initialization of linear solenoid valve and calibration. Initialization
