Brake Hold Standby Indicator Light Circuit

Brake Hold Standby Indicator Light Circuit

DESCRIPTION

When the brake hold switch is turned ON while the engine switch is on (IG),if the brake hold operation is possible, the brake hold standby indicator light illuminates.

Wiring Diagram:

Step 1-3:

Step 3(Continued)-4:

Step 5:

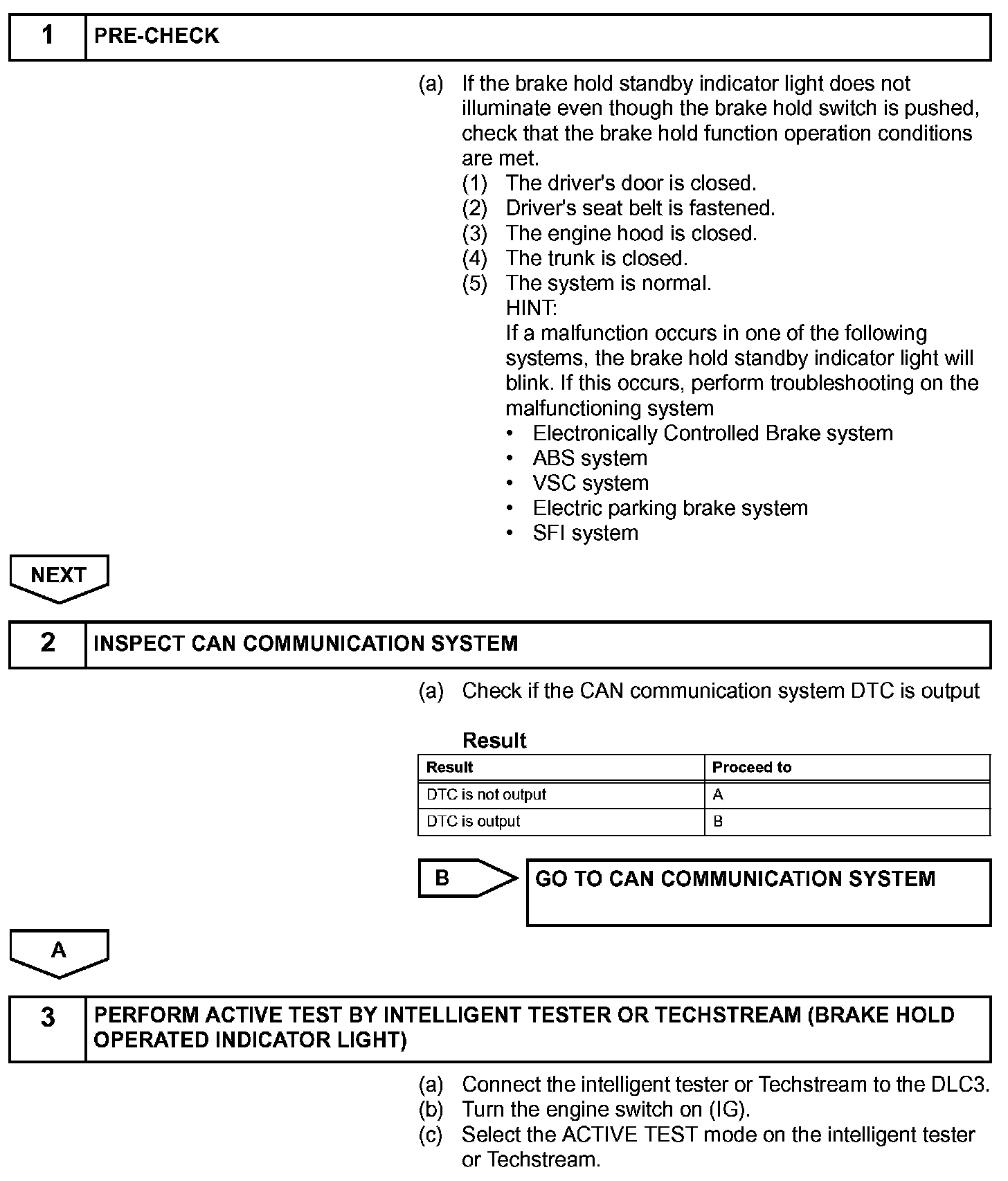

INSPECTION PROCEDURE

NOTE: When replacing the skid control ECU, perform initialization of linear solenoid valve and calibration. Initialization

HINT: The brake hold standby indicator light comes on when the system is malfunction.
