Brake Hold Operated Indicator Light Circuit

Brake Hold Operated Indicator Light Circuit

DESCRIPTION

When the engine switch is on (IG) with the brake hold switch ON, the brake hold operated indicator light illuminates while the brake hold is in operation.

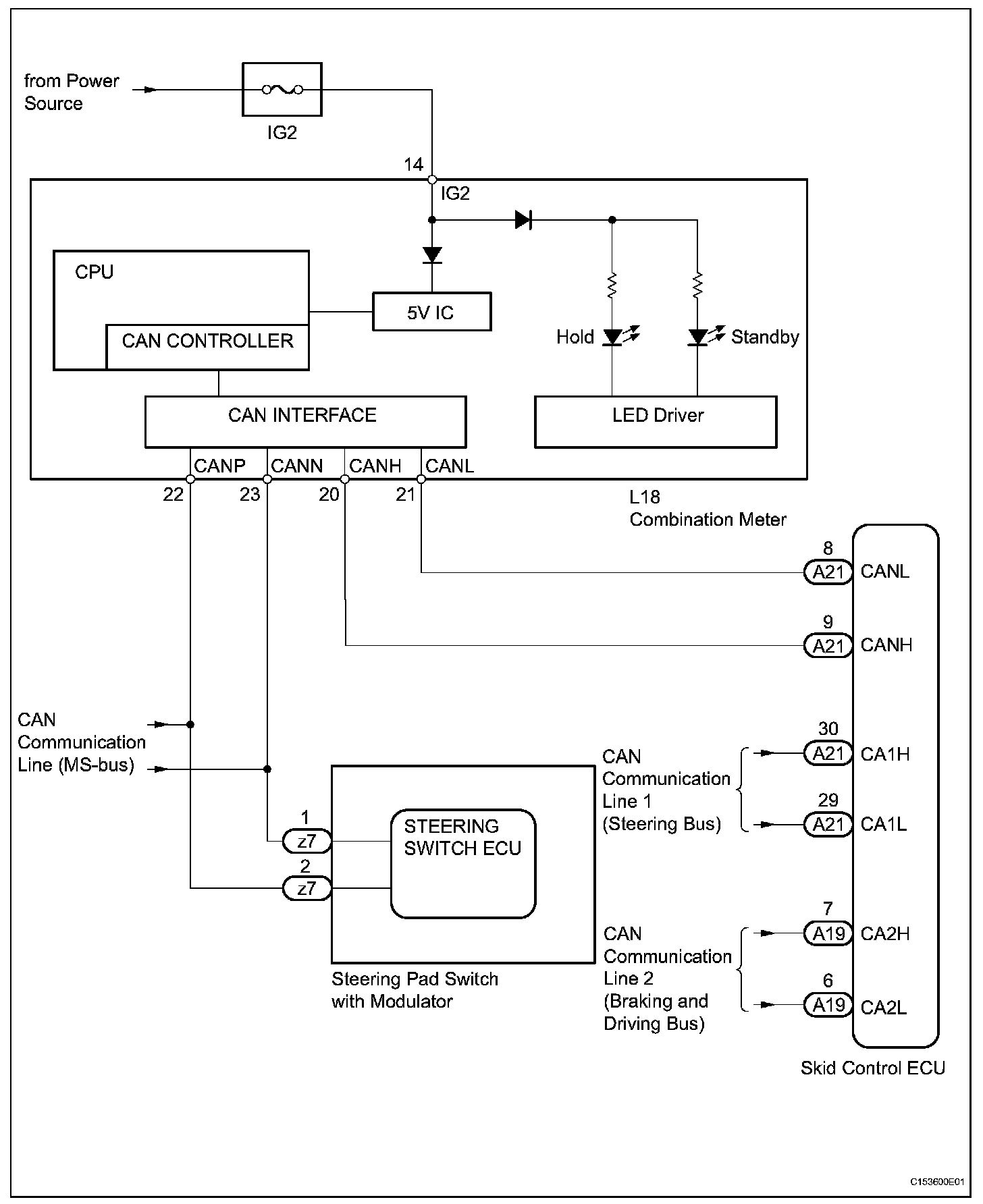

Wiring Diagram:

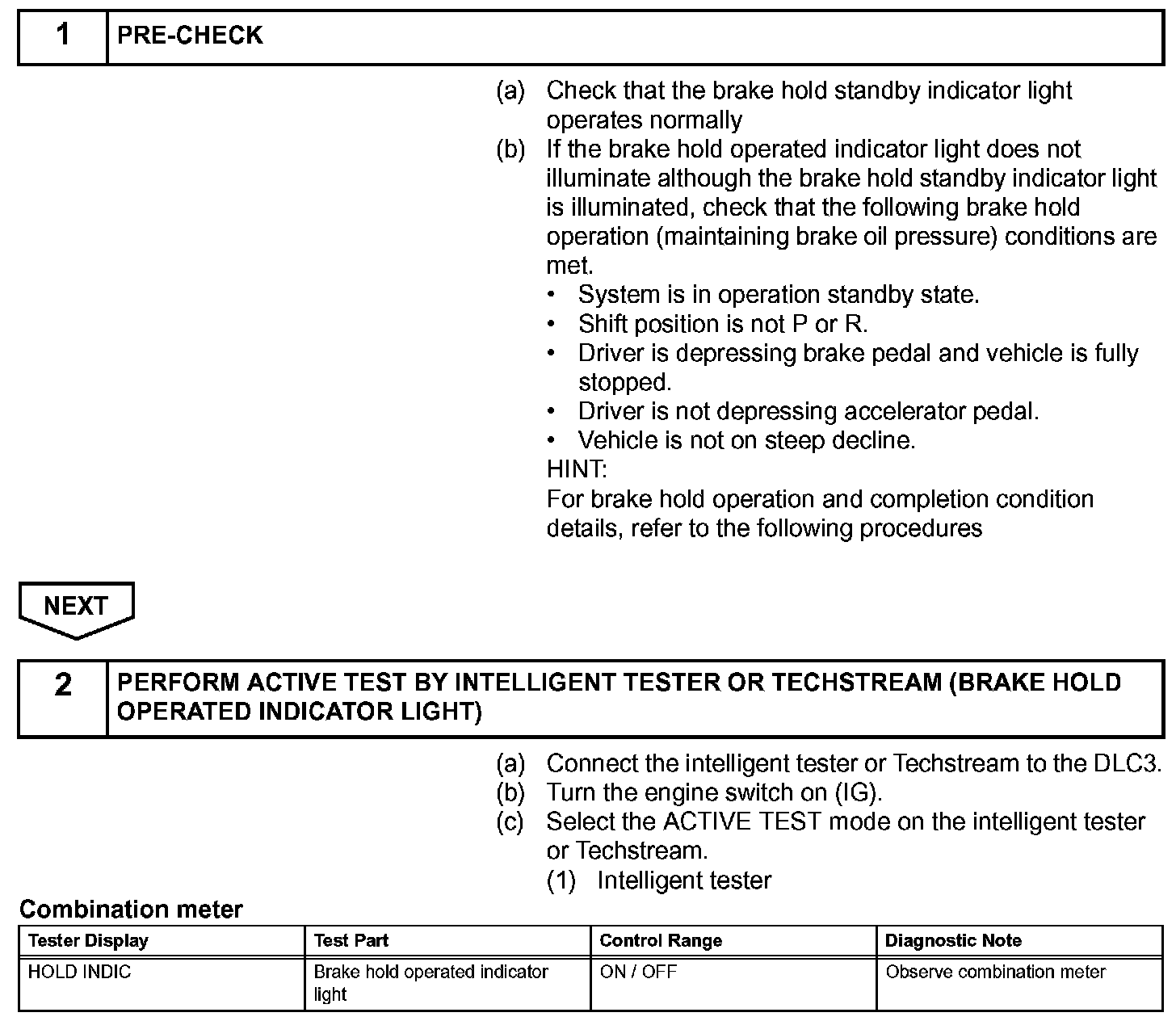

Step 1-2:

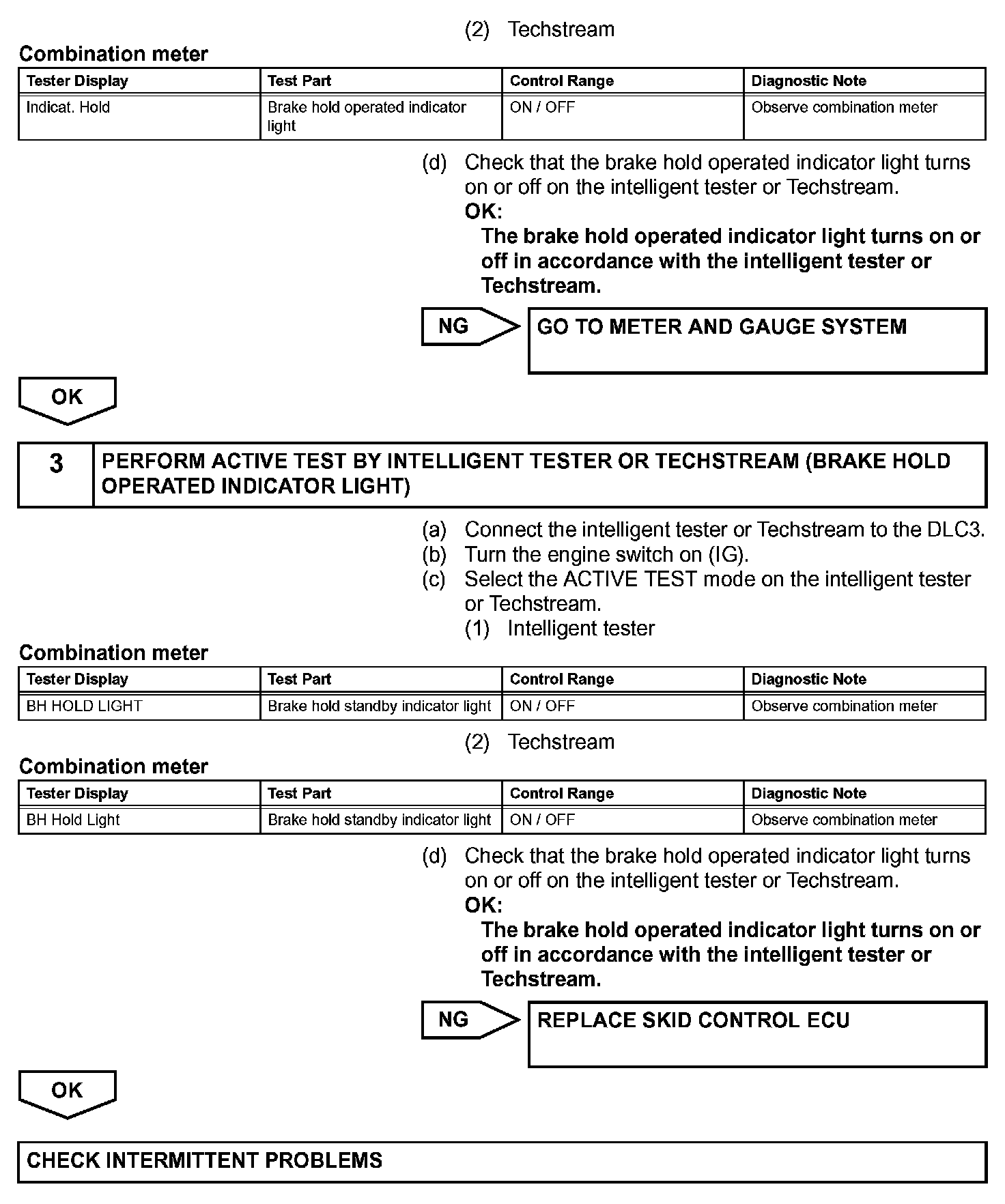

Step 2(Continued)-3:

INSPECTION PROCEDURE

NOTE: When replacing the skid control ECU, perform initialization of linear solenoid valve and calibration. Initialization
