Component Inspection

INSPECTION

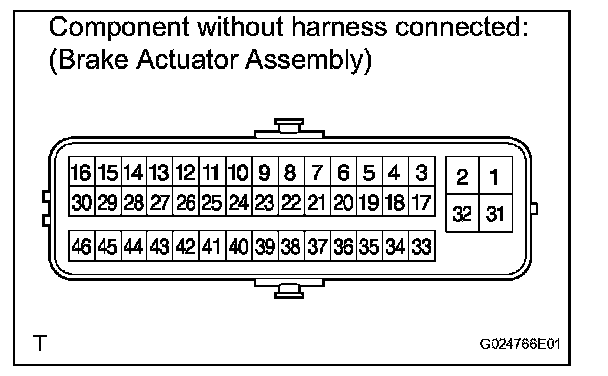

1. CHECK BRAKE ACTUATOR ASSEMBLY







a. Measure the resistance according to the value(s) in the table.

HINT: Perform the check with the actuator at the lowest temperature possible.

If the result is not as specified, replace the brake actuator.

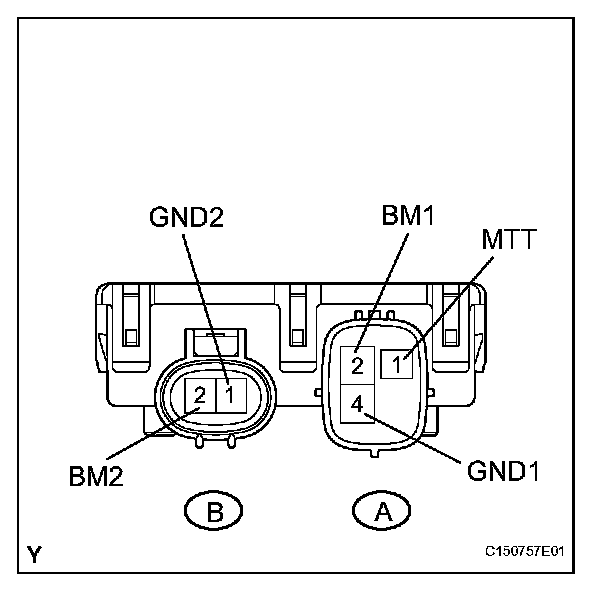

2. CHECK BRAKE ACCUMULATOR PUMP

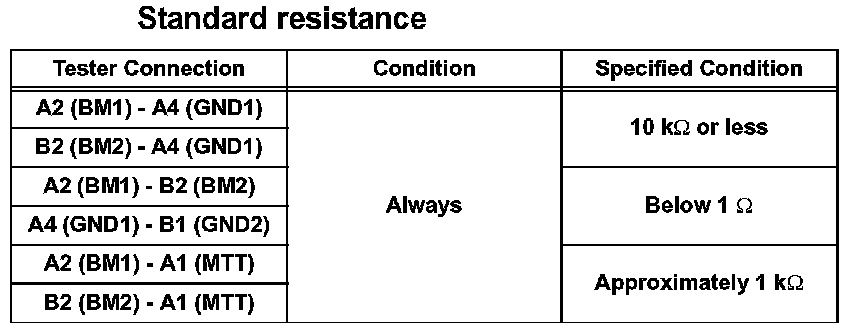

a. Measure the resistance according to the value(s) in the table.

If the result is not as specified, replace the brake accumulator pump.
