Electrical Diagrams

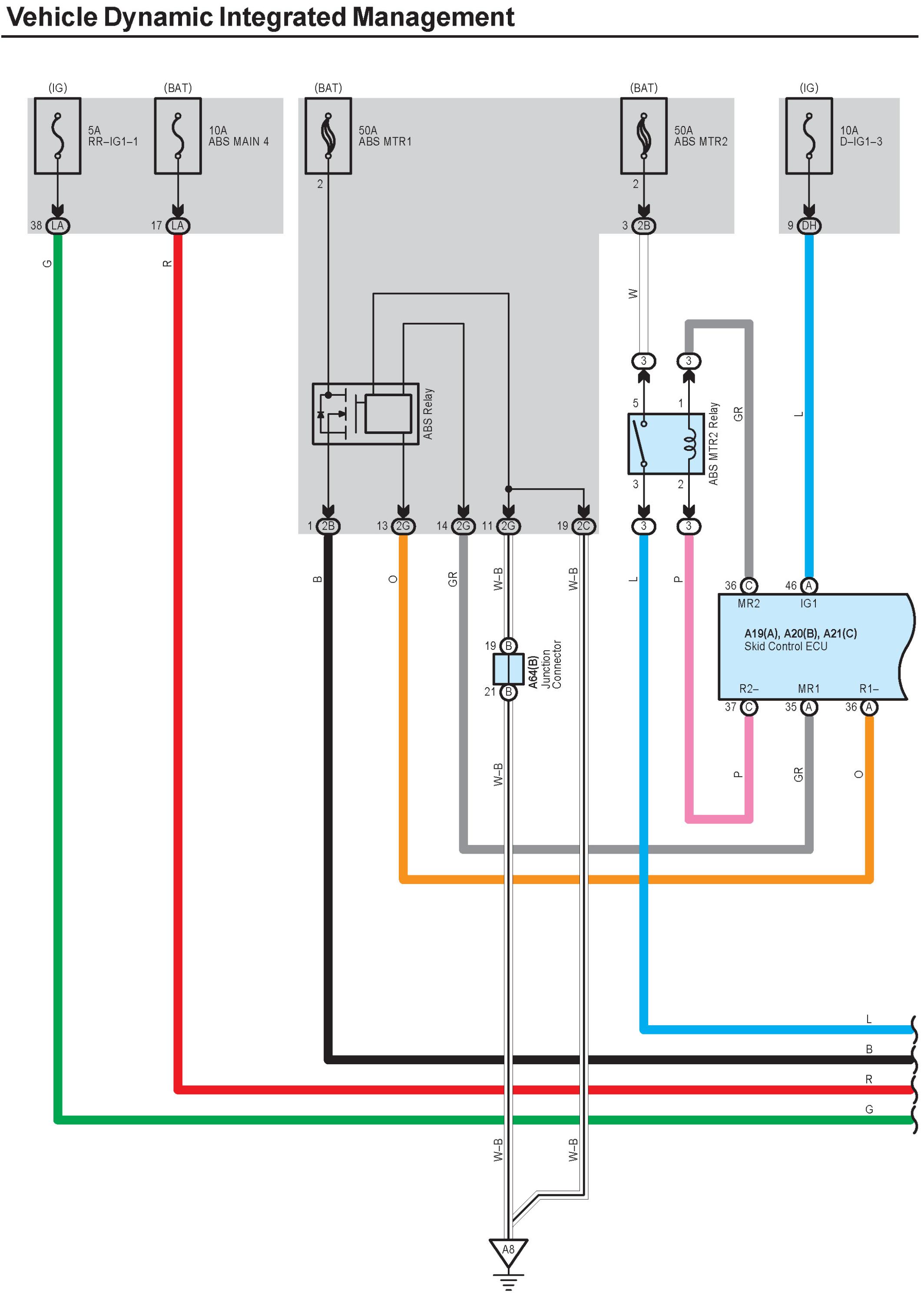

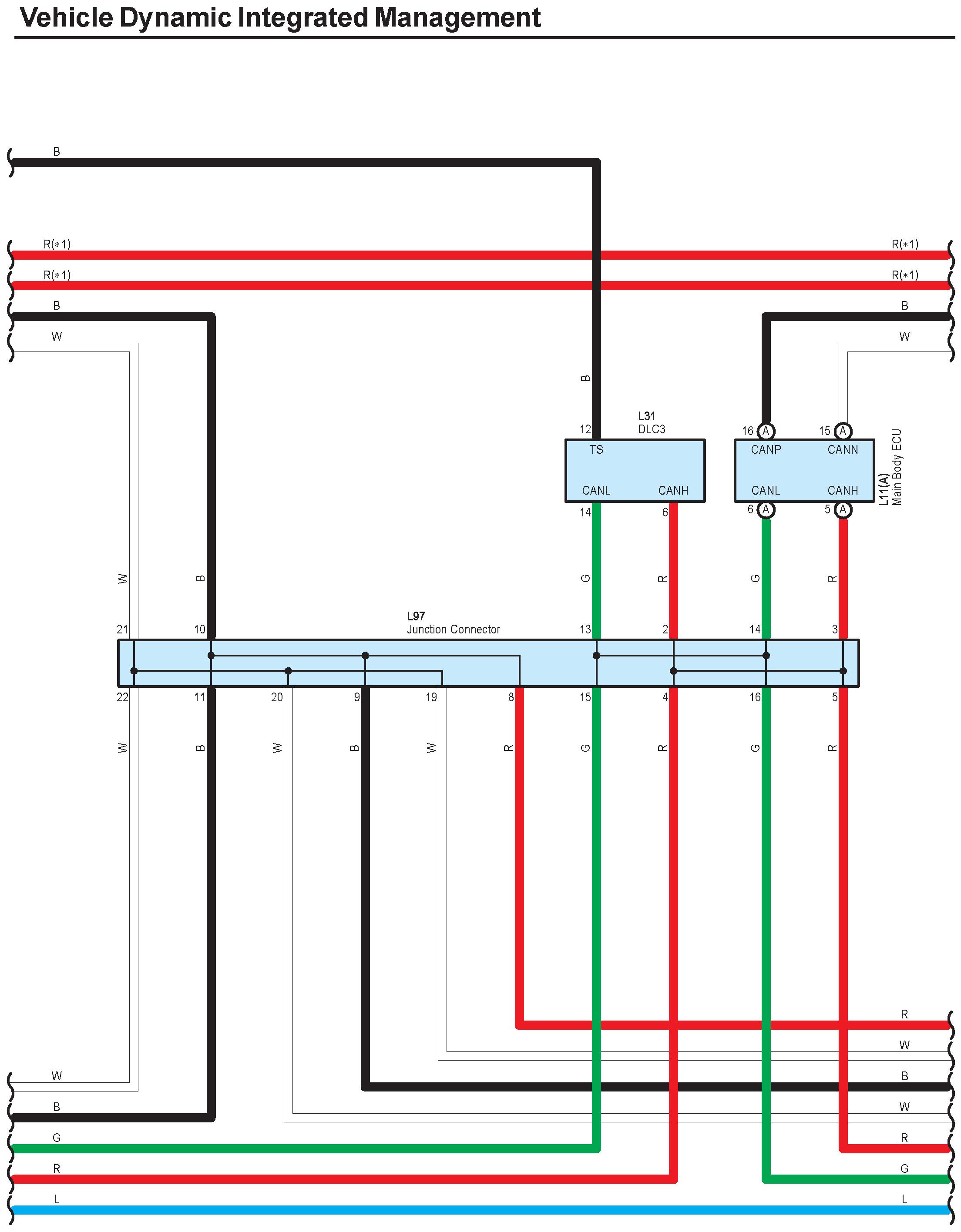

Vehicle Dynamic Integrated Management Part 1:

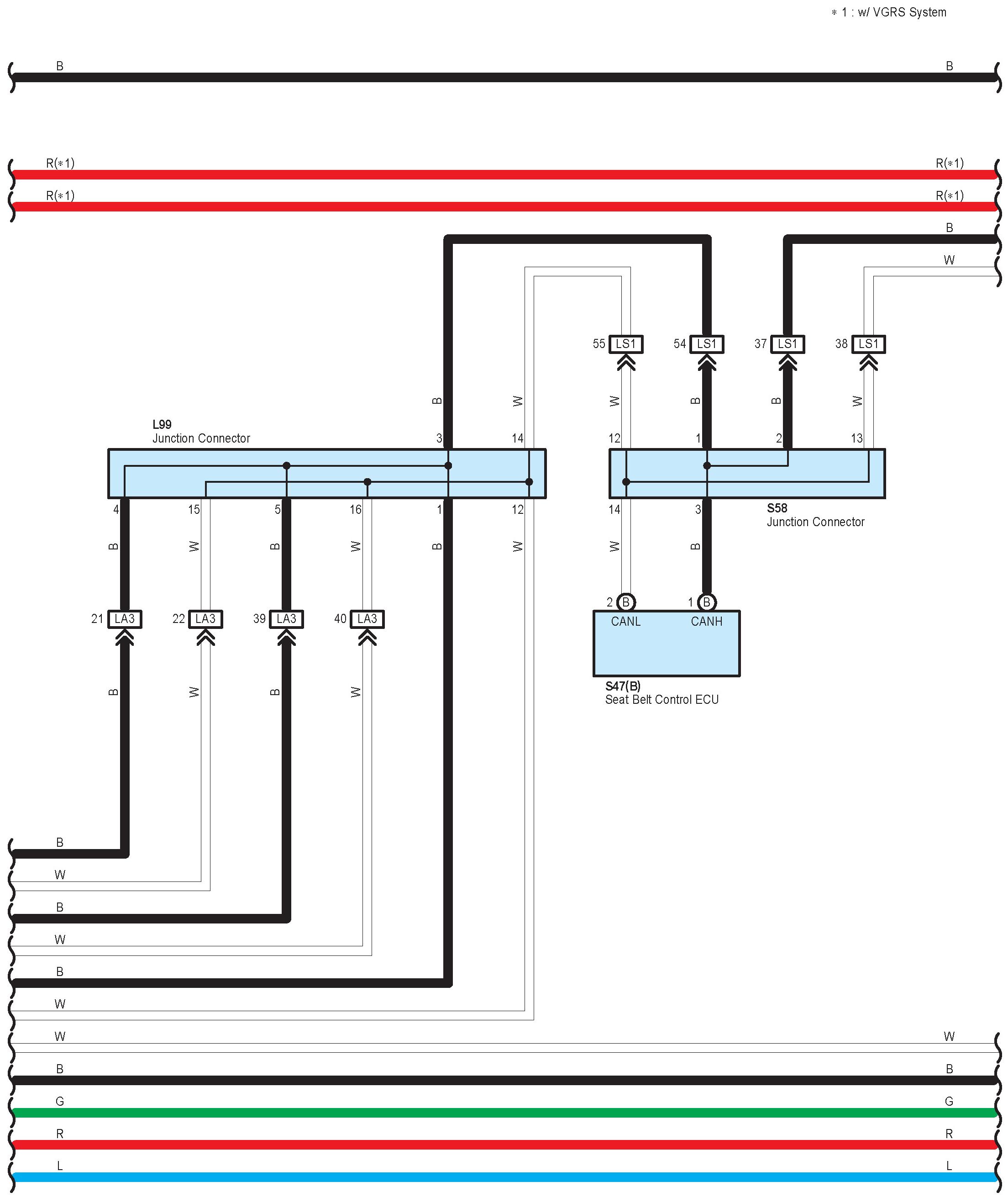

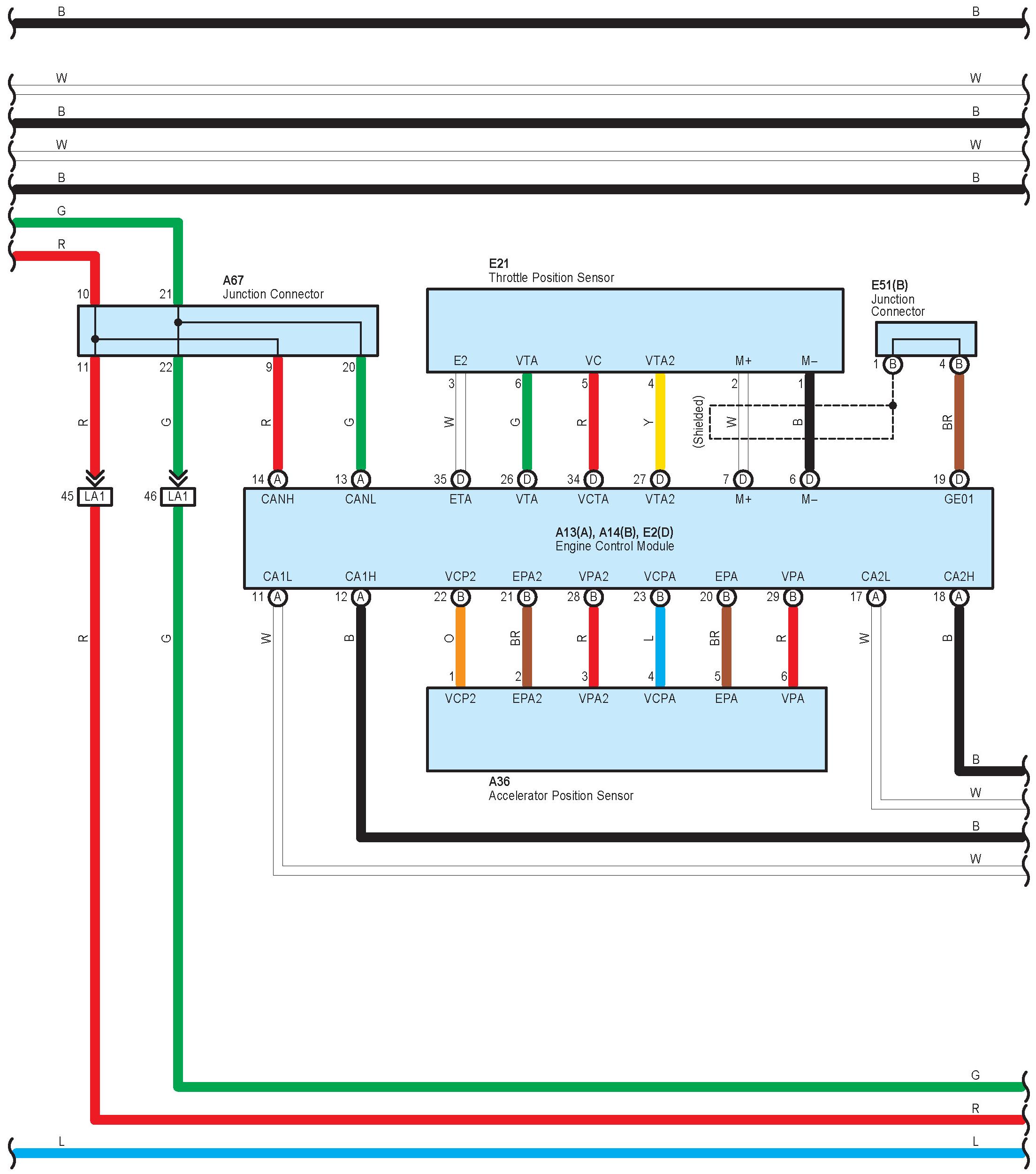

Vehicle Dynamic Integrated Management Part 2:

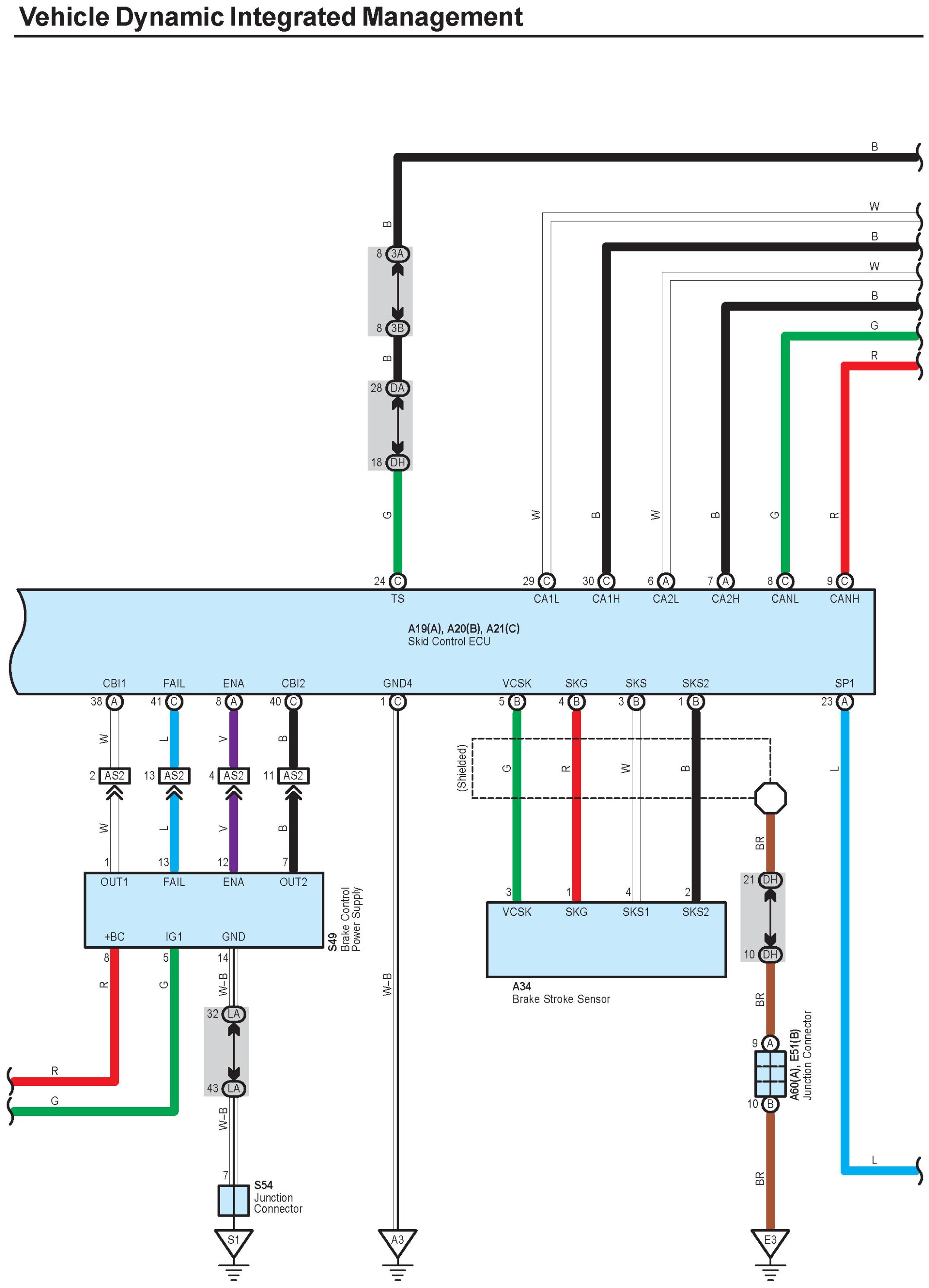

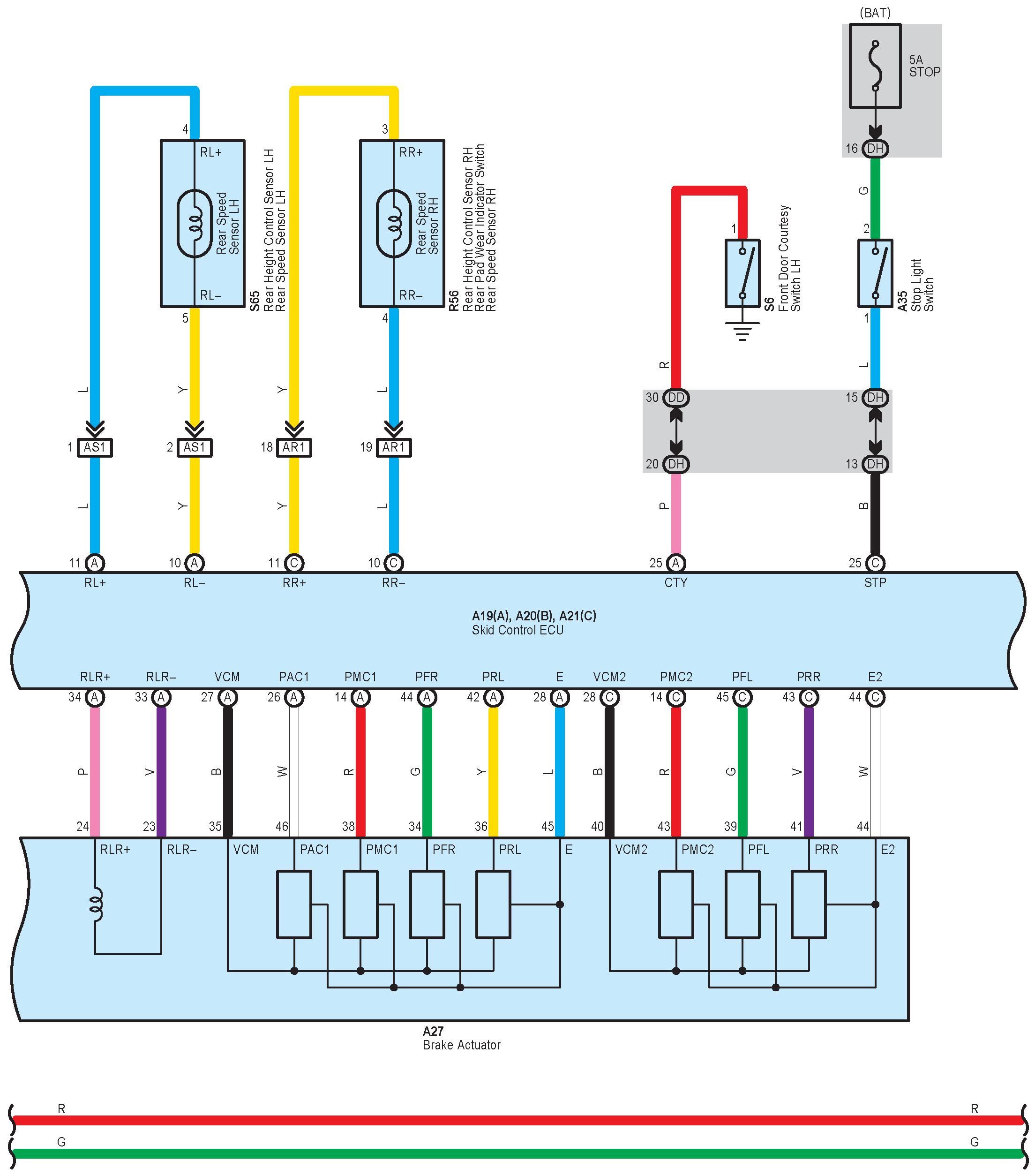

Vehicle Dynamic Integrated Management Part 3:

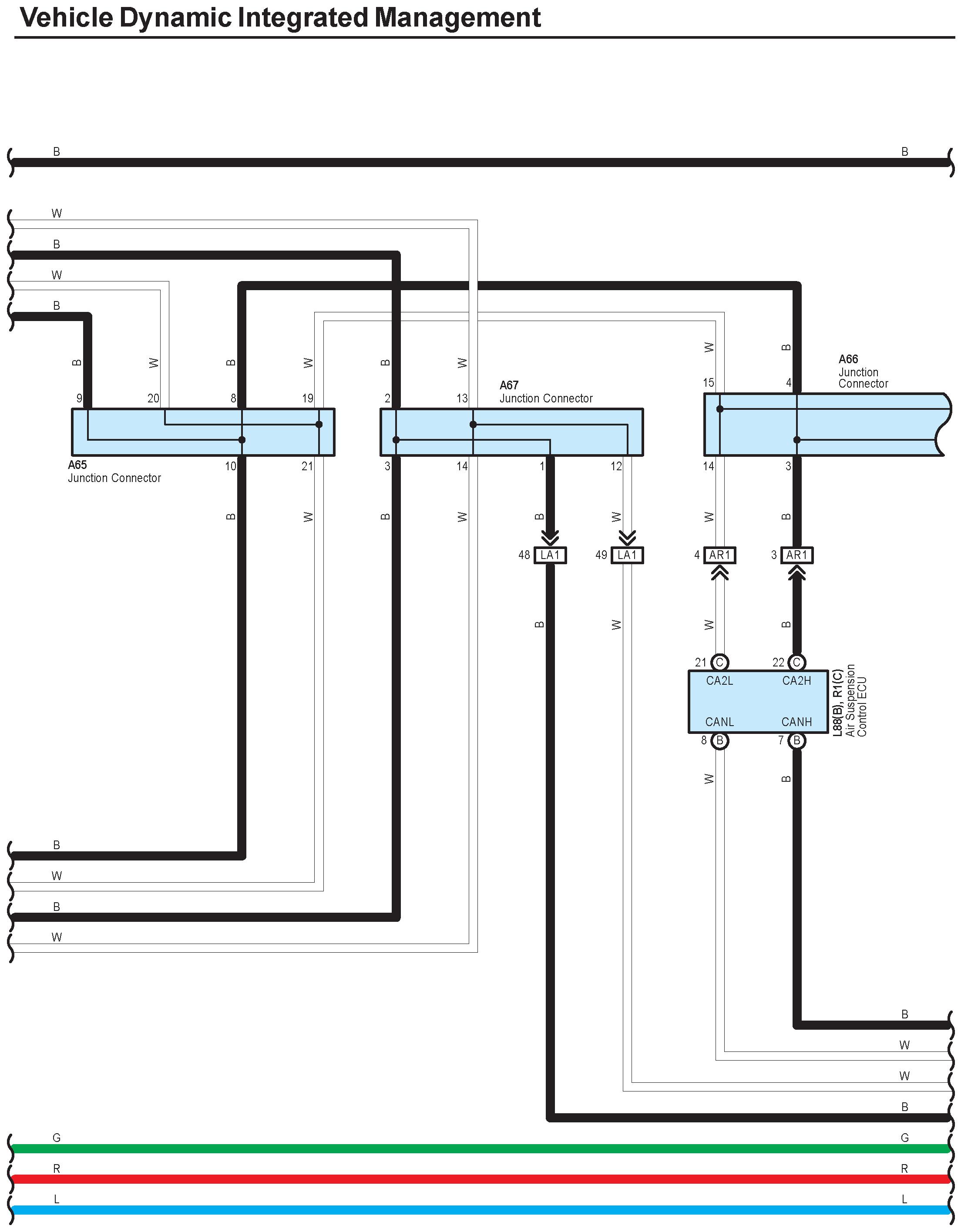

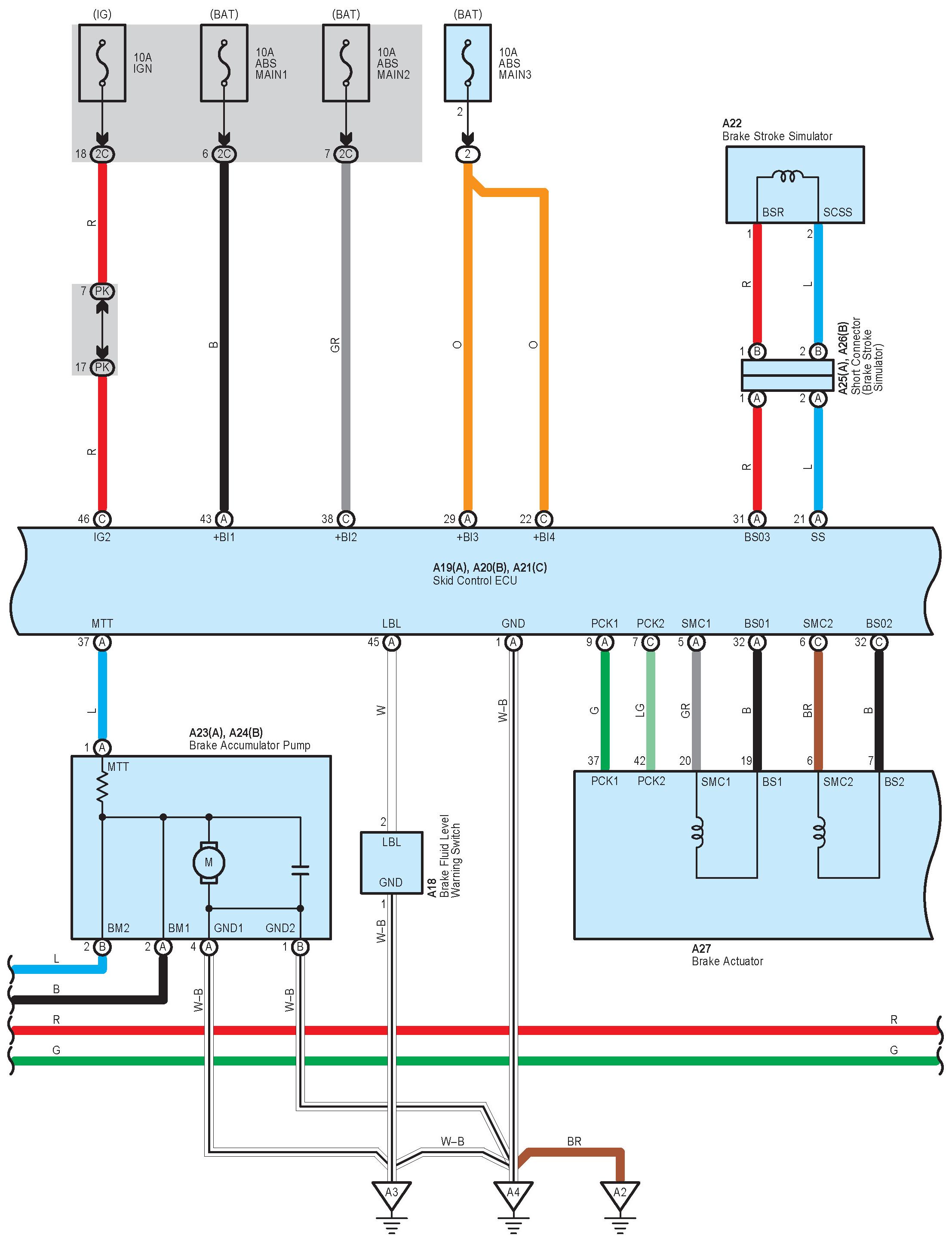

Vehicle Dynamic Integrated Management Part 4:

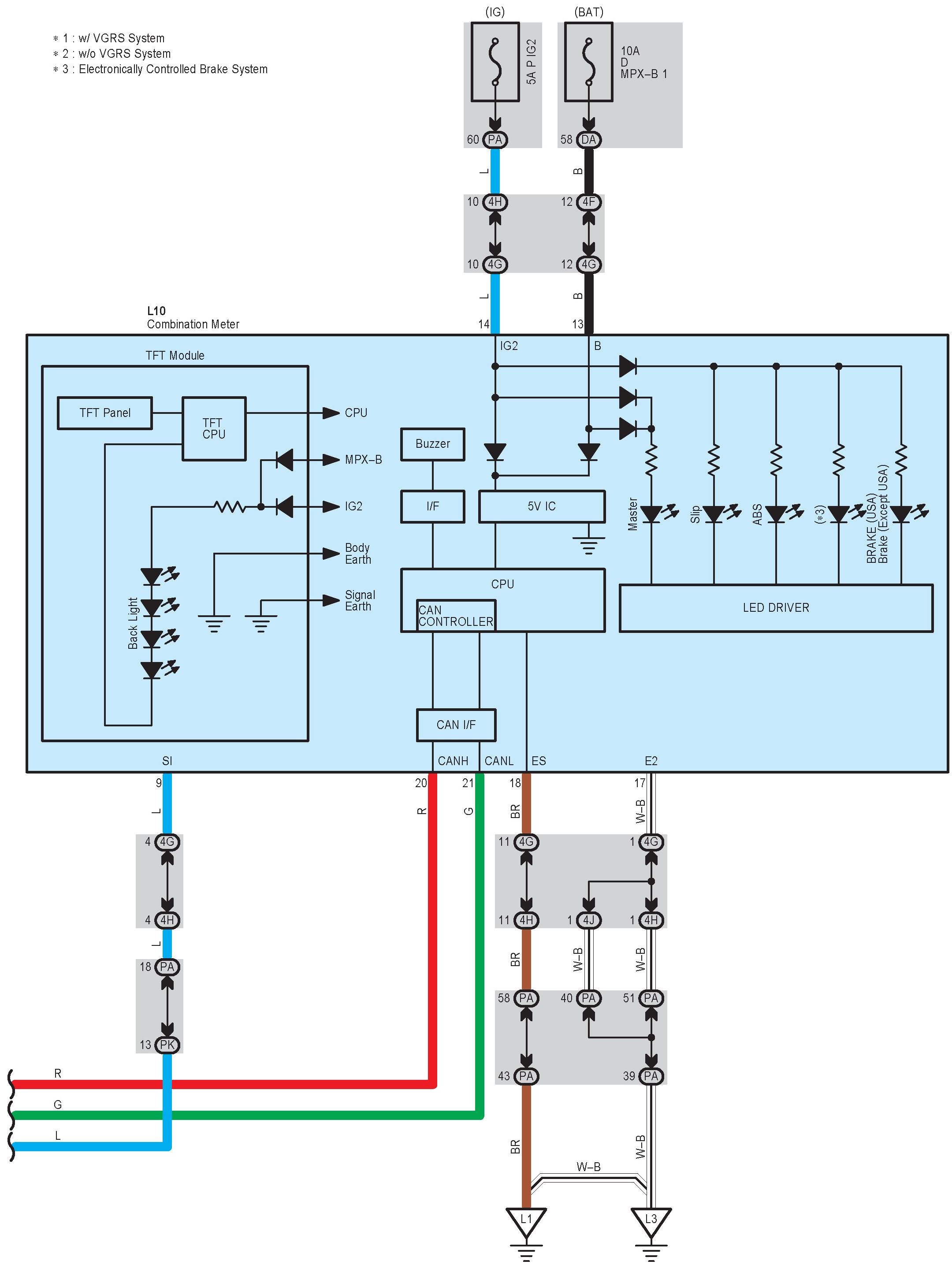

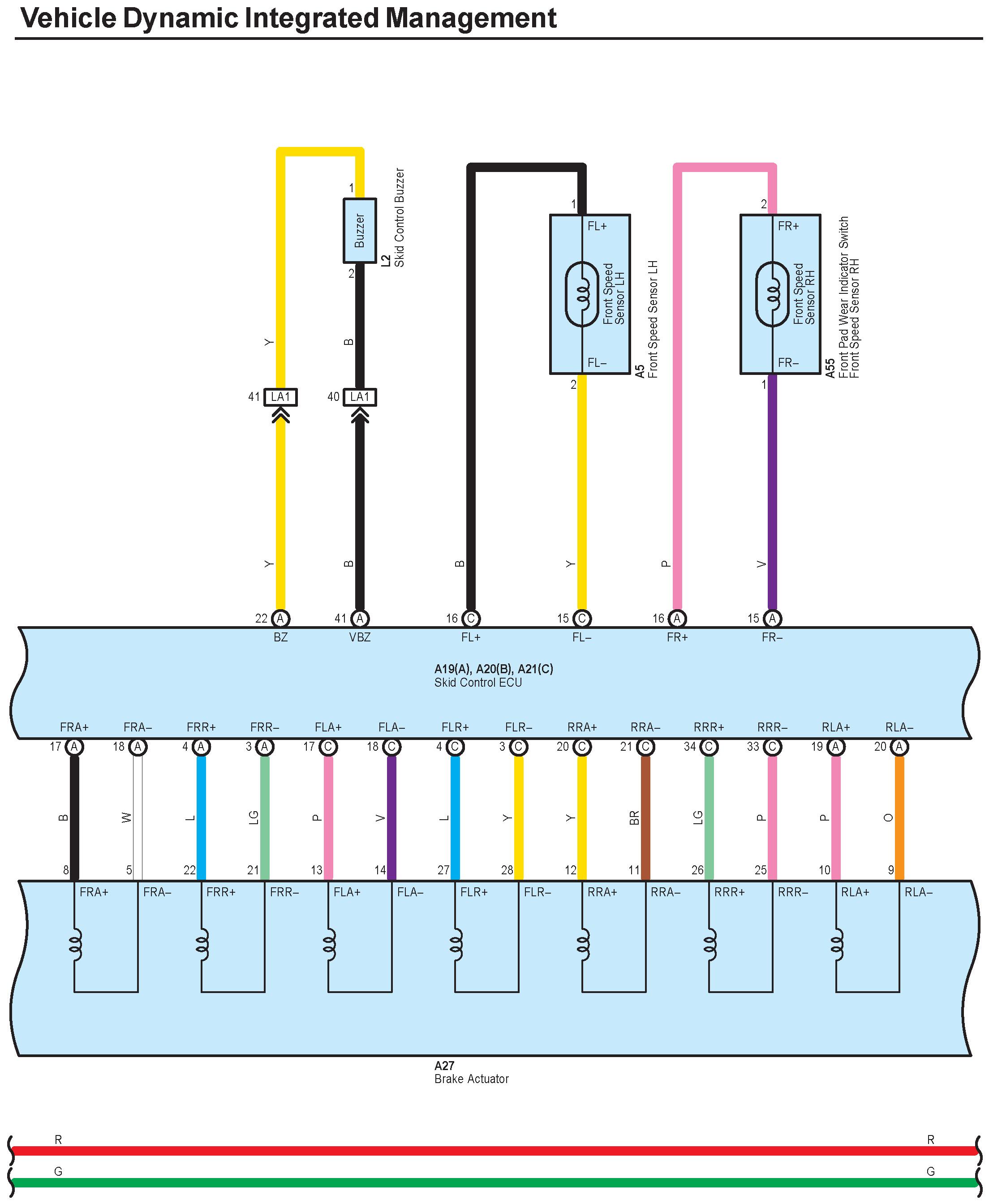

Vehicle Dynamic Integrated Management Part 5:

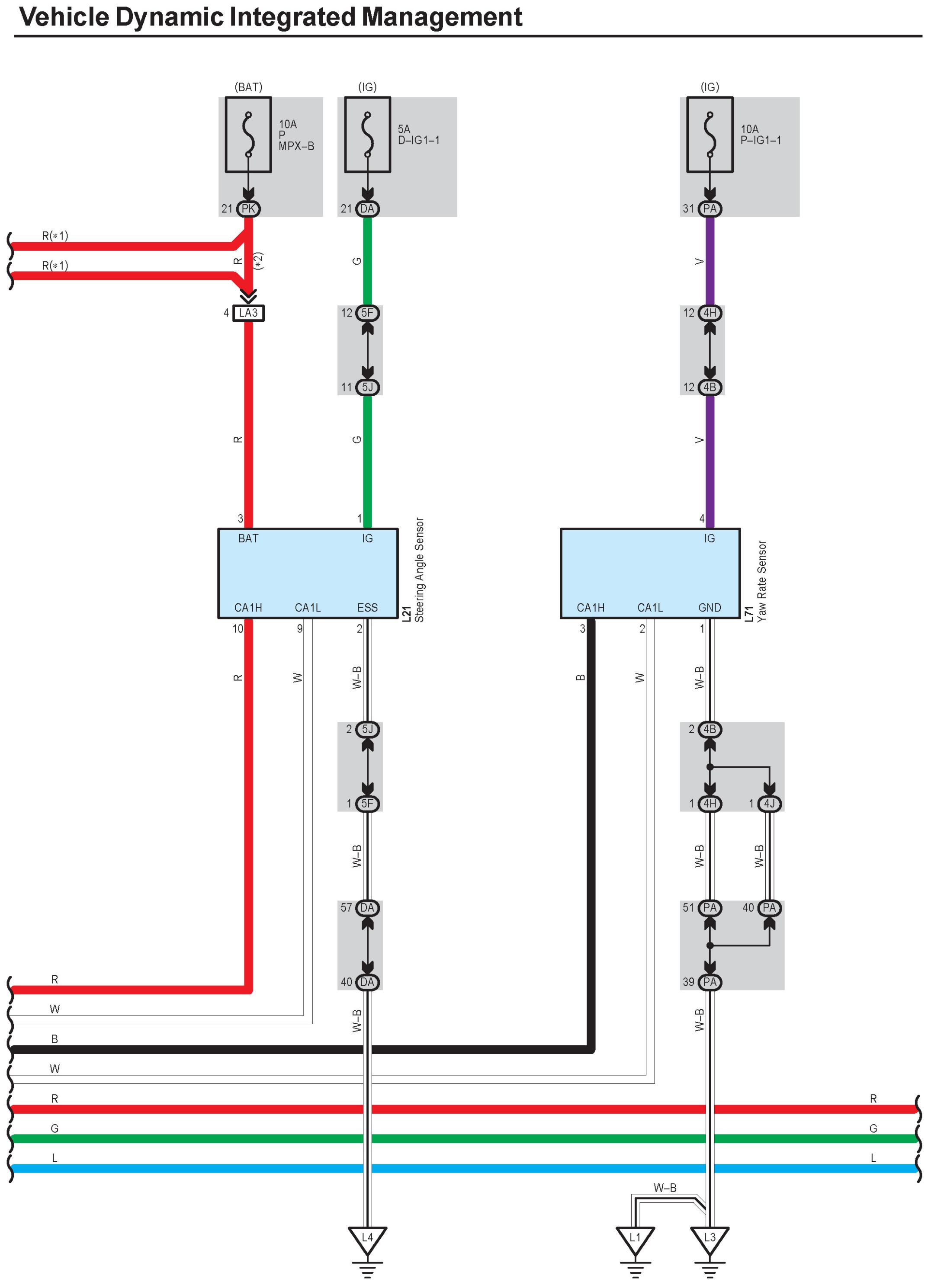

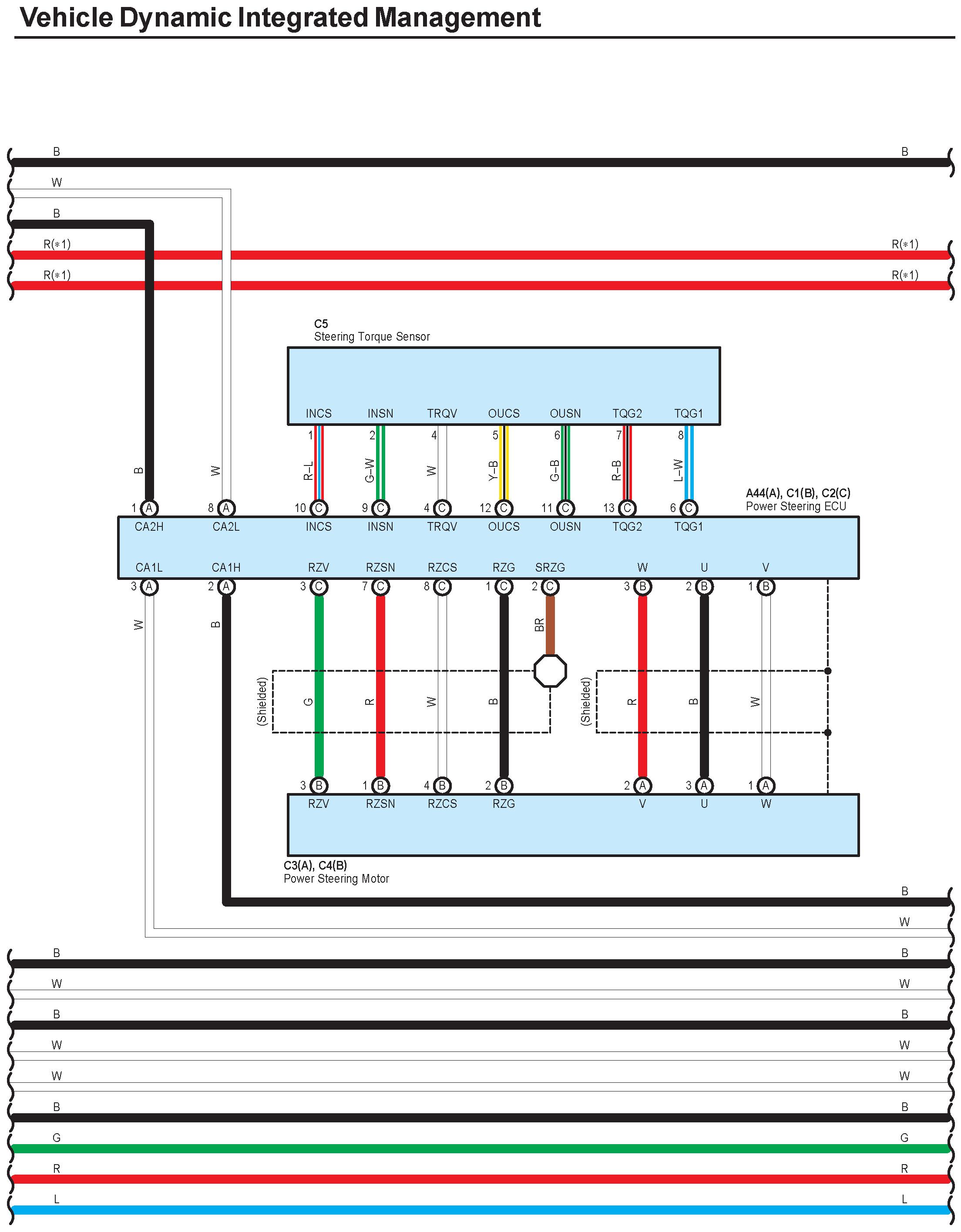

Vehicle Dynamic Integrated Management Part 6:

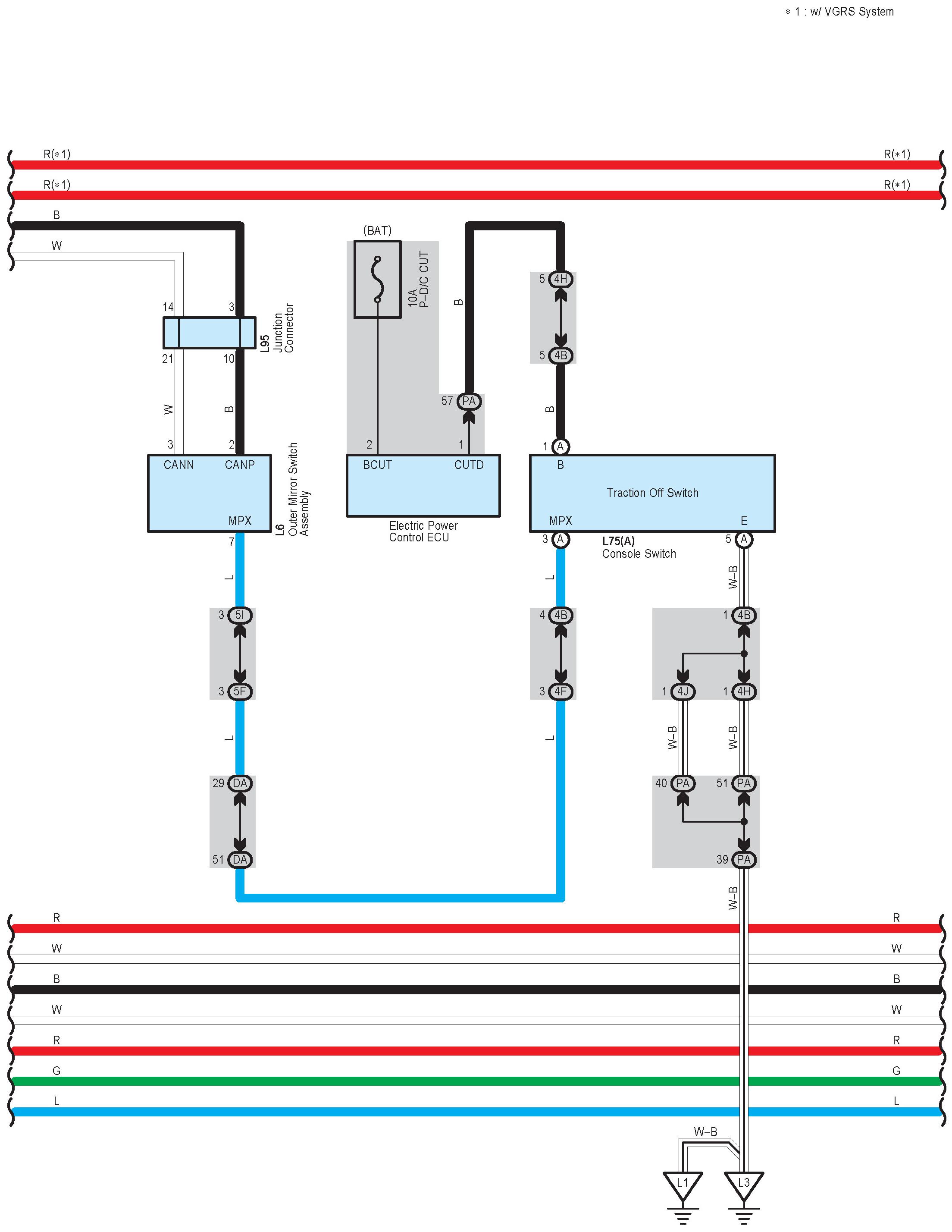

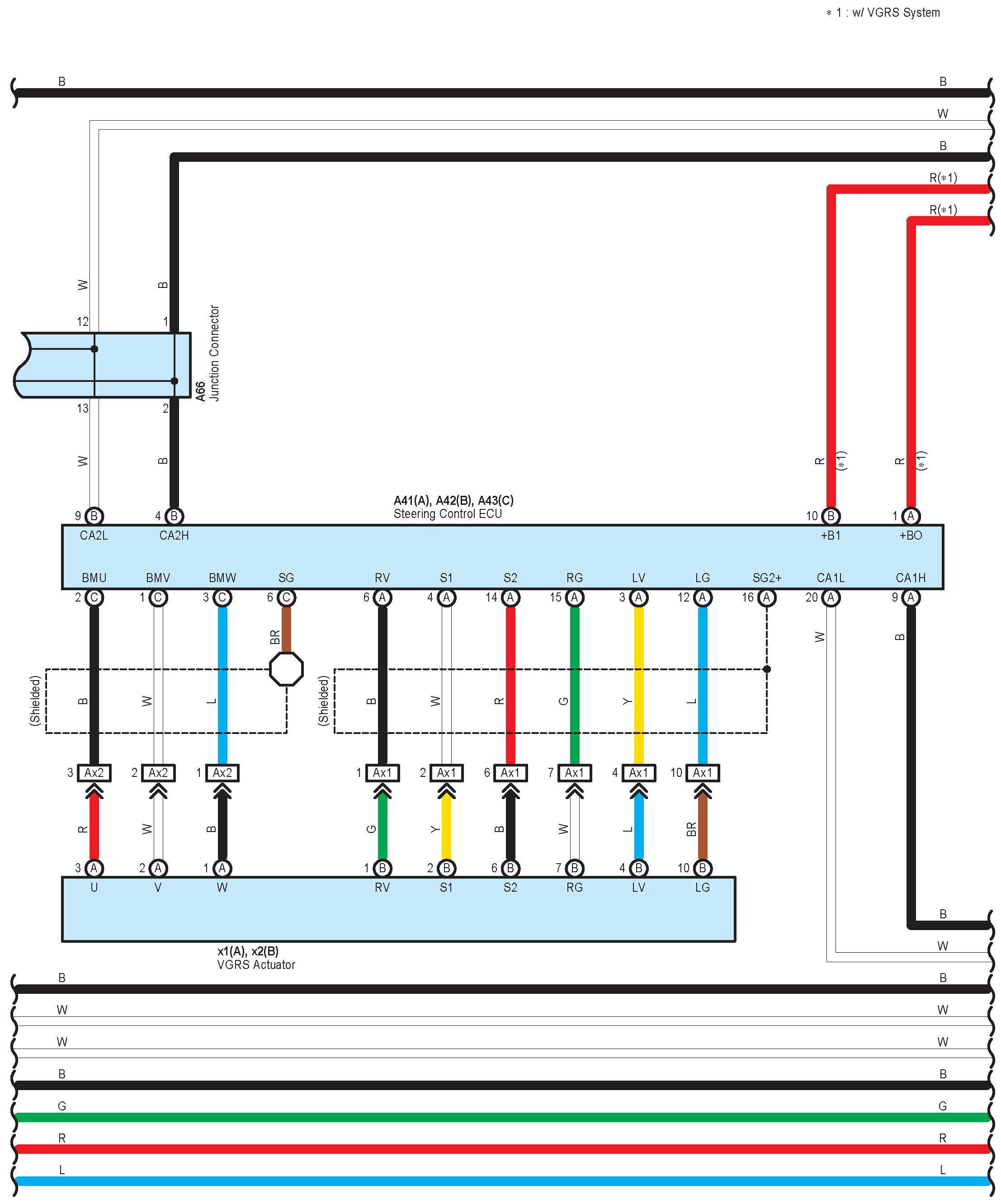

Vehicle Dynamic Integrated Management Part 7:

Vehicle Dynamic Integrated Management Part 8:

Vehicle Dynamic Integrated Management Part 9:

Vehicle Dynamic Integrated Management Part 10:

Vehicle Dynamic Integrated Management Part 11:

Vehicle Dynamic Integrated Management Part 12:

Vehicle Dynamic Integrated Management Part 13:

Vehicle Dynamic Integrated Management Part 14:

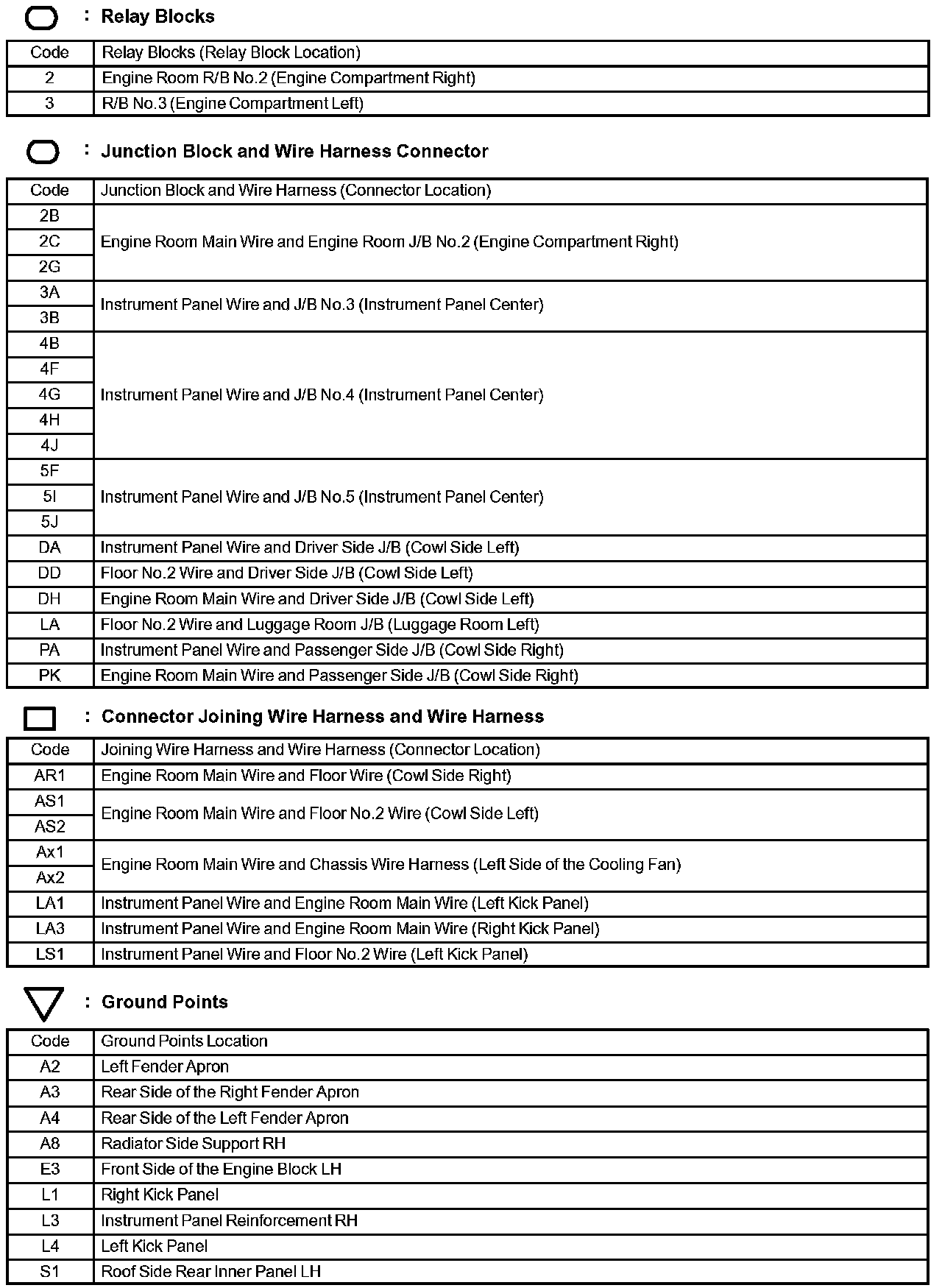

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
