BACK DOOR COURTESY SWITCH

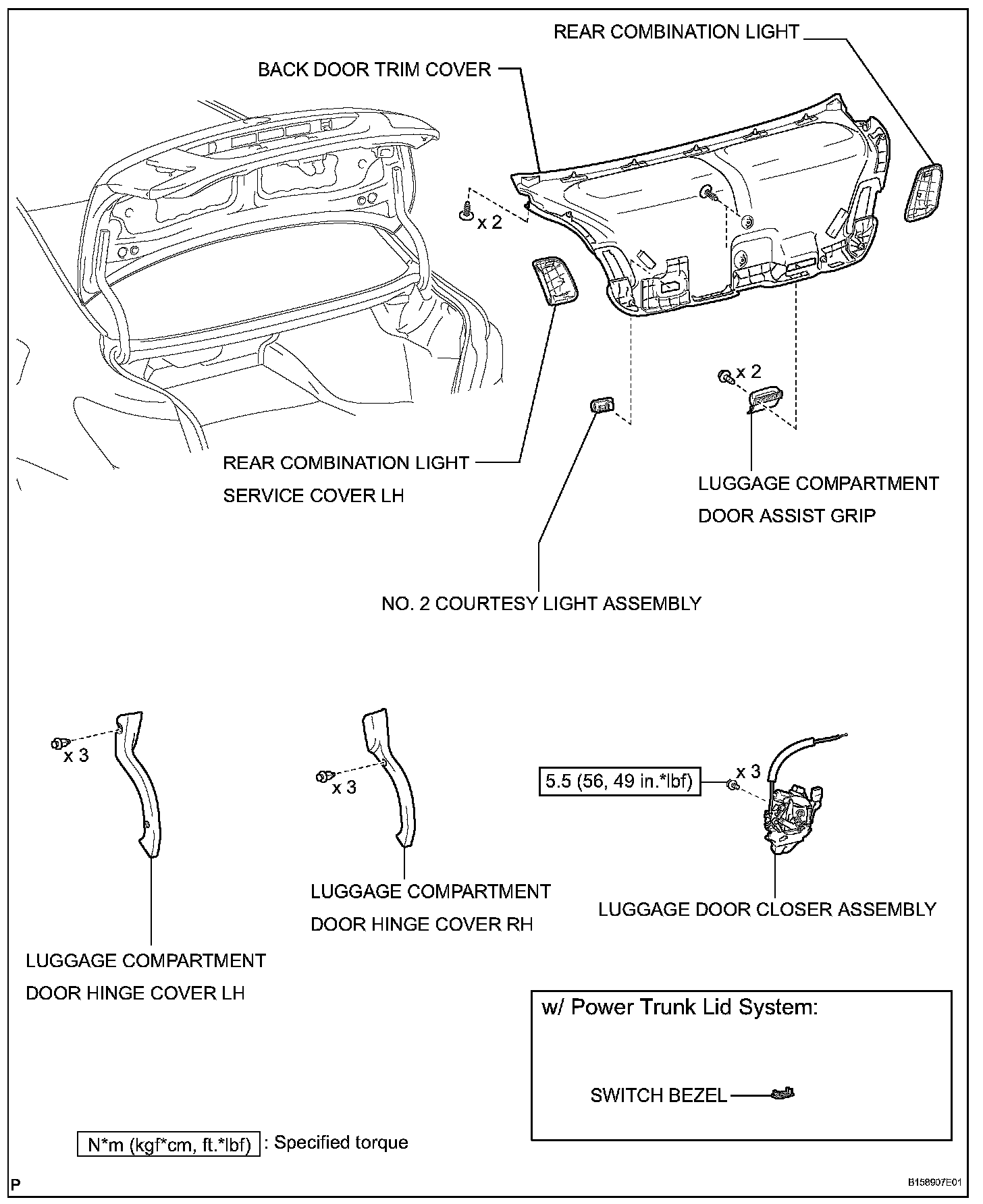

REMOVAL

1. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP
2. REMOVE SWITCH BEZEL (w/ Power Trunk Lid System)
3. REMOVE NO.2 COURTESY LIGHT ASSEMBLY
4. REMOVE REAR COMBINATION LIGHT SERVICE COVER LH
5. REMOVE REAR COMBINATION LIGHT SERVICE COVER RH
6. REMOVE LUGGAGE COMPARTMENT DOOR HINGE COVER LH
7. REMOVE LUGGAGE COMPARTMENT DOOR HINGE COVER RH
8. REMOVE BACK DOOR TRIM COVER




9. REMOVE LUGGAGE DOOR CLOSER ASSEMBLY

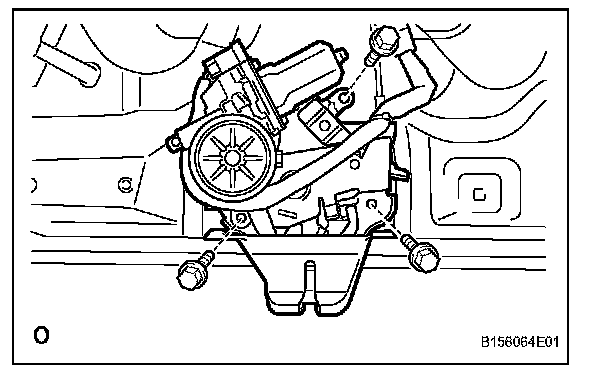

a. Disconnect the connector.
b. Remove the 3 bolts and luggage door closer.

INSTALLATION




1. INSTALL LUGGAGE DOOR CLOSER ASSEMBLY

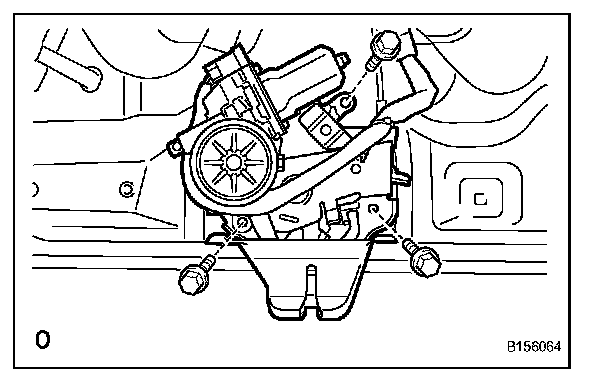

a. Connect the connector.
b. Install the luggage door closer with the 3 bolts.

Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

2. INSTALL BACK DOOR TRIM COVER
3. REMOVE LUGGAGE COMPARTMENT DOOR HINGE COVER LH
4. INSTALL LUGGAGE COMPARTMENT DOOR HINGE COVER RH
5. INSTALL REAR COMBINATION LIGHT SERVICE COVER LH
6. INSTALL REAR COMBINATION LIGHT SERVICE COVER RH
7. INSTALL NO.2 COURTESY LIGHT ASSEMBLY
8. INSTALL SWITCH BEZEL (w/ Power Trunk Lid System)
9. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP
