Rear Power Seat Does Not Operate With Rear Power Seat Switch
Rear Power Seat does not Operate with Rear Power Seat SwitchDESCRIPTION
Rear power seat switch signals are sent to the position control ECU through the LIN line. The position control ECU then operates each motor.
WIRING DIAGRAM

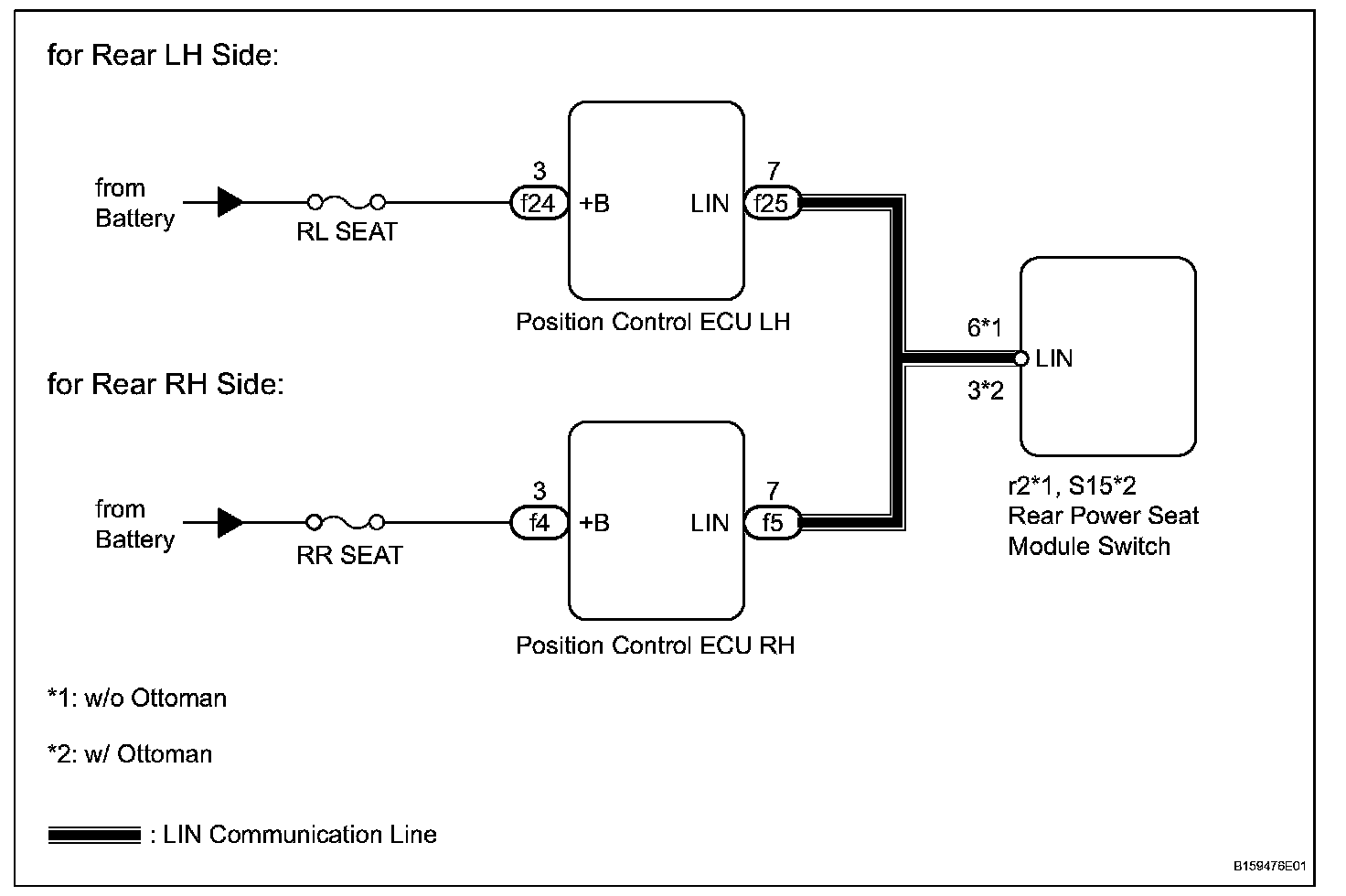

Wiring Diagram:
INSPECTION PROCEDURE
Step 1:

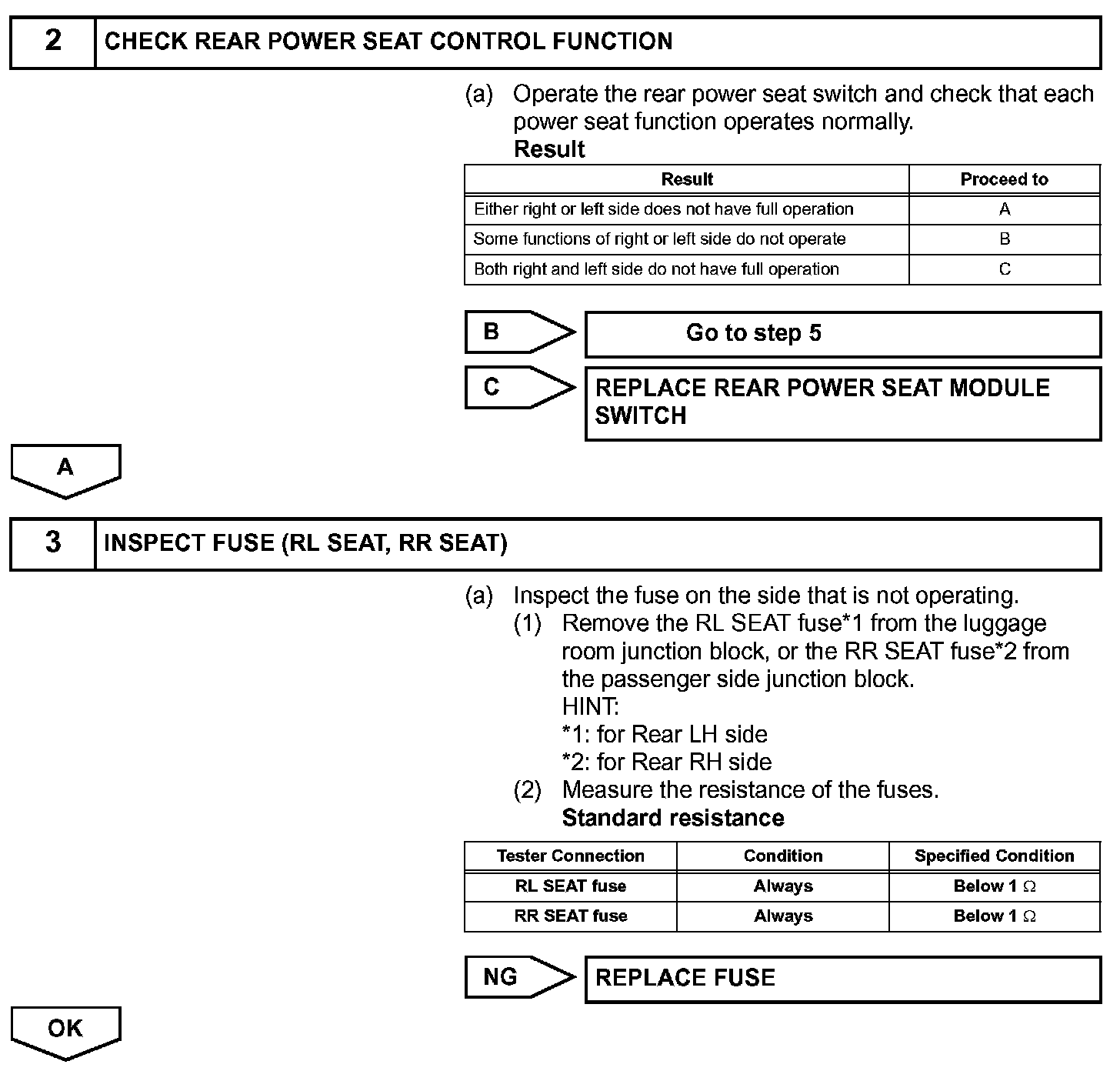

Step 2 - 3:

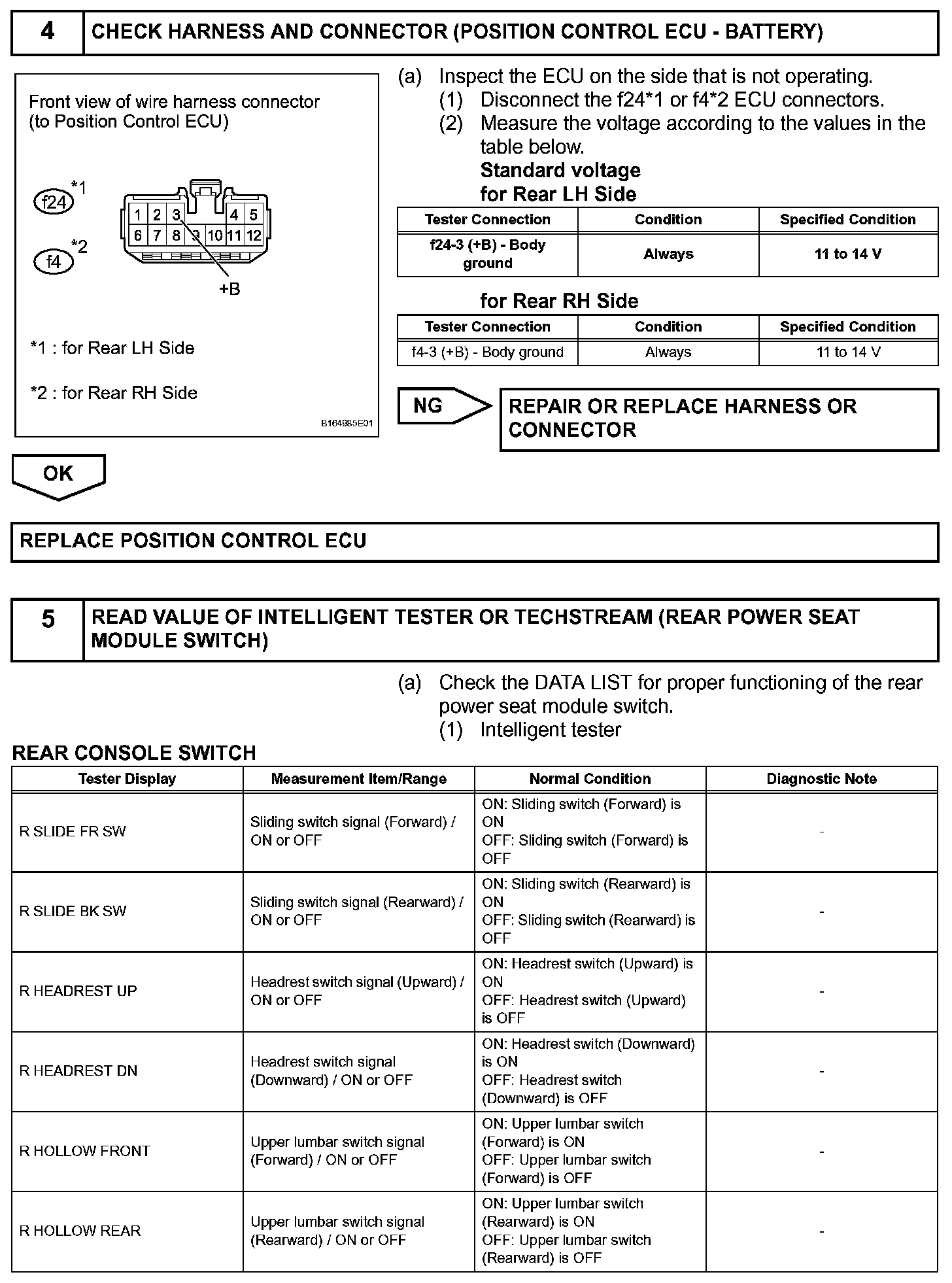

Step 4 - 5:

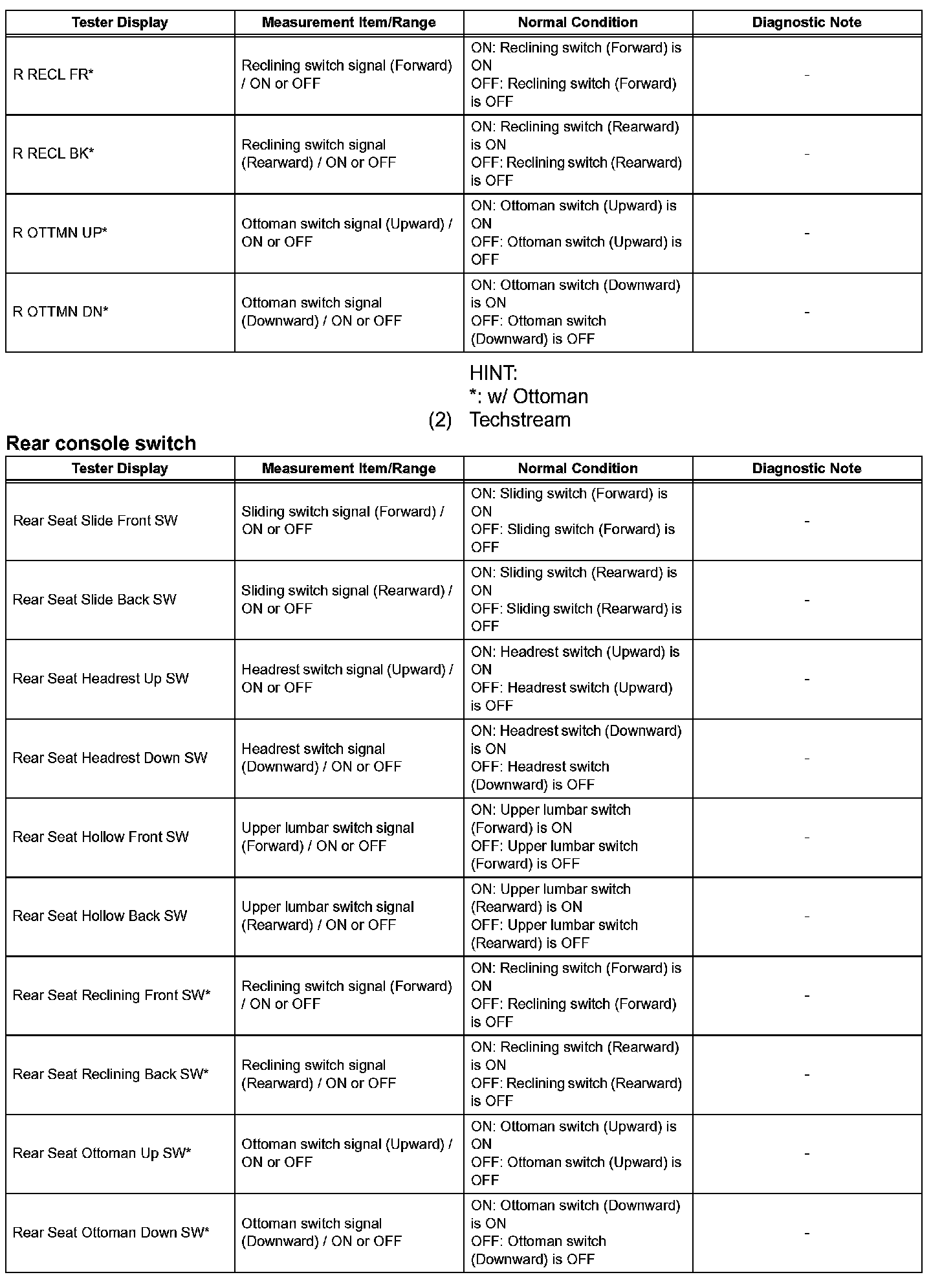

Step 5(Continued):

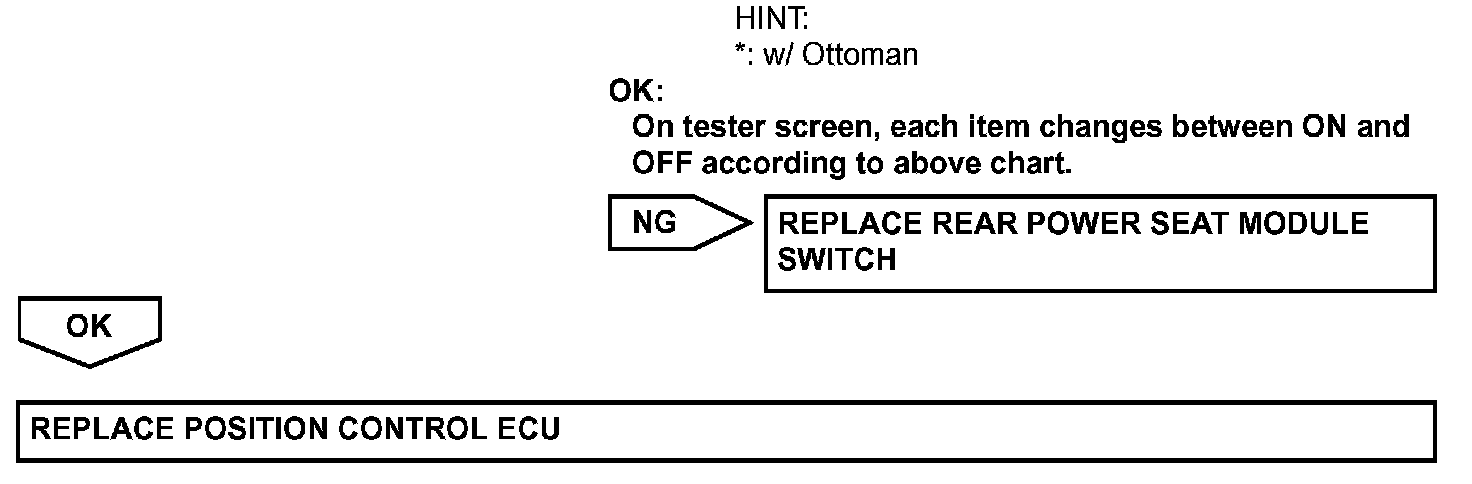

Step 5(Continued):
