Door Open Linked Operation Cannot Be Canceled
Door Open Linked Operation cannot be CanceledDESCRIPTION
When the rear seat memory switch's C switch is pressed, a C switch signal is sent from the rear door ECU to the rear power seat switch through CAN communication. Then the rear power seat switch sends the C switch signal to the position control ECU through the LIN line. When the position control ECU receives the C switch signal, the door open linked return operation is stopped.
WIRING DIAGRAM
Wiring Diagram (Part 1):

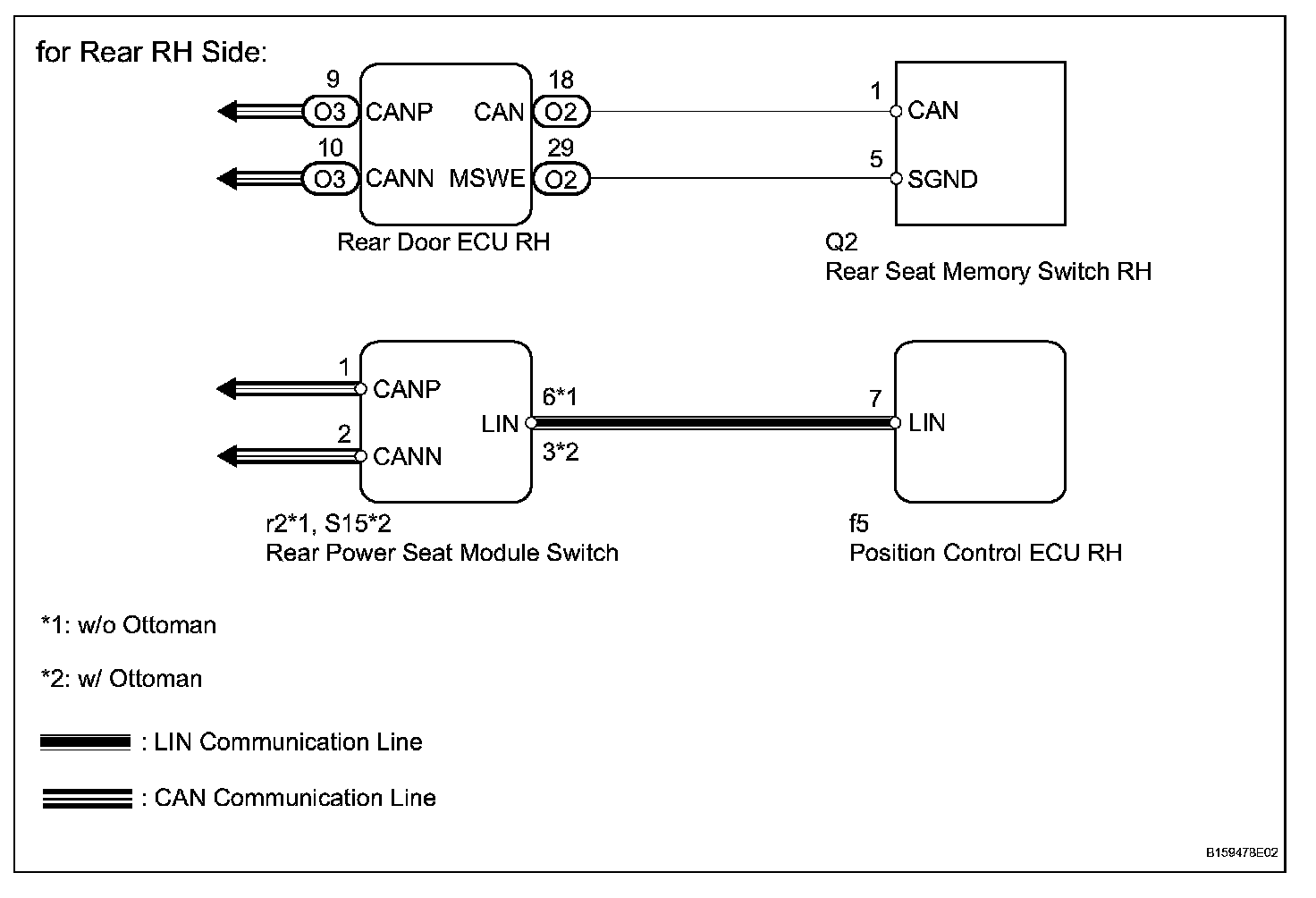

Wiring Diagram (Part 2):
INSPECTION PROCEDURE

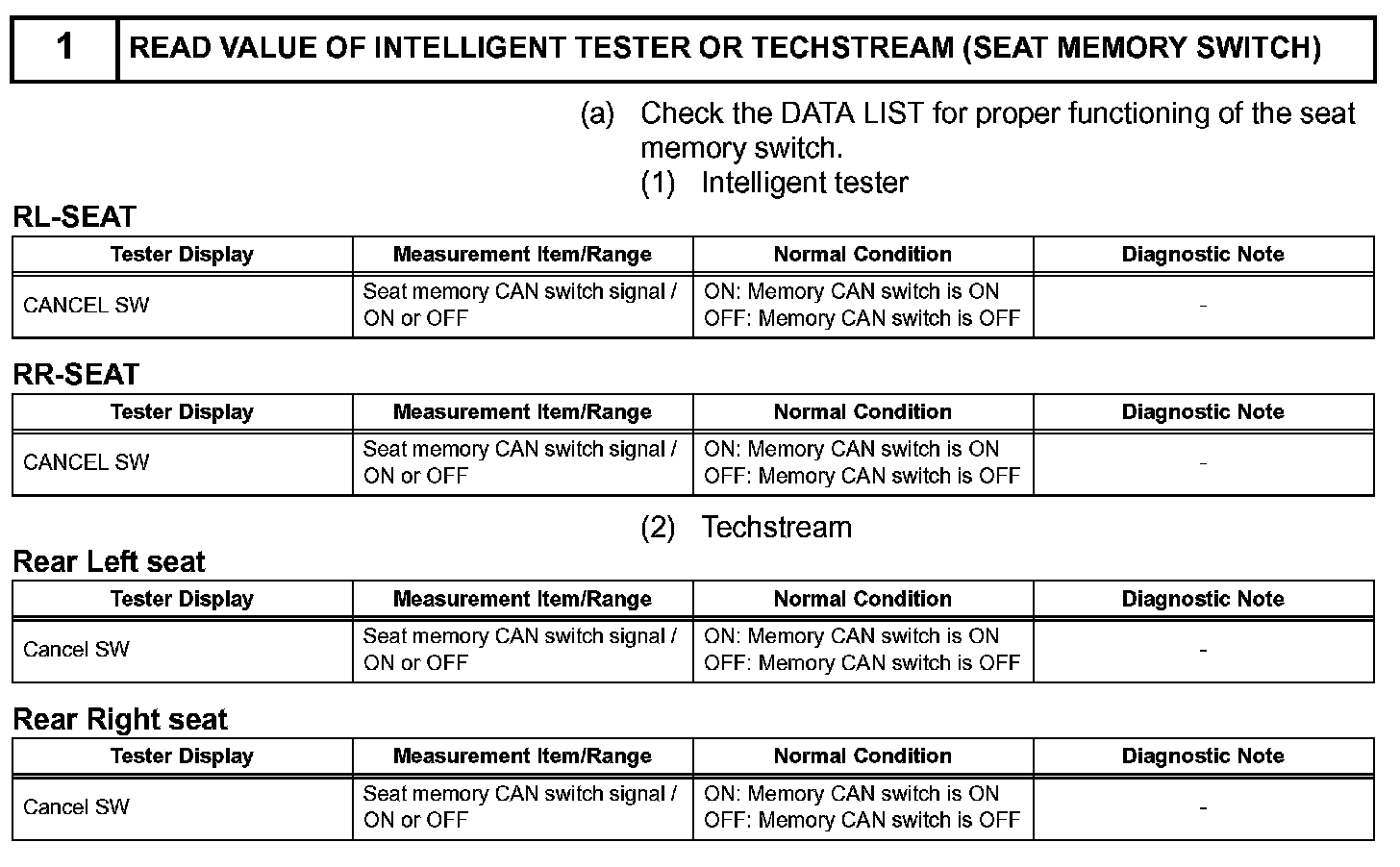

Step 1:

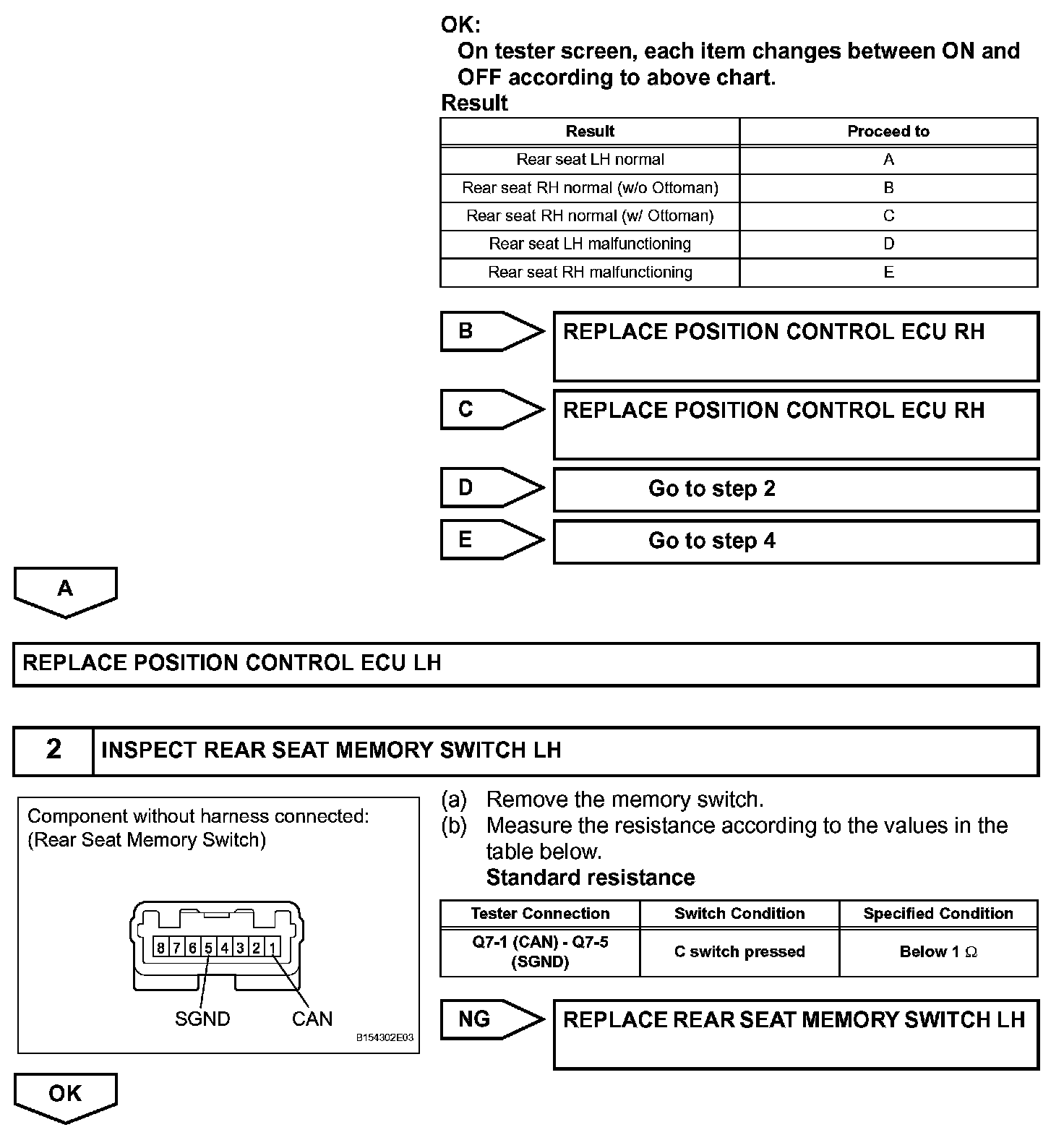

Step 1(Continued) - 2:

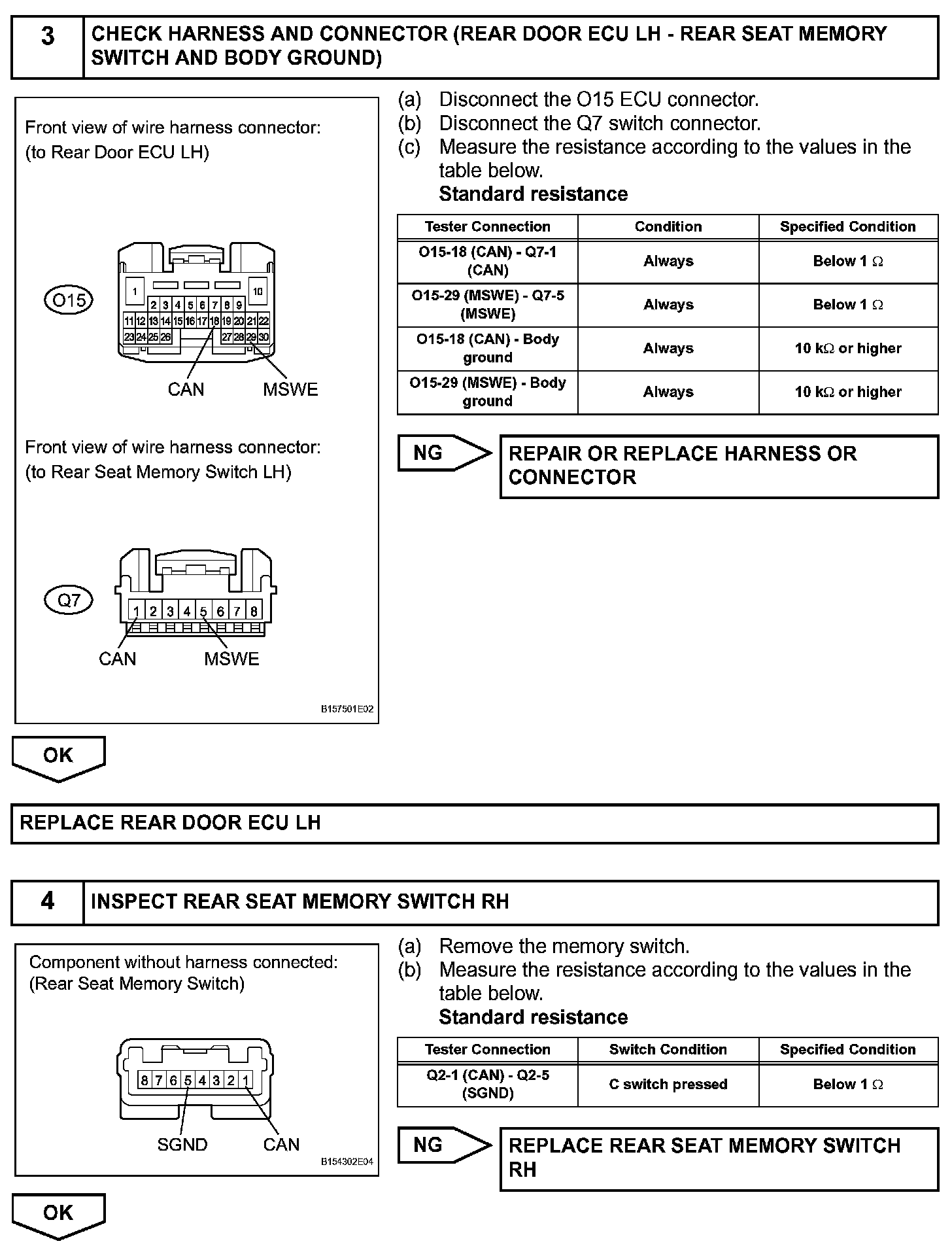

Step 3 - 4:

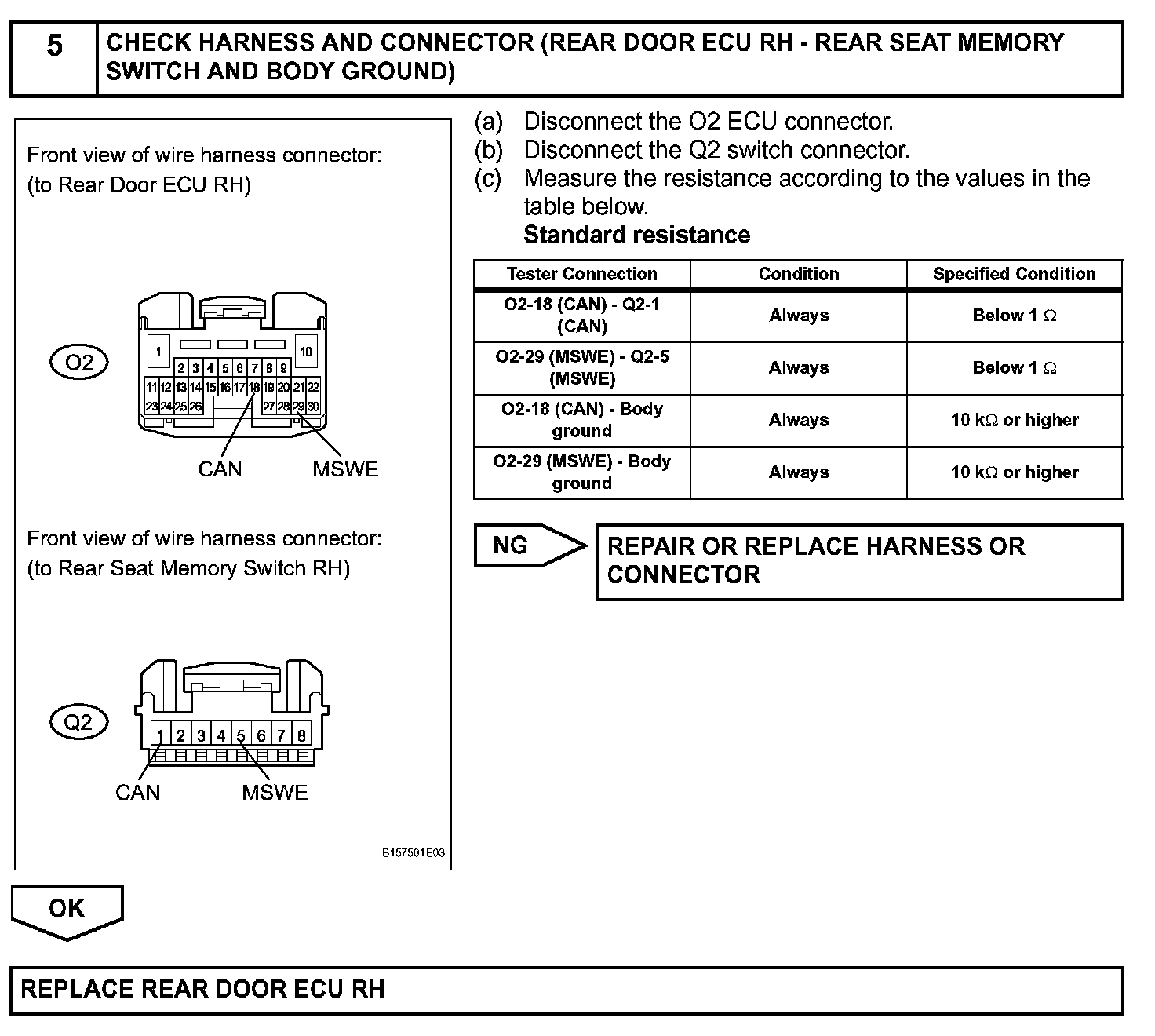

Step 5:
