Wireless Transmitter Memory Function Does Not Operate

Wireless Transmitter Memory Function does not Operate

DESCRIPTION
With the engine switch off and the driver door closed, press a seat memory switch (M1, M2 or M3) while holding either the transmitter's LOCK or UNLOCK switch, or the door lock control switch's lock or unlock switch. Doing so will register the transmitter's recognition code into the seat memory switch that was pressed. After the registration is complete, the answer-back buzzer sounds.

INSPECTION PROCEDURE

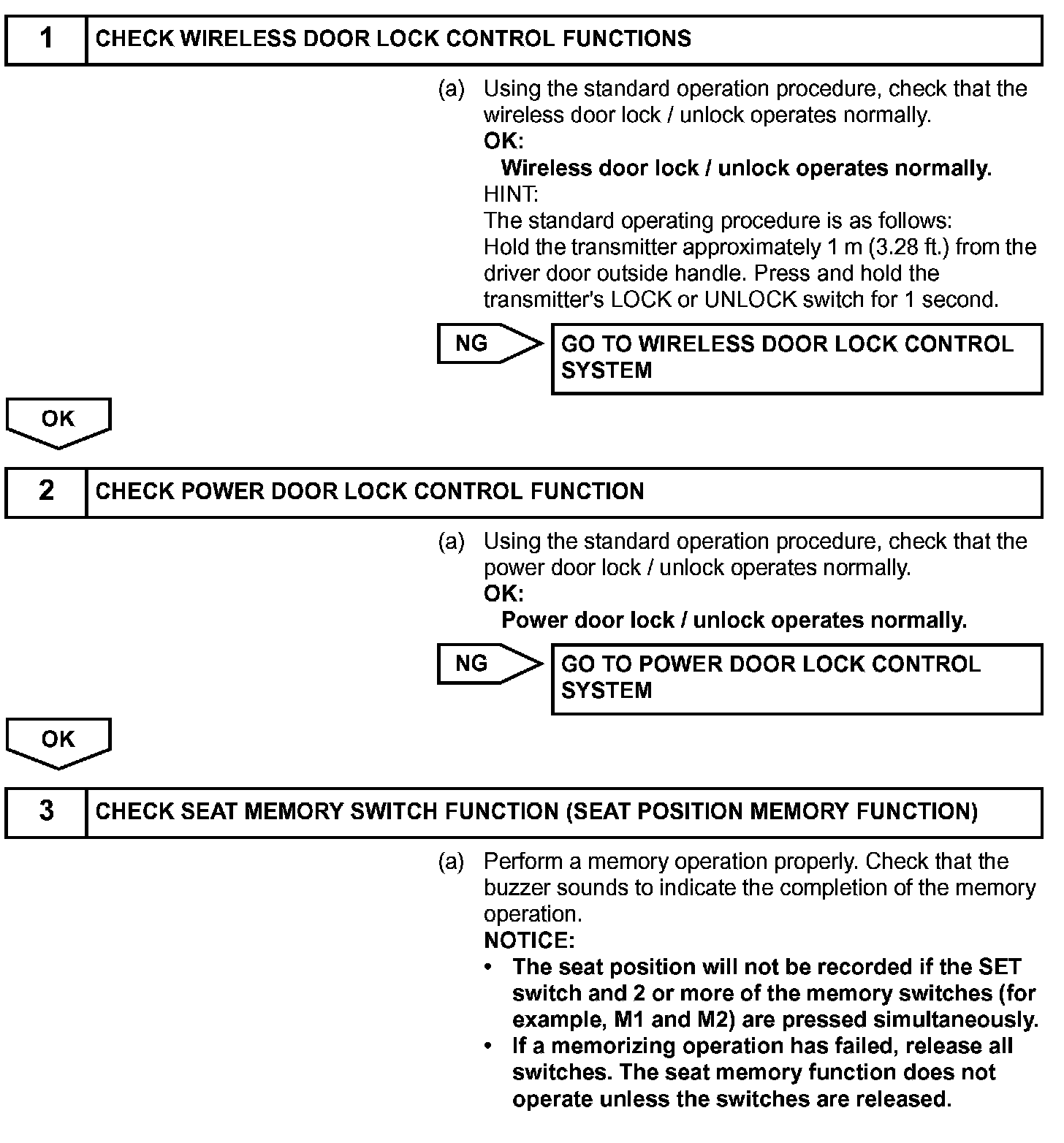

Step 1 - 3:

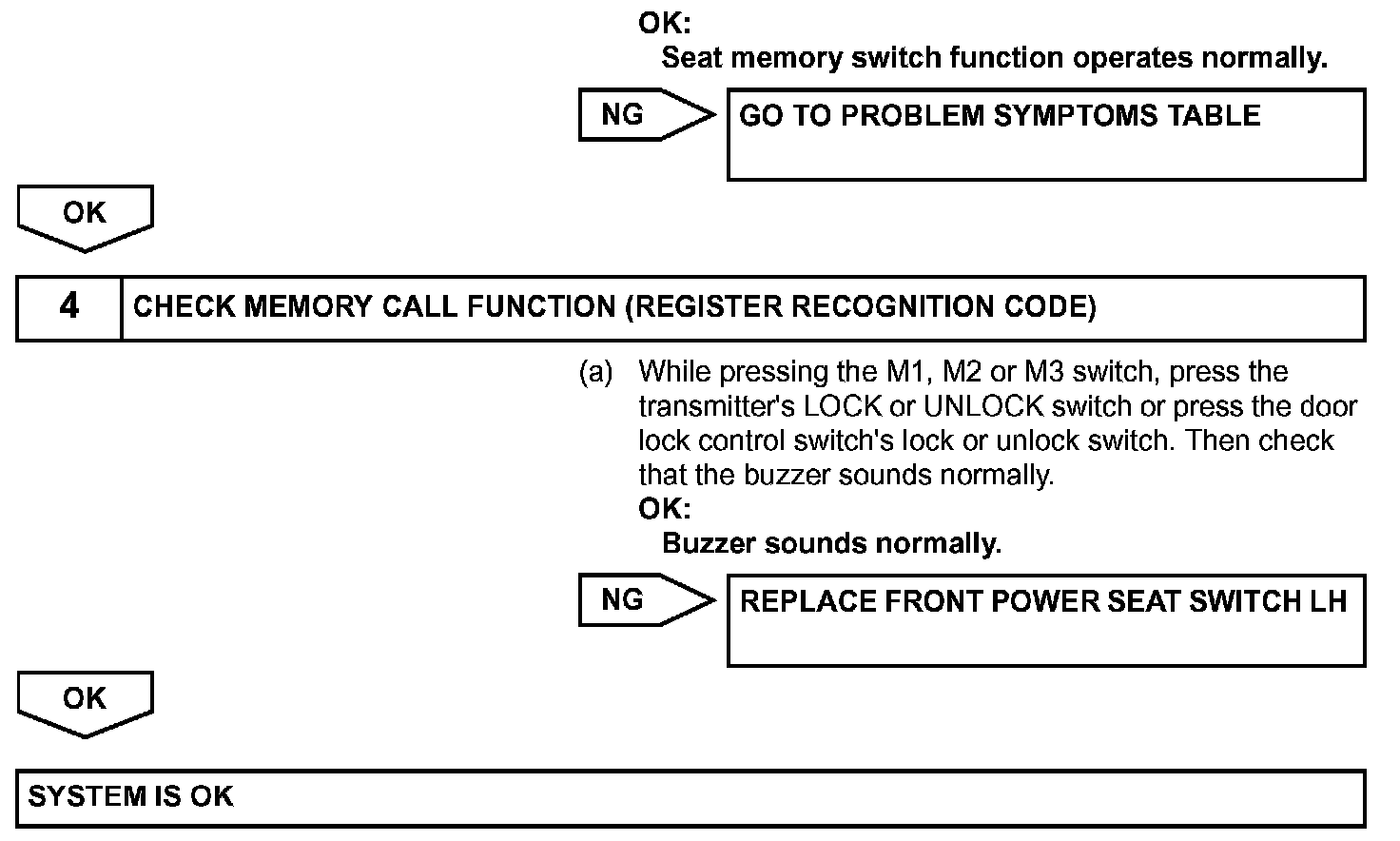

Step 3(Continued) - 4:
