Power Seat Position Is Not Memorized

Power Seat Position is not Memorized

DESCRIPTION
When the seat memory SET switch and a memory switch (M1, M2 or M3) are pressed simultaneously, the front multiplex network ECU LH commands the front power seat switch LH (driver seat ECU) through CAN communication to record each position sensor's value.

WIRING DIAGRAM

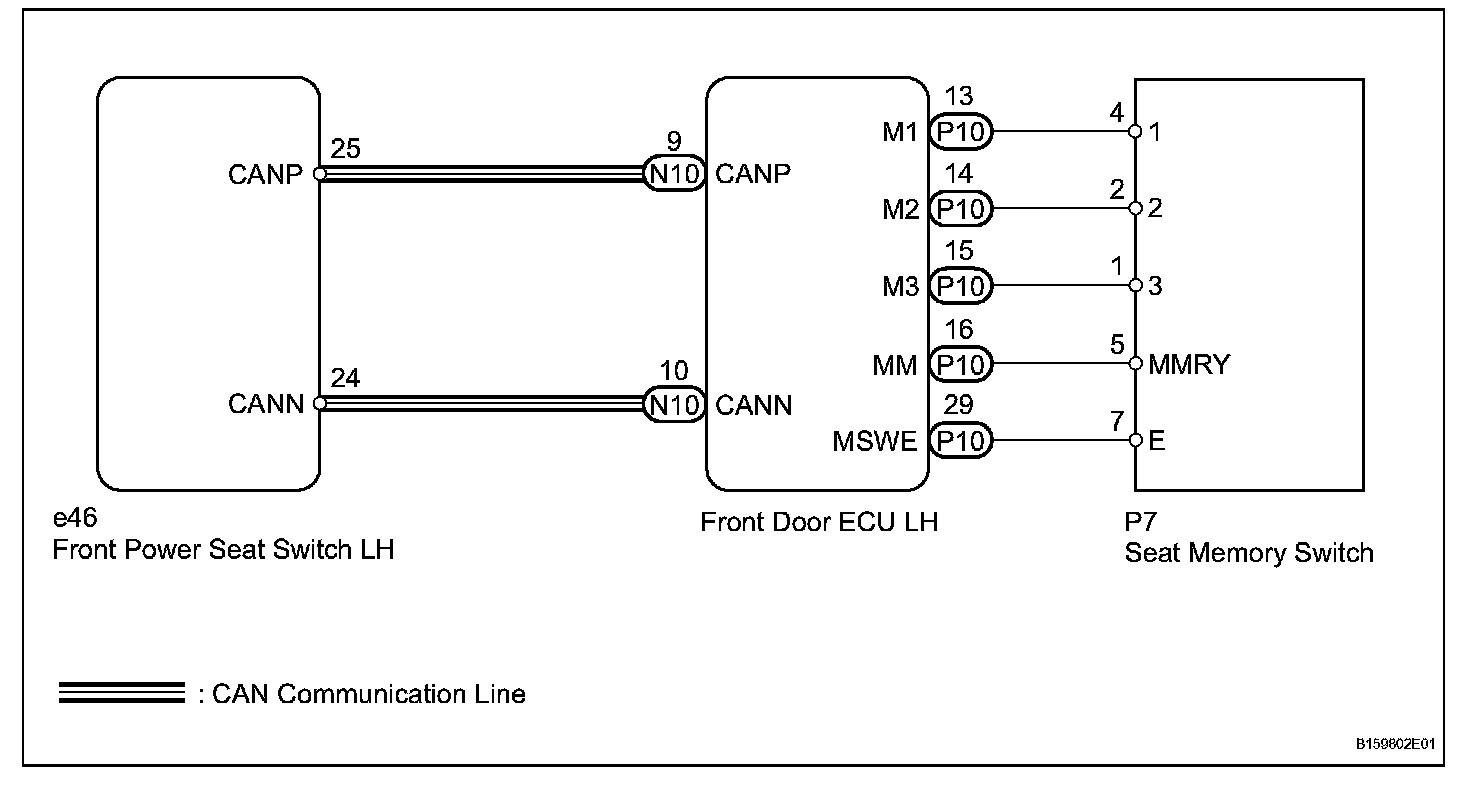

Wiring Diagram:

INSPECTION PROCEDURE

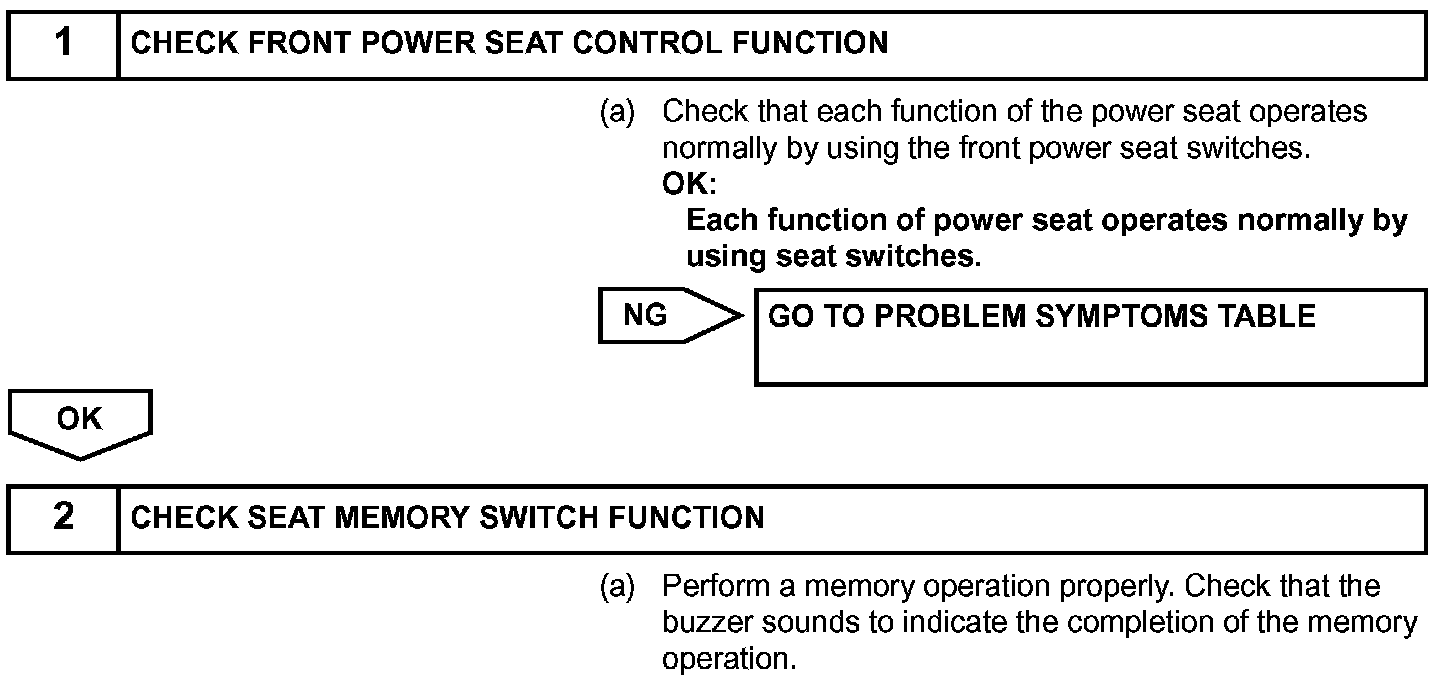

Step 1 - 2:

Step 2(Continued) - 4:

Step 4(Continued) - 5:

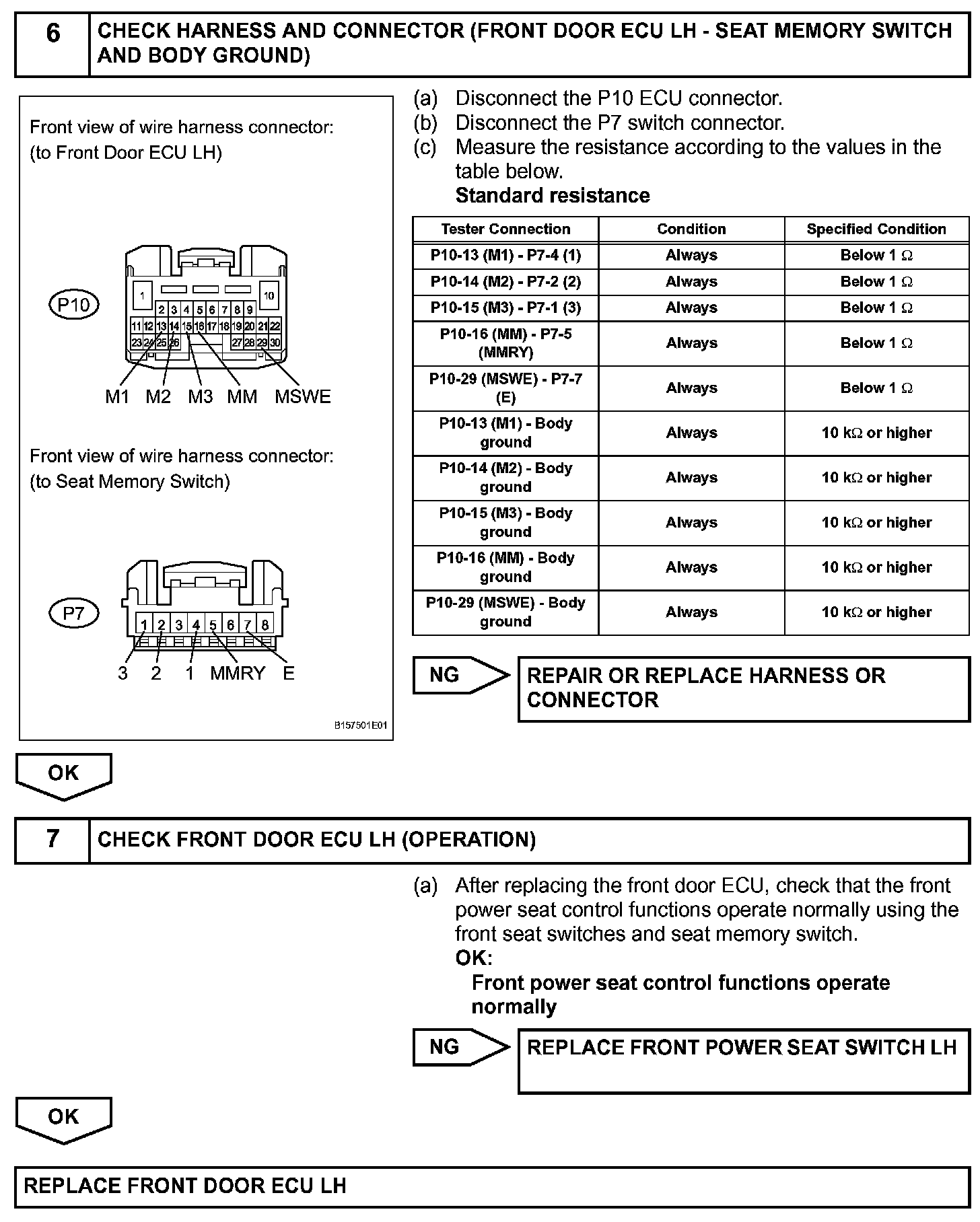

Step 6 - 7:
