Front Power Seat Does Not Operate With Front Power Seat Switch
Front Power Seat does not Operate with Front Power Seat SwitchDESCRIPTION
When a signal is input into the front power seat switch (seat ECU), it manages the signals received from the front power seat switch LH and RH, and operates each motor. When 2 or more signals are input, the motors only operate when the signals are from the slide switch and reclining switch.
WIRING DIAGRAM

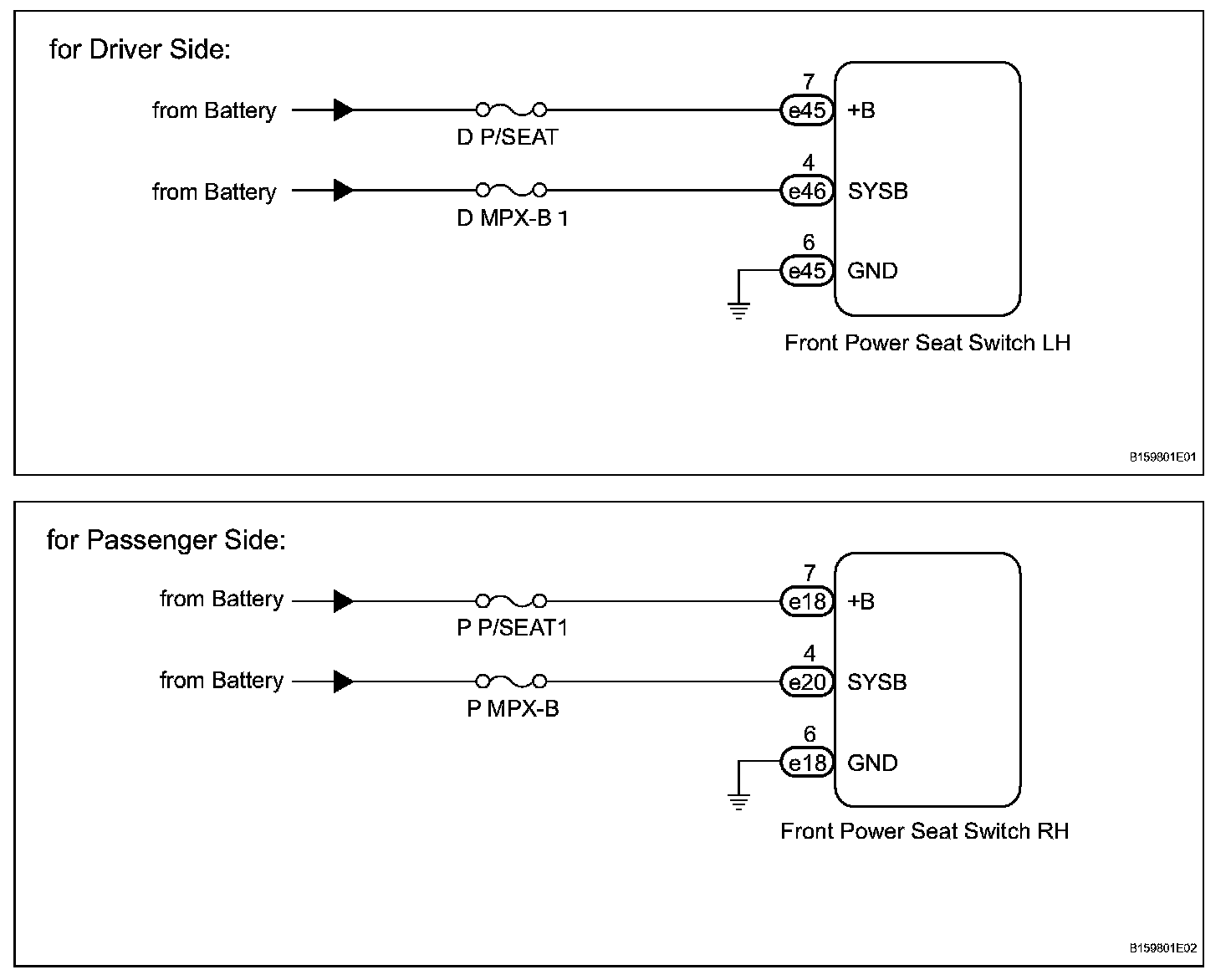

Wiring Diagram:
INSPECTION PROCEDURE

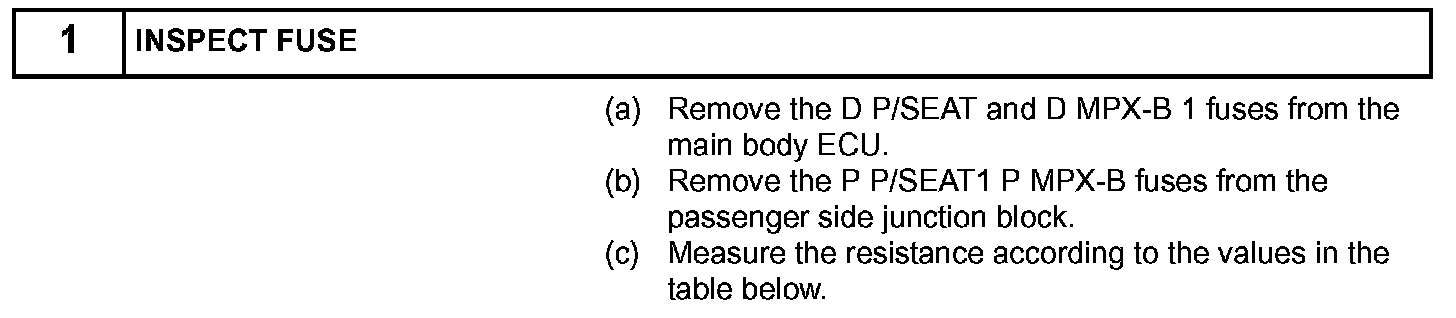

Step 1:

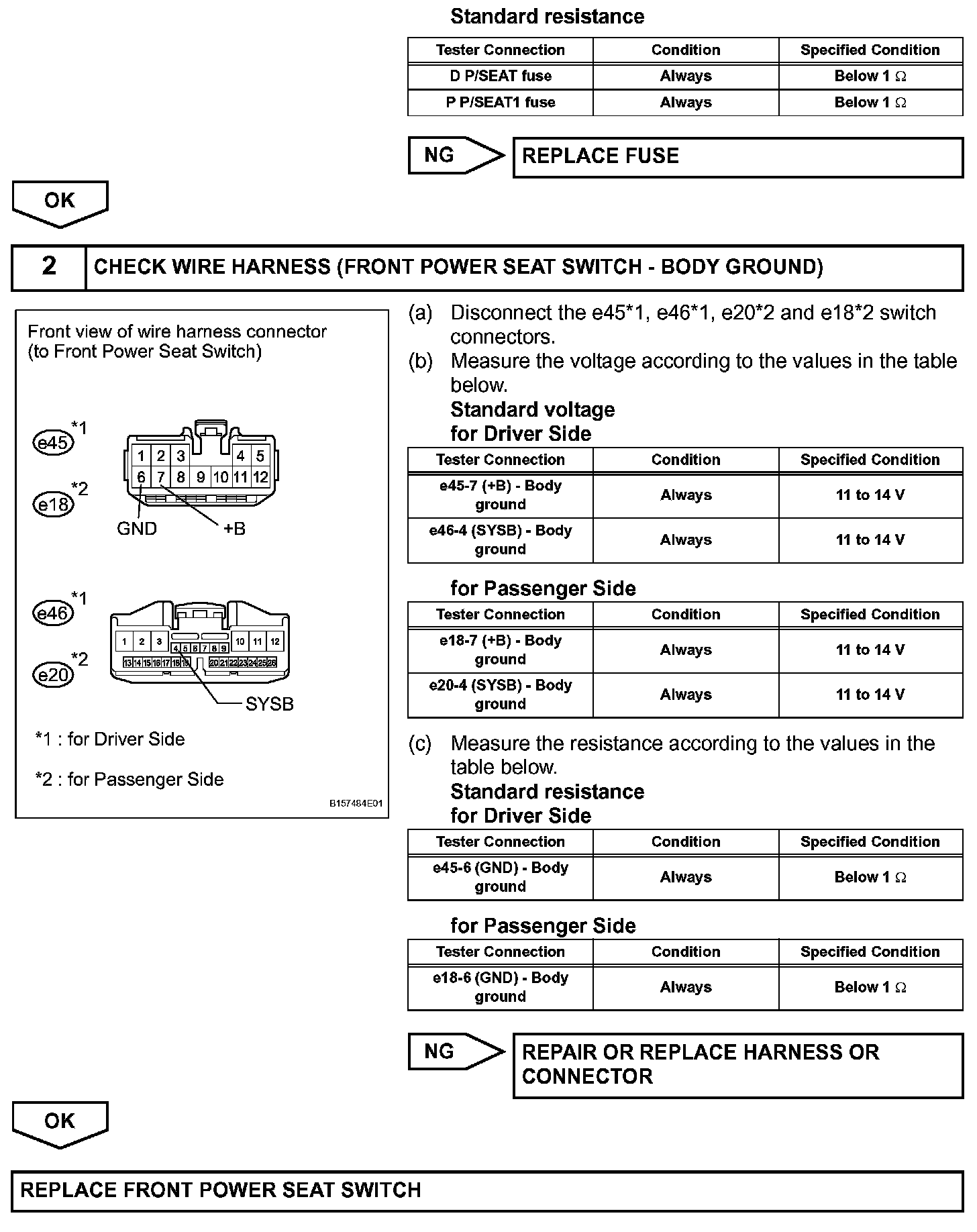

Step 1(Continued) - 2:
