Front Passenger Seat Ottoman Linked Operation Does Not Function With Rear Power Seat Switch
Front Passenger Seat Ottoman Linked Operation does not Function with Rear Power Seat SwitchDESCRIPTION
When the rear power seat module switch's FRONT switch is pressed, switch information is sent from the rear power seat module switch to the front power seat switch RH (passenger seat ECU) through CAN communication. Then the front power seat switch RH (passenger seat ECU) moves the front passenger seat to the full front position.
INSPECTION PROCEDURE

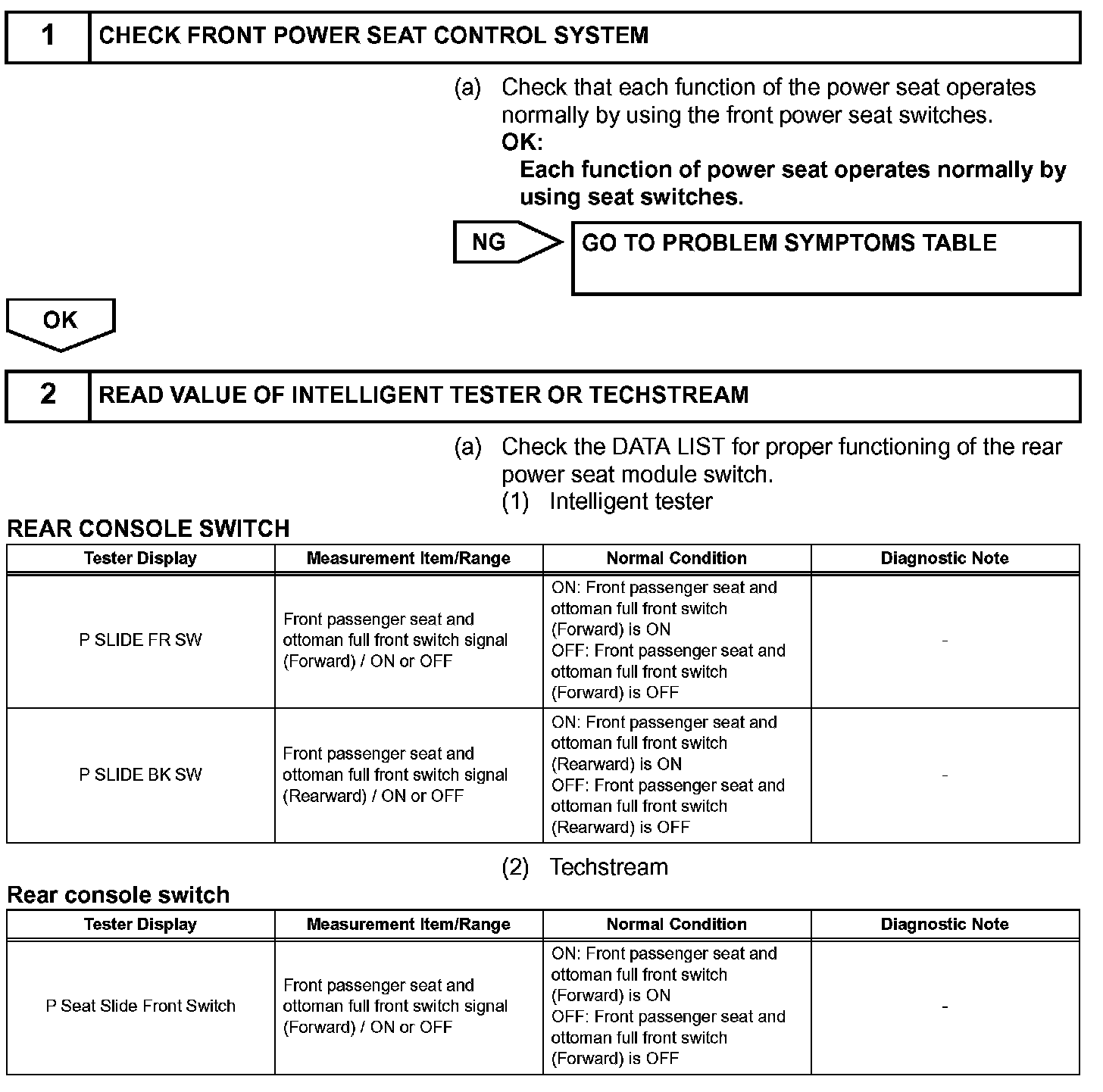

Step 1 - 2:

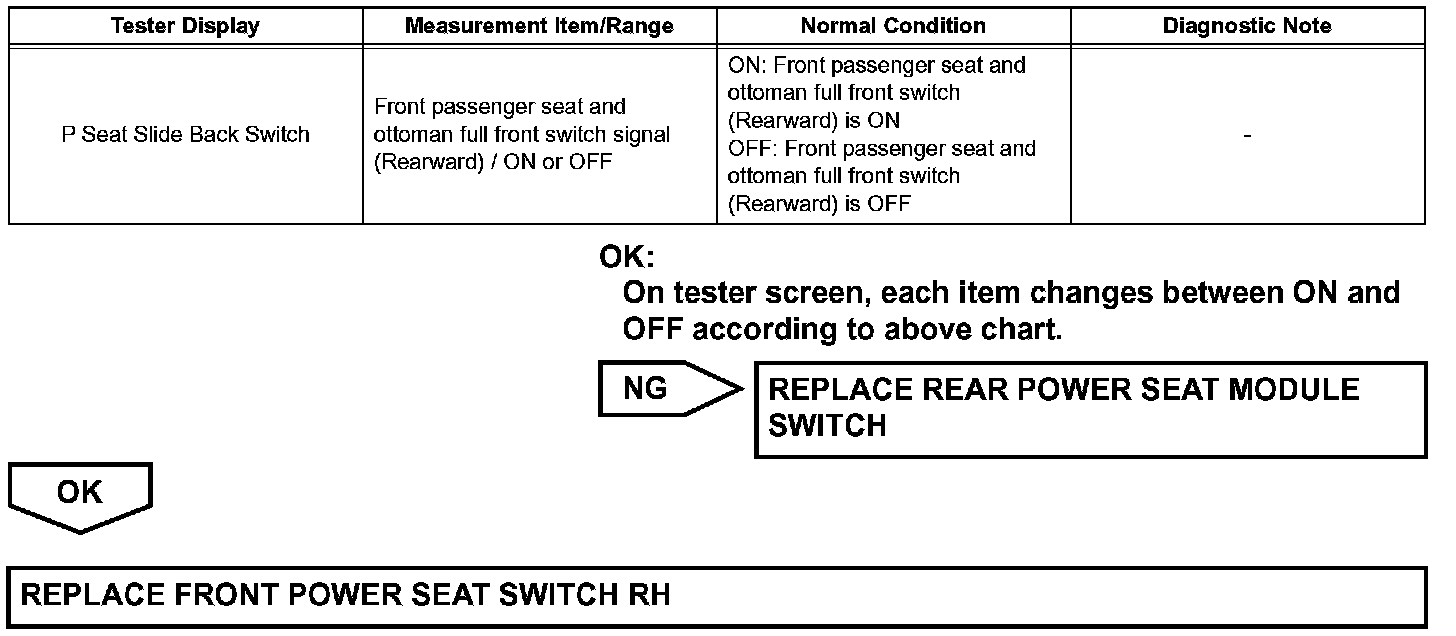

Step 2(Continued):
