Rear Air Seat Does Not Operate Through Front Switch

Rear Air Seat does not Operate Through Front Switch

DESCRIPTION
A rear air seat main switch signal is sent from the No. 2 console switch (Integration control & panel) to the No. 1 console switch (combination switch). Then the signal is sent through LIN communication to the outer mirror switch, which then signal through CAN communication to the rear power seat module switch, and then rear air seat operates.

WIRING DIAGRAM

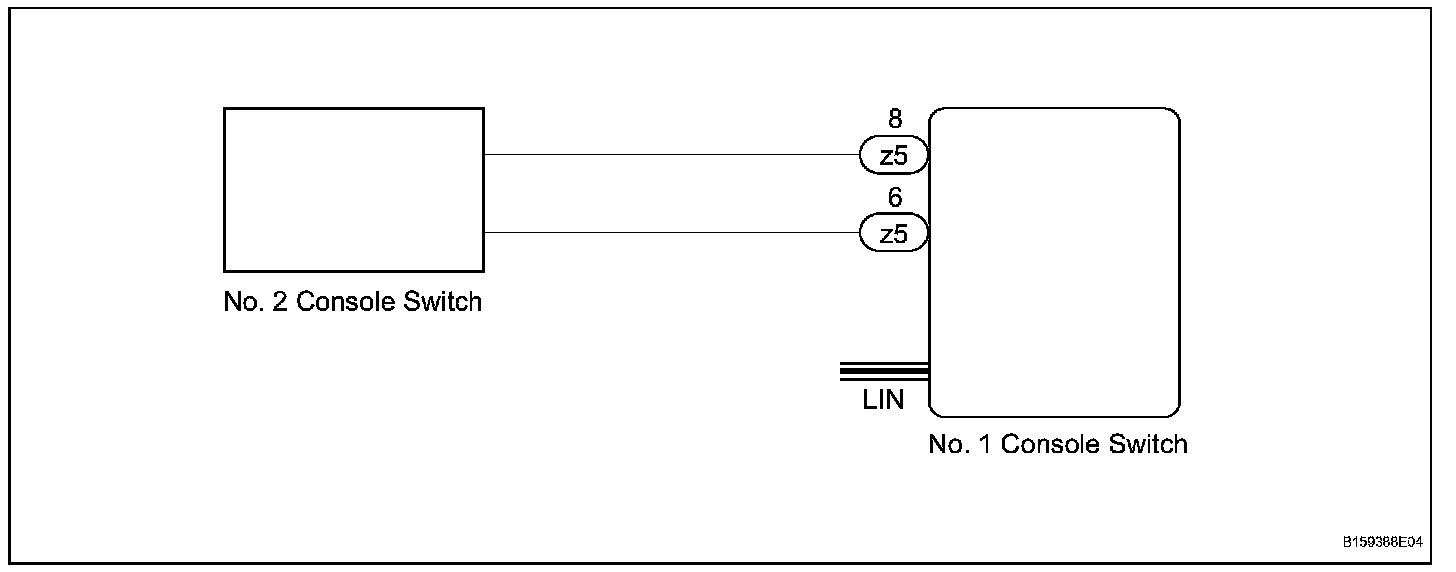

Wiring Diagram:





INSPECTION PROCEDURE

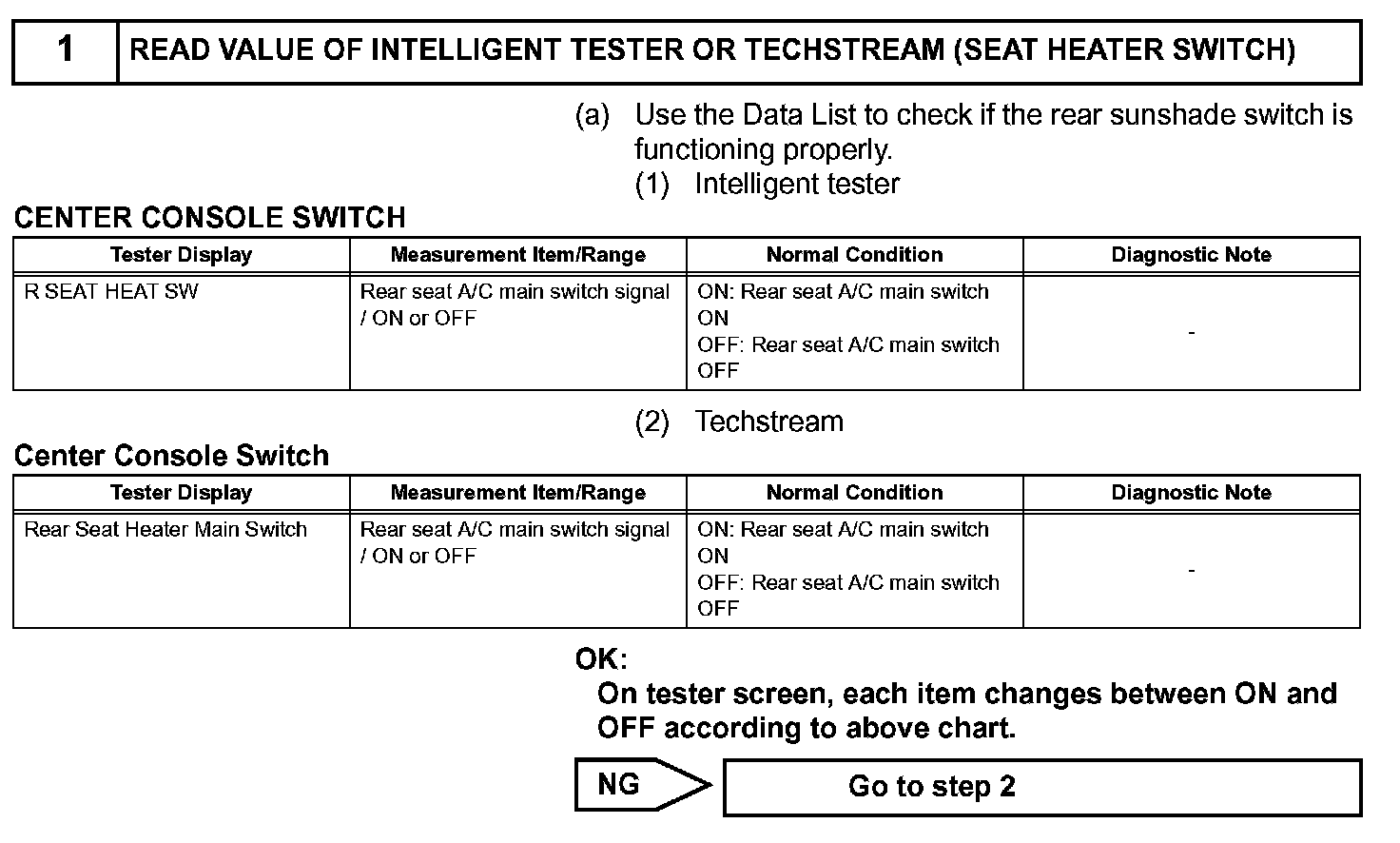

Step 1:

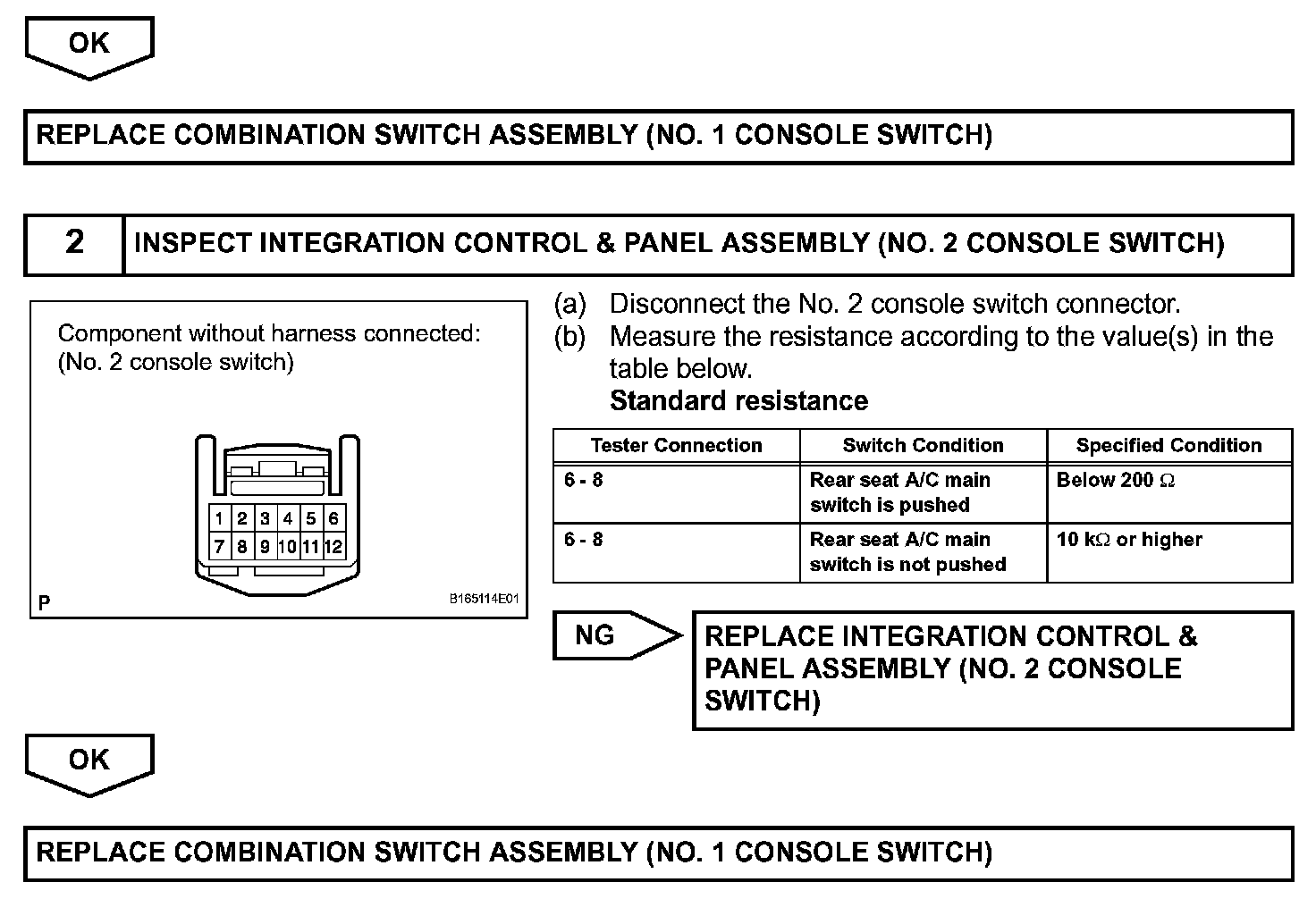

Step 1(Continued) - 2:
