Climate Control System Does Not Operate on Rear Right Side
Climate Control System does not Operate on Rear Right SideDESCRIPTION
When the curtain switch assembly's* seat heater switch is operated, the rear power seat switch receives the signal. The rear power seat switch then sends the signal to the seat climate control ECU through LIN communication. The seat climate control ECU receives the signal and operates the air seat.
HINT: *: w/o Ottoman
WIRING DIAGRAM

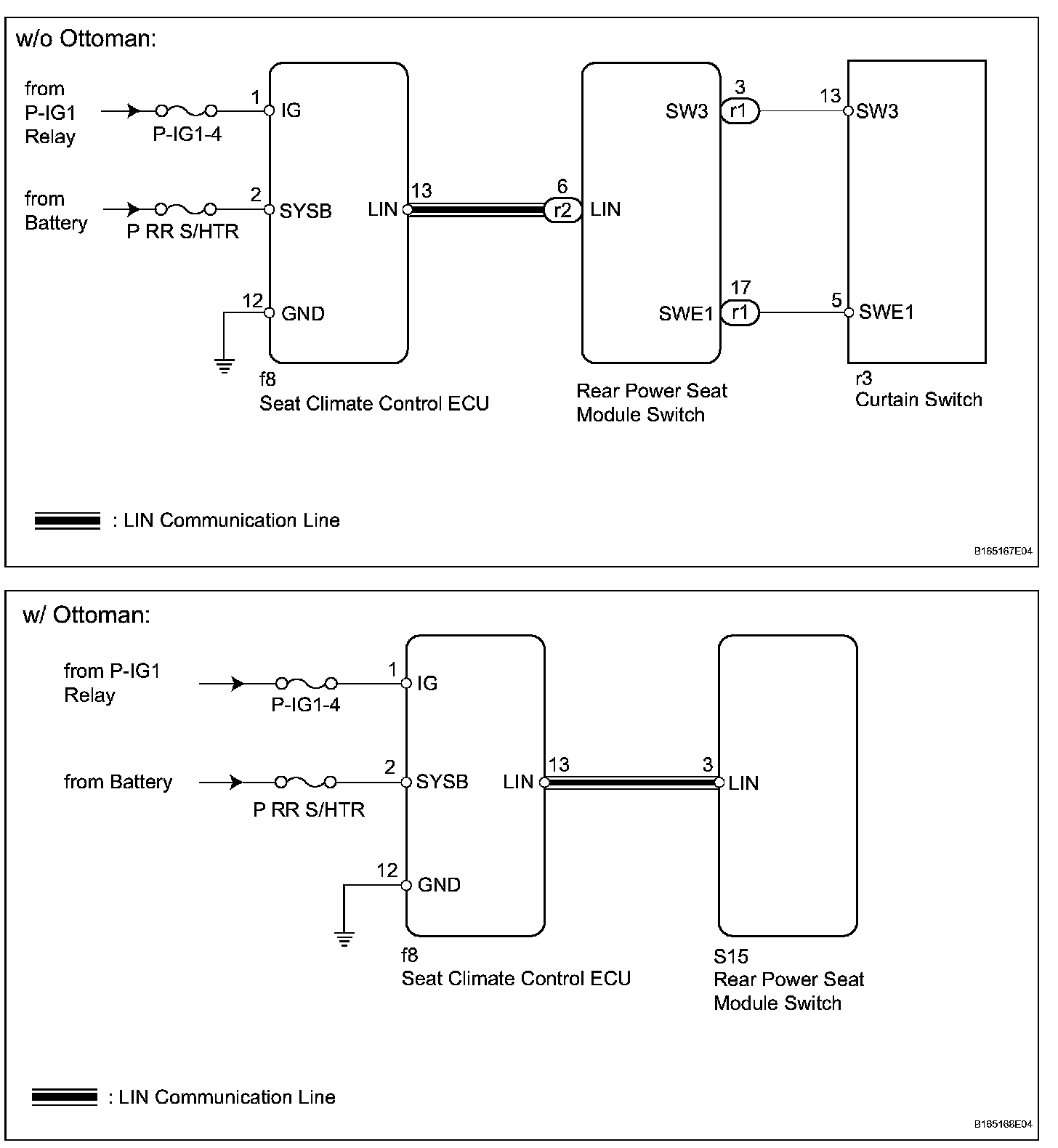

Wiring Diagram:
INSPECTION PROCEDURE

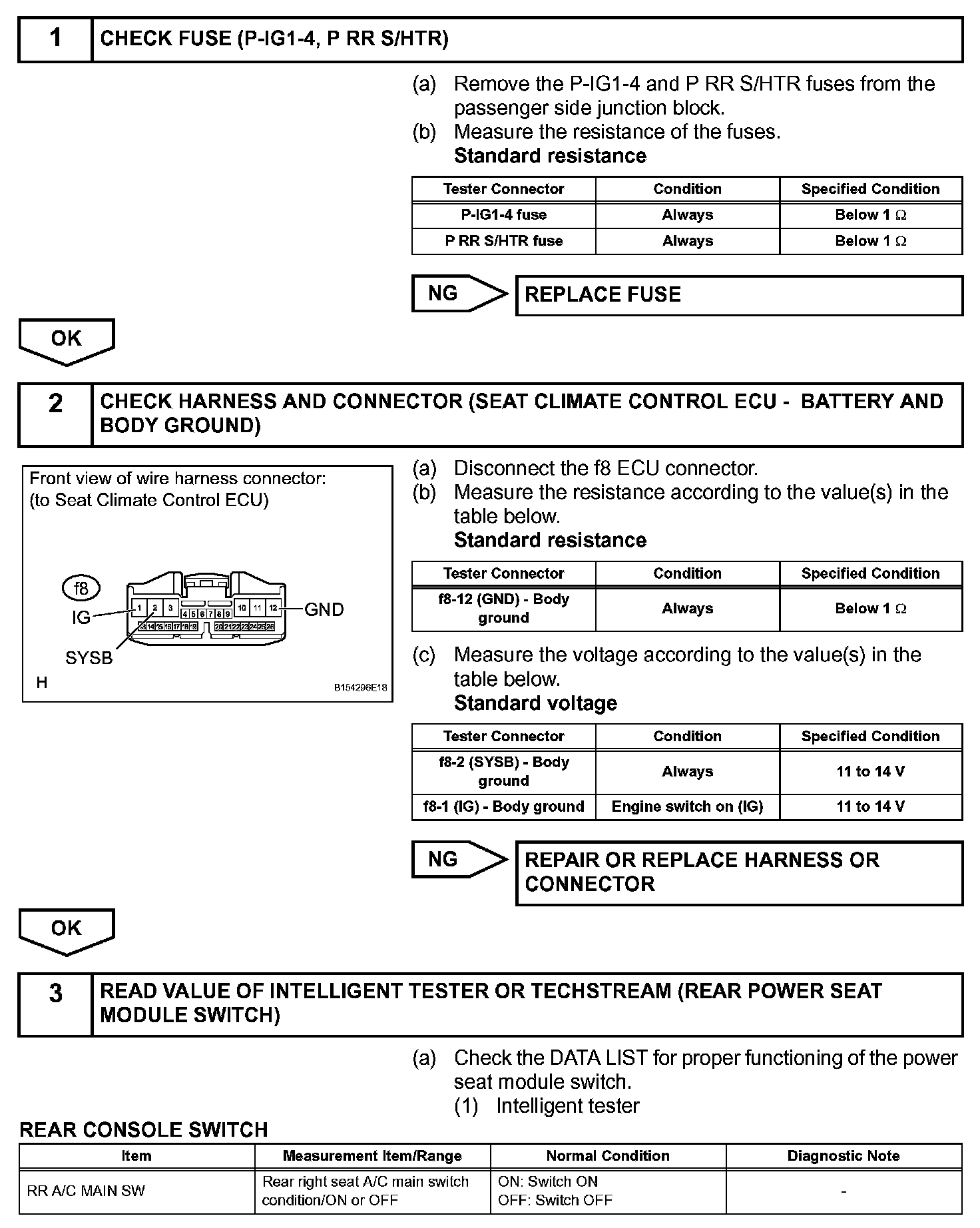

Step 1 - 3:

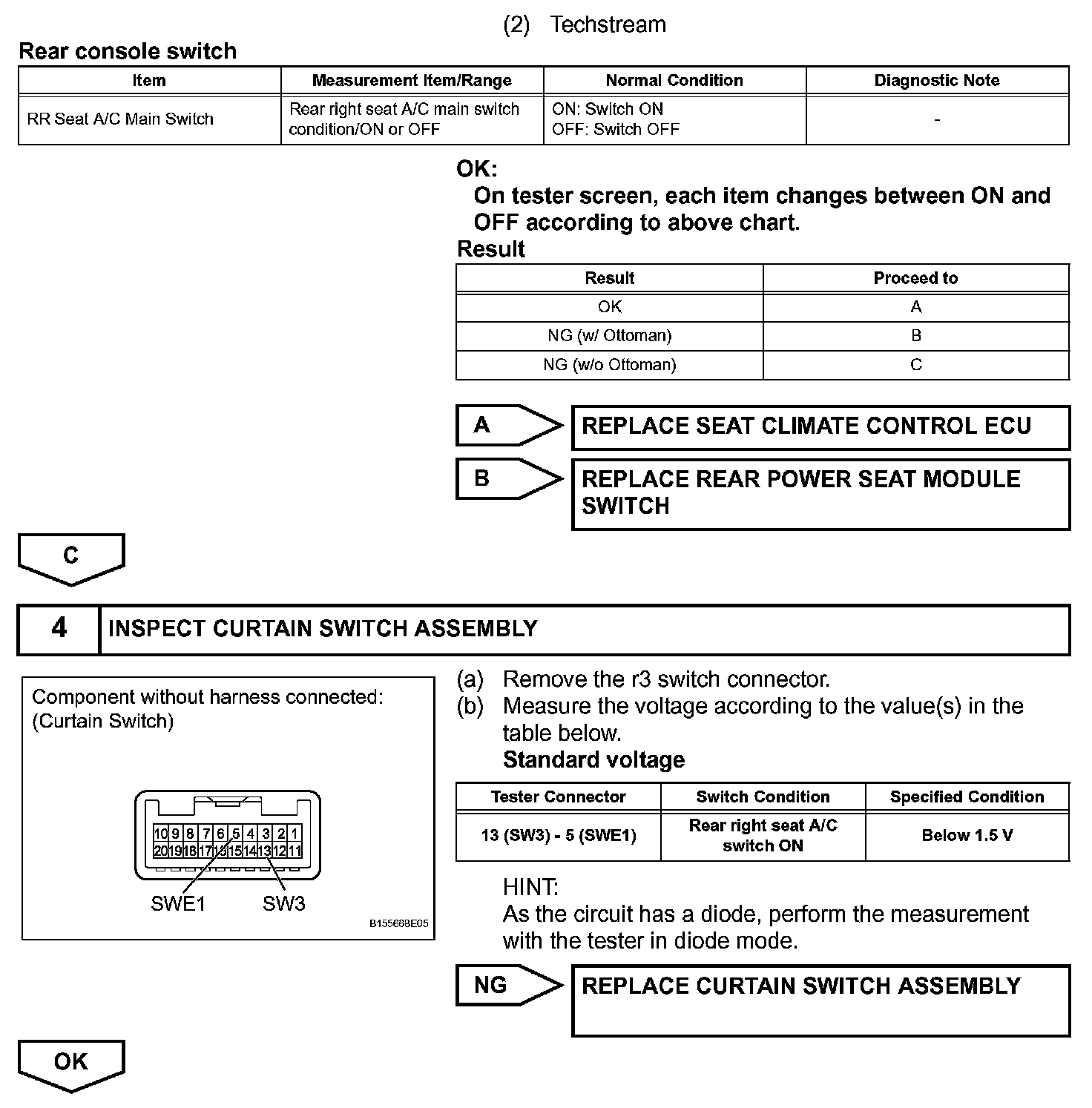

Step 3(Continued) - 4:

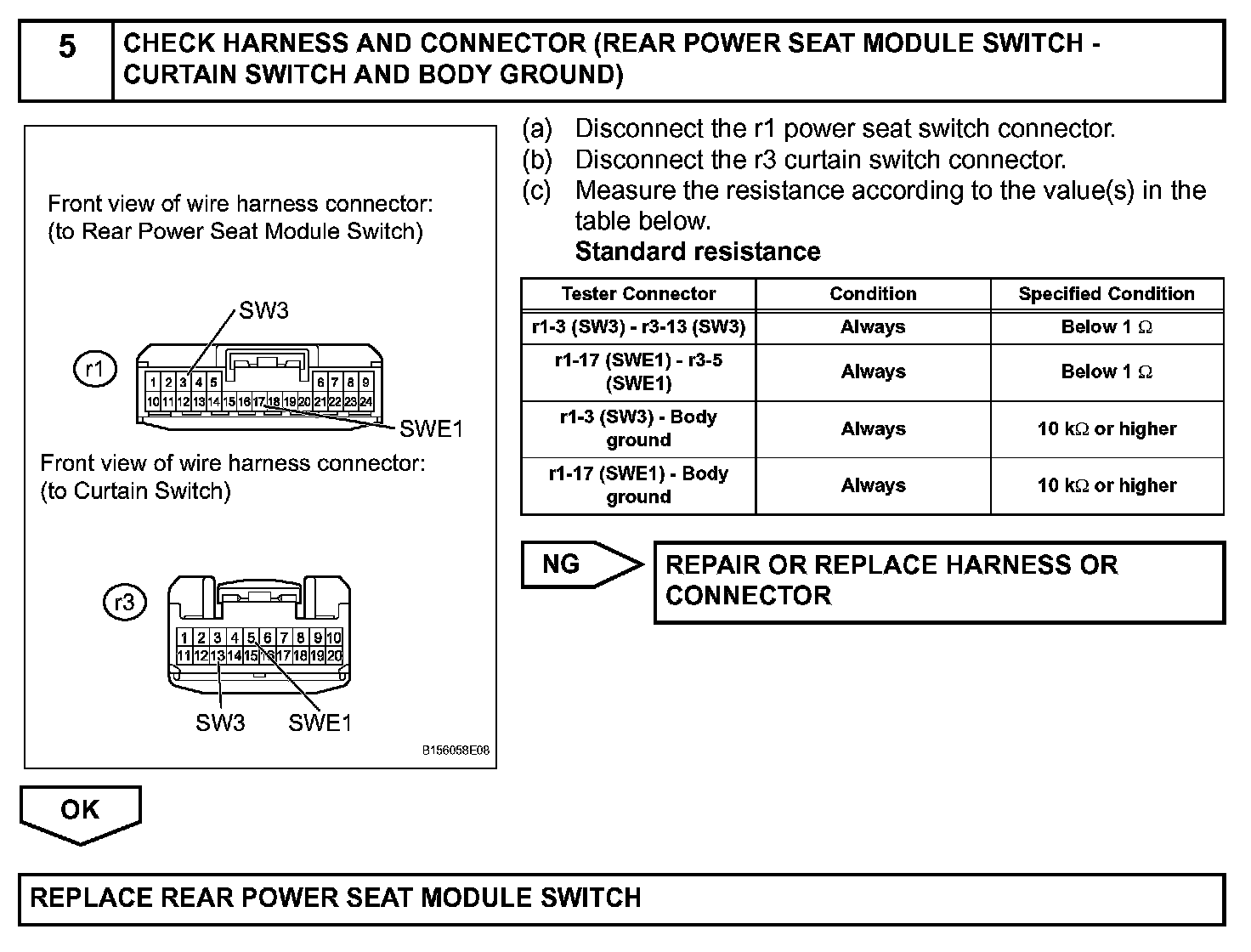

Step 5:
