Climate Control System Does Not Operate on Driver Side

Climate Control System does not Operate on Driver Side

DESCRIPTION
When the seat climate switch is operated, the seat climate control ECU receives the signal and operates the air seat.

WIRING DIAGRAM

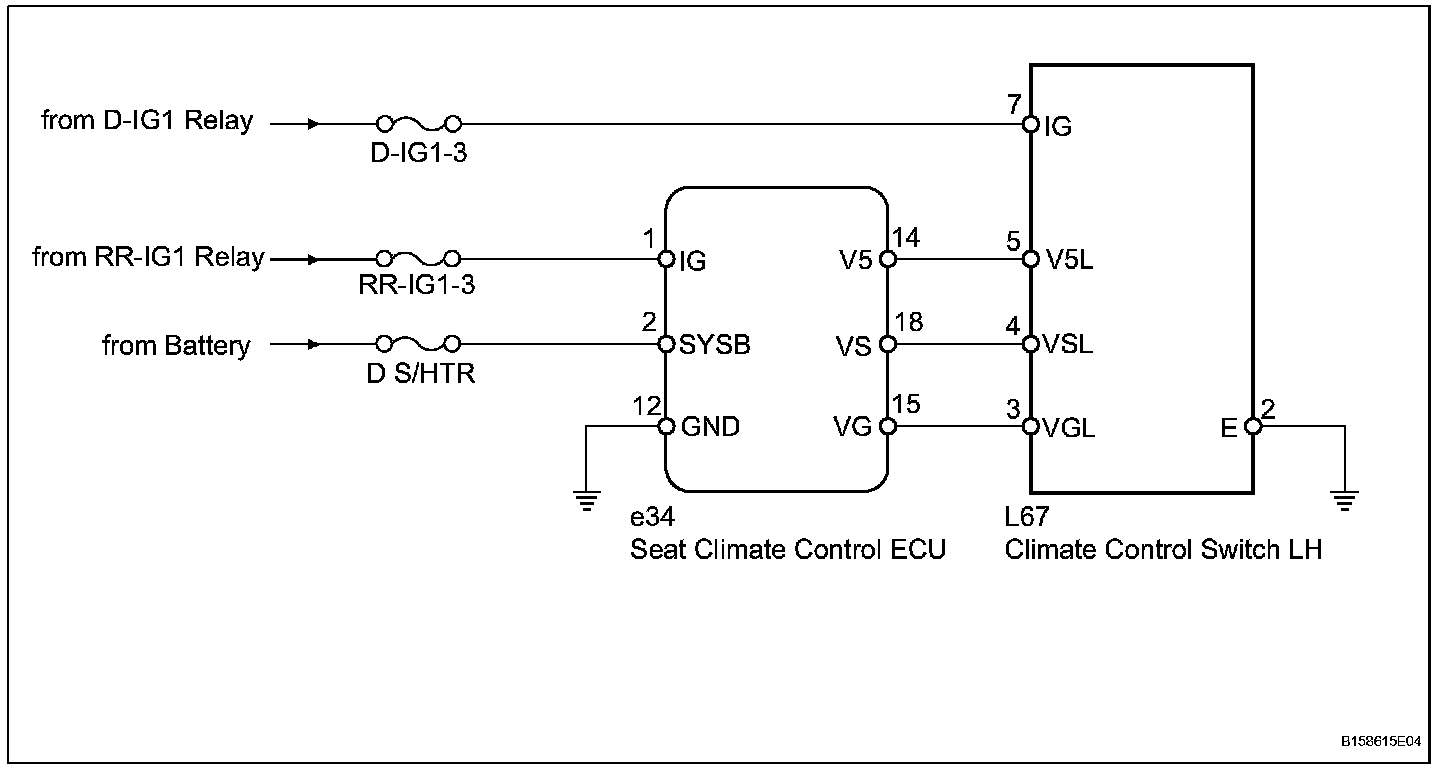

Wiring Diagram:





INSPECTION PROCEDURE

Step 1:

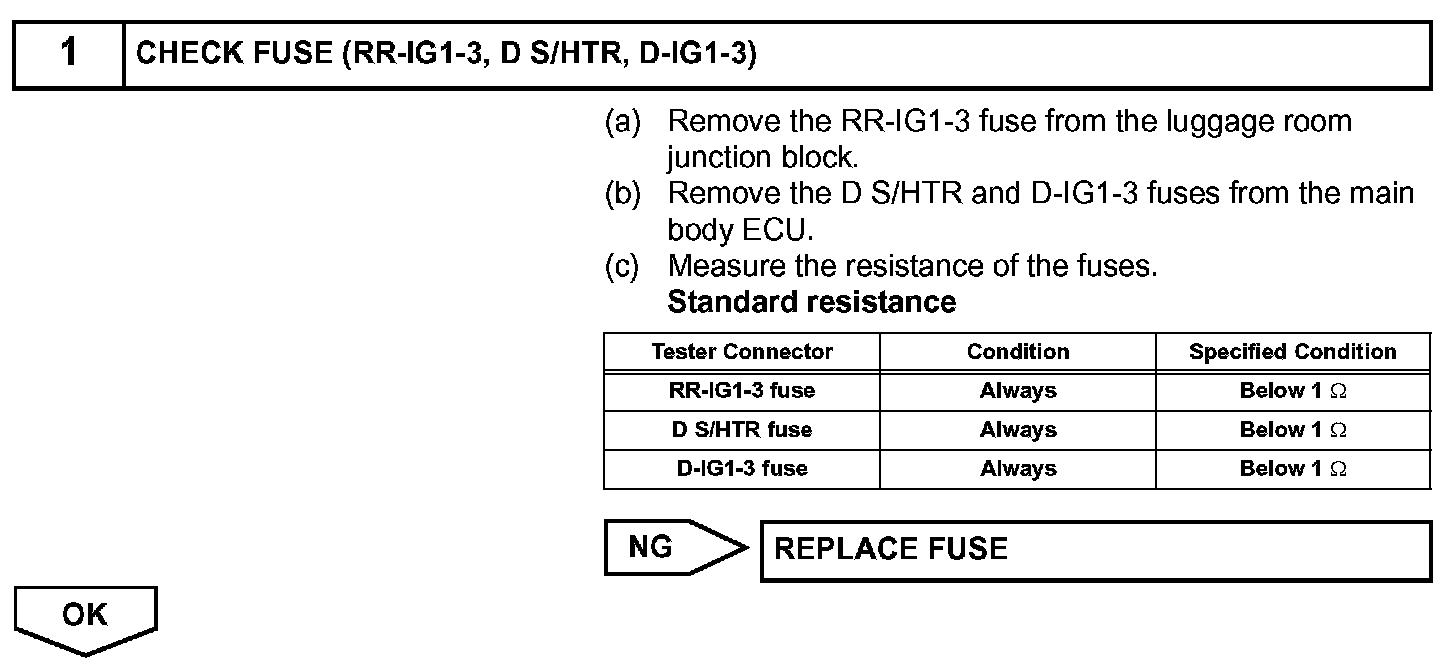

Step 2 - 3:

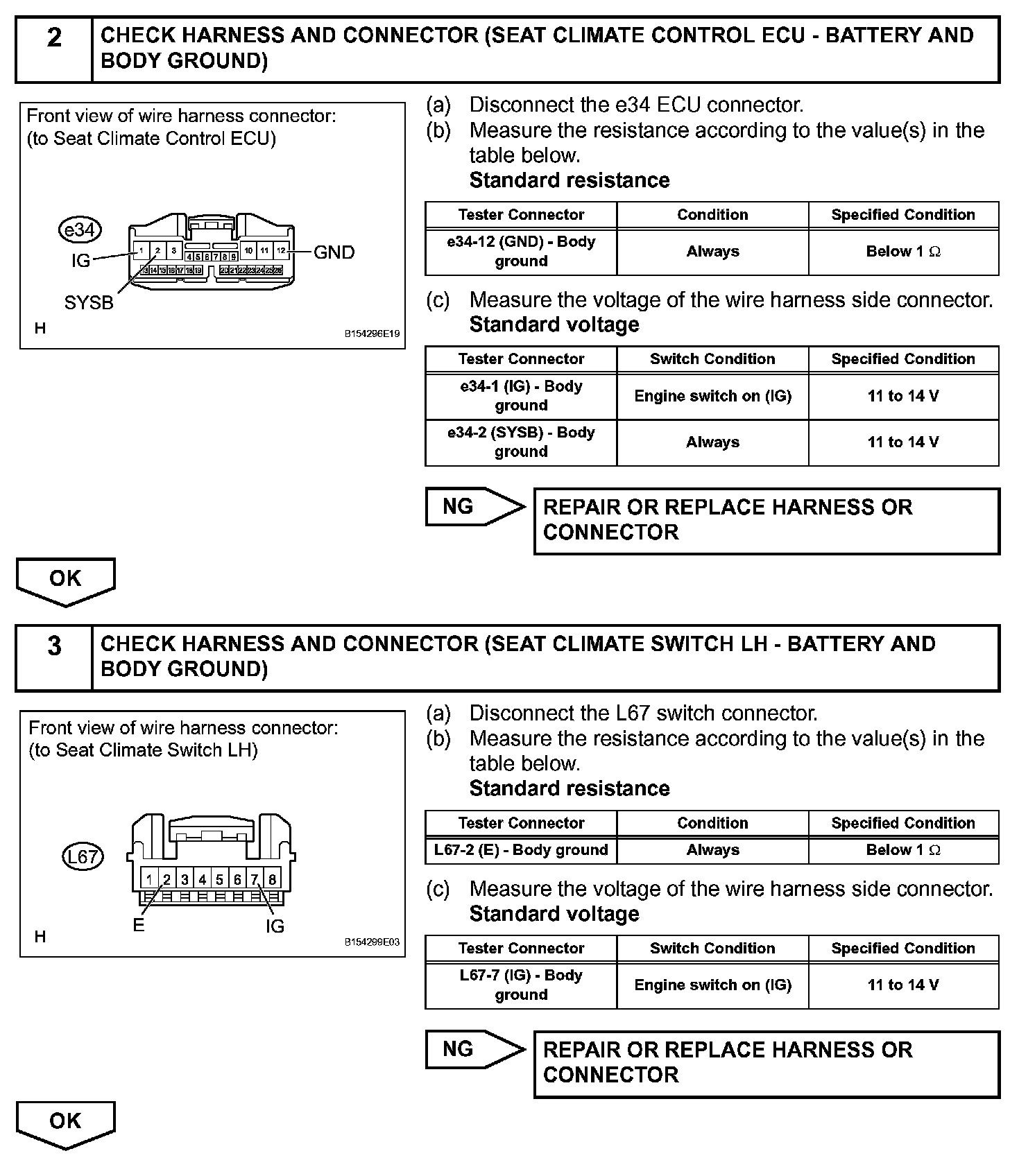

Step 4 - 5:
