Rear Seatback Heater (For Ottoman)

INSPECTION

1. INSPECT REAR SEATBACK COVER SUB-ASSEMBLY LH

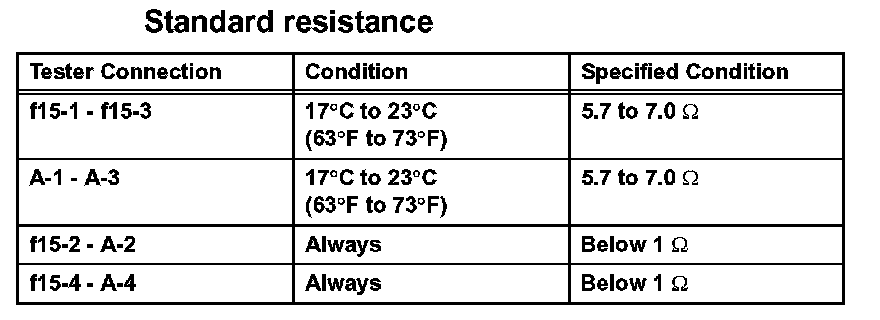

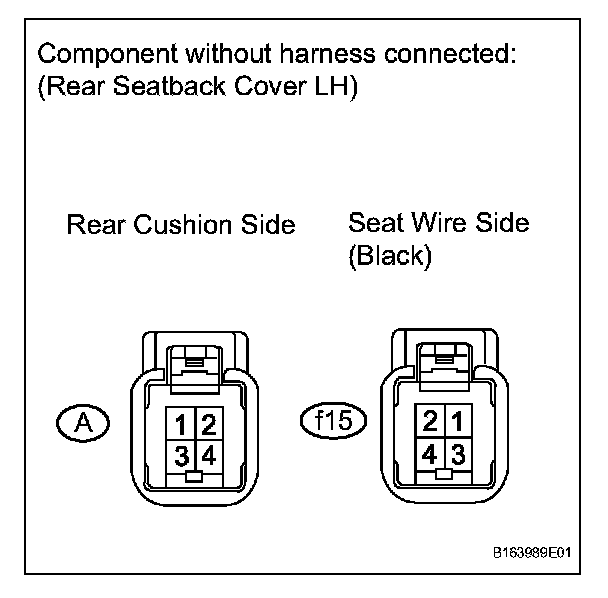

a. Measure the resistance between the terminals of the rear seatback cover LH.





If the result is not as specified, replace the rear seatback cover LH.

2. INSPECT REAR SEATBACK COVER ASSEMBLY RH

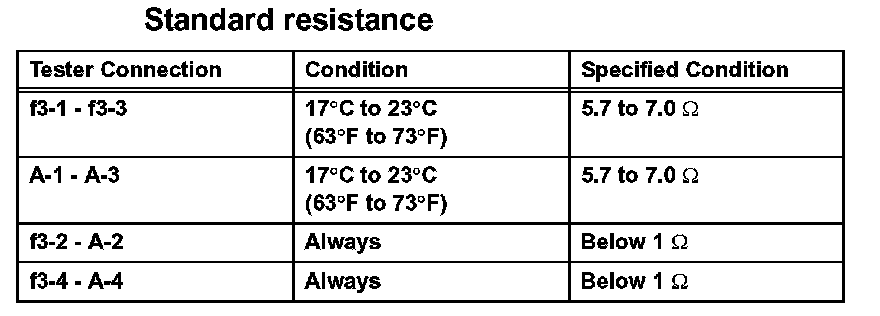

a. Measure the resistance between the terminals of the rear seatback cover RH.





If the result is not as specified, replace the rear seatback cover RH.
