Rear Seat Cushion Heater (For Power Seat)

INSPECTION

1. INSPECT REAR SEAT CUSHION HEATER ASSEMBLY LH

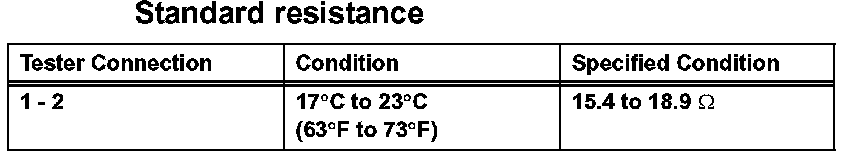

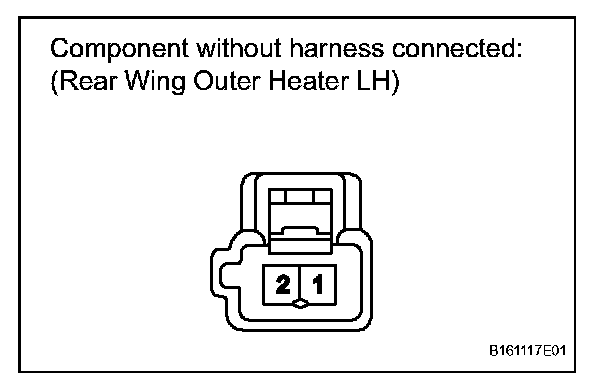

a. Measure the resistance between the terminals of the rear wing outer heater LH.





If the result is not as specified, replace the rear seat cushion cover.

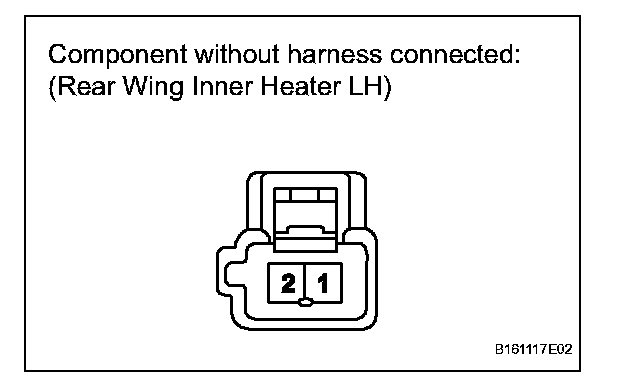

b. Measure the resistance between the terminals of the rear wing inner heater LH.





If the result is not as specified, replace the rear seat cushion cover.

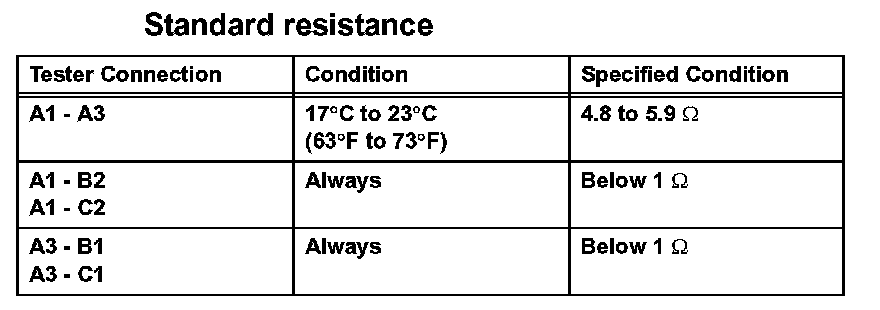

c. Measure the resistance between the terminals of the rear seat cushion heater LH.





If the result is not as specified, replace the rear seat cushion cover.

2. INSPECT REAR SEAT CUSHION HEATER ASSEMBLY RH

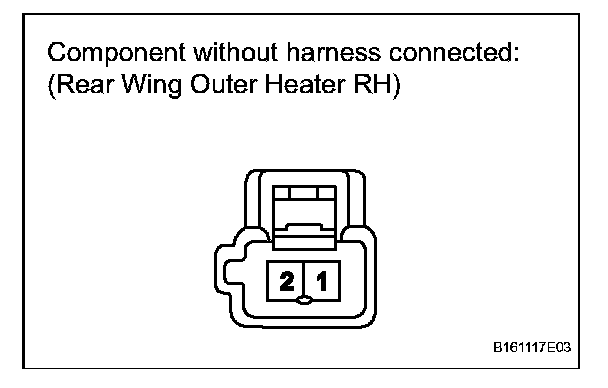

a. Measure the resistance between the terminals of the rear wing outer heater RH.





If the result is not as specified, replace the rear seat cushion cover.





b. Measure the resistance between the terminals of the rear wing inner heater RH.





If the result is not as specified, replace the rear seat cushion cover.





c. Measure the resistance between the terminals of the rear seat cushion heater RH.





If the result is not as specified, replace the rear seat cushion cover.
