Front Seatback Heater

INSPECTION

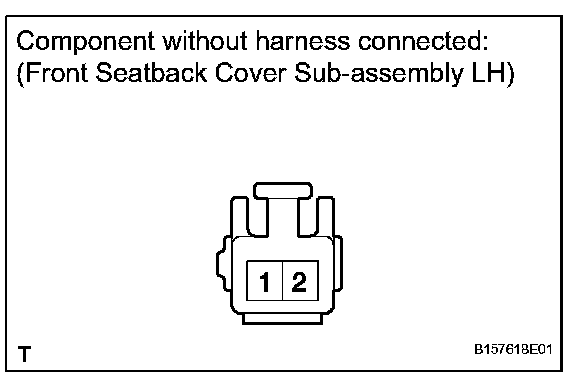

1. INSPECT FRONT SEATBACK COVER SUB-ASSEMBLY LH





a. Measure the resistance between the terminals of the seatback heater.





If the result is not as specified, replace the seatback cover.

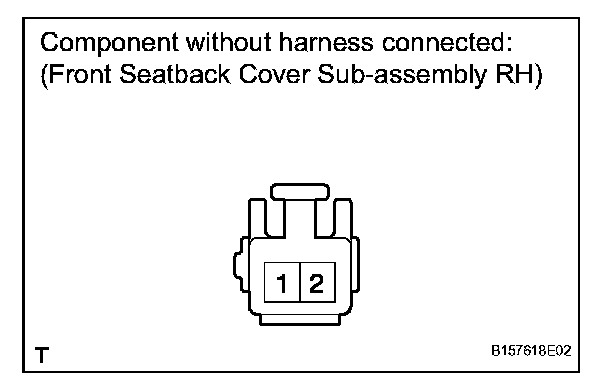

2. INSPECT FRONT SEATBACK COVER SUB-ASSEMBLY RH





a. Measure the resistance between the terminals of the seatback heater.





If the result is not as specified, replace the seatback cover.
