Front Seat Cushion Heater

INSPECTION

1. INSPECT FRONT SEAT CUSHION COVER SUB-ASSEMBLY LH





a. Disconnect the connector.

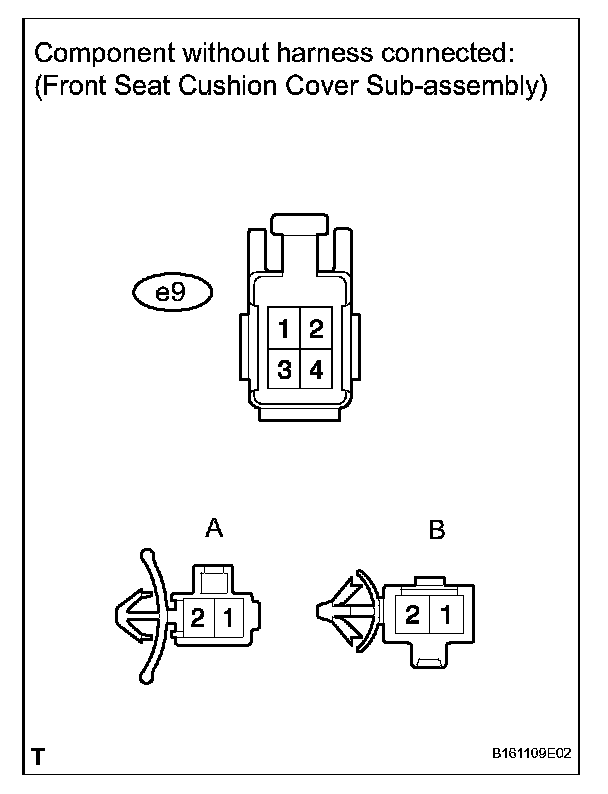

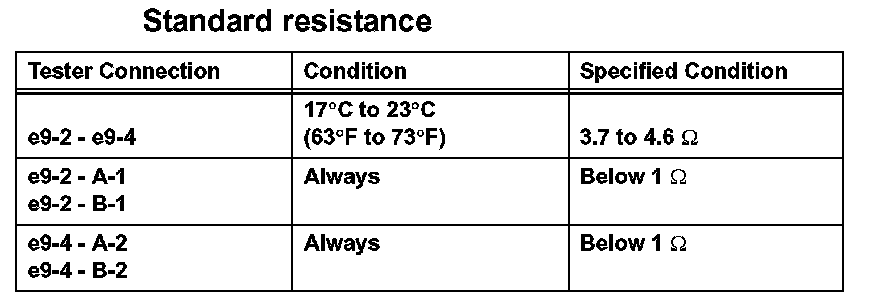

b. Measure the resistance between the terminals of the seat cushion cover.





If the result is not as specified, replace the rear seat cushion cover.

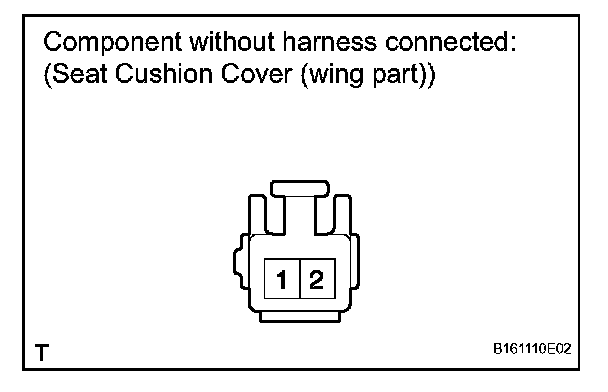

c. Measure the resistance between the terminals of the seat cushion heater (wing part).





If the result is not as specified, replace the rear seat cushion cover.

2. INSPECT FRONT SEAT CUSHION COVER SUB-ASSEMBLY RH





a. Disconnect the connector.
b. Measure the resistance between the terminals of the seat cushion heater.





If the result is not as specified, replace the rear seat cushion cover.





c. Measure the resistance between the terminals of the seat cushion cover (wing part).





If the result is not as specified, replace the rear seat cushion cover.
