Rear Seatback Heater (For Power Seat)

REAR SEATBACK HEATER (For Power Seat)

Rear Seatback Heater (For Power Seat):

REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation

NOTICE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

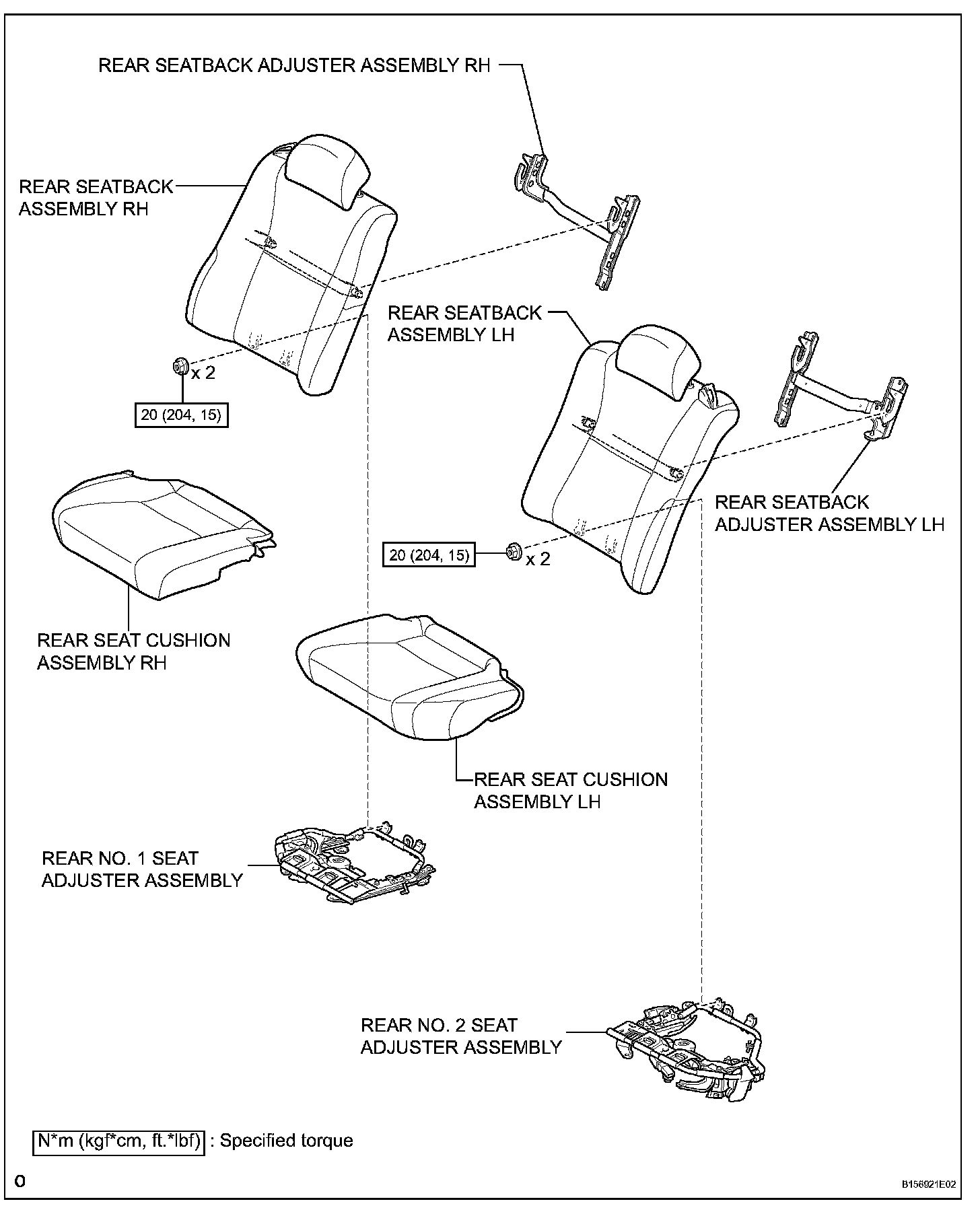

3. REMOVE REAR SEAT CUSHION ASSEMBLY LH
4. REMOVE REAR SEAT CUSHION ASSEMBLY RH
5. REMOVE REAR SEATBACK ASSEMBLY LH
6. REMOVE REAR SEATBACK ASSEMBLY RH

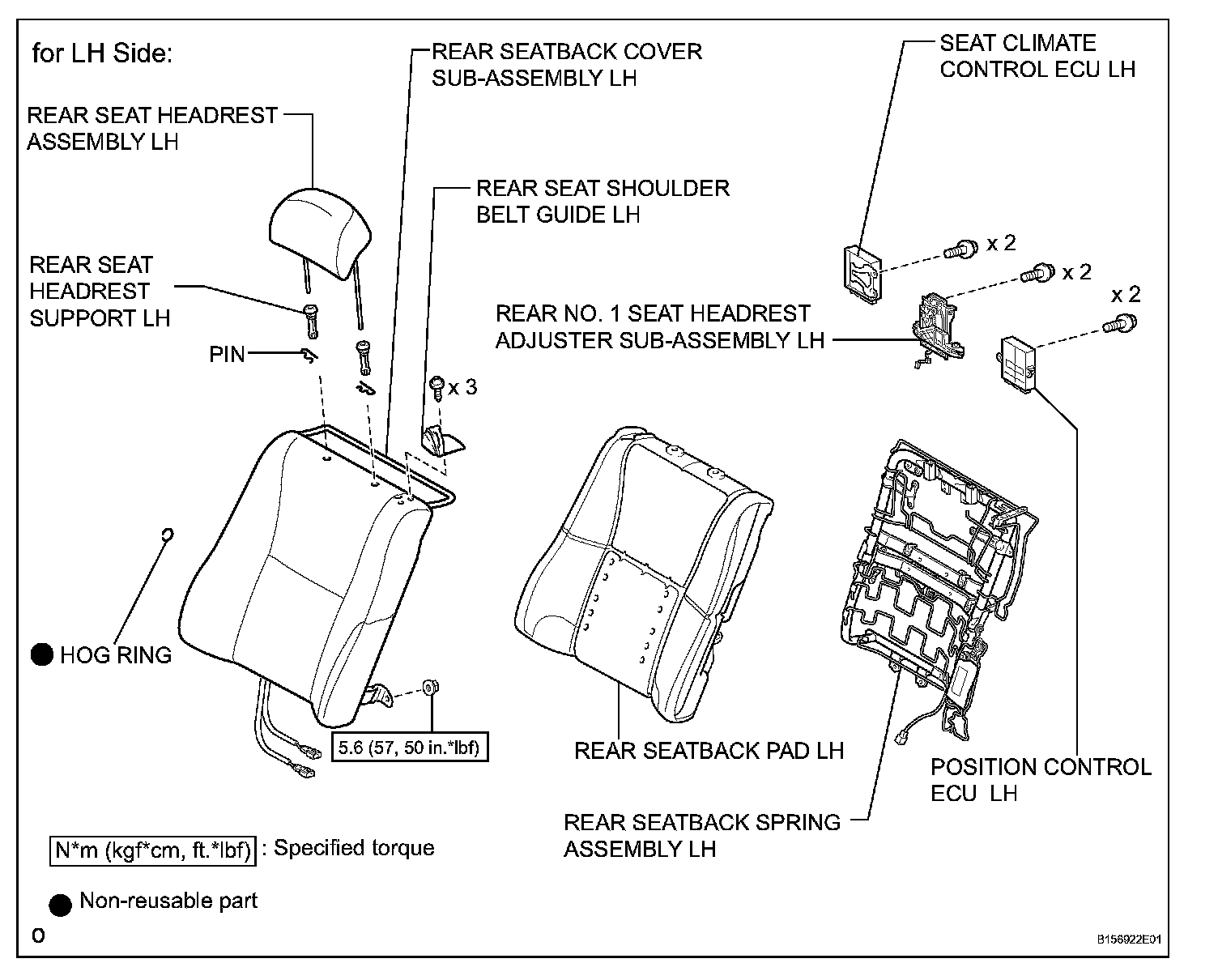

7. REMOVE REAR SEAT SHOULDER BELT GUIDE LH
8. REMOVE REAR SEAT HEADREST ASSEMBLY LH
9. REMOVE REAR SEAT HEADREST SUPPORT LH
10. REMOVE REAR NO. 1 SEAT HEADREST ADJUSTER SUB-ASSEMBLY LH
11. REMOVE POSITION CONTROL ECU LH
12. REMOVE SEAT CLIMATE CONTROL ECU LH
13. REMOVE SEATBACK COVER WITH PAD LH
14. REMOVE REAR SEATBACK COVER SUB-ASSEMBLY LH
15. REMOVE REAR SEAT SHOULDER BELT GUIDE RH
16. REMOVE REAR SEAT HEADREST ASSEMBLY RH
17. REMOVE REAR SEAT HEADREST SUPPORT RH
18. REMOVE REAR NO. 1 SEAT HEADREST ADJUSTER SUB-ASSEMBLY RH
19. REMOVE POSITION CONTROL ECU RH
20. REMOVE SEAT CLIMATE CONTROL ECU RH
21. REMOVE SEATBACK COVER WITH PAD RH
22. REMOVE REAR SEATBACK COVER SUB-ASSEMBLY RH

INSTALLATION

HINT: A bolt without a torque specification is shown in the standard bolt chart.

1. INSTALL REAR SEATBACK COVER SUB-ASSEMBLY RH
2. INSTALL SEATBACK COVER WITH PAD RH
3. INSTALL REAR NO. 1 SEAT HEADREST ADJUSTER SUB-ASSEMBLY RH
4. INSTALL SEAT CLIMATE CONTROL ECU RH
5. INSTALL POSITION CONTROL ECU RH
6. INSTALL REAR SEAT HEADREST SUPPORT RH
7. INSTALL REAR SEAT HEADREST ASSEMBLY RH
8. INSTALL REAR SEAT SHOULDER BELT GUIDE RH
9. INSTALL REAR SEATBACK COVER SUB-ASSEMBLY LH
10. INSTALL SEATBACK COVER WITH PAD LH
11. INSTALL REAR SEAT NO. 1 HEADREST ADJUSTER SUB-ASSEMBLY LH
12. INSTALL SEAT CLIMATE CONTROL ECU LH
13. INSTALL POSITION CONTROL ECU LH
14. INSTALL REAR SEAT HEADREST SUPPORT LH
15. INSTALL REAR SEAT HEADREST ASSEMBLY LH
16. INSTALL REAR SEAT SHOULDER BELT GUIDE LH
17. INSTALL REAR SEATBACK ASSEMBLY RH
18. INSTALL REAR SEATBACK ASSEMBLY LH
19. INSTALL REAR SEAT CUSHION ASSEMBLY RH
20. INSTALL REAR SEAT CUSHION ASSEMBLY LH
21. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
22. INSTALL COWL TOP VENTILATOR LOUVER
23. PERFORM INITIALIZATION
a. Perform initialization.

NOTICE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

24. CHECK SRS WARNING LIGHT
a. Check the SRS warning light.
