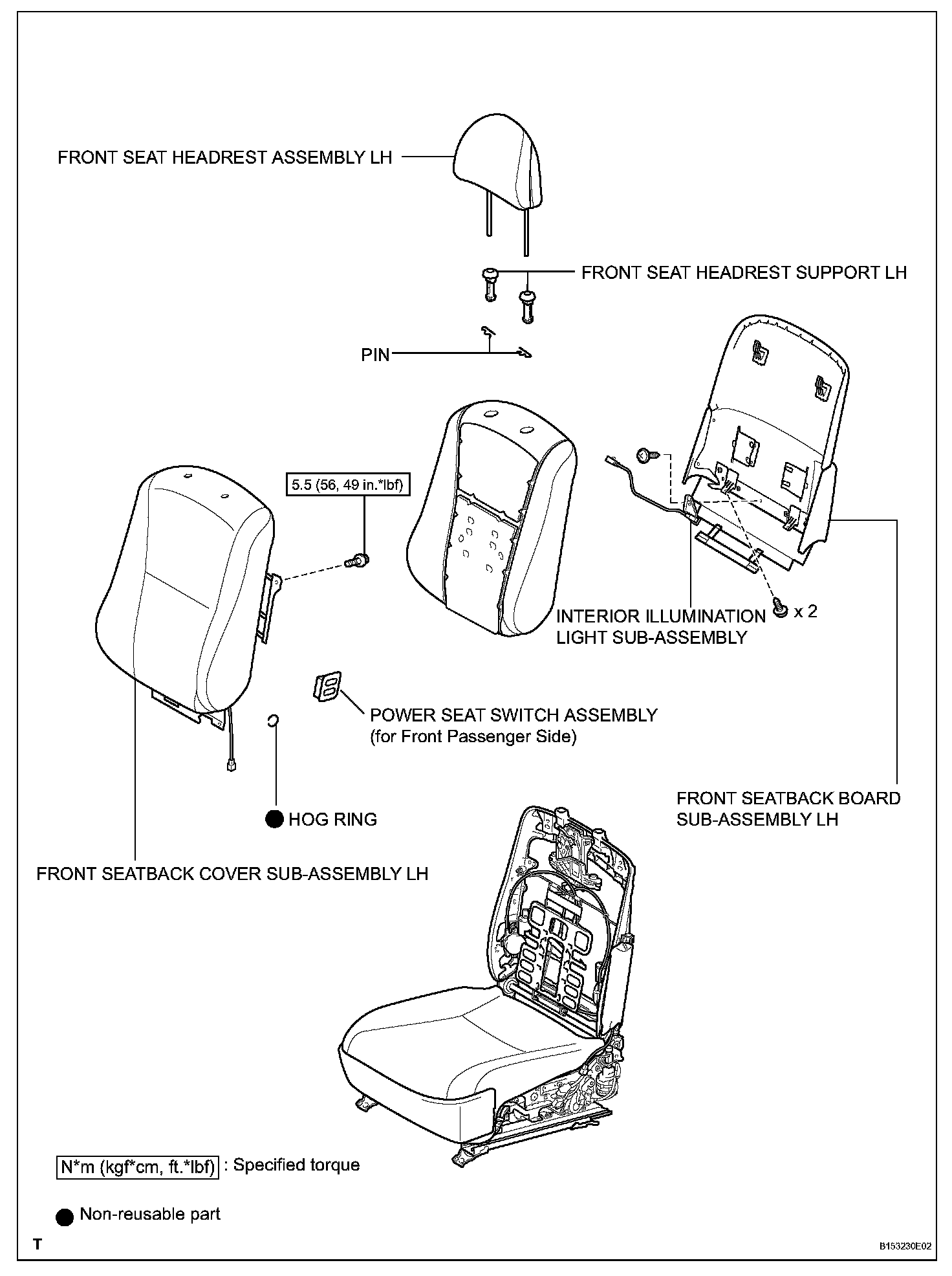

Front Seatback Heater
FRONT SEATBACK HEATERFront Seatback Heater:
Front Seatback Heater:
Front Seatback Heater:
REMOVAL
1. REMOVE FRONT SEAT ASSEMBLY LH
a. Remove the front seat assembly.
2. REMOVE FRONT SEAT CUSHION SHIELD LH
3. REMOVE FRONT SEAT INNER BELT ASSEMBLY LH
4. REMOVE FRONT SEAT CUSHION SHIELD INNER LH
5. REMOVE FRONT SEATBACK BOARD SUB-ASSEMBLY LH
6. REMOVE FRONT SEAT HEADREST SUPPORT LH
7. REMOVE SEATBACK COVER WITH PAD LH
a. Remove the bolt and seatback cover bracket.
b. for Front Passenger Side:
1. Disconnect the connector.
2. Detach the 2 claws and remove the power seat switch.
c. Using a clip remover, remove the 2 clips and detach the hooks and remove the seatback cover with pad from the seat frame.
d. w/ Climate Control Seat System:
Disconnect the connector.
8. REMOVE FRONT SEATBACK COVER SUB-ASSEMBLY LH
INSTALLATION
1. INSTALL FRONT SEATBACK COVER SUB-ASSEMBLY LH
2. INSTALL SEATBACK COVER WITH PAD LH

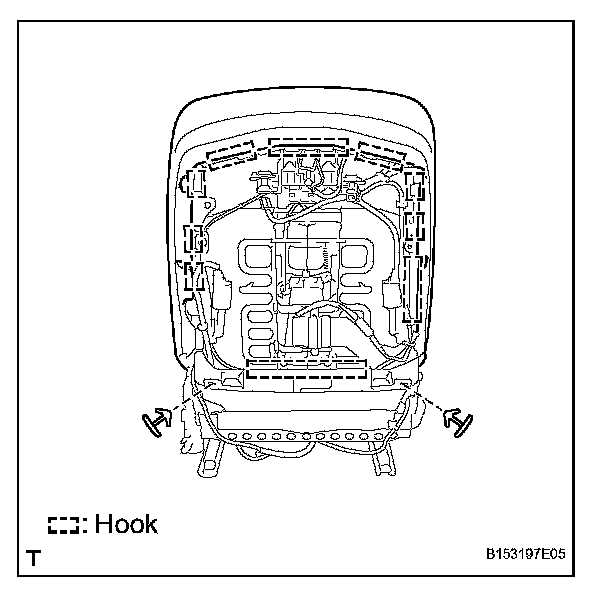

a. Install the seatback cover (with pad) to the seatback frame and attach the hooks and install the 2 clips.
b. w/ Climate Control Seat System:
Connect the connector.
c. for Front Passenger Side:
1. Attach the 2 claws and install the power seat switch.
2. Connect the connector.

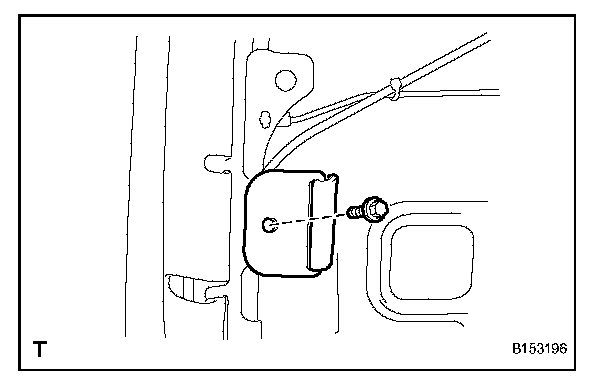

d. Install the seatback cover bracket with the bolt.
Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)
3. INSTALL FRONT SEAT HEADREST SUPPORT LH
4. INSTALL FRONT SEAT HEADREST ASSEMBLY LH
5. INSTALL FRONT SEATBACK BOARD SUB-ASSEMBLY LH
6. INSTALL FRONT SEAT CUSHION SHIELD INNER LH
7. INSTALL FRONT SEAT INNER BELT ASSEMBLY LH
8. INSTALL FRONT SEAT CUSHION SHIELD LH
9. INSTALL FRONT SEAT ASSEMBLY LH
a. Install the front seat assembly.
