Front Seat Cushion Heater

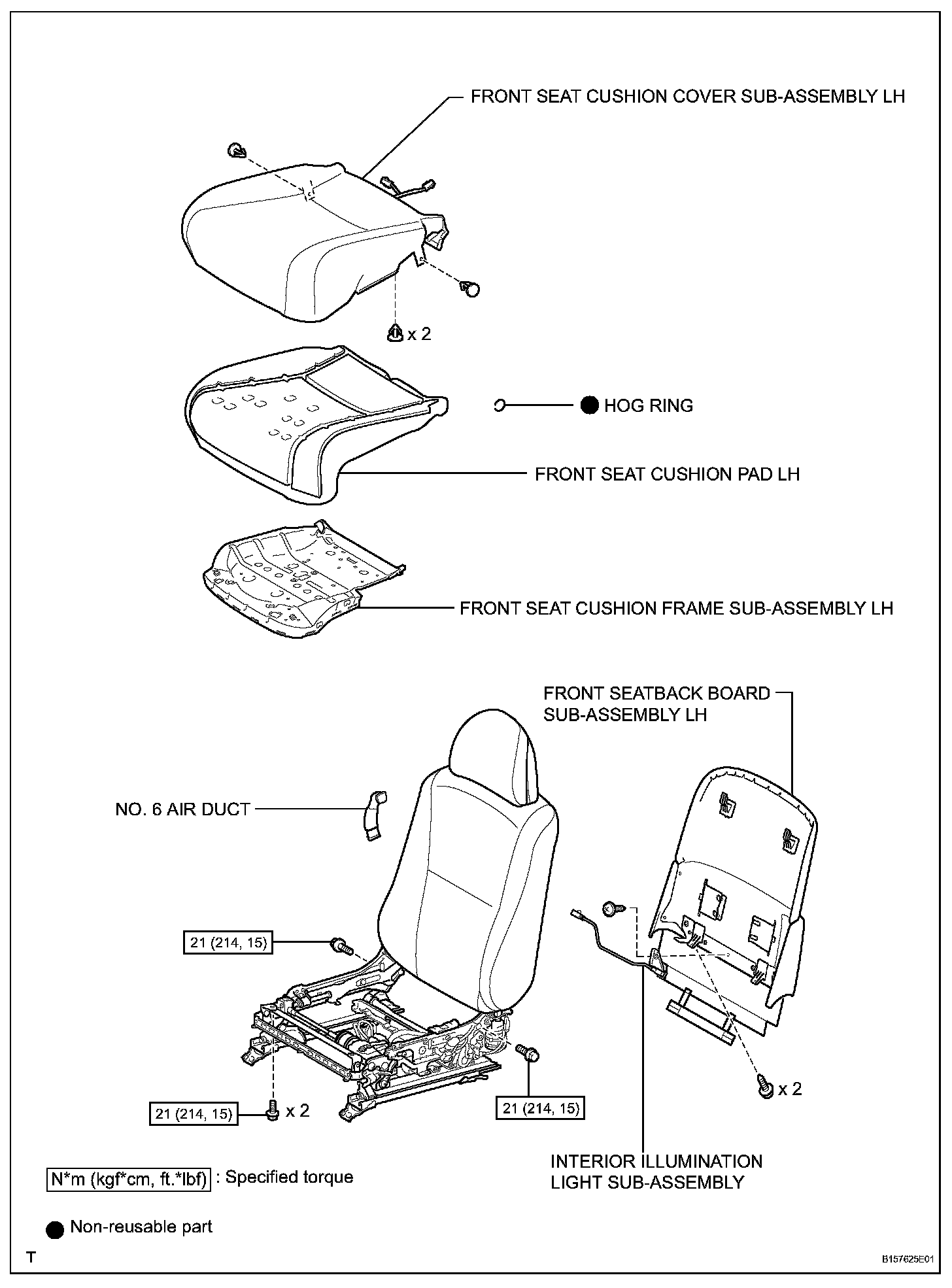

FRONT SEAT CUSHION HEATER

Front Seat Cushion Heater:




Front Seat Cushion Heater:




Front Seat Cushion Heater:





REMOVAL

1. REMOVE FRONT SEAT ASSEMBLY LH
a. Remove the front seat assembly.

2. REMOVE FRONT SEAT CUSHION SHIELD LH
3. REMOVE FRONT SEAT CUSHION SHIELD FRONT LH
4. REMOVE FRONT SEAT INNER BELT ASSEMBLY LH
5. REMOVE FRONT SEAT CUSHION SHIELD INNER LH
6. REMOVE FRONT SEATBACK BOARD SUB-ASSEMBLY LH
7. REMOVE FRONT SEAT CUSHION ASSEMBLY LH
8. REMOVE FRONT SEAT CUSHION FRAME SUB-ASSEMBLY LH
9. REMOVE FRONT SEAT CUSHION COVER SUB-ASSEMBLY LH

INSTALLATION

1. INSTALL FRONT SEAT CUSHION COVER SUB-ASSEMBLY LH
2. INSTALL FRONT SEAT CUSHION FRAME SUB-ASSEMBLY LH
3. INSTALL FRONT SEAT CUSHION ASSEMBLY LH
4. INSTALL FRONT SEATBACK BOARD SUB-ASSEMBLY LH
5. INSTALL FRONT SEAT CUSHION SHIELD INNER LH
6. INSTALL FRONT SEAT INNER BELT ASSEMBLY LH
7. INSTALL FRONT SEAT CUSHION SHIELD FRONT LH
8. INSTALL FRONT SEAT CUSHION SHIELD LH
9. INSTALL FRONT SEAT ASSEMBLY LH
a. Install the front seat assembly.
