Seat Bottom Frame: Testing and Inspection

FRONT SEAT FRAME WITH ADJUSTER

INSPECTION

1. INSPECT FRONT SEAT ADJUSTER ASSEMBLY LH





a. Check operation of the seat frame (slide motor).

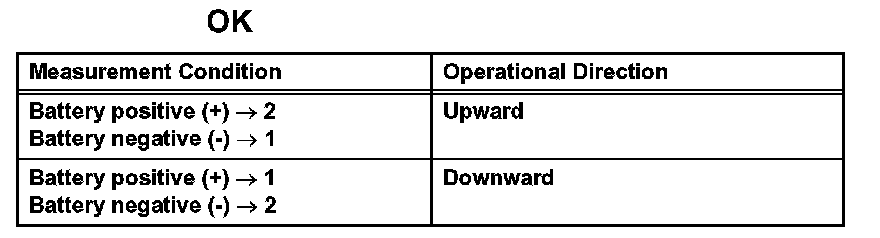

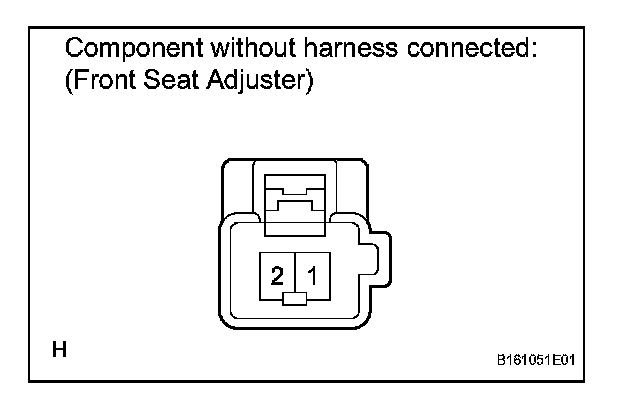

1. Check if the seat frame moves smoothly when the battery is connected to the slide motor connector terminals.





If the result is not as specified, replace the seat frame with adjuster.





b. Check operation of the seat frame (front vertical motor).

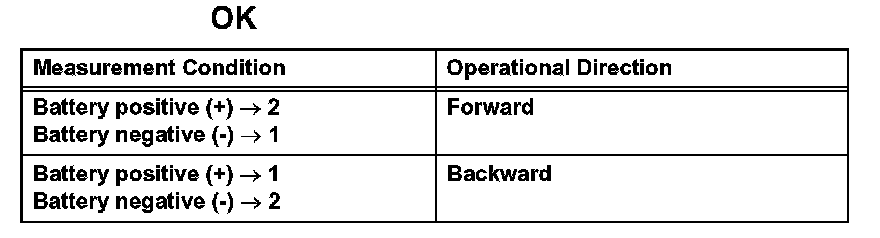

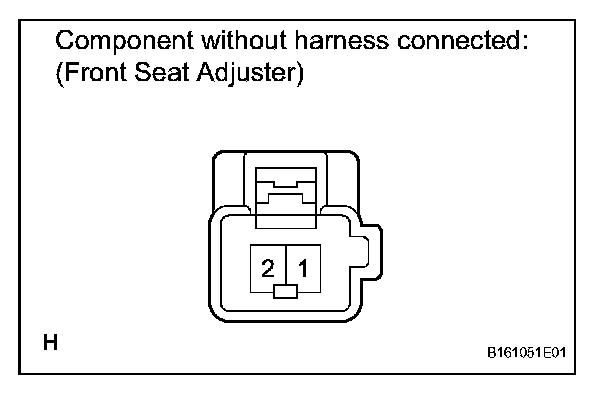

1. Check if the seat frame moves smoothly when the battery is connected to the slide motor connector terminals.





If the result is not as specified, replace the seat frame with adjuster.





c. Check operation of the seat frame (lifter motor).

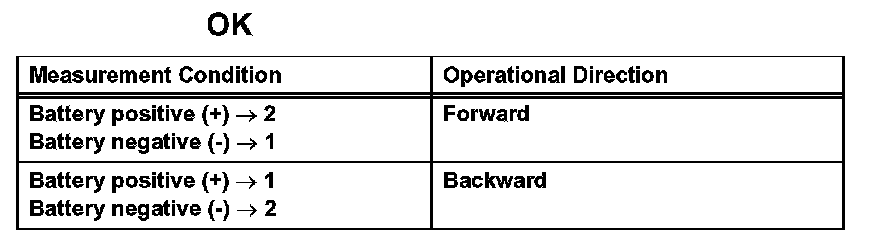

1. Check if the seat frame moves smoothly when the battery is connected to the slide motor connector terminals.





If the result is not as specified, replace the seat frame with adjuster.





d. Check operation of the seat frame (reclining motor).

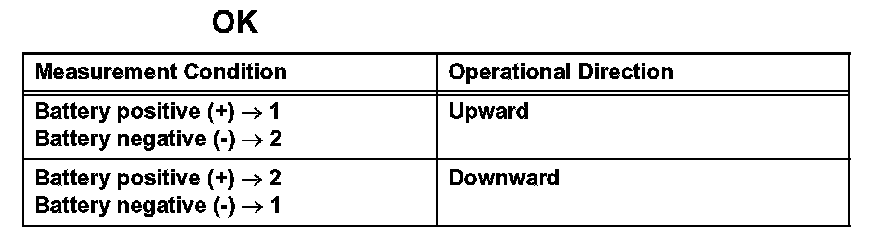

1. Check if the seat frame moves smoothly when the battery is connected to the slide motor connector terminals.





If the result is not as specified, replace the seat frame with adjuster.





e. Check operation of the seat frame (cushion motor).

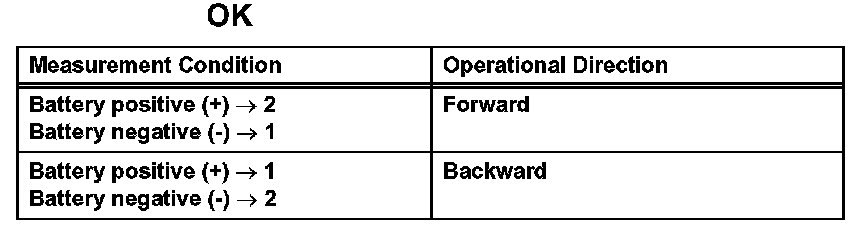

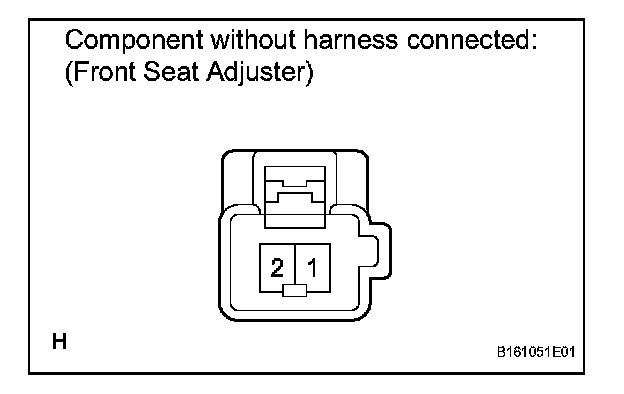

1. Check if the seat frame moves smoothly when the battery is connected to the slide motor connector terminals.





If the result is not as specified, replace the seat frame with adjuster.





2. INSPECT FRONT SEAT ADJUSTER ASSEMBLY RH
a. Check operation of the seat frame (slide motor).
1. Check if the seat frame moves smoothly when the battery is connected to the slide motor





If the result is not as specified, replace the seat frame with adjuster.





b. Check operation of the seat frame (front vertical motor).
1. Check if the seat frame moves smoothly when the battery is connected to the slide motor connector terminals.





If the result is not as specified, replace the seat frame with adjuster.





c. Check operation of the seat frame (lifter motor).
1. Check if the seat frame moves smoothly when the battery is connected to the slide motor connector terminals.





If the result is not as specified, replace the seat frame with adjuster.





d. Check operation of the seat frame (reclining motor).
1. Check if the seat frame moves smoothly when the battery is connected to the slide motor connector terminals.





If the result is not as specified, replace the seat frame with adjuster.
