Home >> Lexus >> 2007 >> LS 460 V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Body and Frame >> Seats >> Memory Positioning Systems >> Memory Positioning Switch >> Testing and Inspection >> Seat Memory Switch (For Front Side)

Seat Memory Switch (For Front Side)

INSPECTION

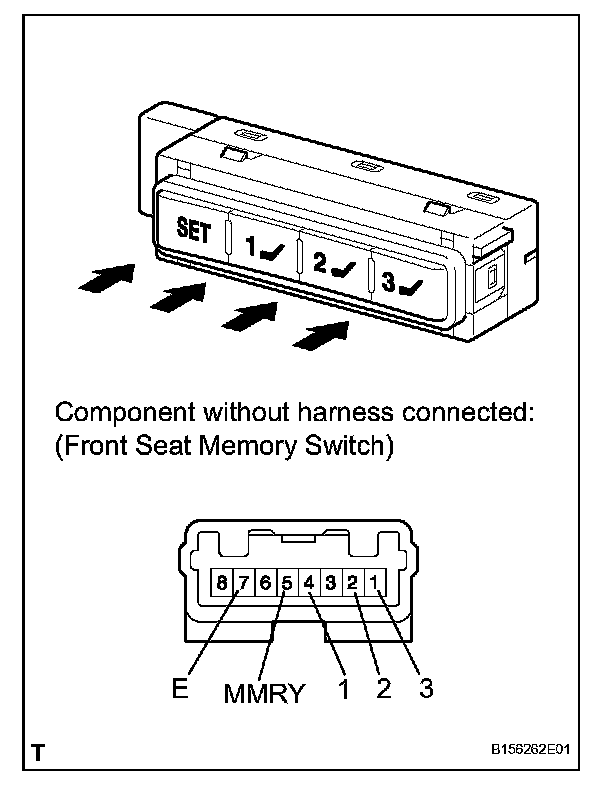

1. INSPECT SEAT MEMORY SWITCH LH

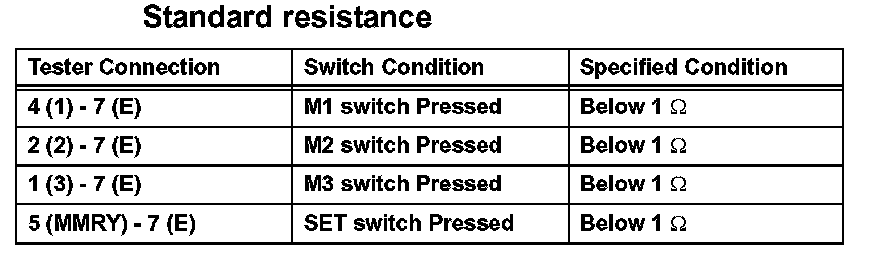

a. Measure the resistance between the terminals when the switch operated.





If the result is not as specified, replace the switch.

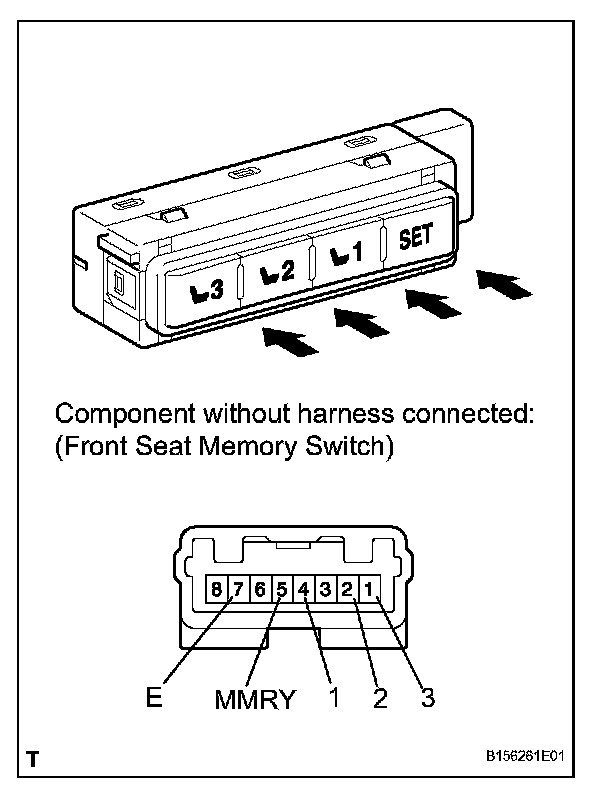

2. INSPECT SEAT MEMORY SWITCH RH

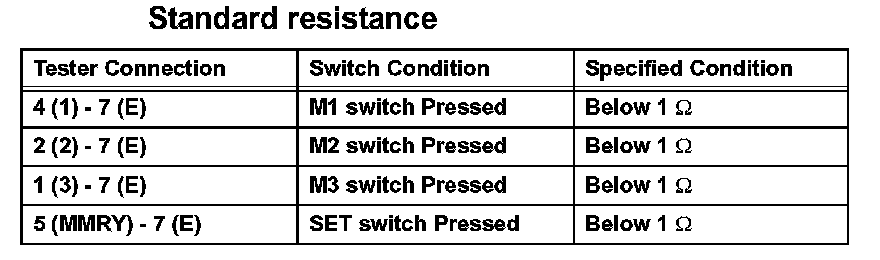

a. Measure the resistance between the terminals when the switch operated.





If the result is not as specified, replace the switch.
