Power Seat For Front Passenger's Seat With Rear Passenger's Seat Ottoman

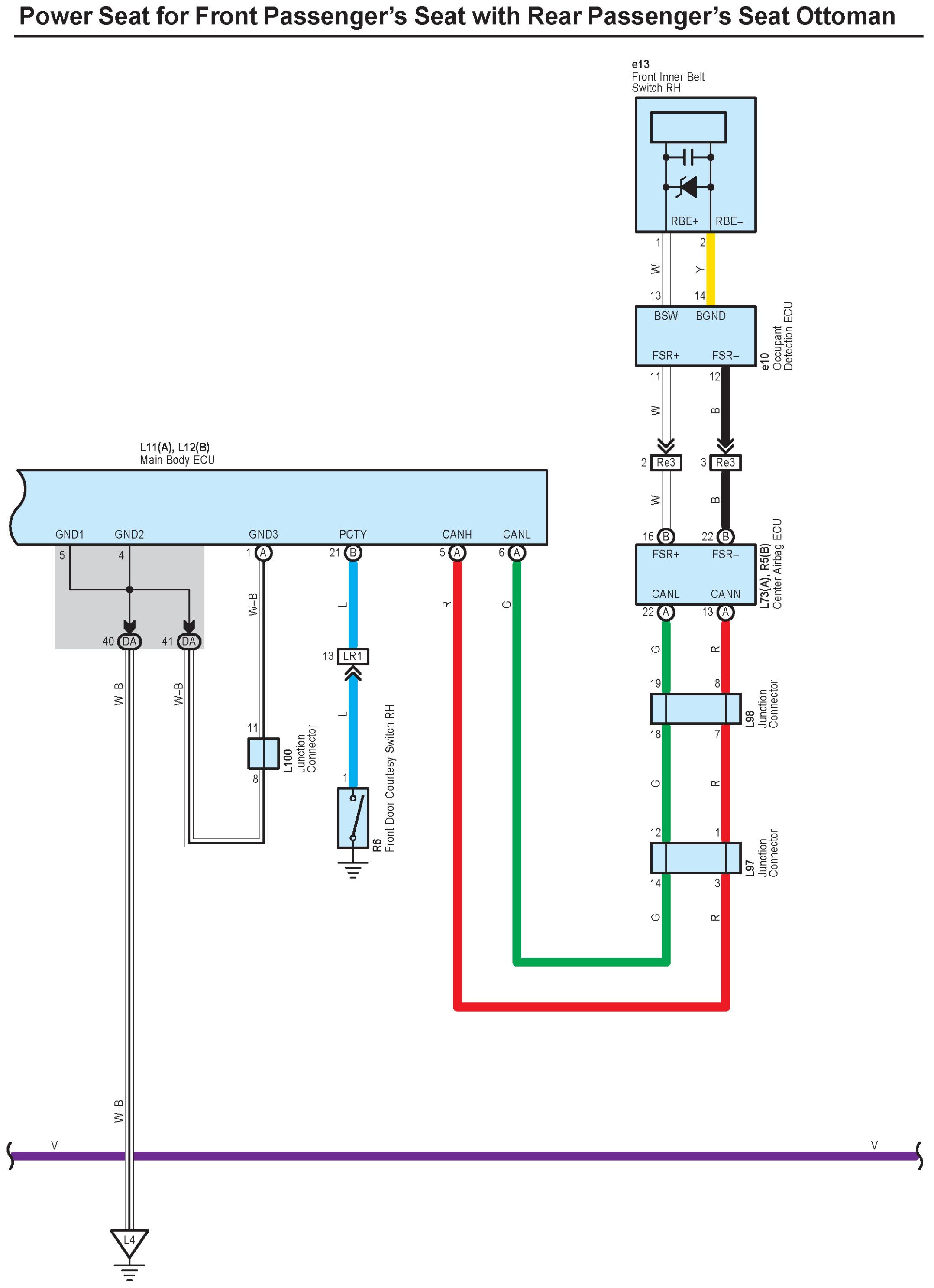

Power Seat For Front Passenger's Seat With Rear Passenger's Seat Ottoman Part 1:

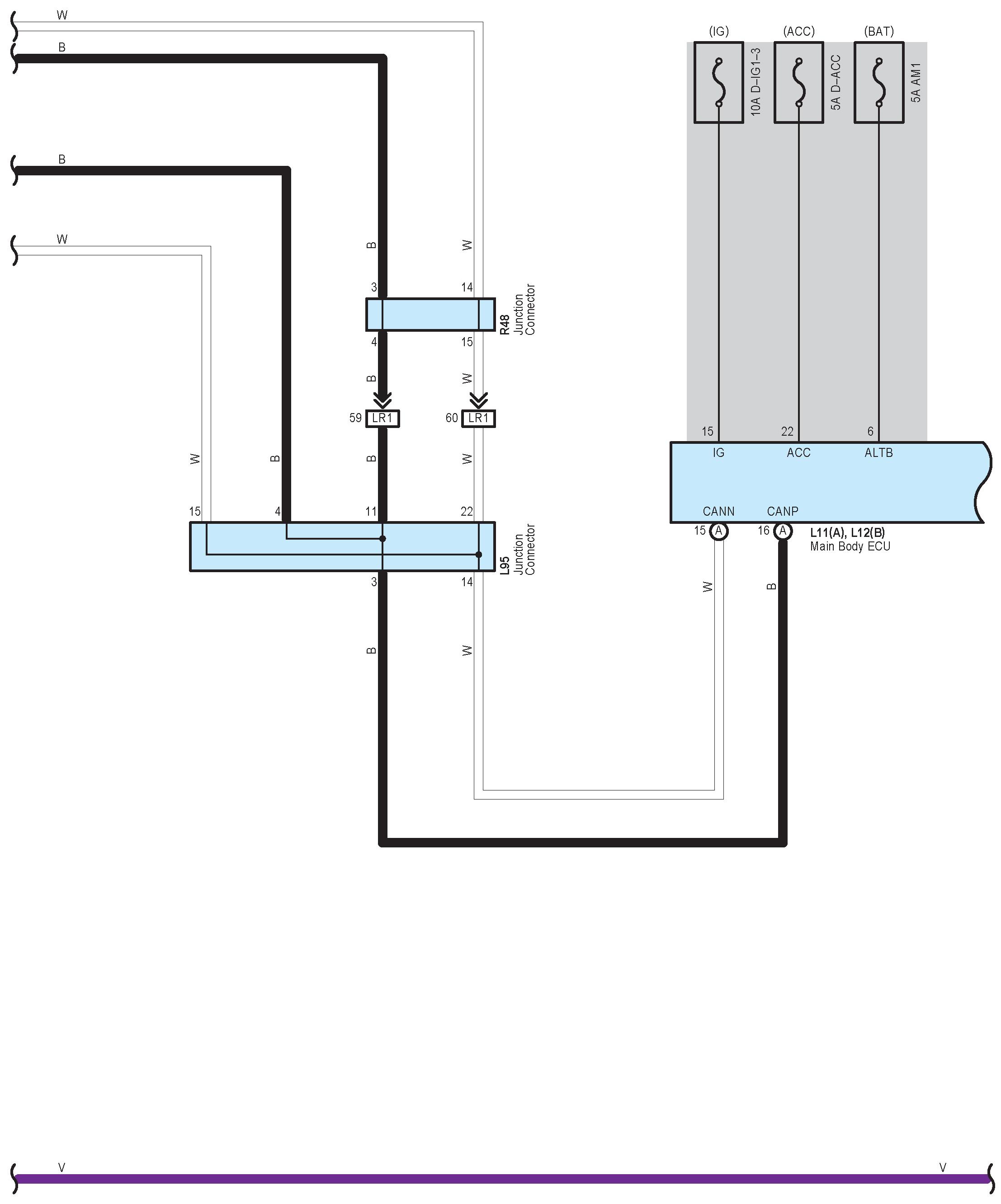

Power Seat For Front Passenger's Seat With Rear Passenger's Seat Ottoman Part 2:

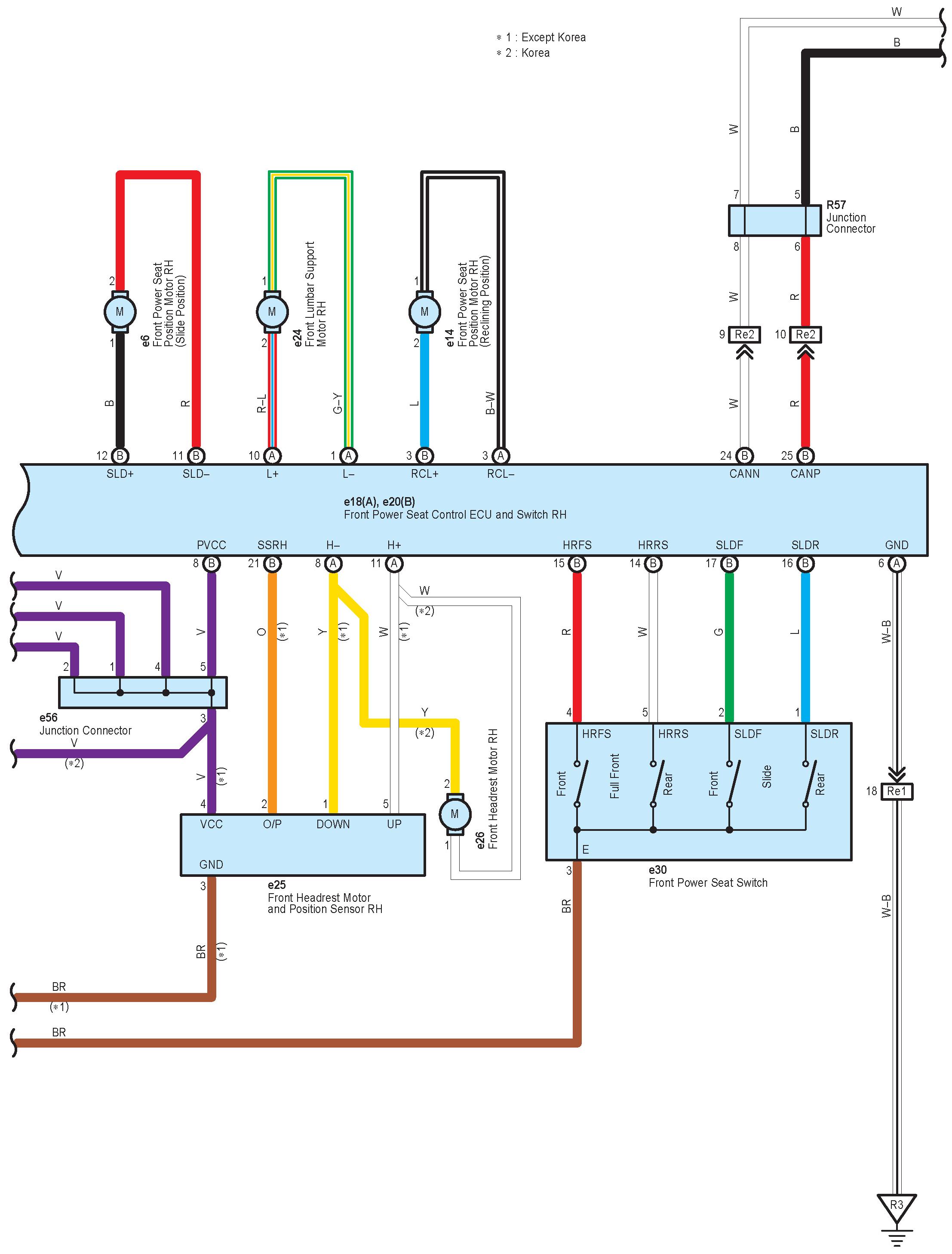

Power Seat For Front Passenger's Seat With Rear Passenger's Seat Ottoman Part 3:

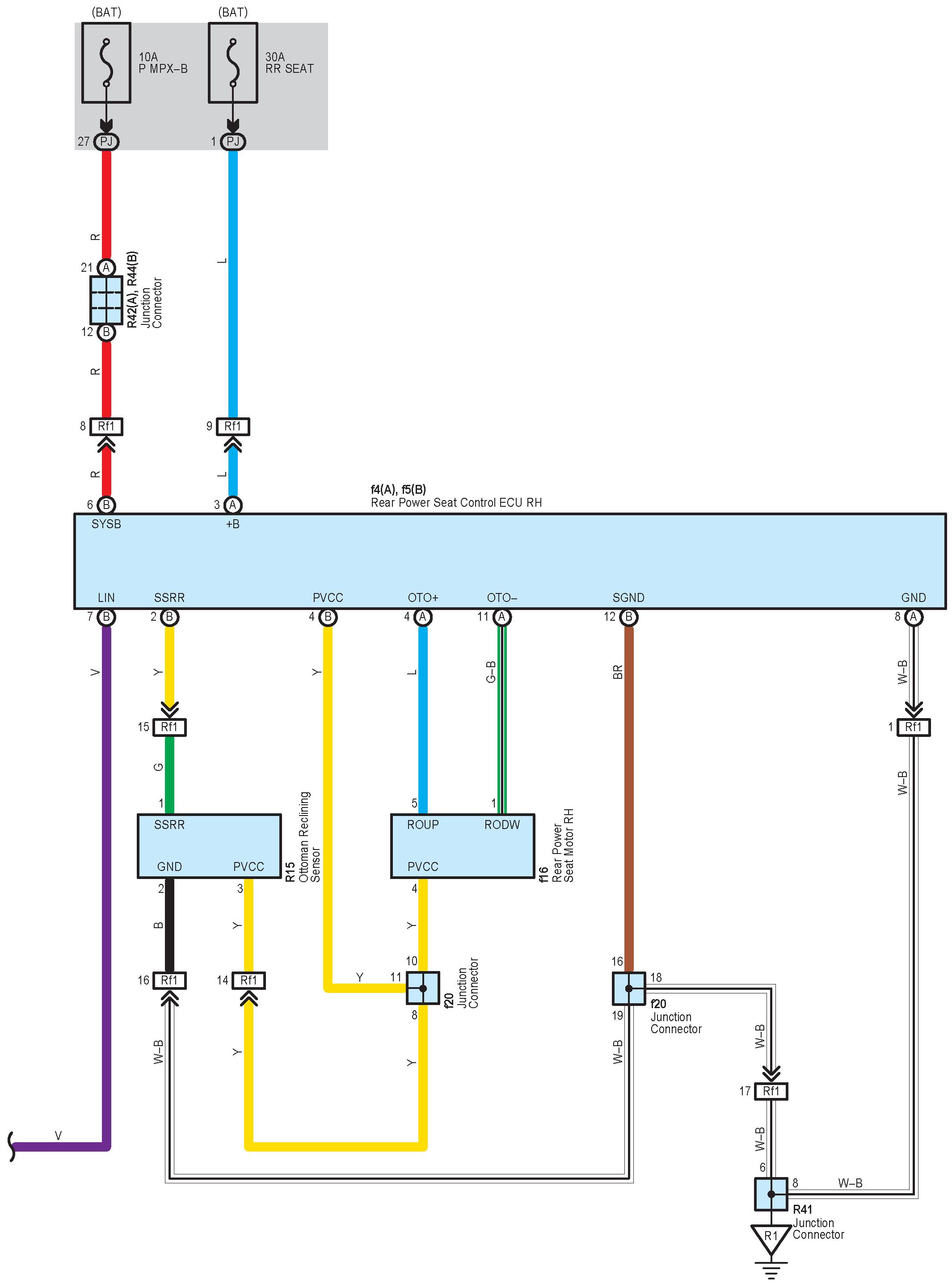

Power Seat For Front Passenger's Seat With Rear Passenger's Seat Ottoman Part 4:

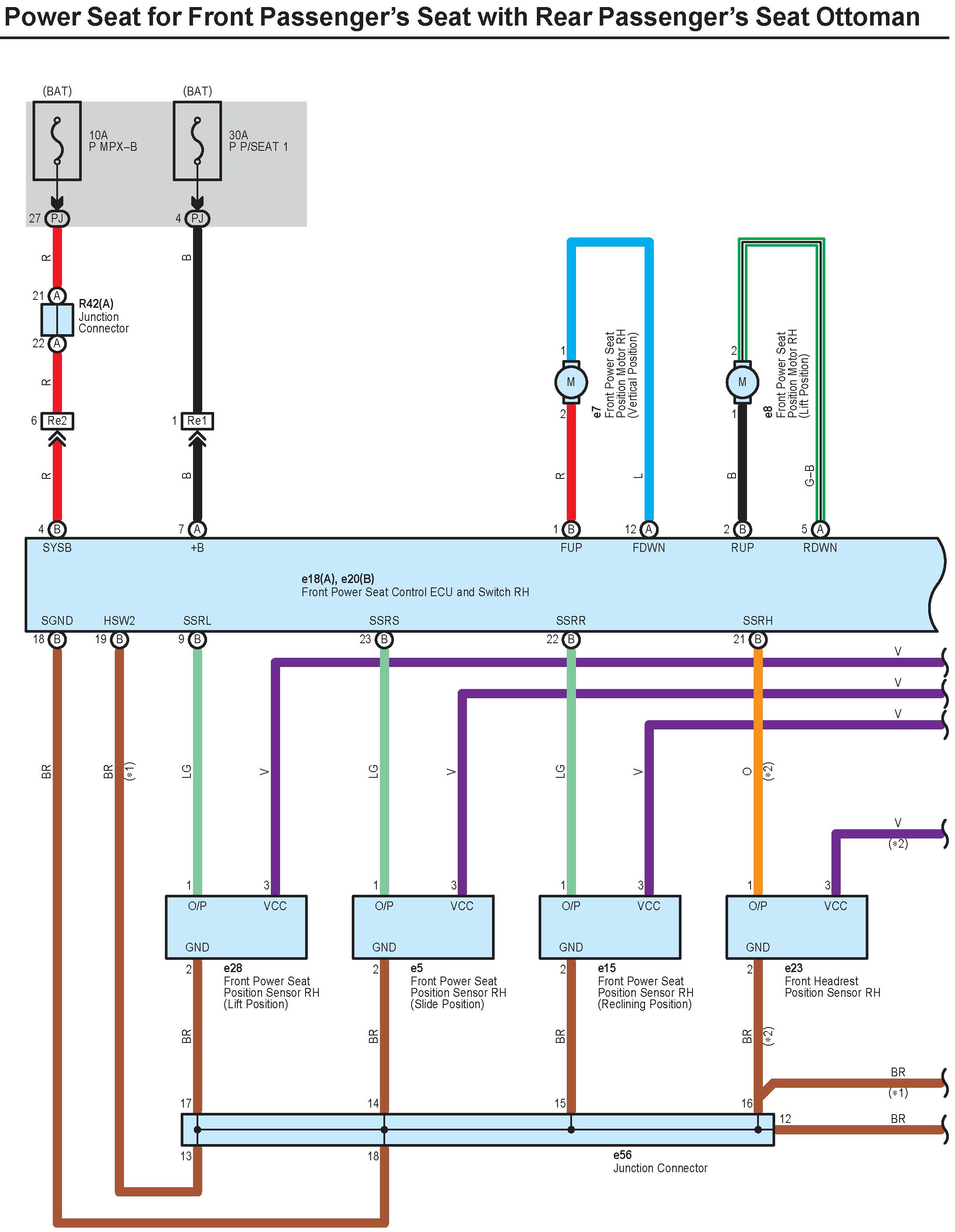

Power Seat For Front Passenger's Seat With Rear Passenger's Seat Ottoman Part 5:

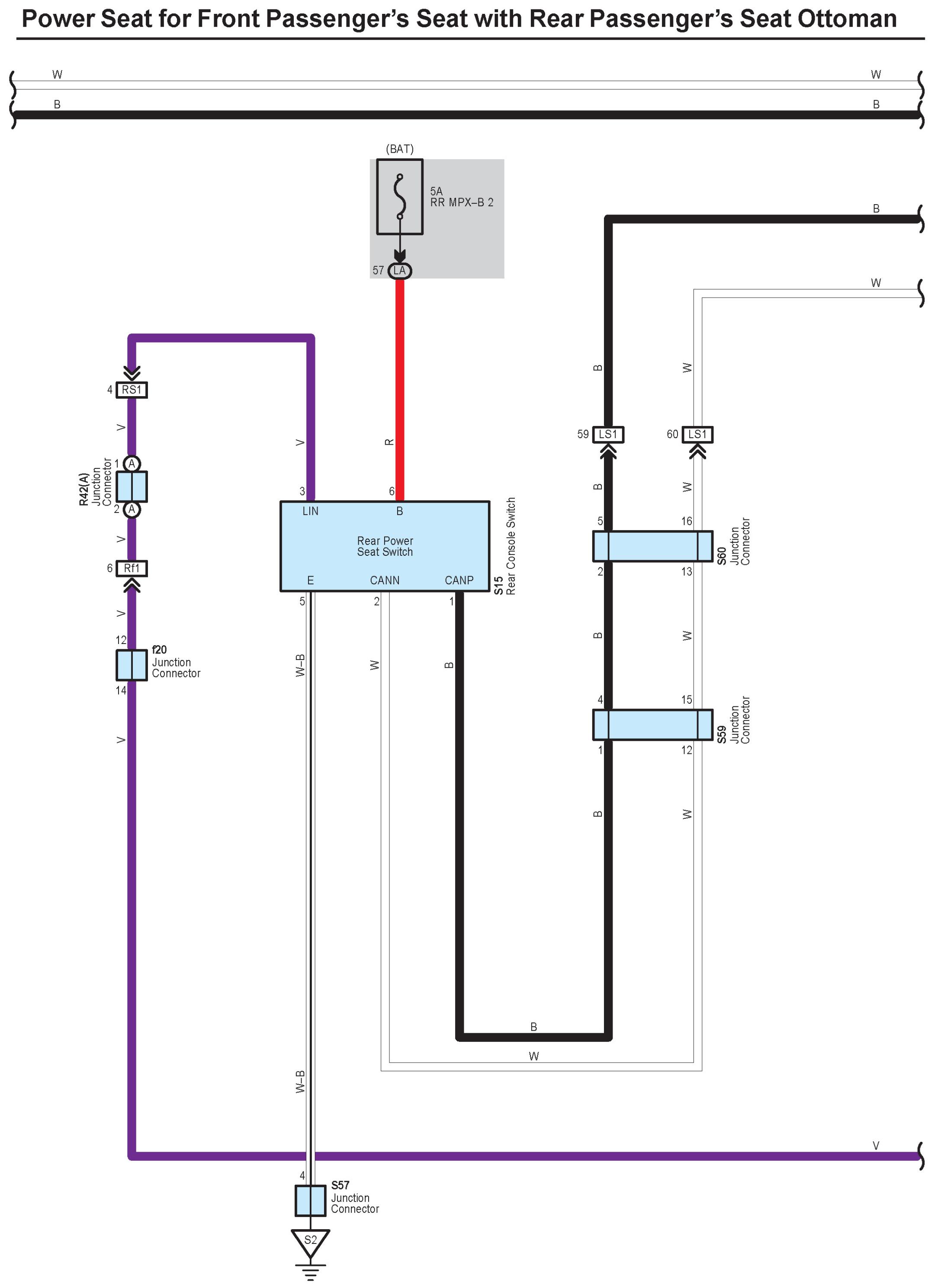

Power Seat For Front Passenger's Seat With Rear Passenger's Seat Ottoman Part 6:

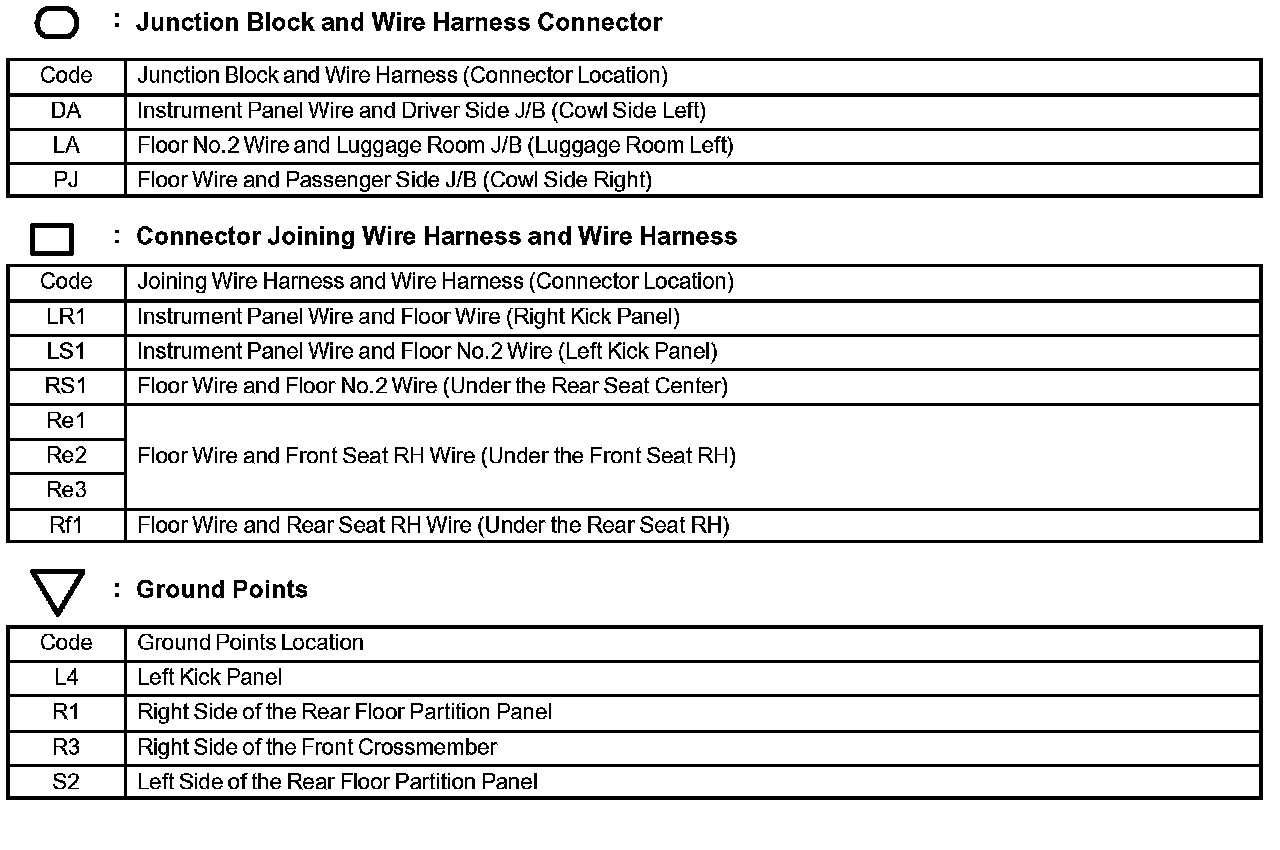

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
