Symptom Related Diagnostic Procedures
PROBLEM SYMPTOMS TABLEHINT:
- Use the table below to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "Suspected Area-column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
- Inspect the fuses and relays related to this system before inspecting the suspected areas below.

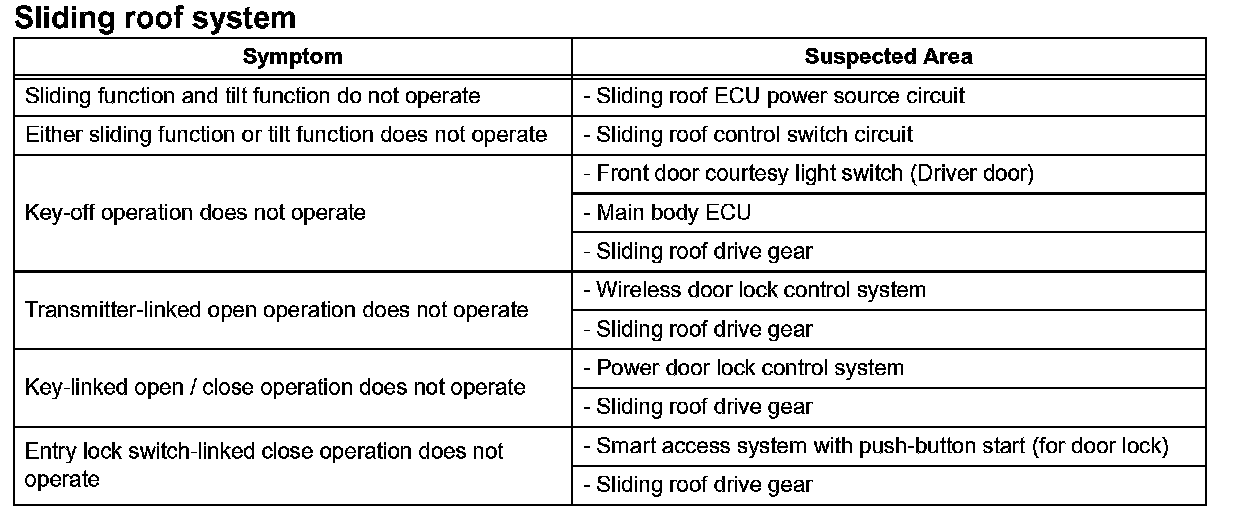

Problem Symptoms Table - Sliding Roof System:
