Sliding Roof ECU Power Source Circuit

Sliding Roof ECU Power Source Circuit

DESCRIPTION
If the sliding function and tilt function do not operate, there may be a malfunction in the sliding roof ECU power source circuit.

WIRING DIAGRAM

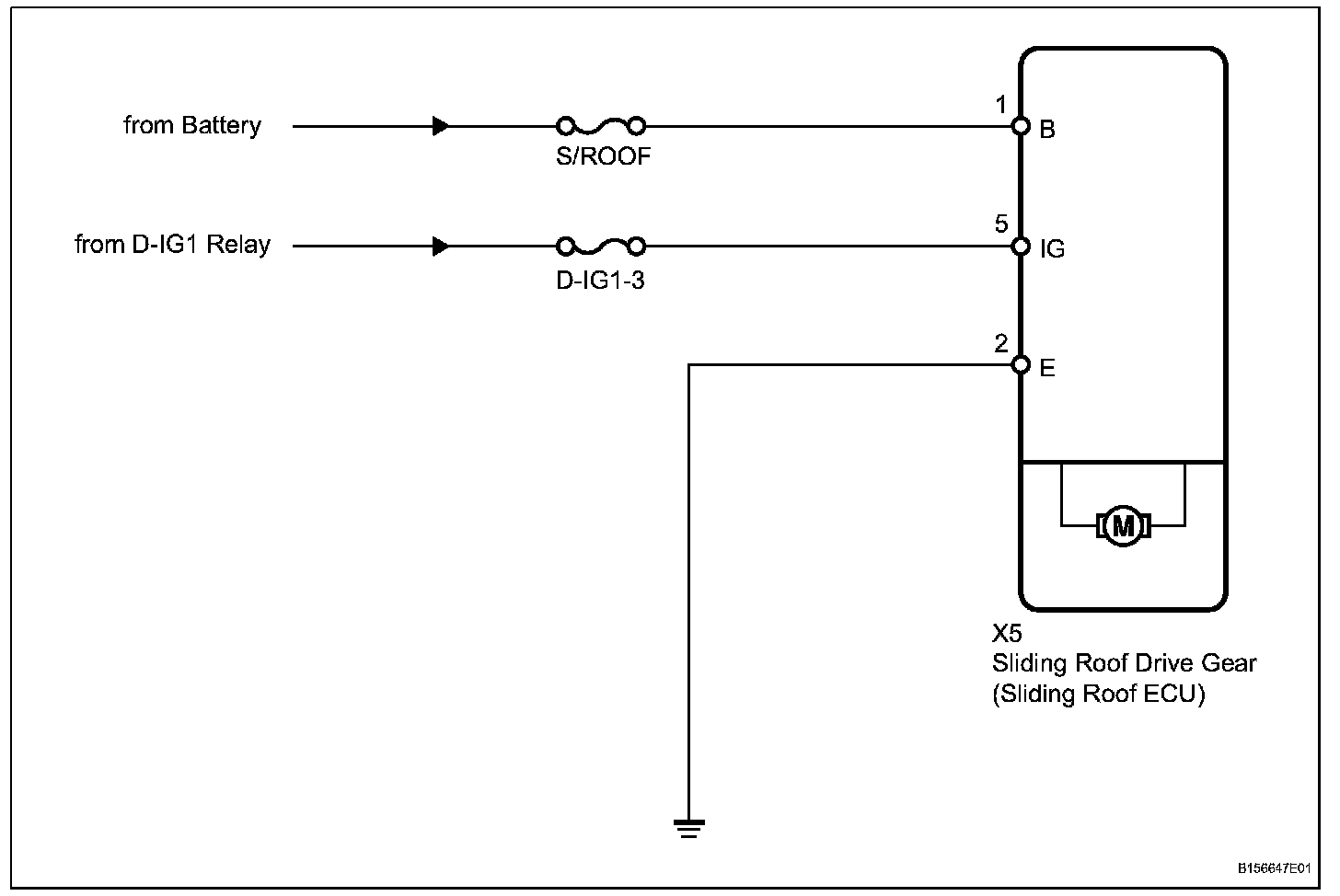

Wiring Diagram:





INSPECTION PROCEDURE

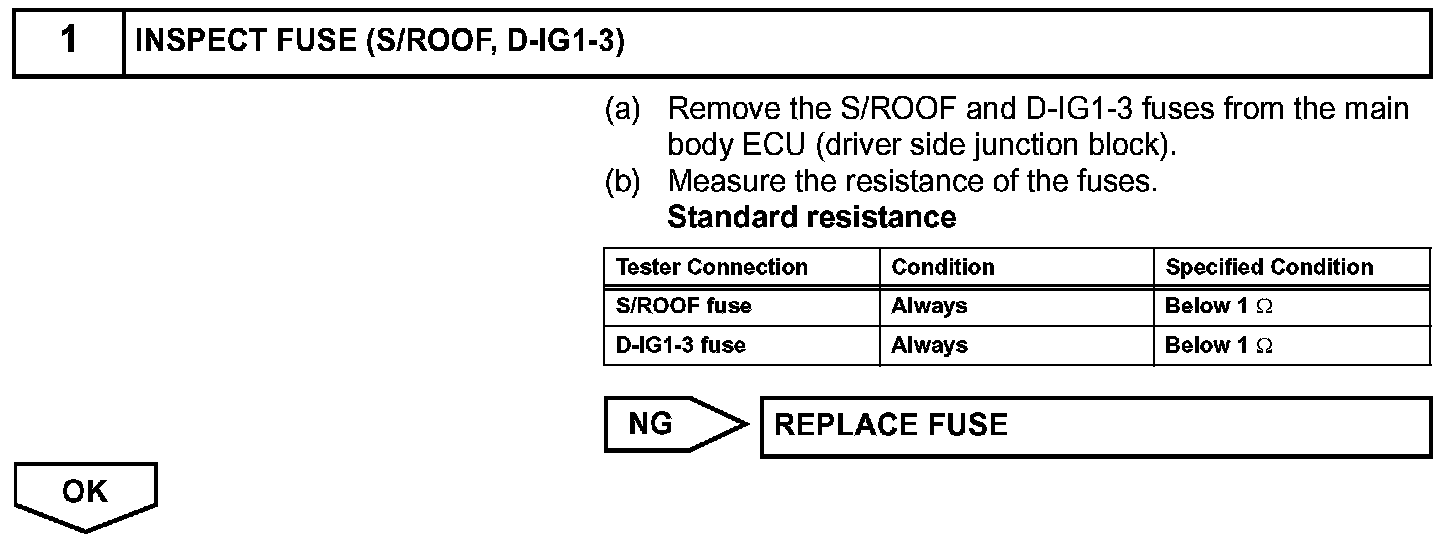

Step 1:

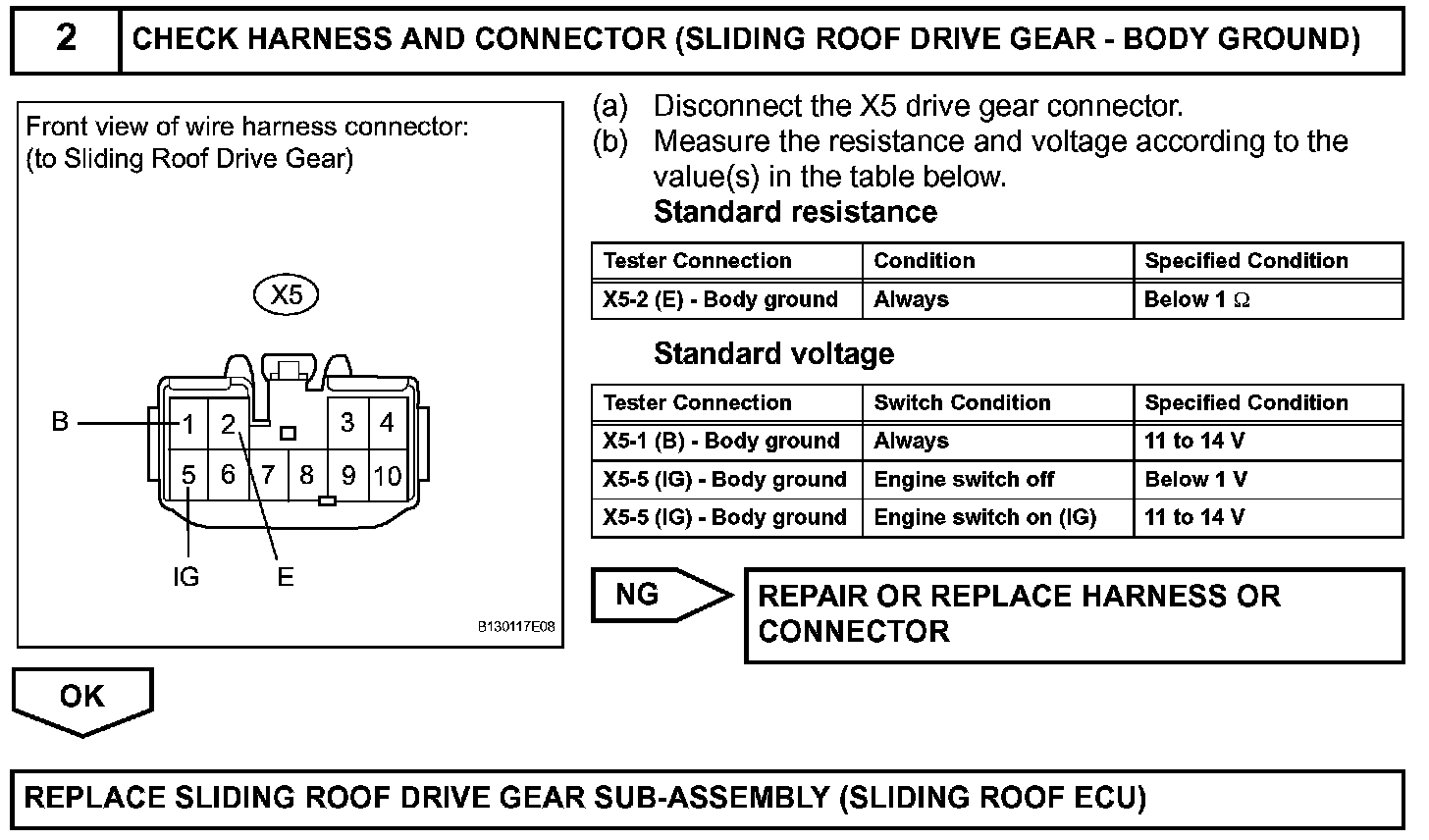

Step 2:
