Reverse Shift-Linked Function of Power Mirrors Do Not Operate

Reverse Shift-linked Function of Power Mirrors do not Operate

SYSTEM DESCRIPTION
When the reverse signal is sent from the TCM through the CAN (can communication) line to the front door ECU LH and RH, the front door ECU LH and RH activate the outer rear view mirror LH and RH reverse shift-linked function.

HINT: The reverse shift-linked function will not occur when the mirror master switch is in the neutral position (OFF).

INSPECTION PROCEDURE

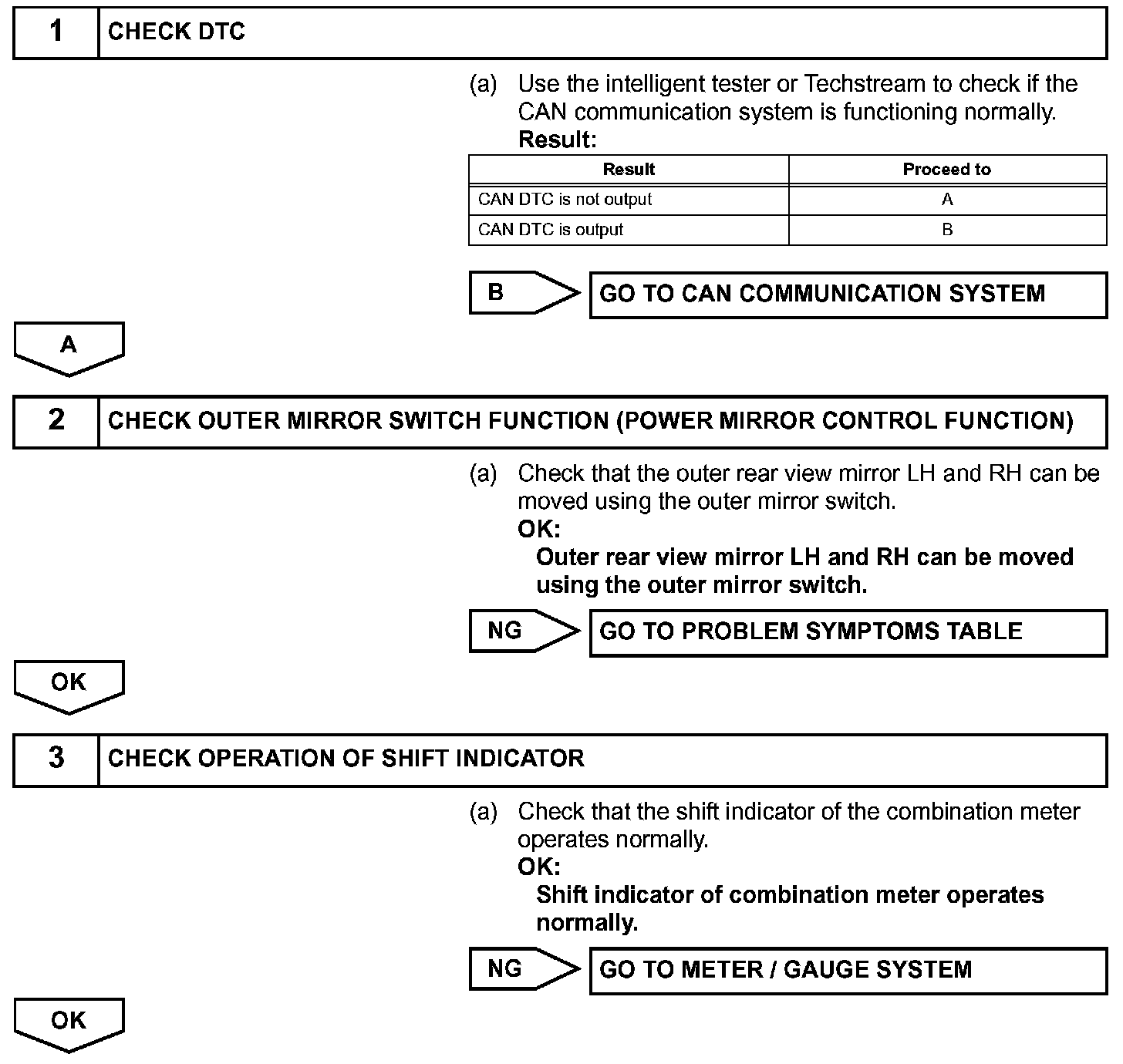

Step 1 - 3:

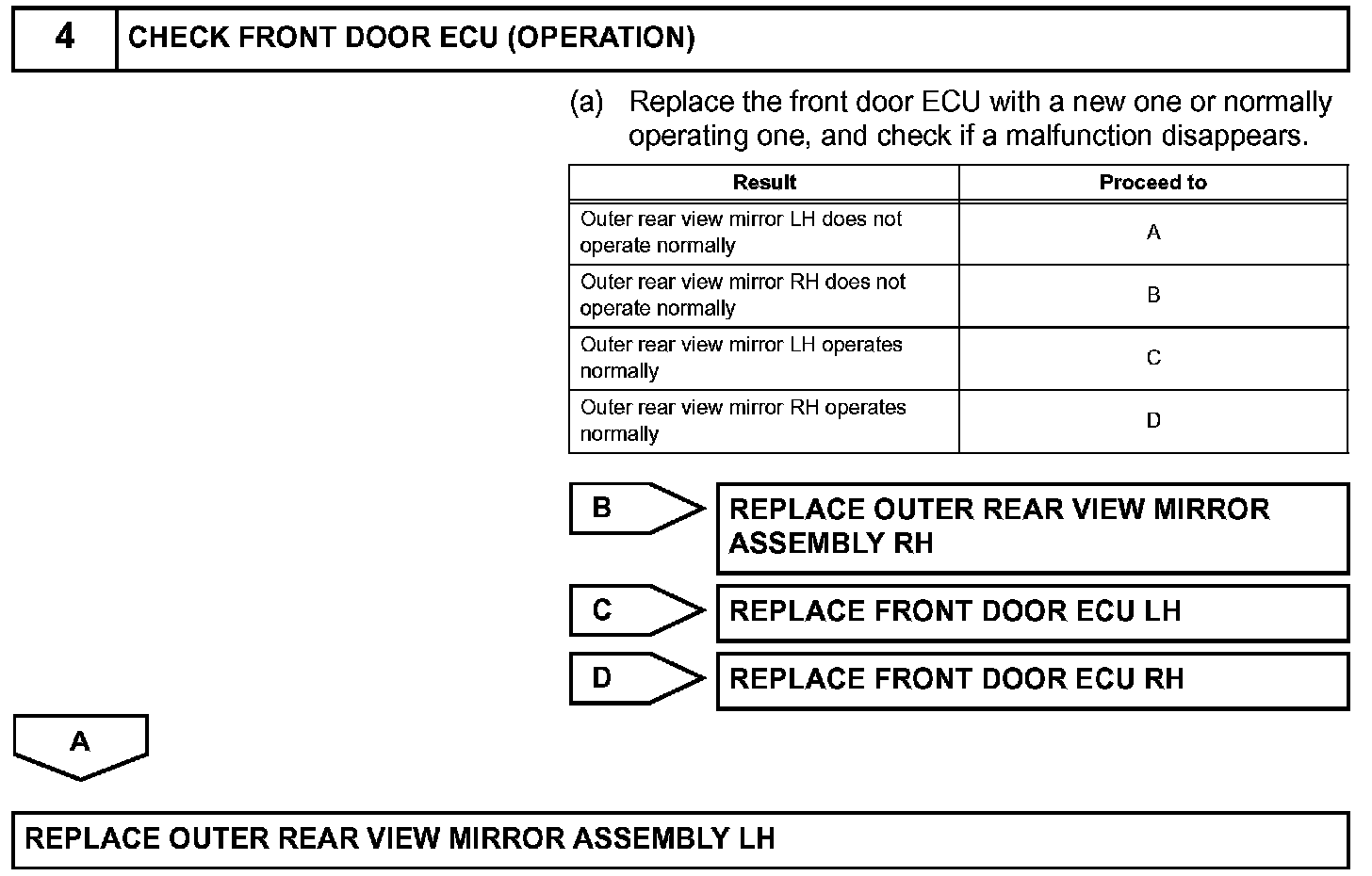

Step 4:
