Power Retractable Mirrors Do Not Operate With Power Retract Mirror Switch

Power Retractable Mirrors do not Operate with Power Retract Mirror Switch

SYSTEM DESCRIPTION
This circuit detects the conditions of the mirror retract switch.
The outer mirror switch sends information about the operating condition of the mirror retract switch (switch input signals) through the CAN (can communication) line. Then the switch input signals are sent to the front door ECU LH and RH.

WIRING DIAGRAM

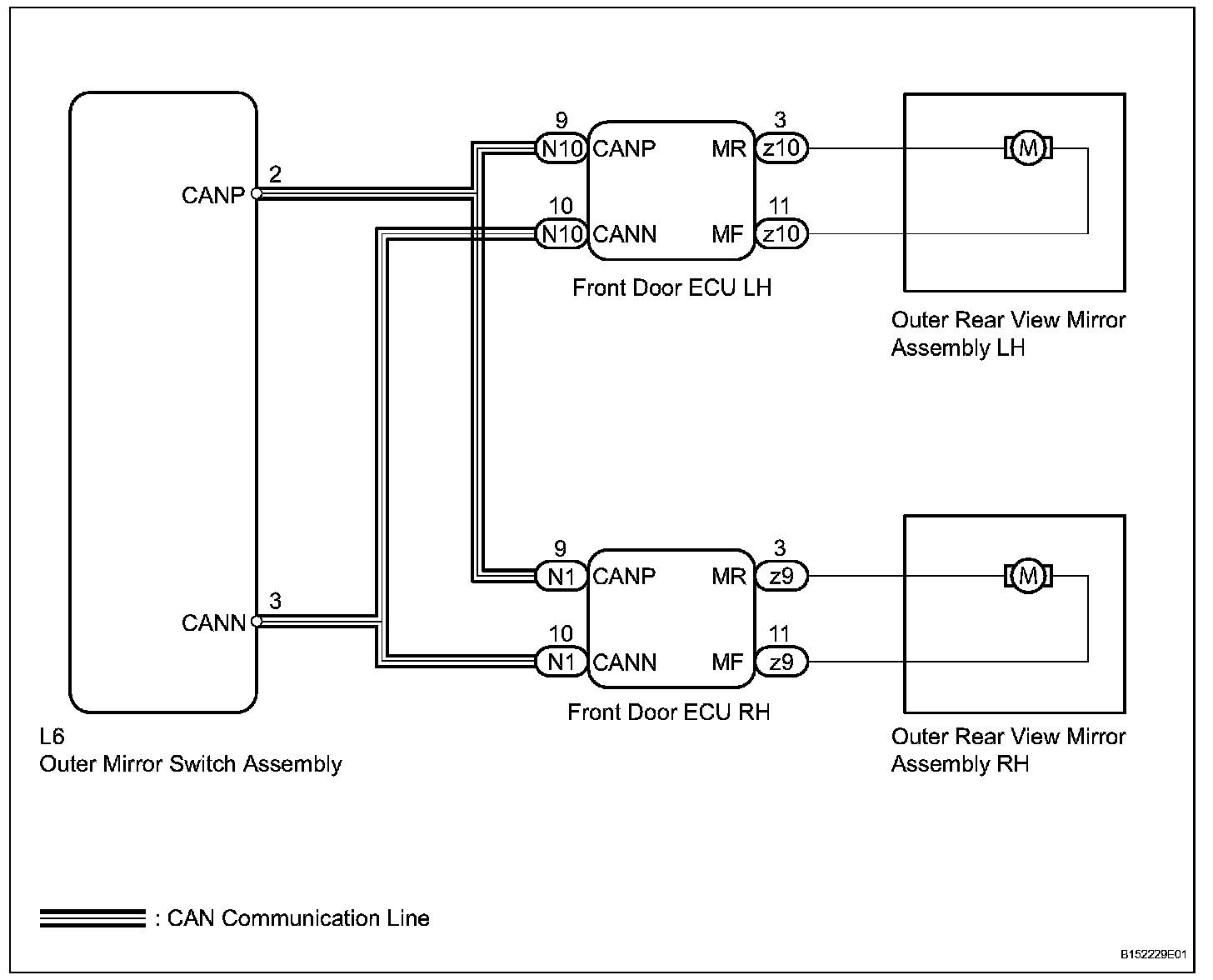

Wiring Diagram:

INSPECTION PROCEDURE

Step 1 - 3:

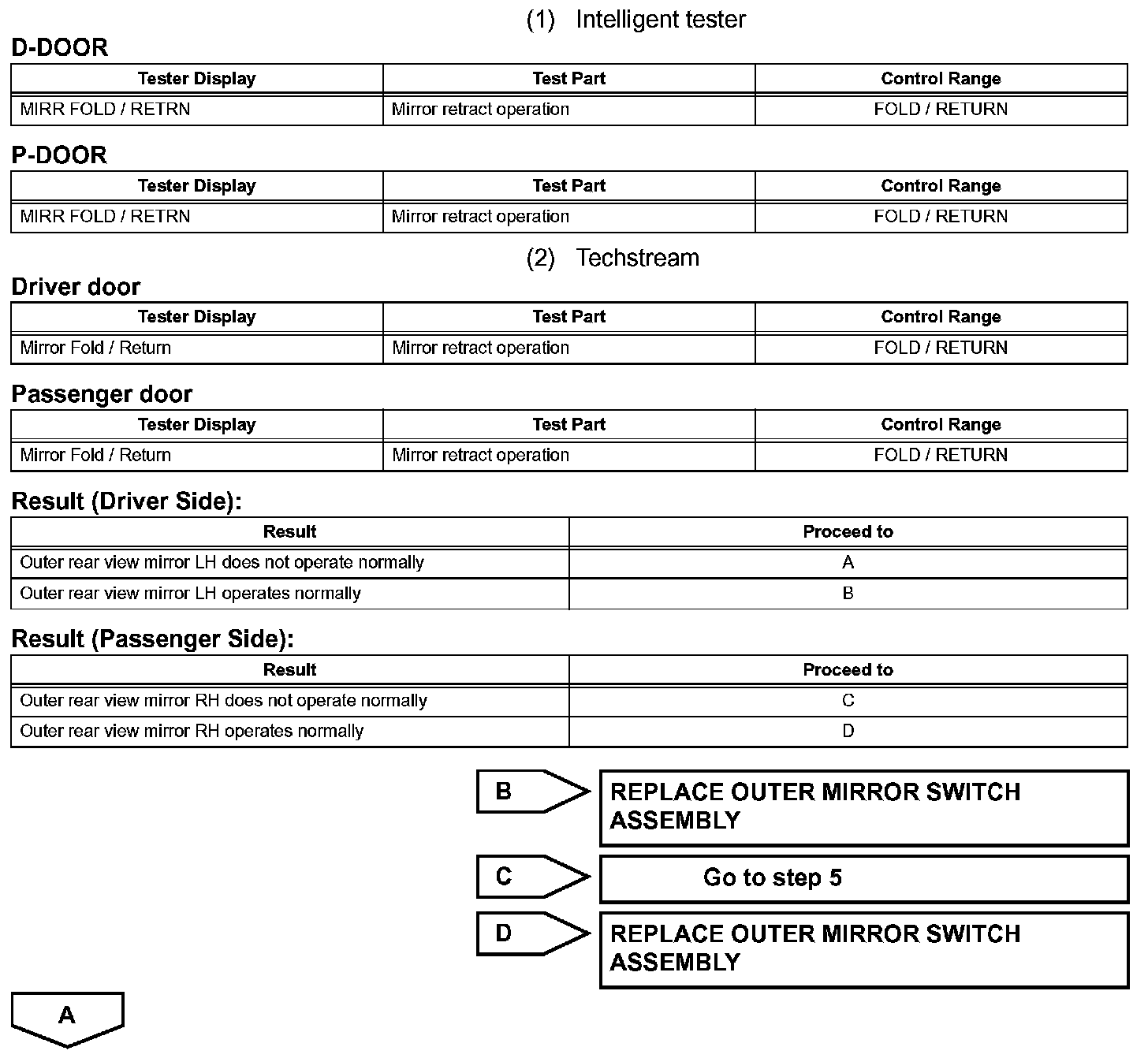

Step 3(Continued):

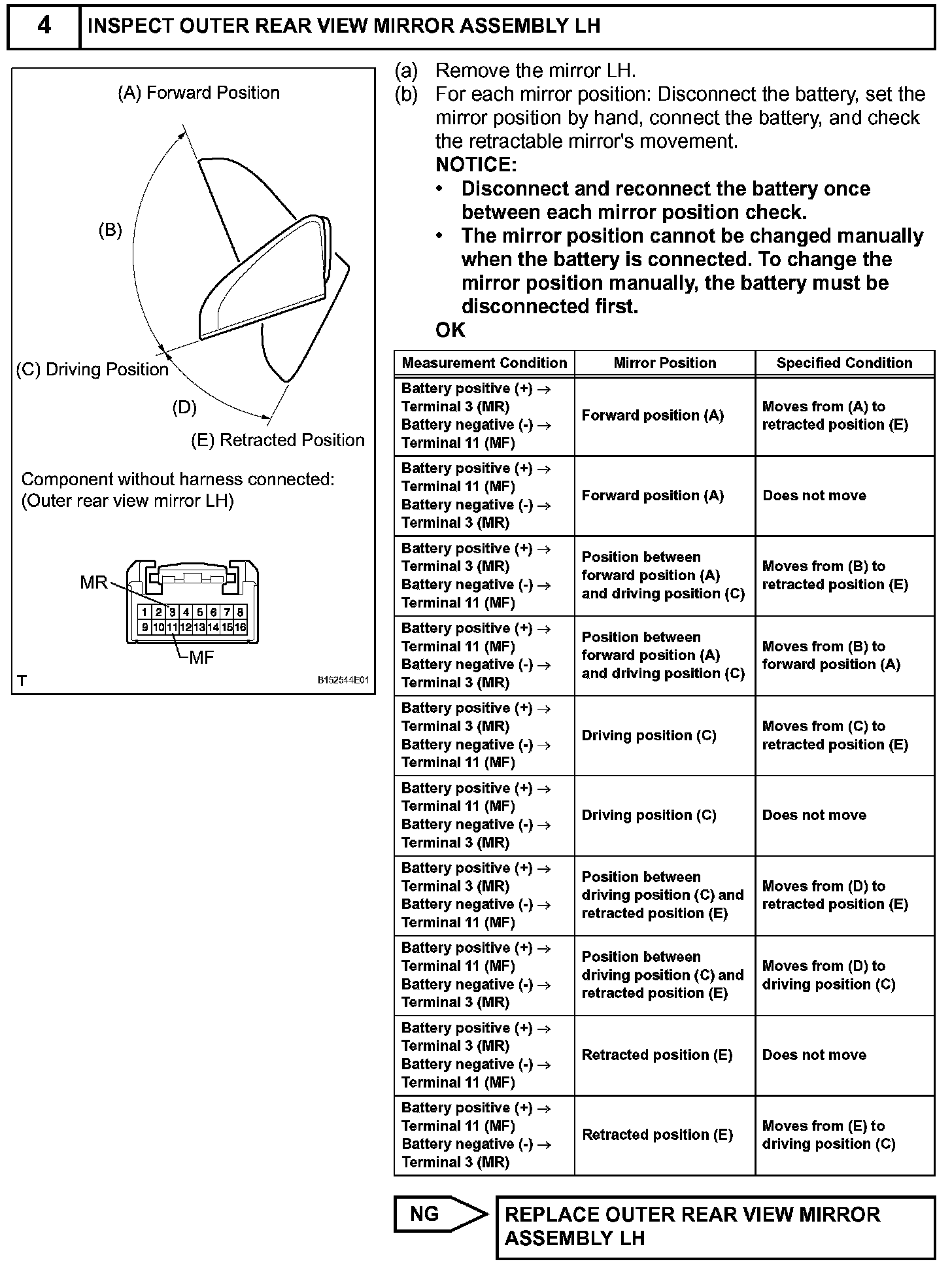

Step 4:

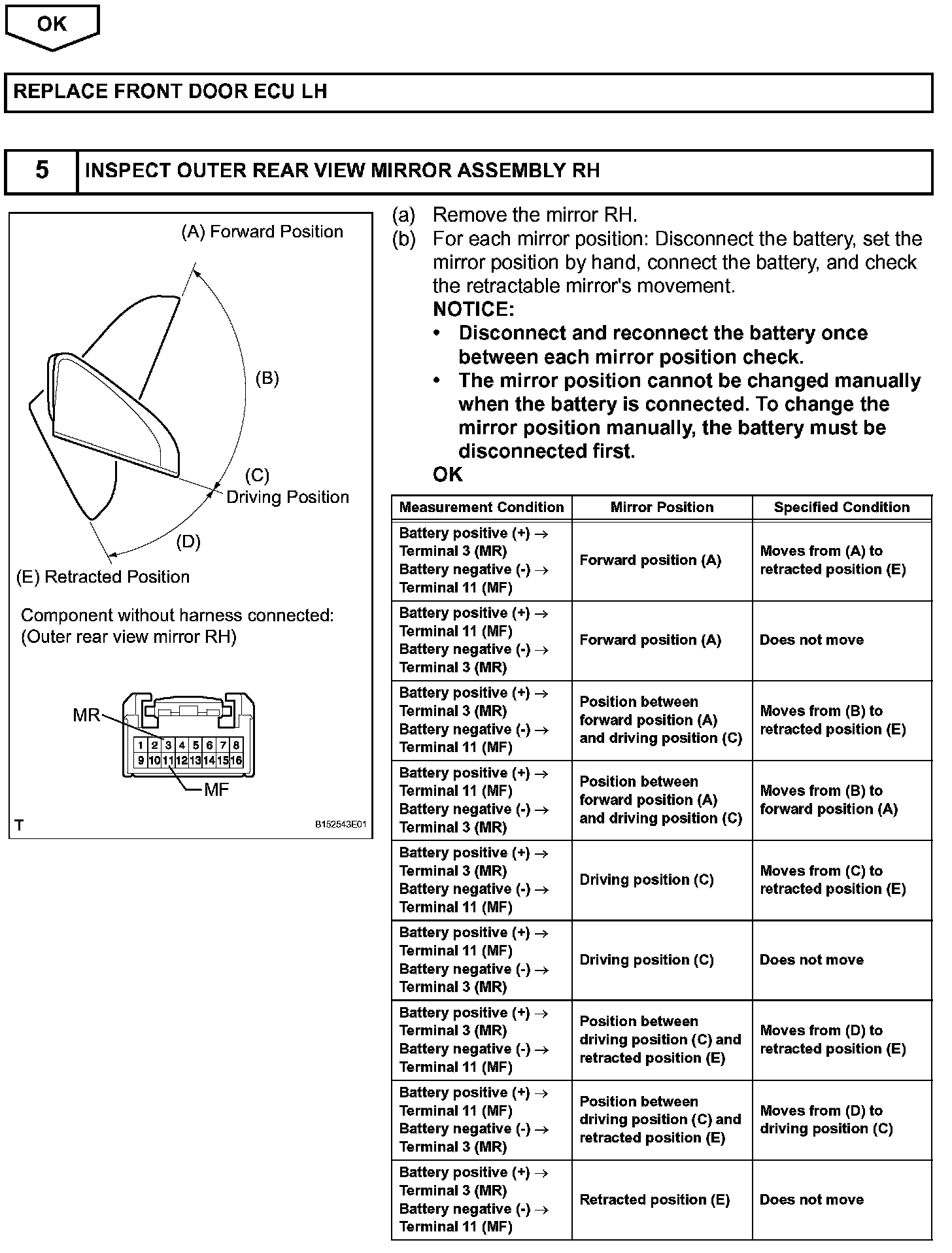

Step 4(Continued) - 5:

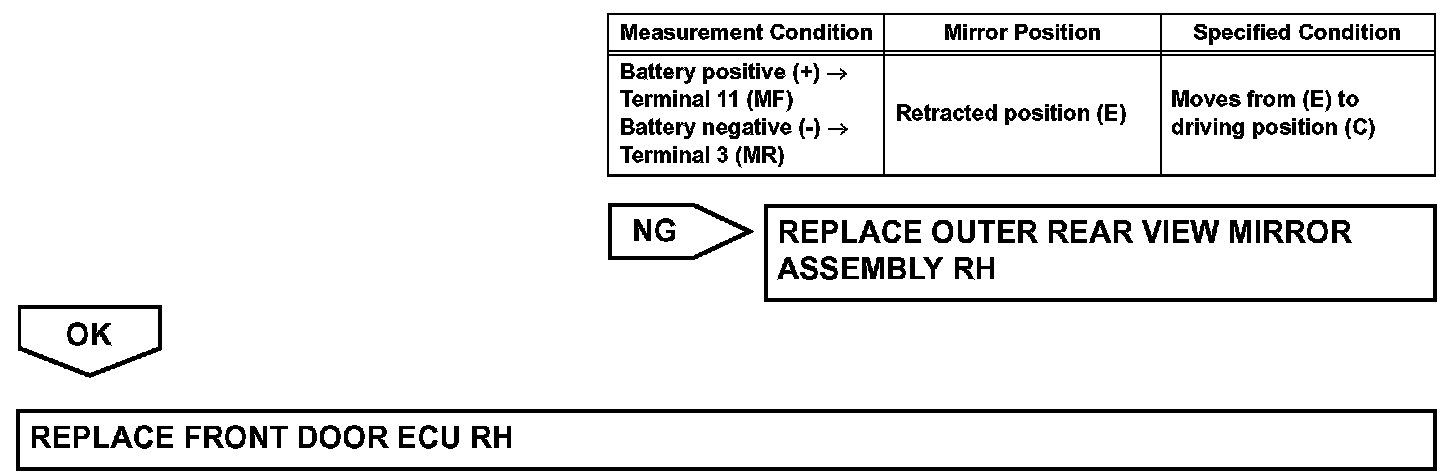

Step 5(Continued):
