Power Mirror Surface Position Is Not Memorized

Power Mirror Surface Position is not Memorized

SYSTEM DESCRIPTION
The outer rear view mirror assembly has a mirror position sensor. The seat ECUs send instructions to the driver side and front passenger side door ECUs. Then the door ECUs receive mirror information from the mirror position sensors, and memorize the mirror positions.

INSPECTION PROCEDURE

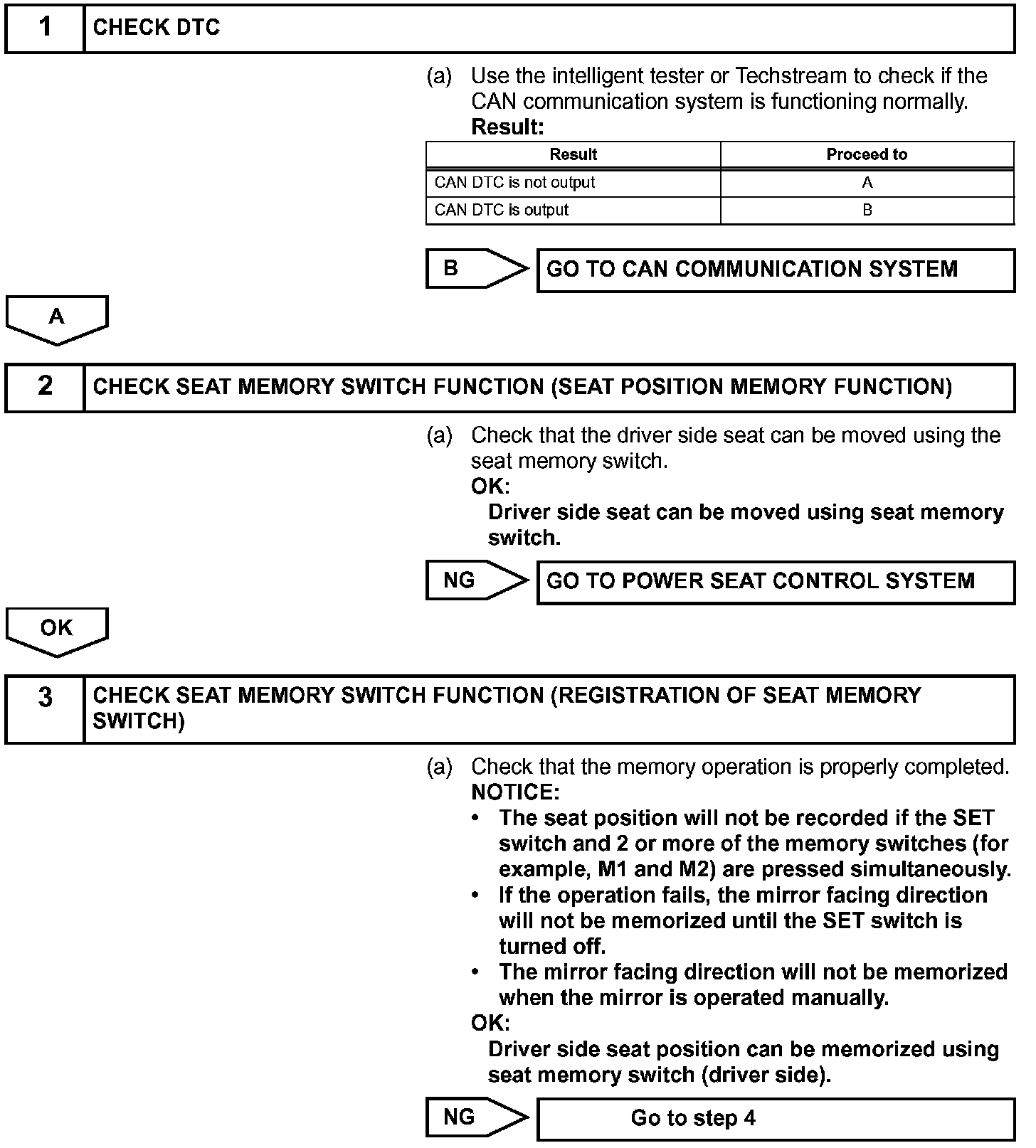

Step 1 - 3:

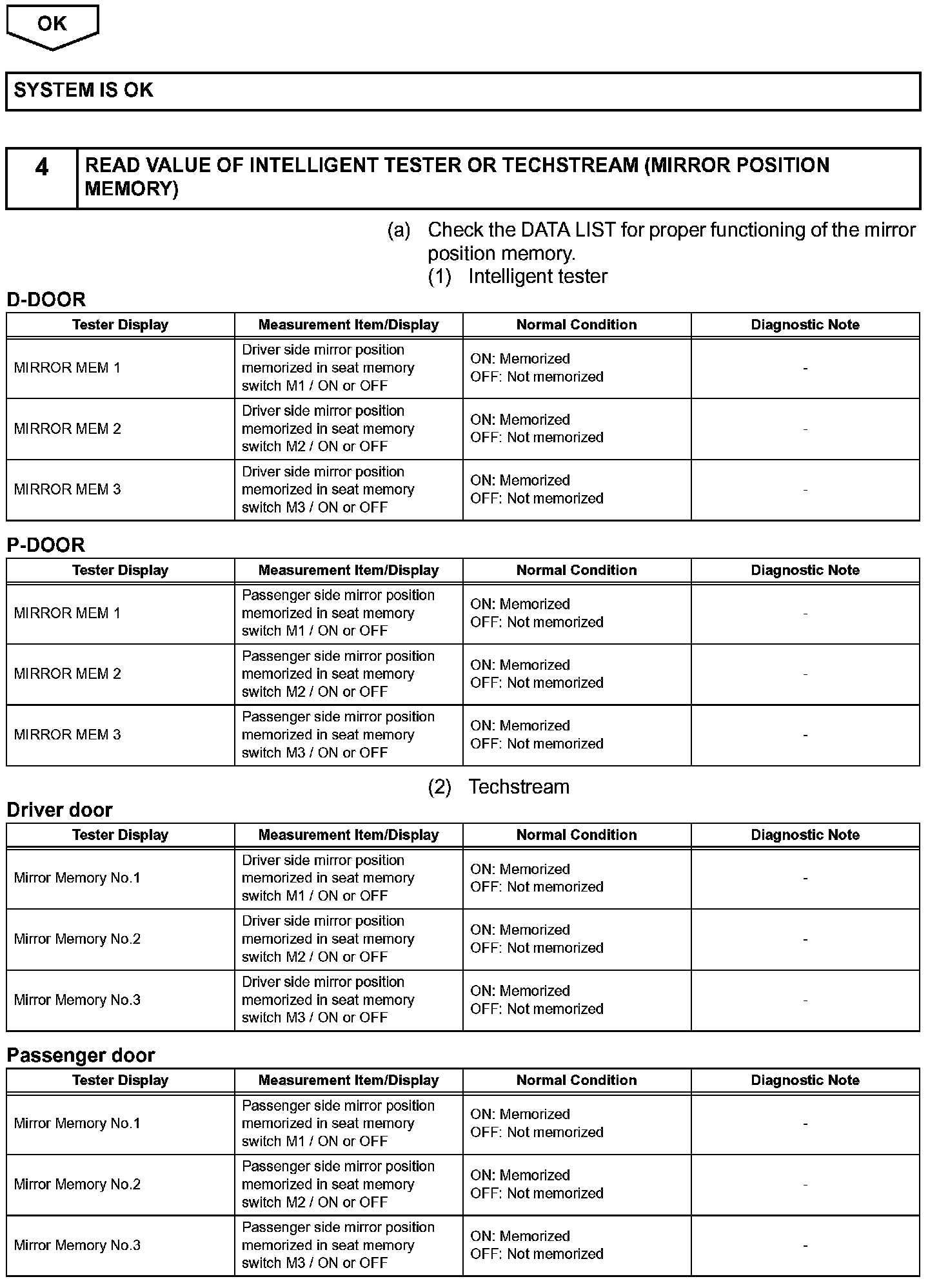

Step 3(Continued) - 4:

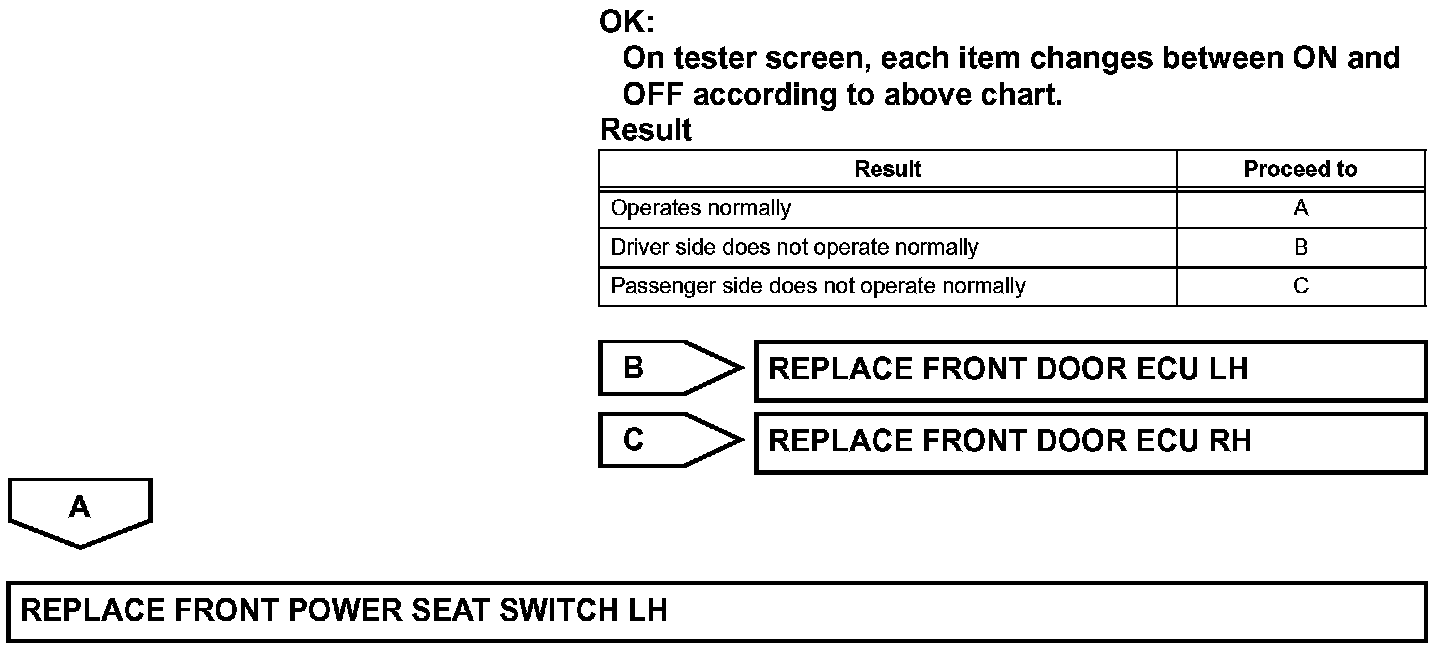

Step 4(Continued):
