Front Passenger Side Power Mirror Cannot Be Adjusted With Power Mirror Switch

Front Passenger Side Power Mirror cannot be Adjusted with Power Mirror Switch

SYSTEM DESCRIPTION
The circuit detects the conditions of the mirror control switch.
The outer mirror switch sends information about the operating condition of the mirror switch (switch input signals) through the CAN (can communication) line. Then the switch input signals are sent to the front door ECU RH. Mirror adjustment is controlled by the front door ECU RH.

WIRING DIAGRAM

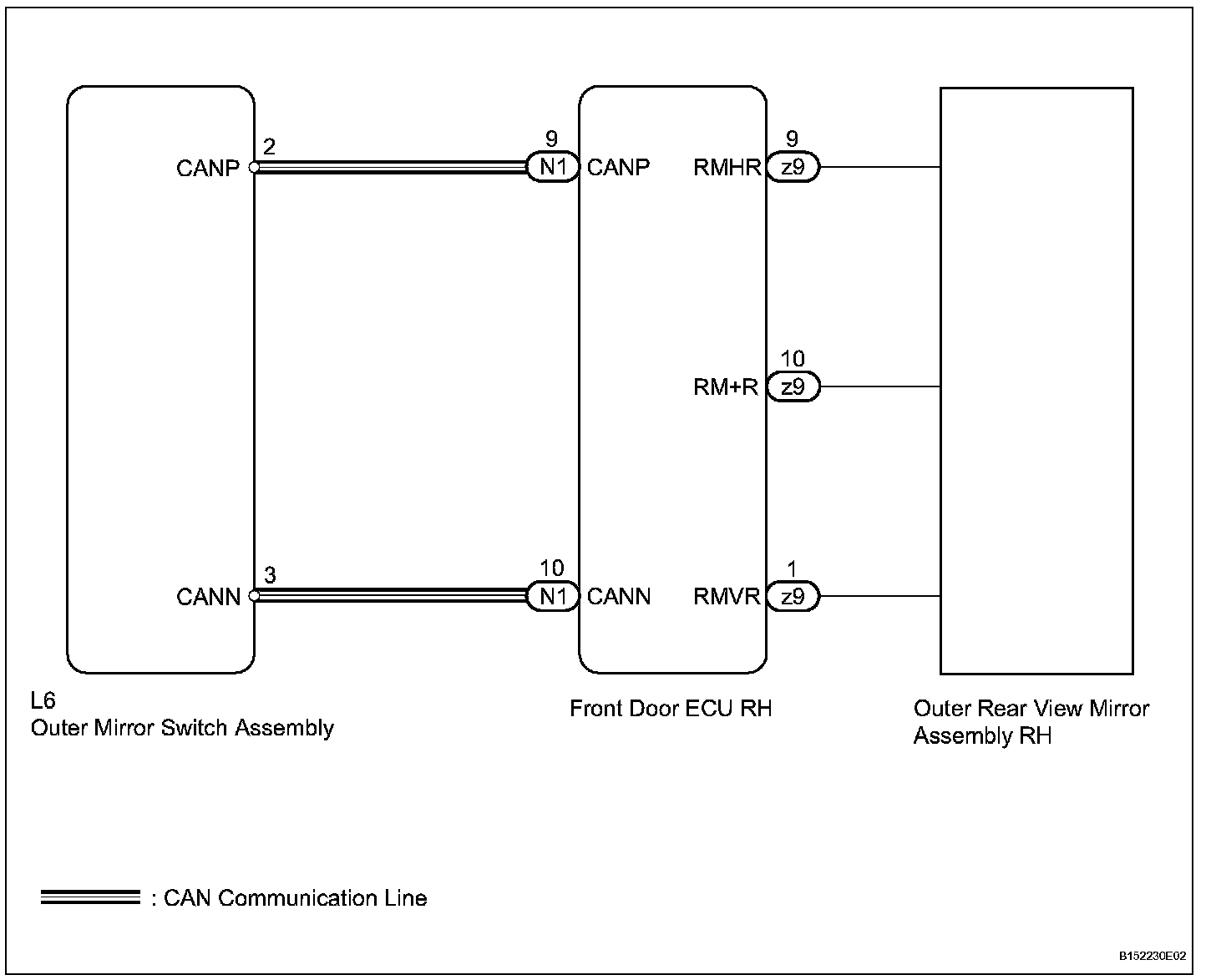

Wiring Diagram:

INSPECTION PROCEDURE

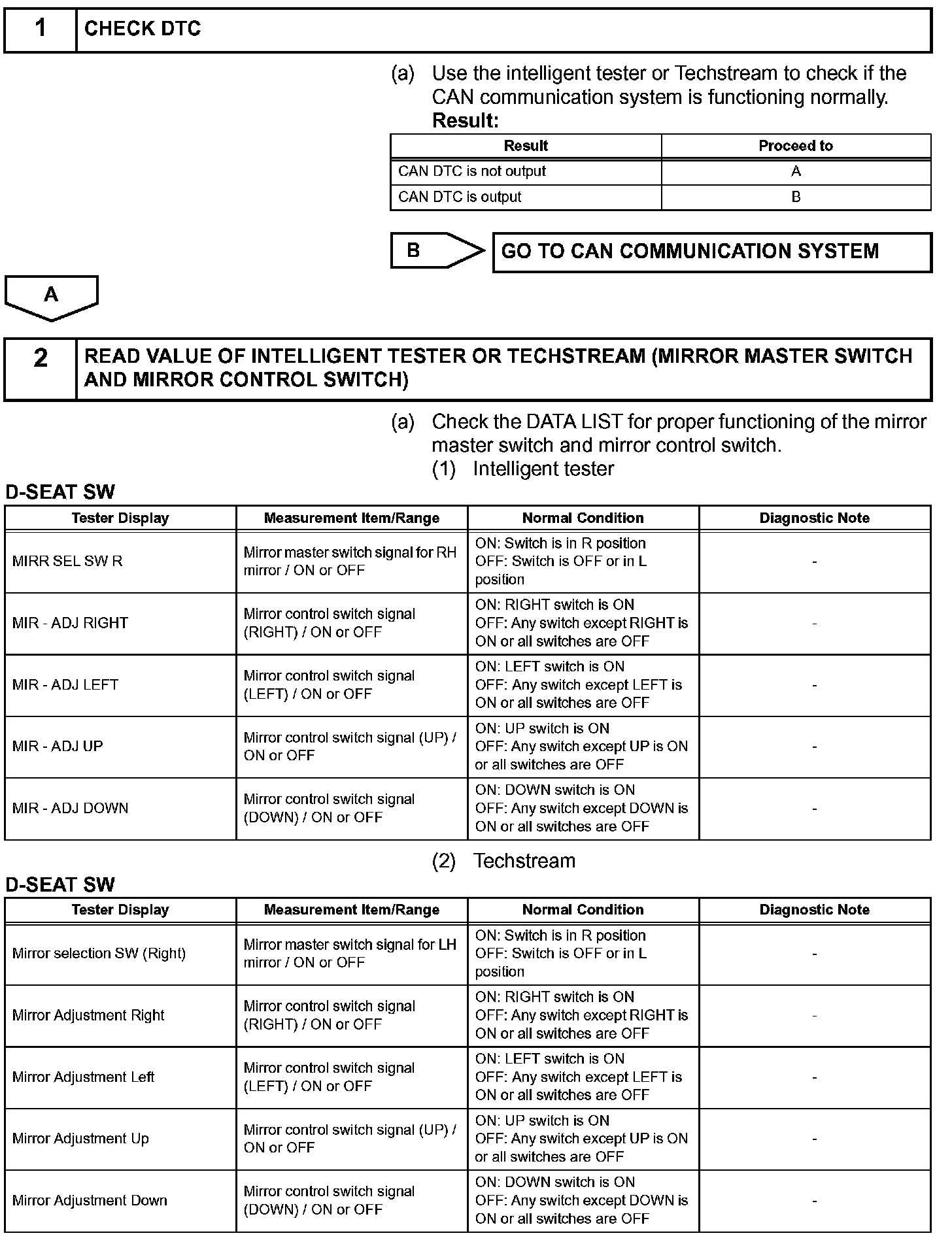

Step 1 - 2:

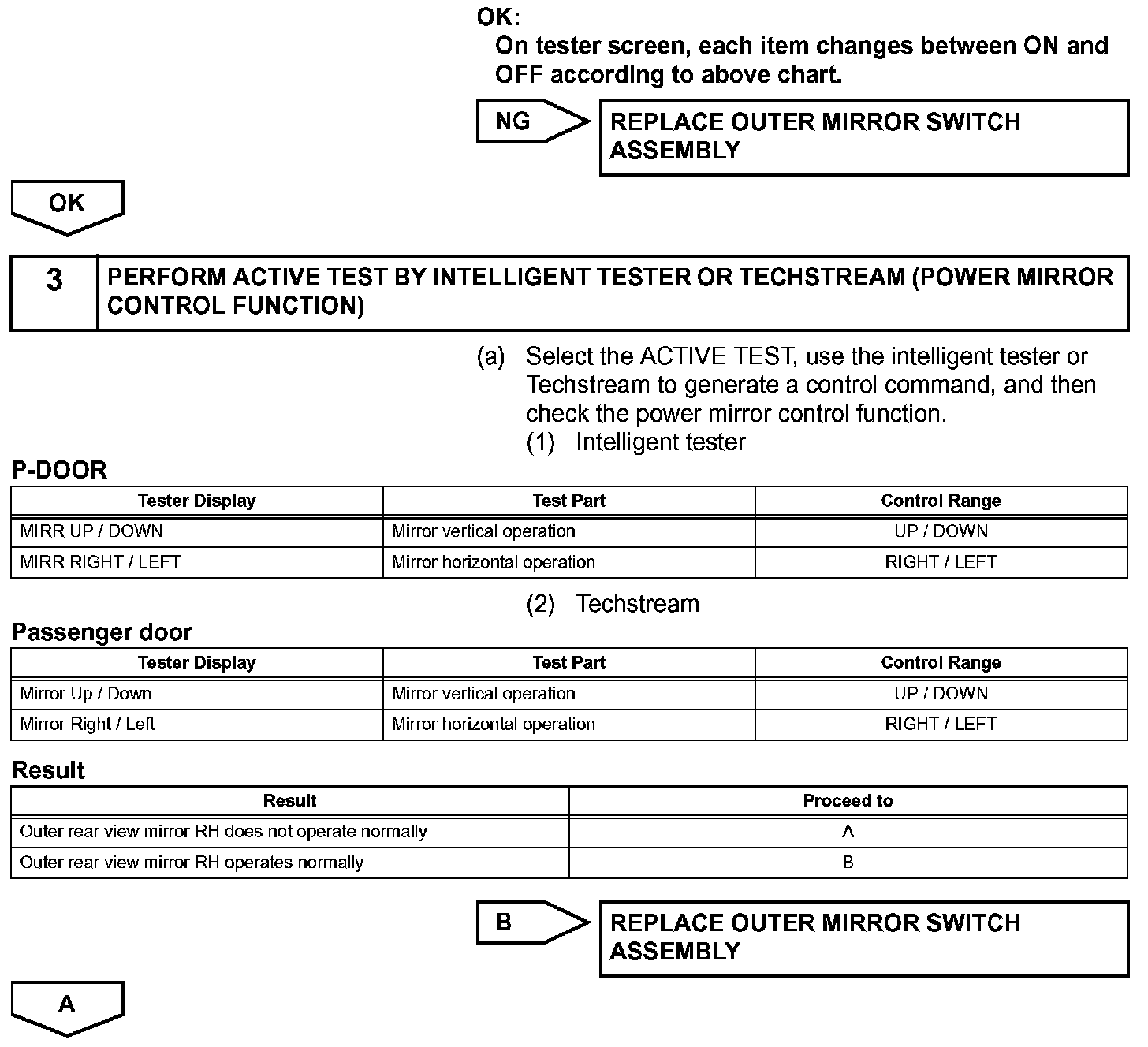

Step 2(Continued) - 3:

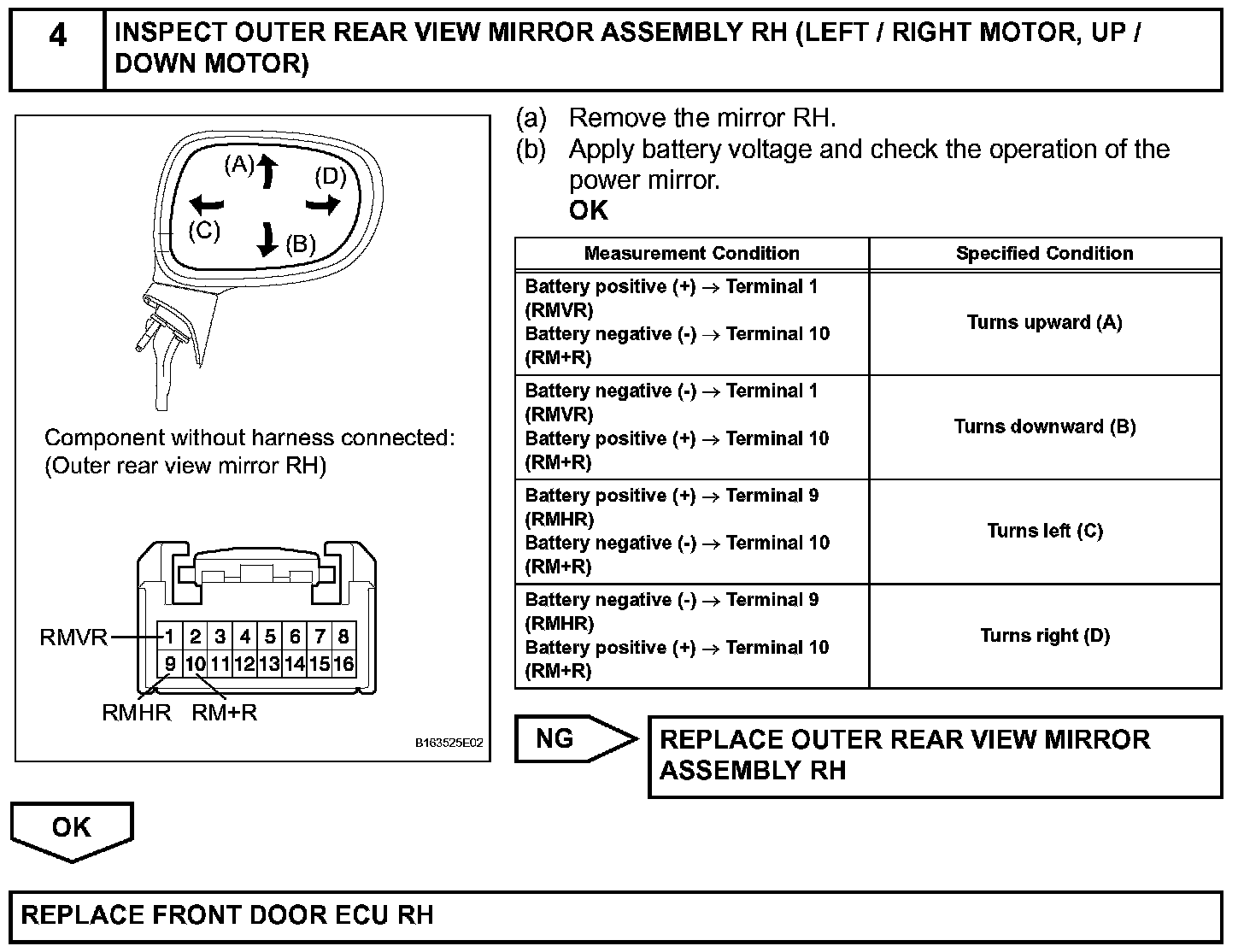

Step 4:
