Driver Side Power Mirror Cannot Be Adjusted With Power Mirror Switch

Driver Side Power Mirror cannot be Adjusted with Power Mirror Switch

SYSTEM DESCRIPTION
This circuit detects the conditions of the mirror control switch. The outer mirror switch assembly sends information about the operating condition of the mirror switch (switch input signals) through the CAN (can communication) line. Then the switch input signals are sent to the front door ECU LH. Mirror adjustment is controlled by the front door ECU LH.

WIRING DIAGRAM

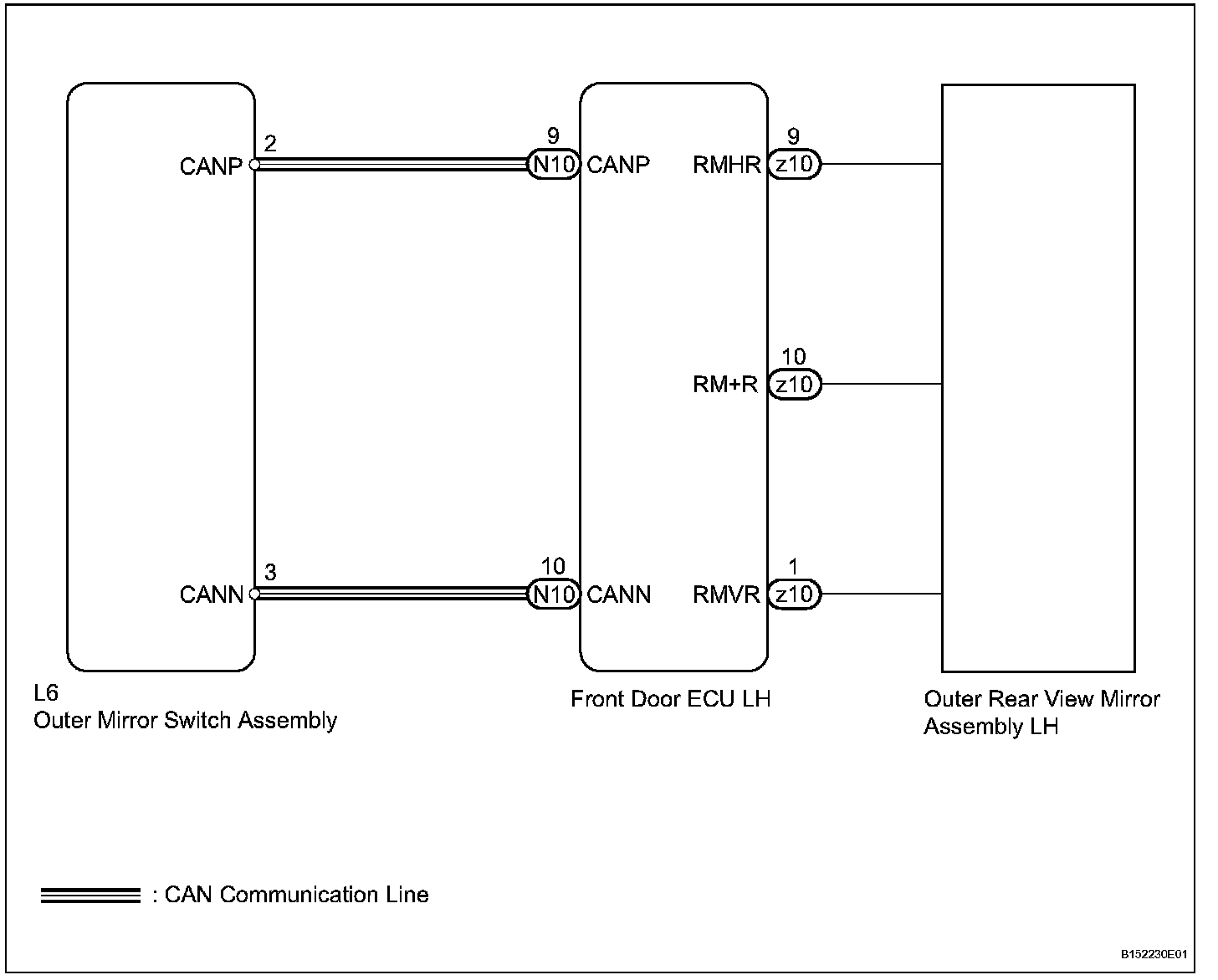

Wiring Diagram:

INSPECTION PROCEDURE

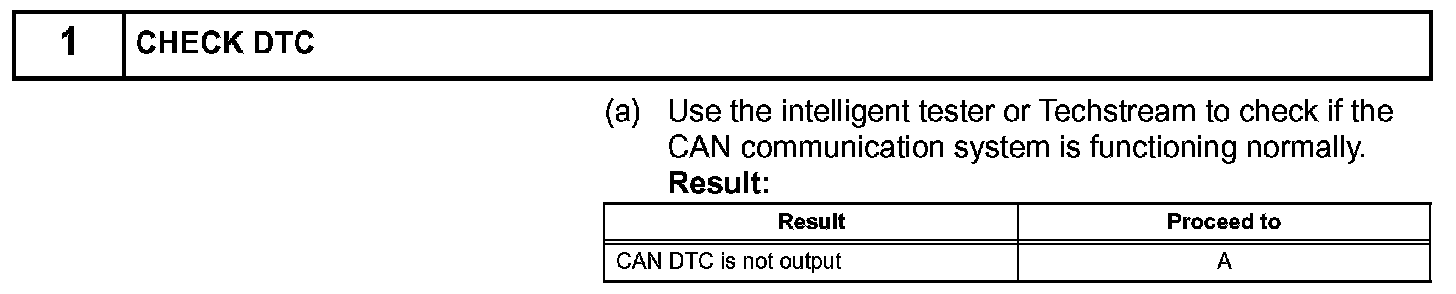

Step 1:

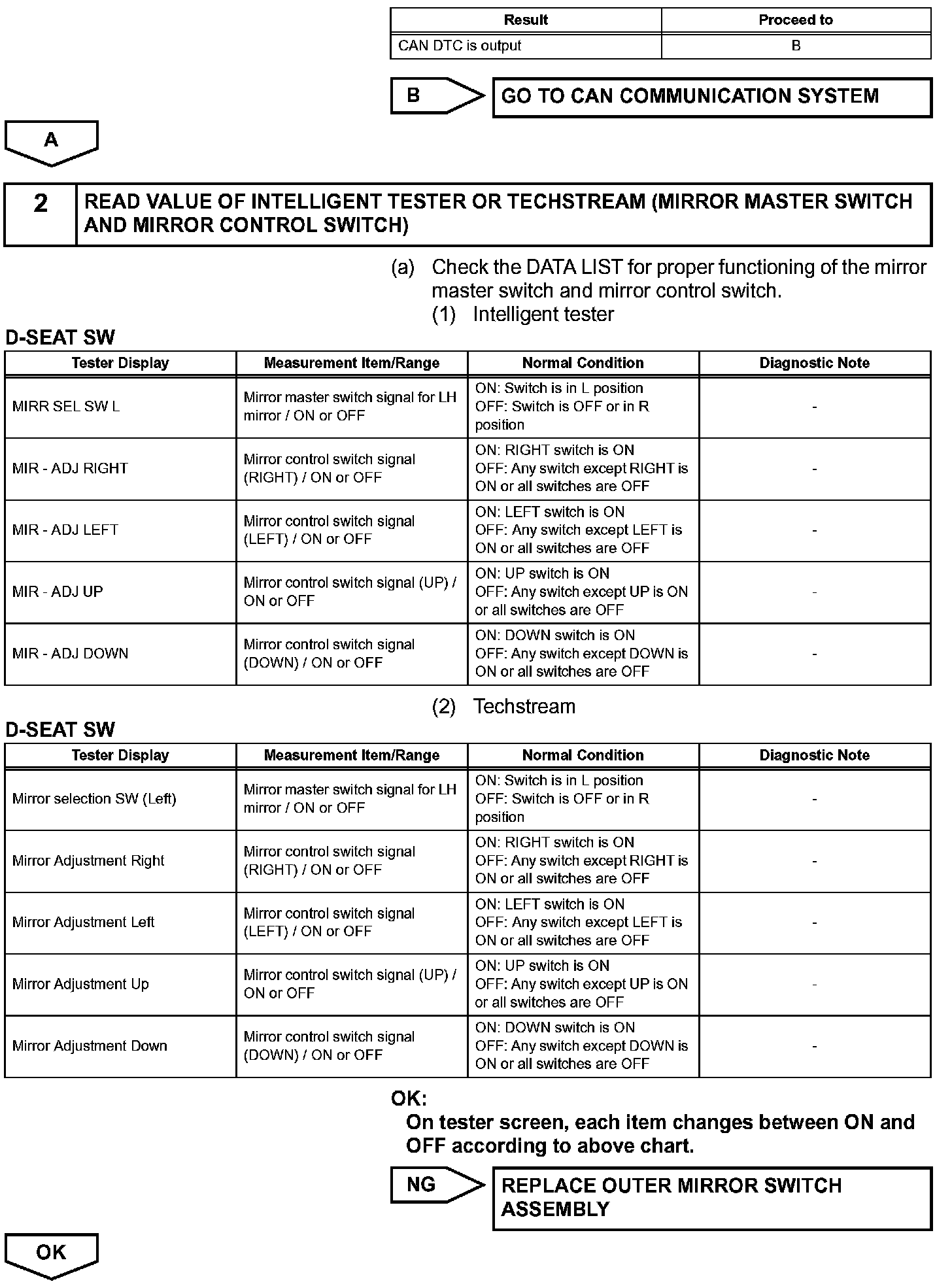

Step 1(Continued) - 2:

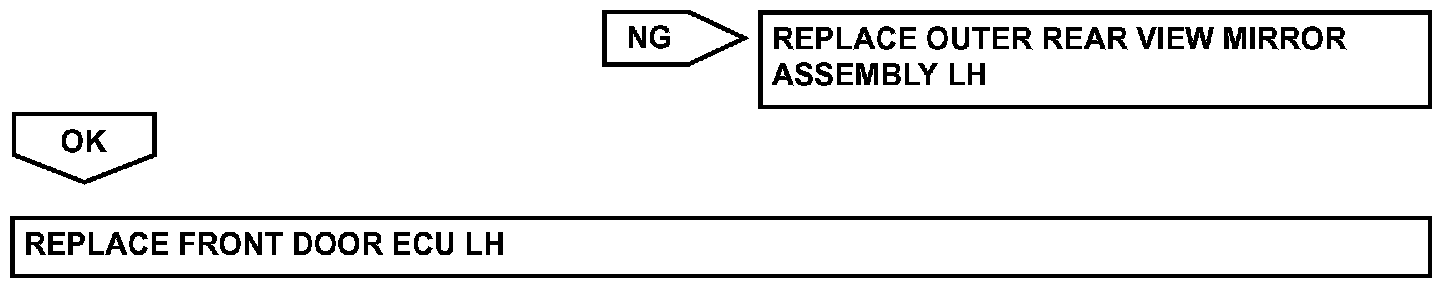

Step 3 - 4:

Step 4(Continued):
