Outer Rear View Mirror

OUTER REAR VIEW MIRROR

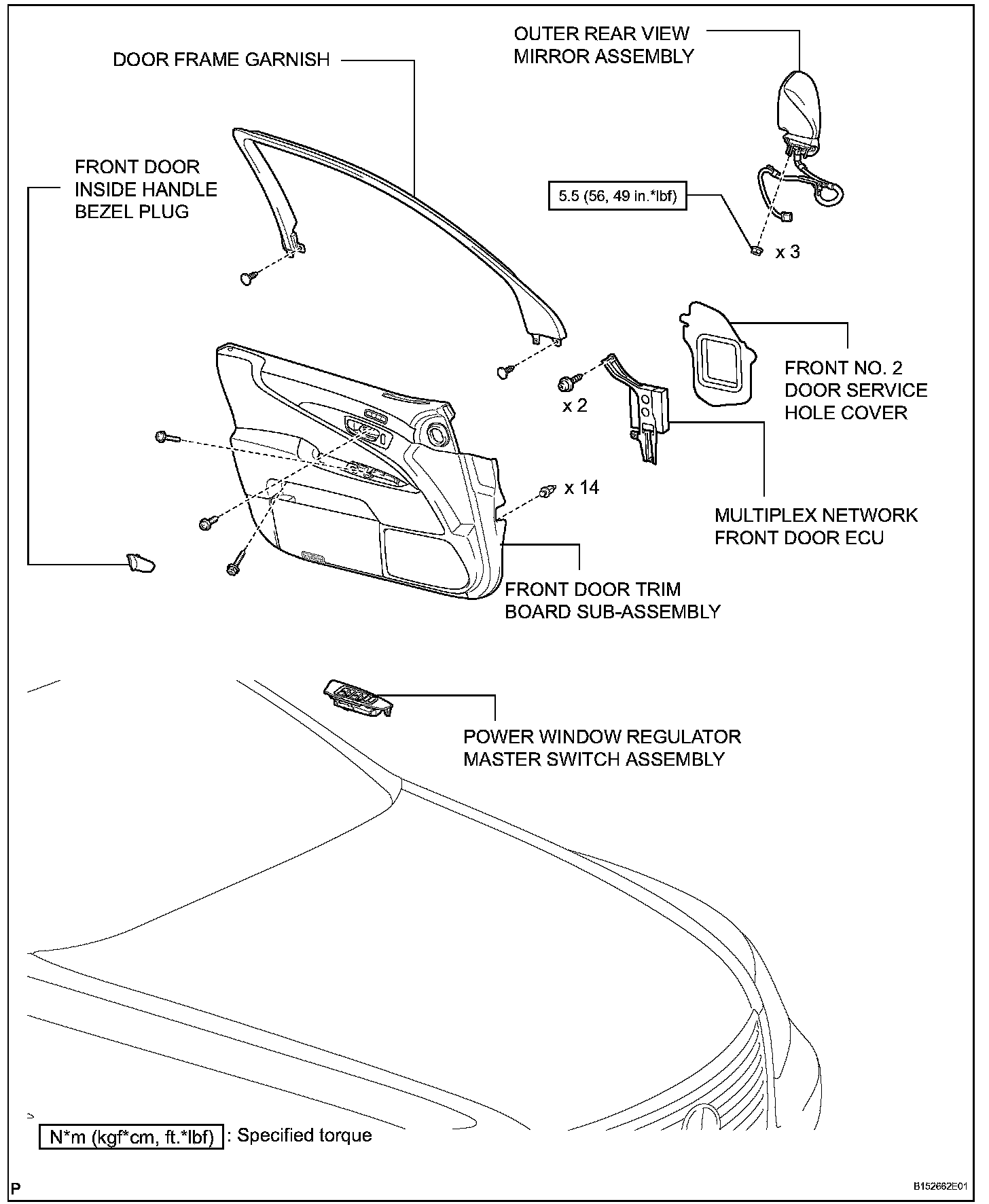

Outer Rear View Mirror:

REMOVAL

HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. REMOVE COWL TOP VENTILATOR LOUVER RH
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTICE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG
4. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
5. REMOVE DOOR FRAME GARNISH
6. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
7. REMOVE MULTIPLEX NETWORK FRONT DOOR ECU
8. REMOVE FRONT NO. 2 DOOR SERVICE HOLE COVER

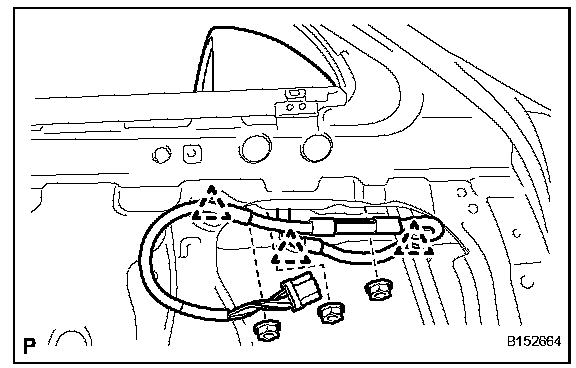

9. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY





a. Disconnect the connector.
b. Detach the 3 clamps.
c. Remove the 3 nuts and mirror.

INSTALLATION

HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.
- A bolt without a torque specification is shown in the standard bolt chart.

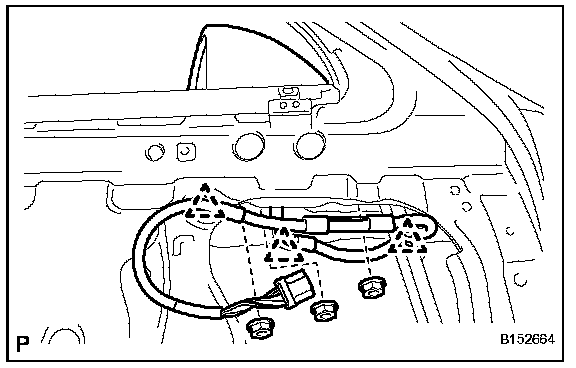

1. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY





a. Install the mirror with the 3 nuts.

Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

b. Attach the 3 clamps.
c. Connect the connector.

2. INSTALL FRONT NO. 2 DOOR SERVICE HOLE COVER
3. INSTALL DOOR FRAME GARNISH
4. INSTALL FRONT DOOR TRIM COVER
5. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY
6. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
8. PERFORM INITIALIZATION
a. Perform initialization.

NOTICE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
