Only Rear Door RH LOCK / UNLOCK Functions Do Not Operate

Only Rear Door RH LOCK / UNLOCK Functions do not Operate

DESCRIPTION
The rear door ECU RH receives lock/unlock switch signals and activates the door lock motor according to these signals.

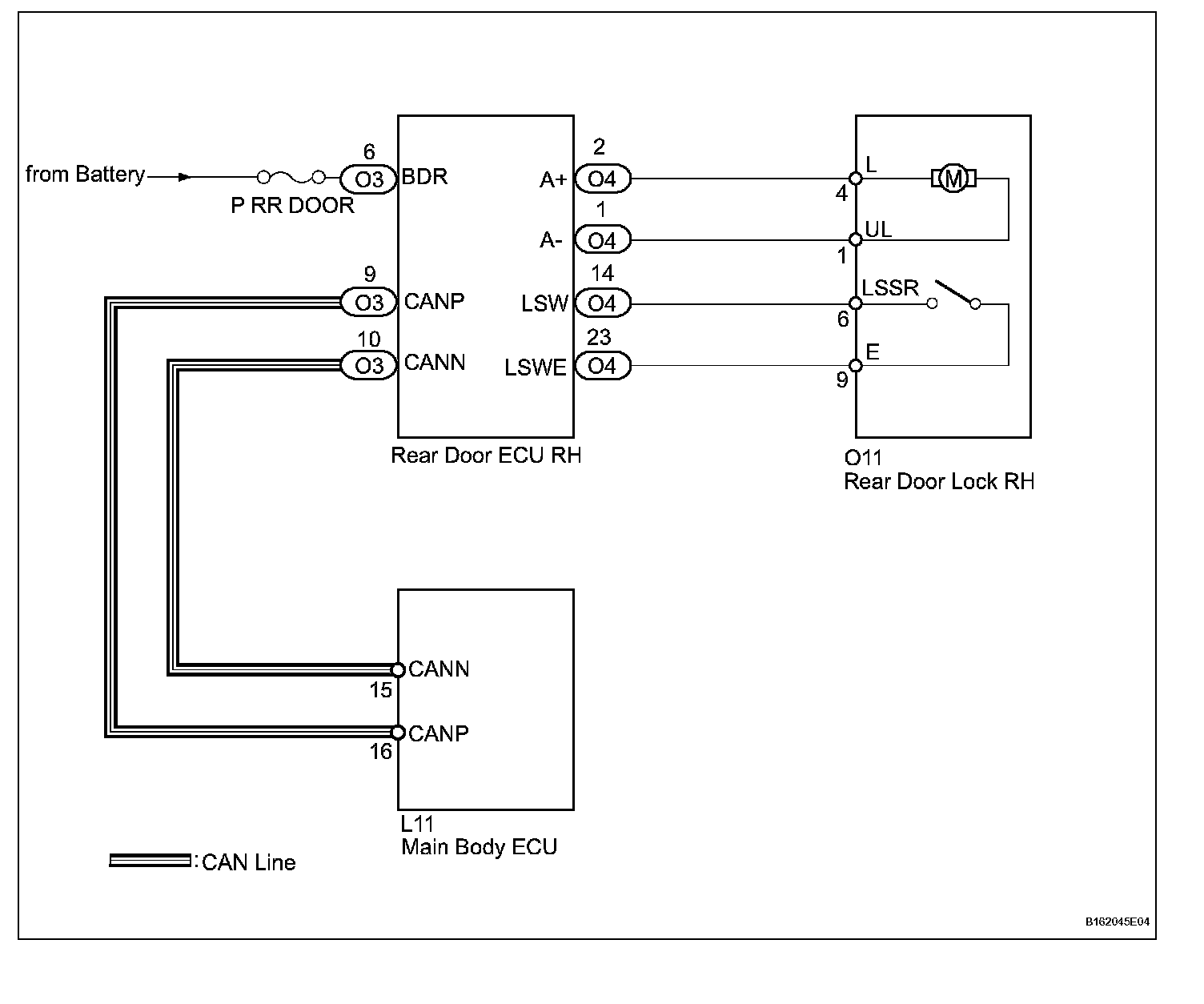

Wiring Diagram:

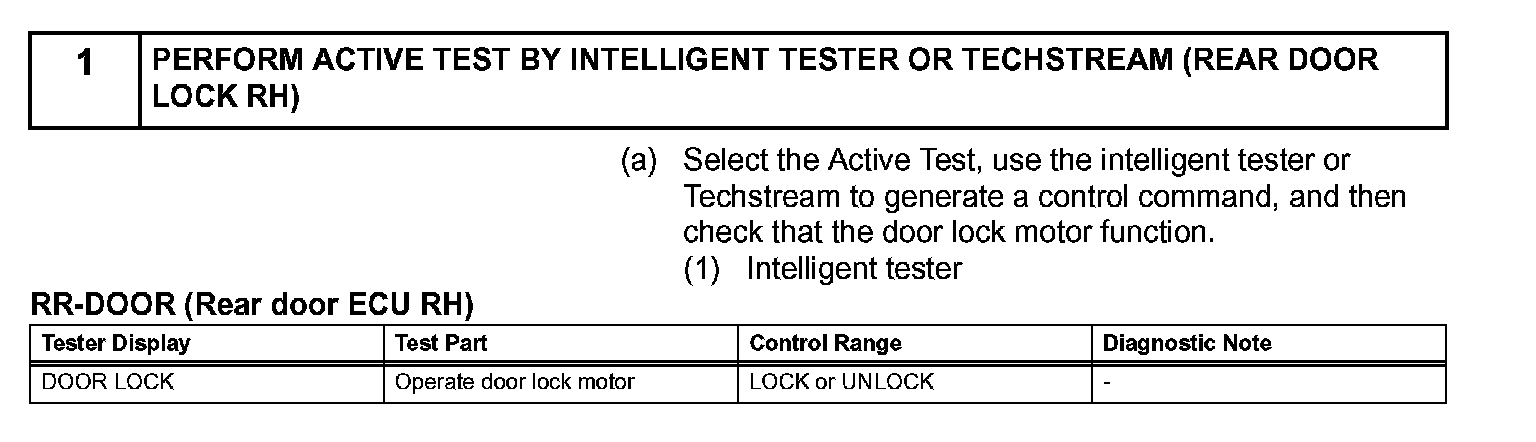

Step 1:

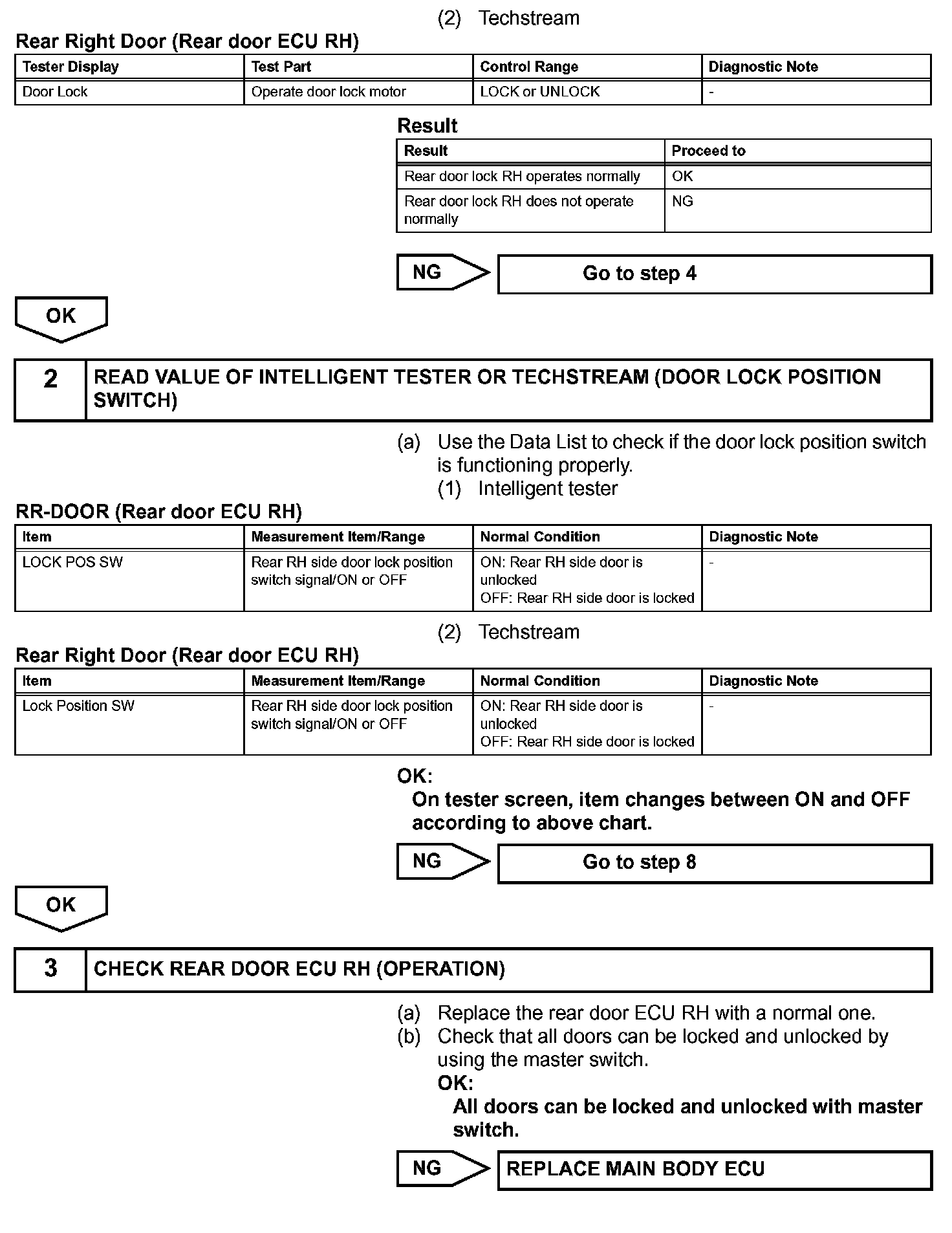

Step 1 (Continued)-3:

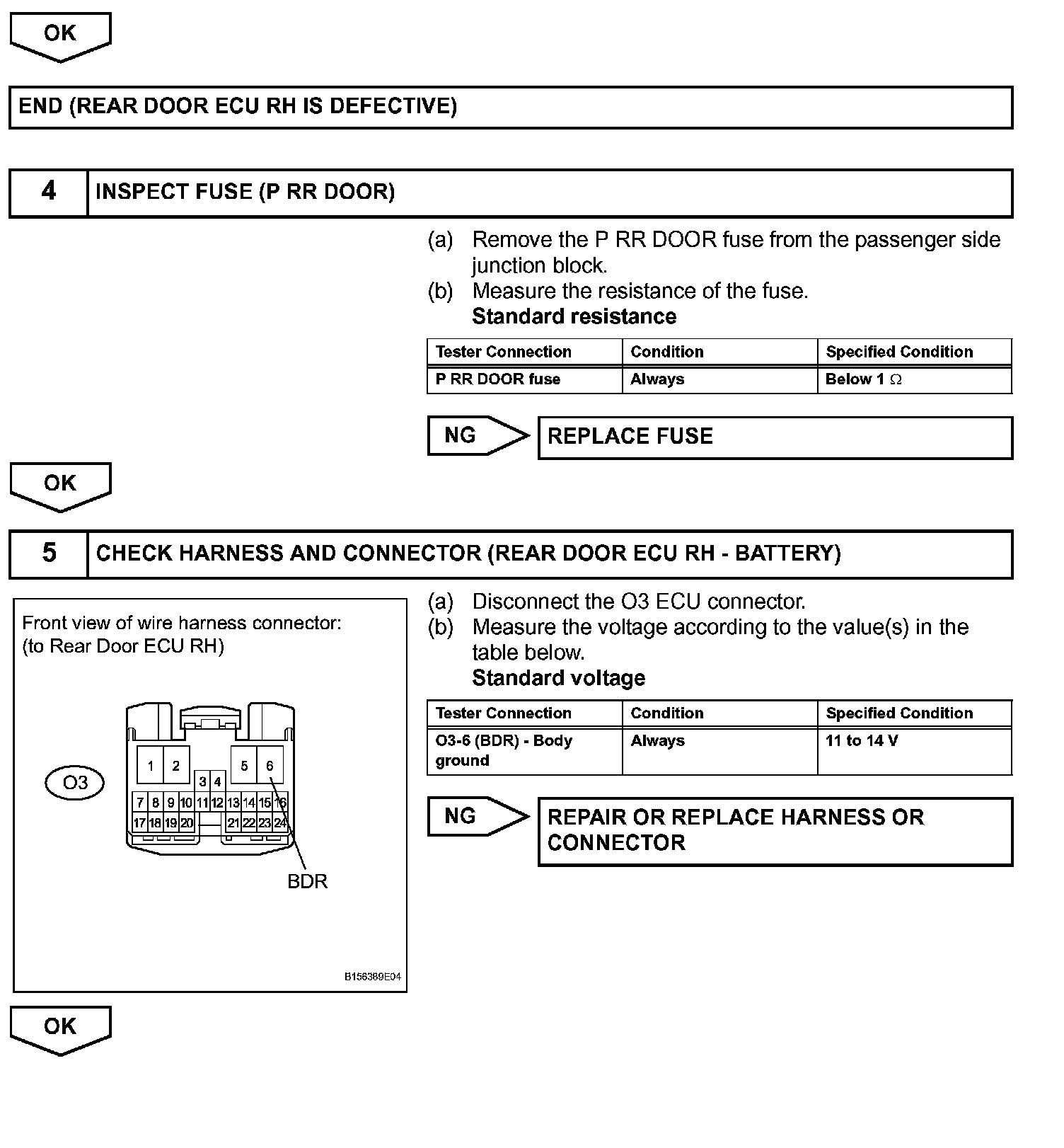

Step 3 (Continued)-5:

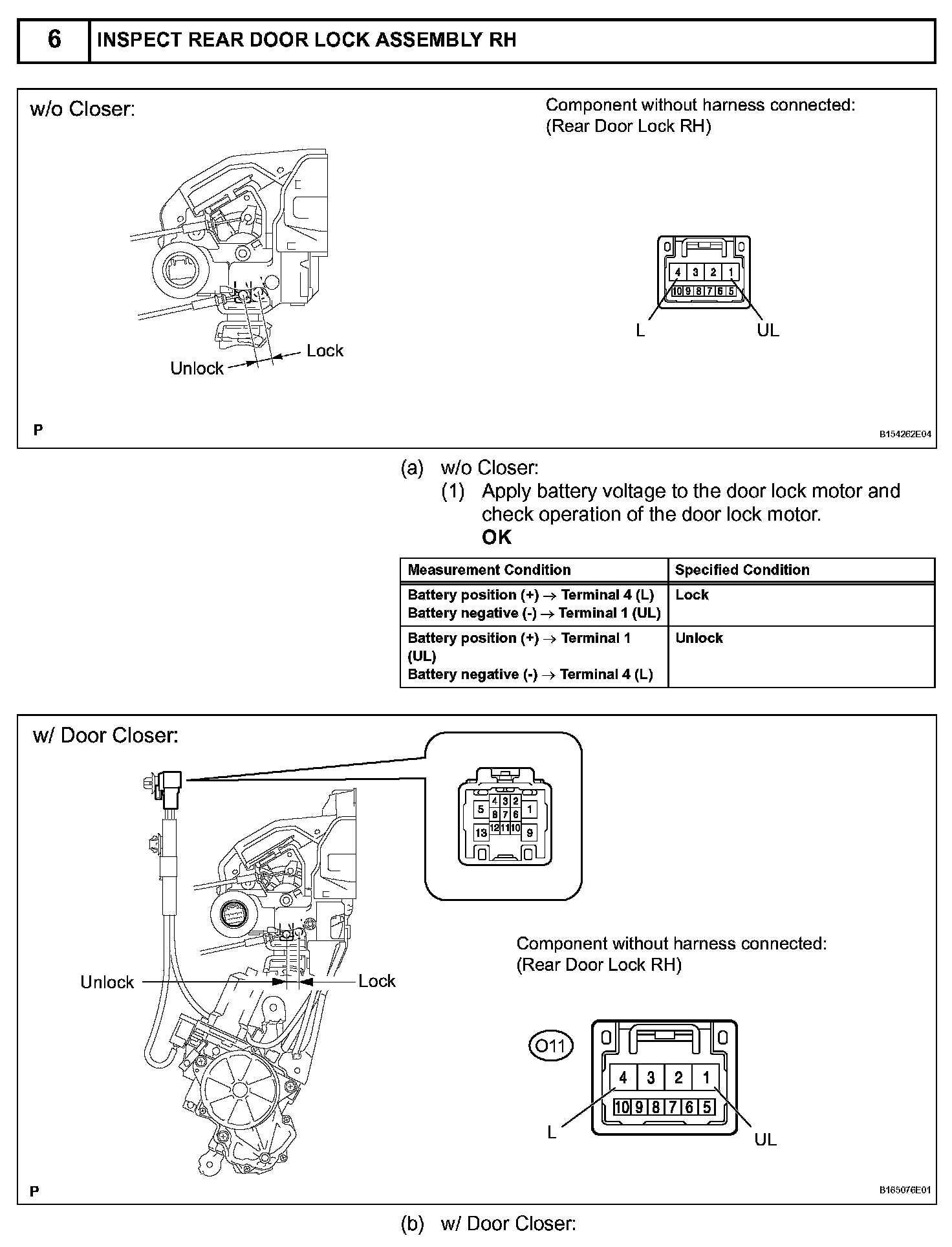

Step 6:

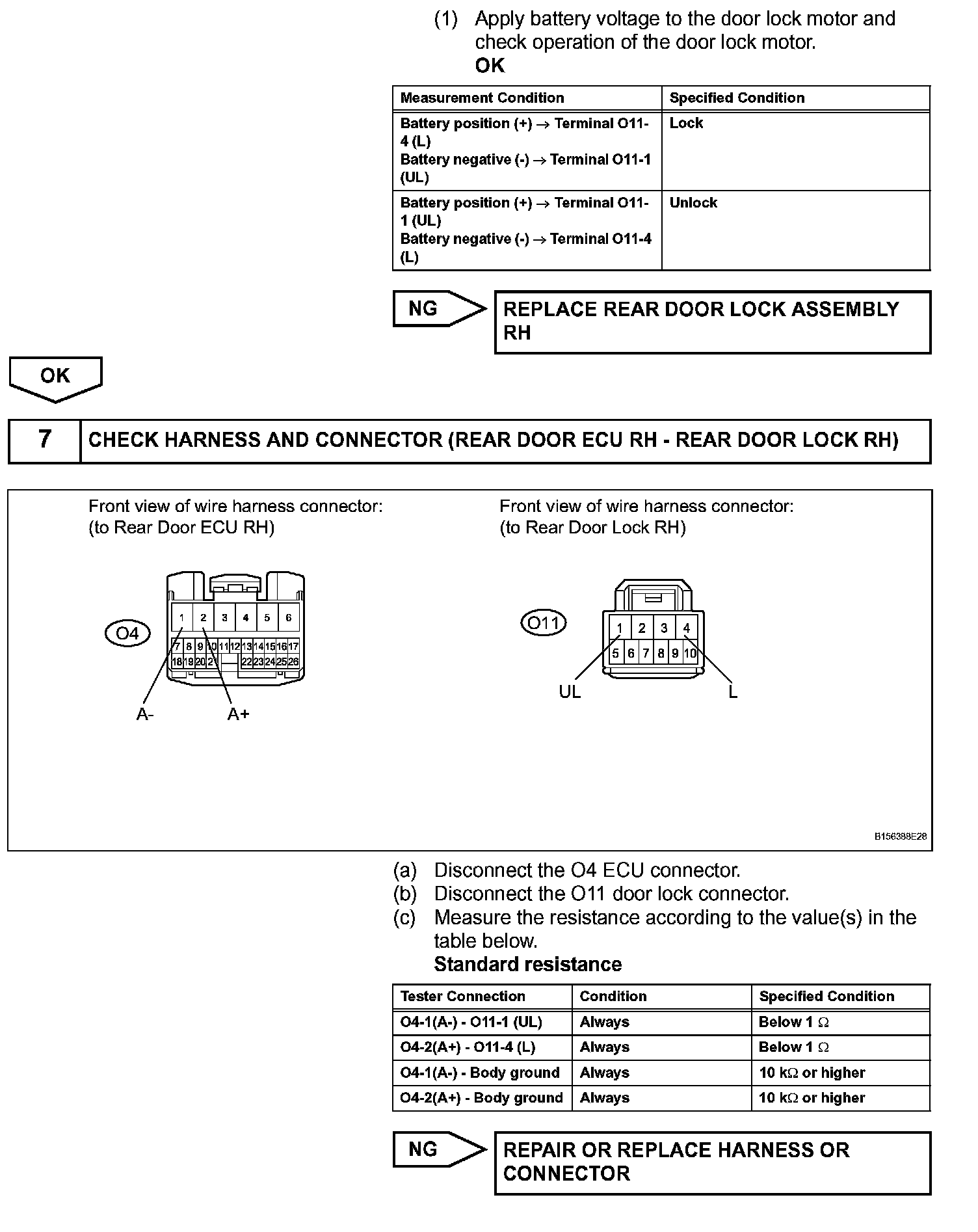

Step 6 (Continued)-7:

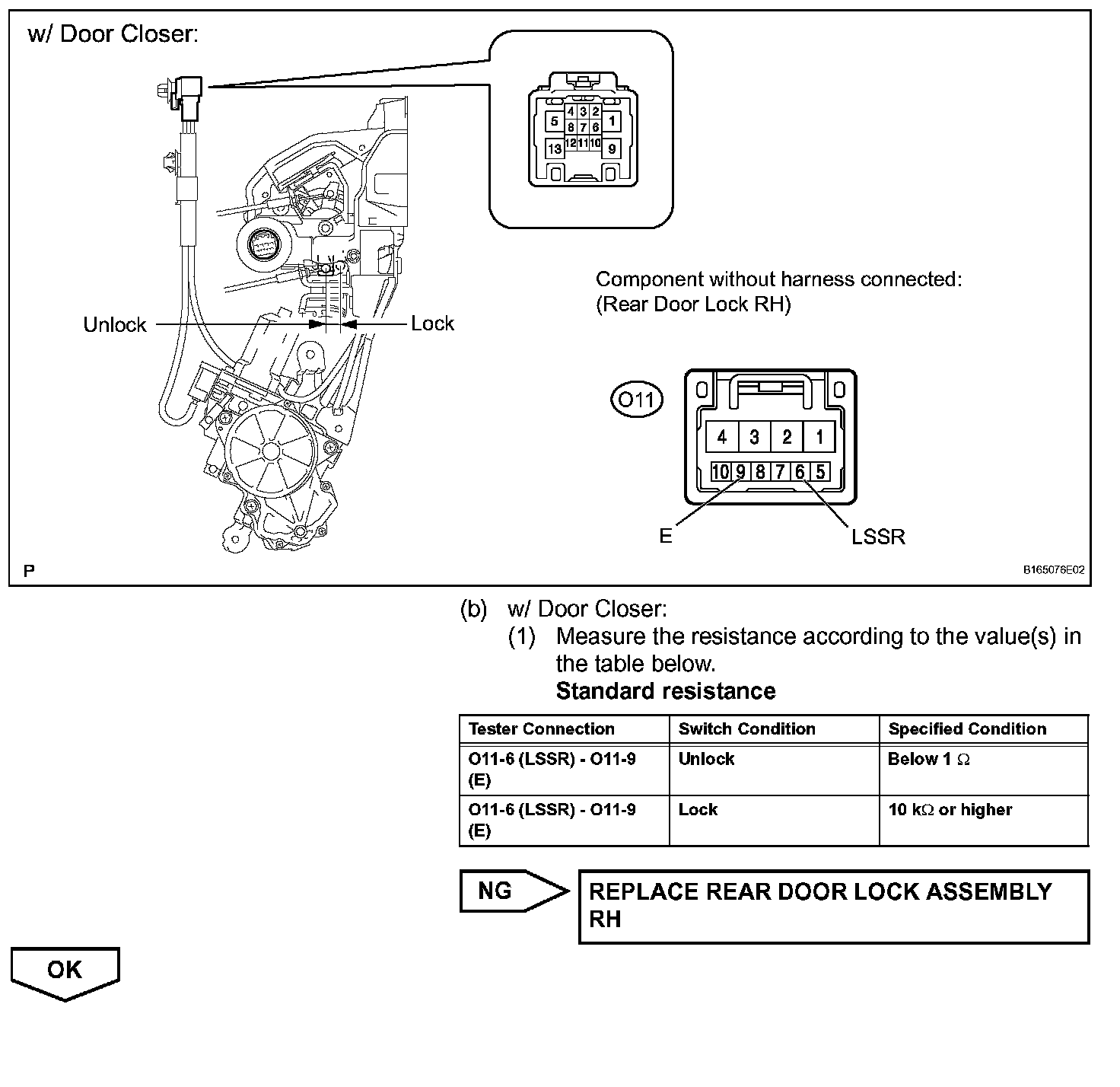

Step 7 (Continued)-8:

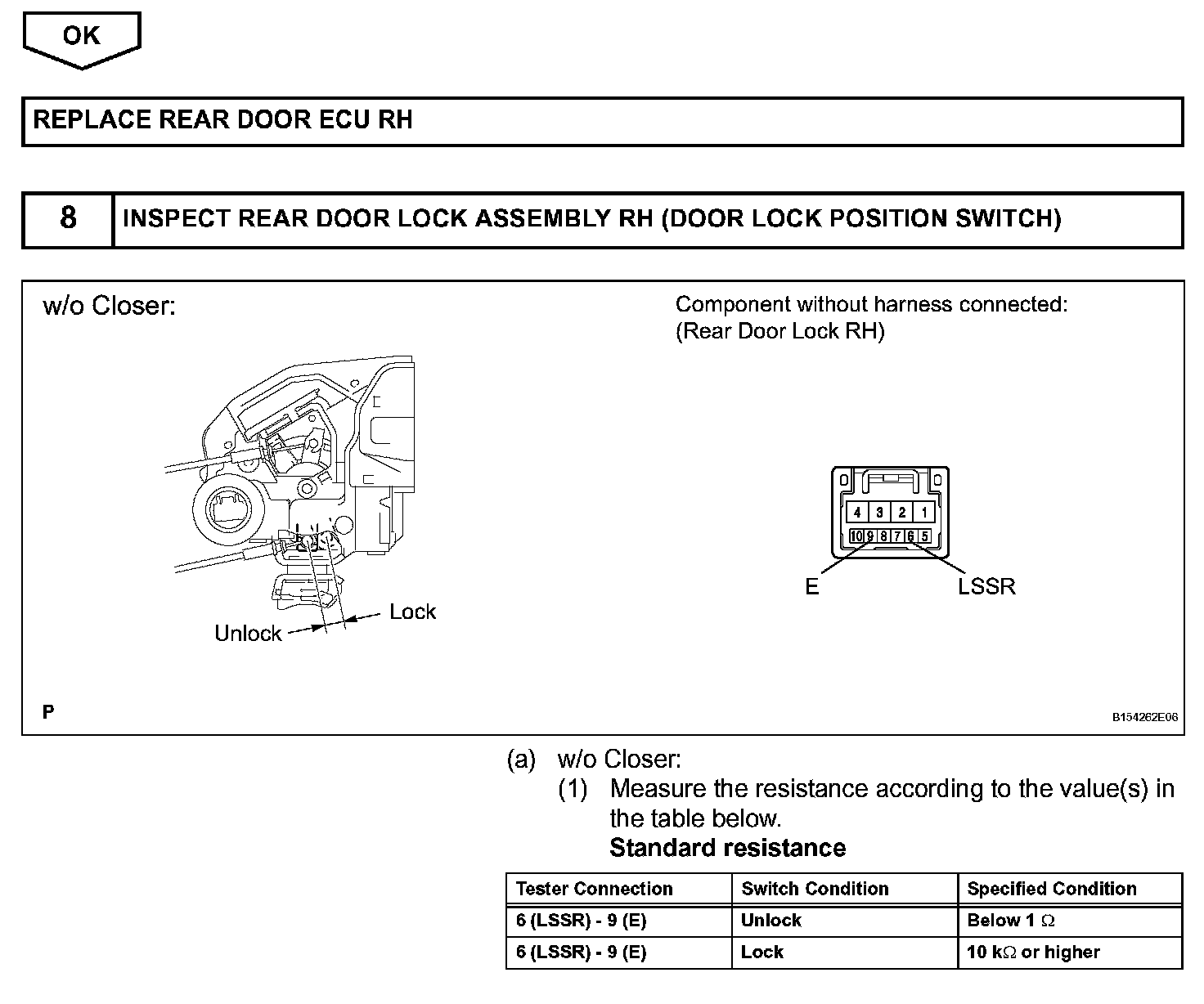

Step 8 (Continued):

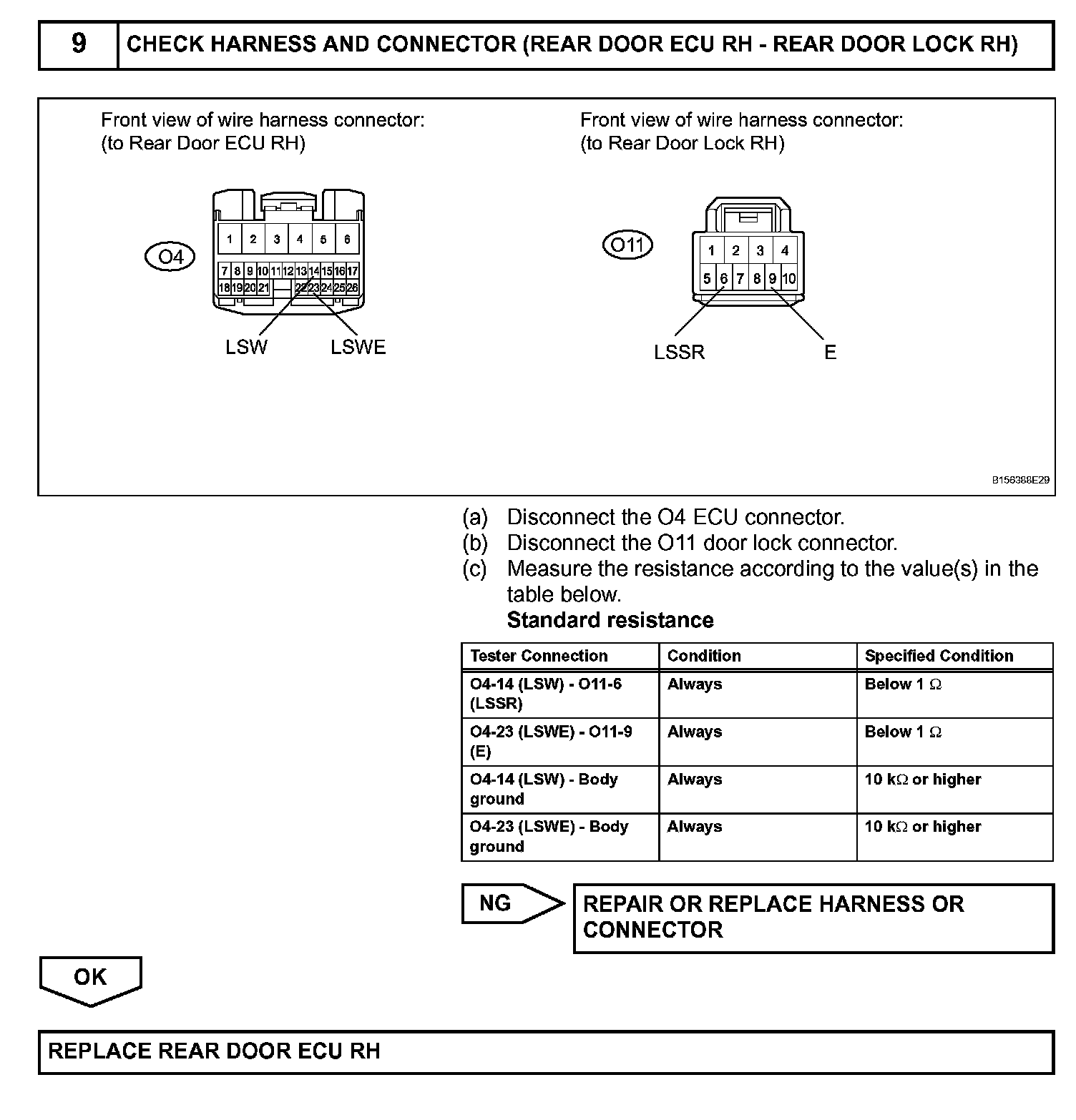

Step 9:

INSPECTION PROCEDURE
