Only Passenger Door LOCK / UNLOCK Functions Do Not Operate
Only Passenger Door LOCK / UNLOCK Functions do not OperateDESCRIPTION
The front door ECU RH receives lock/unlock switch signals and activates the door lock motor according to these signals.

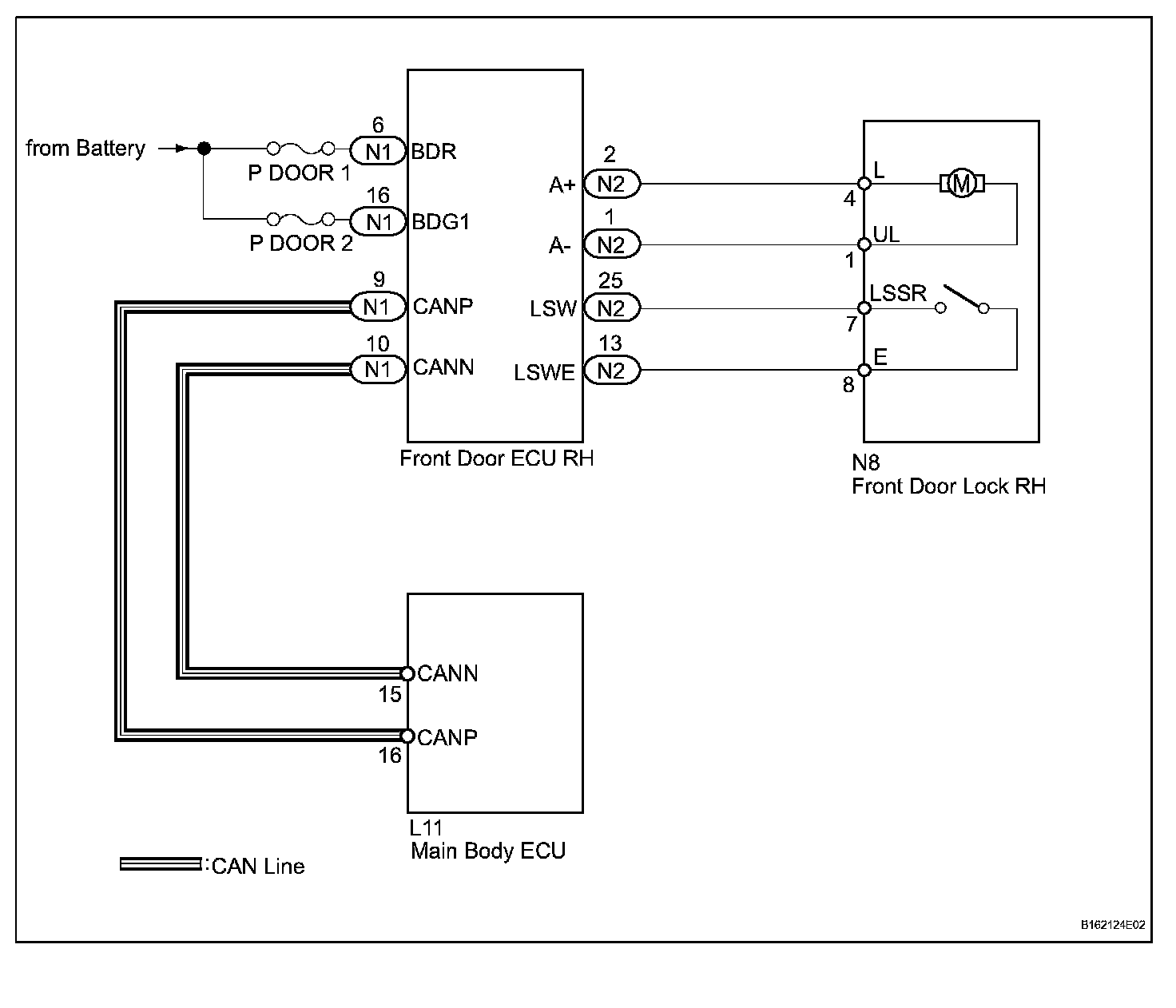

Wiring Diagram:

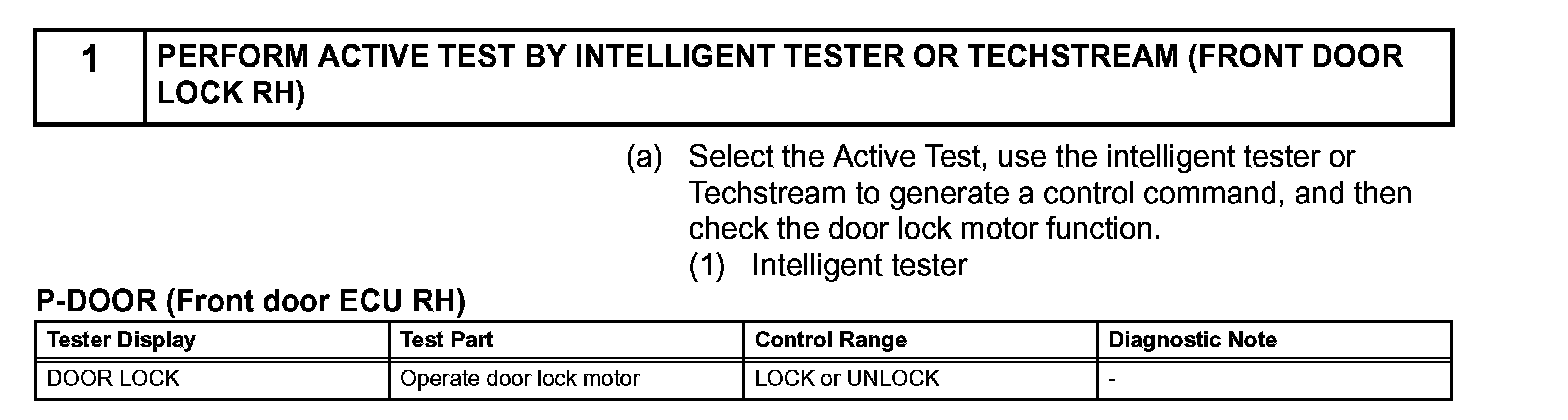

Step 1:

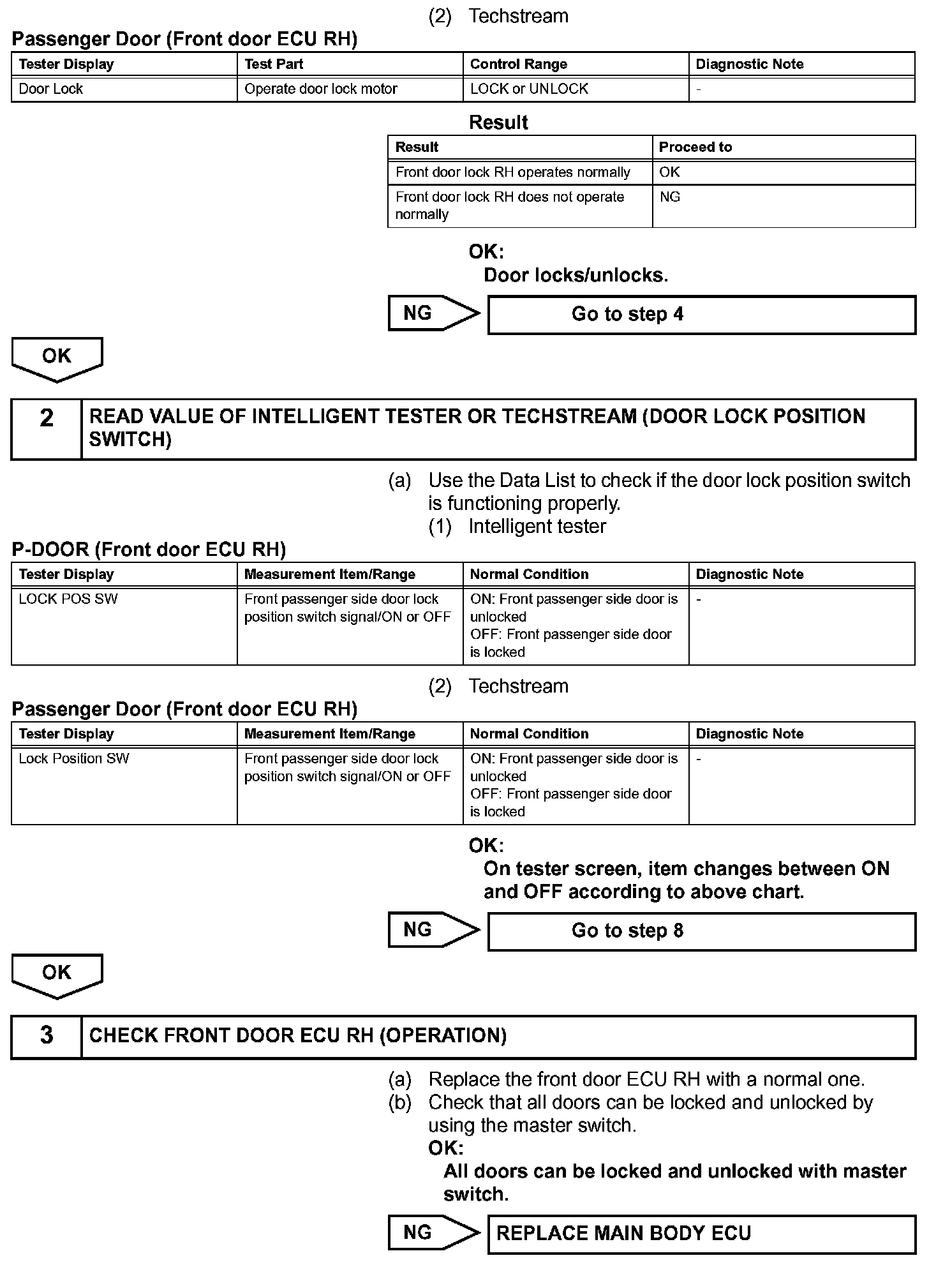

Step 1 (Continued)-3:

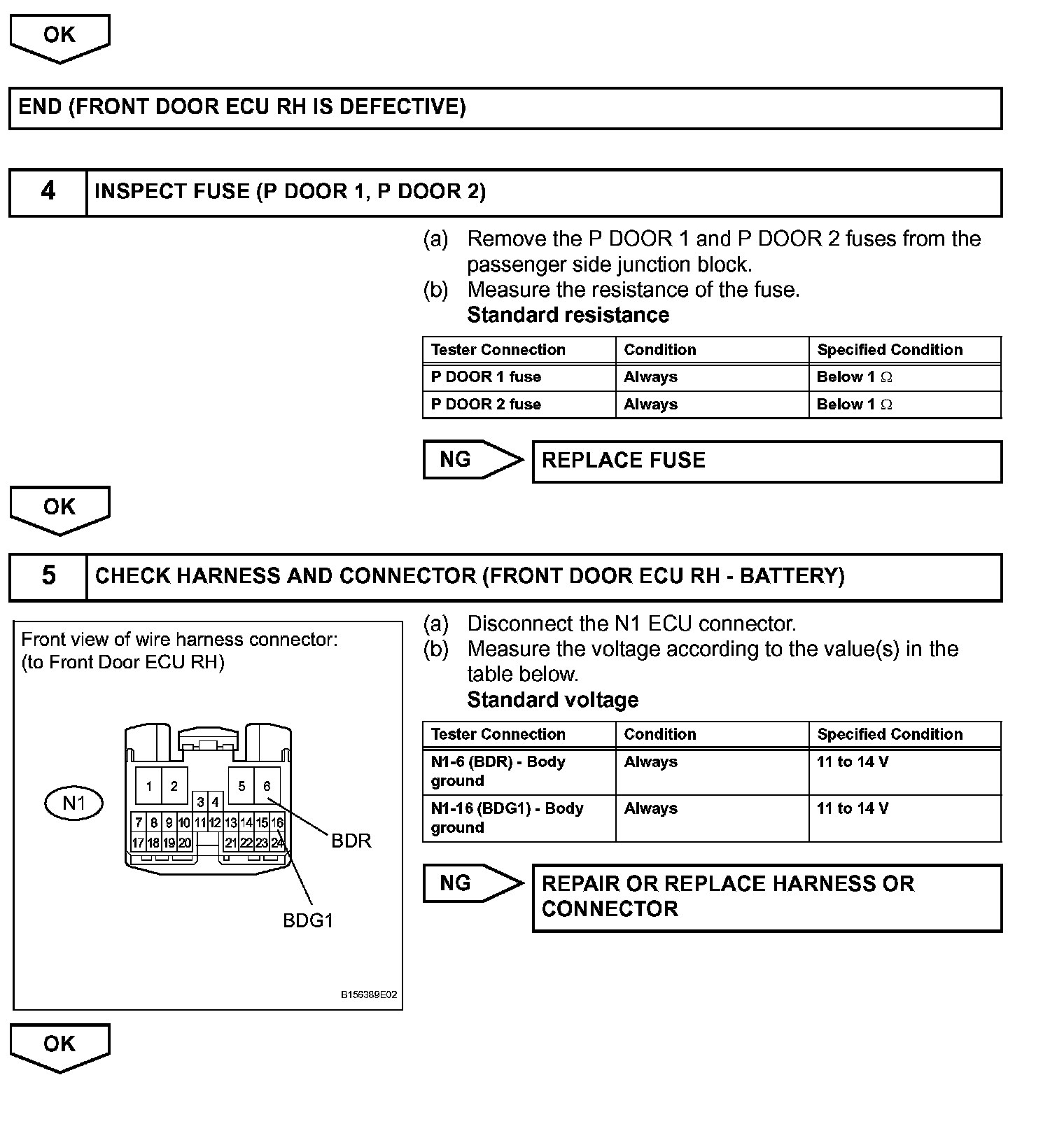

Step 3 (Continued)-5:

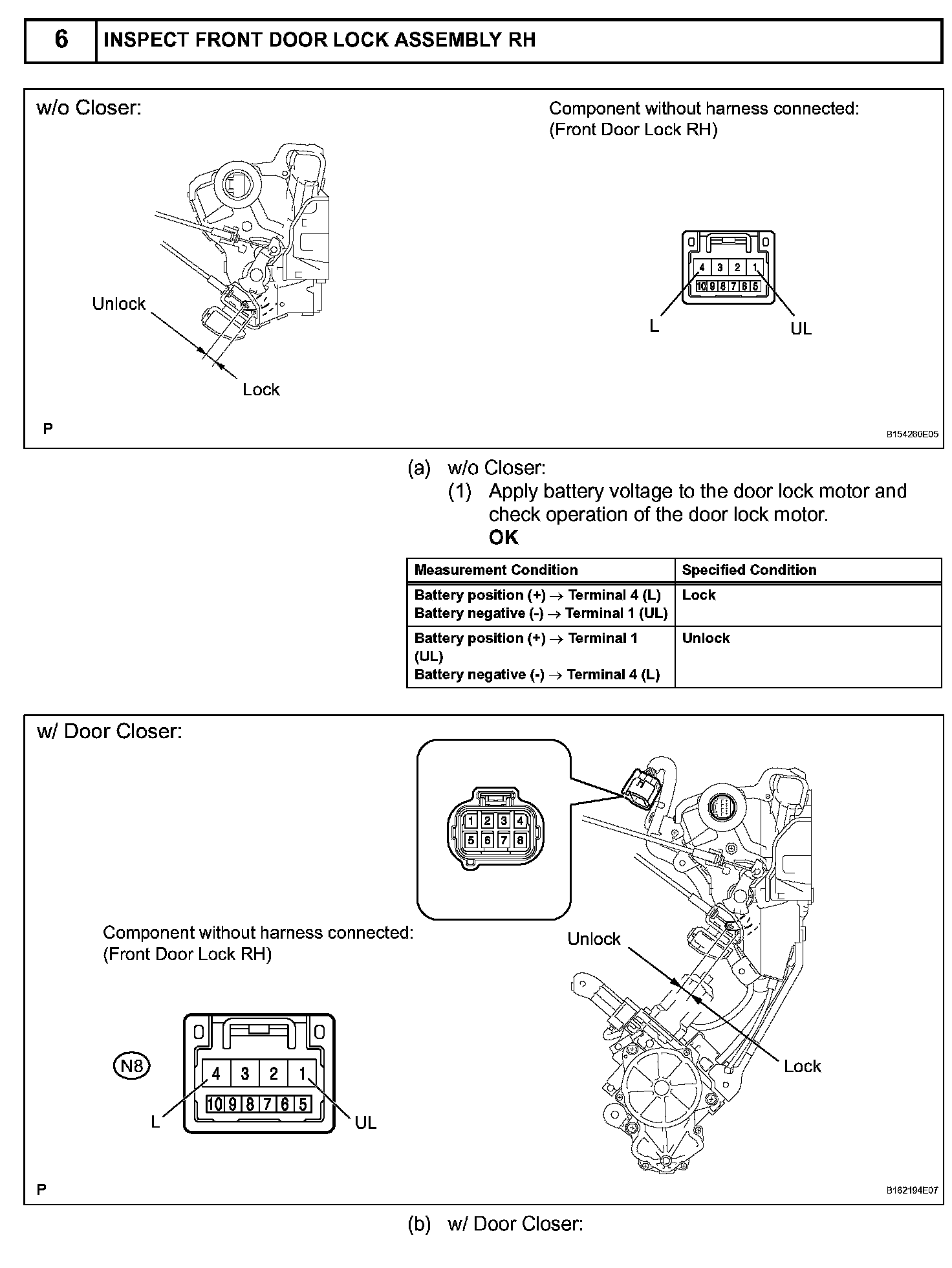

Step 6:
Step 6 (Continued)-7:

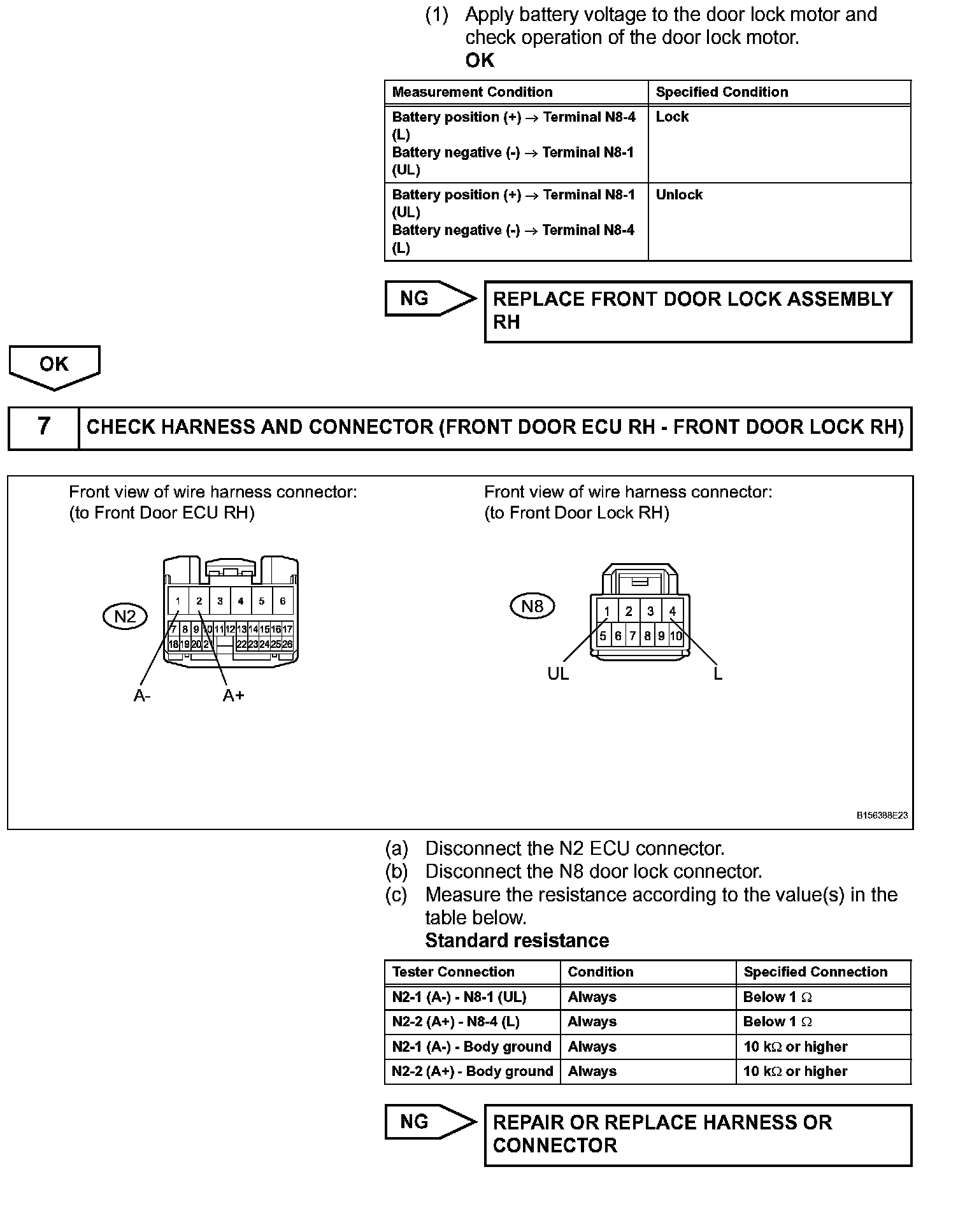

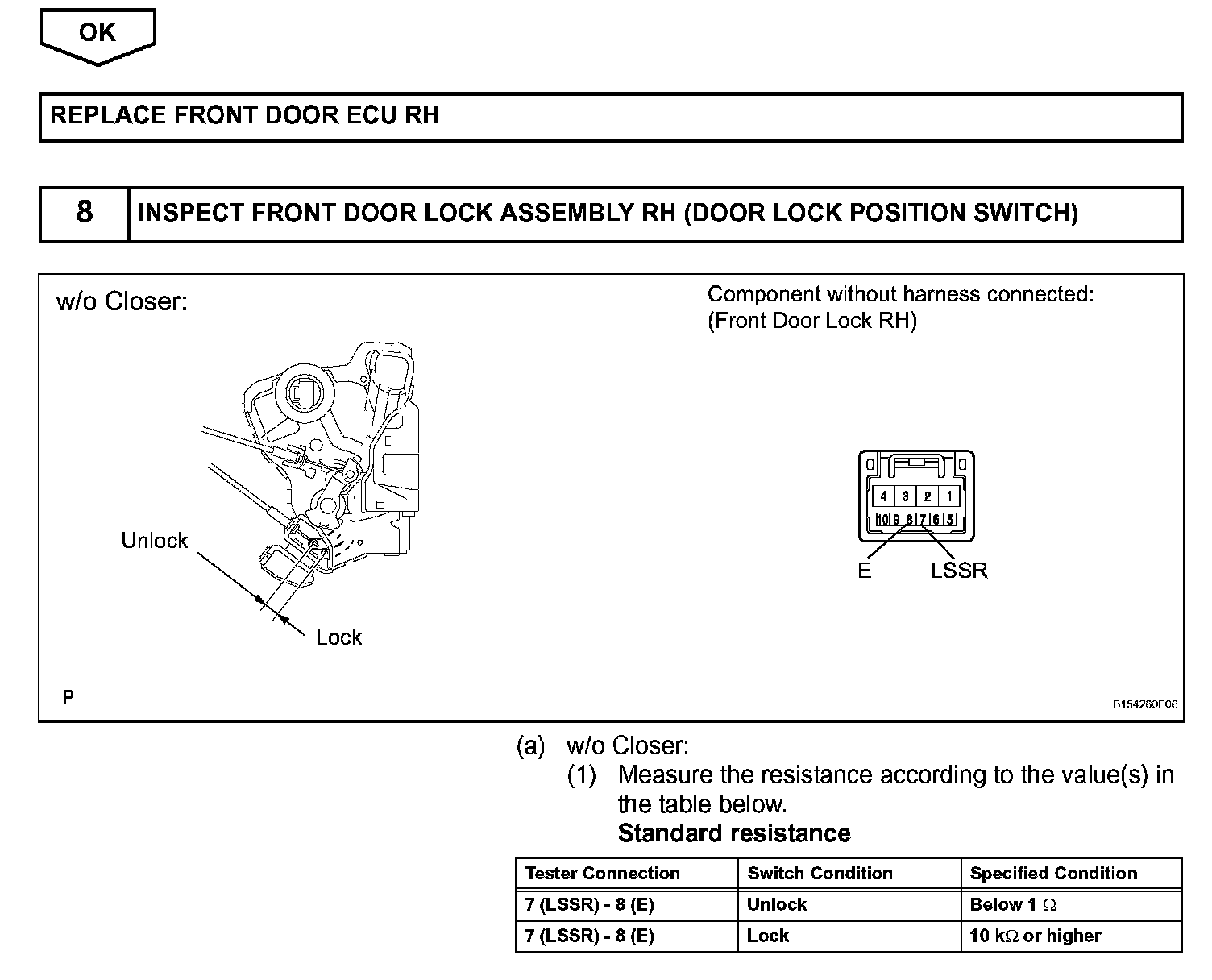

Step 7 (Continued)-8:

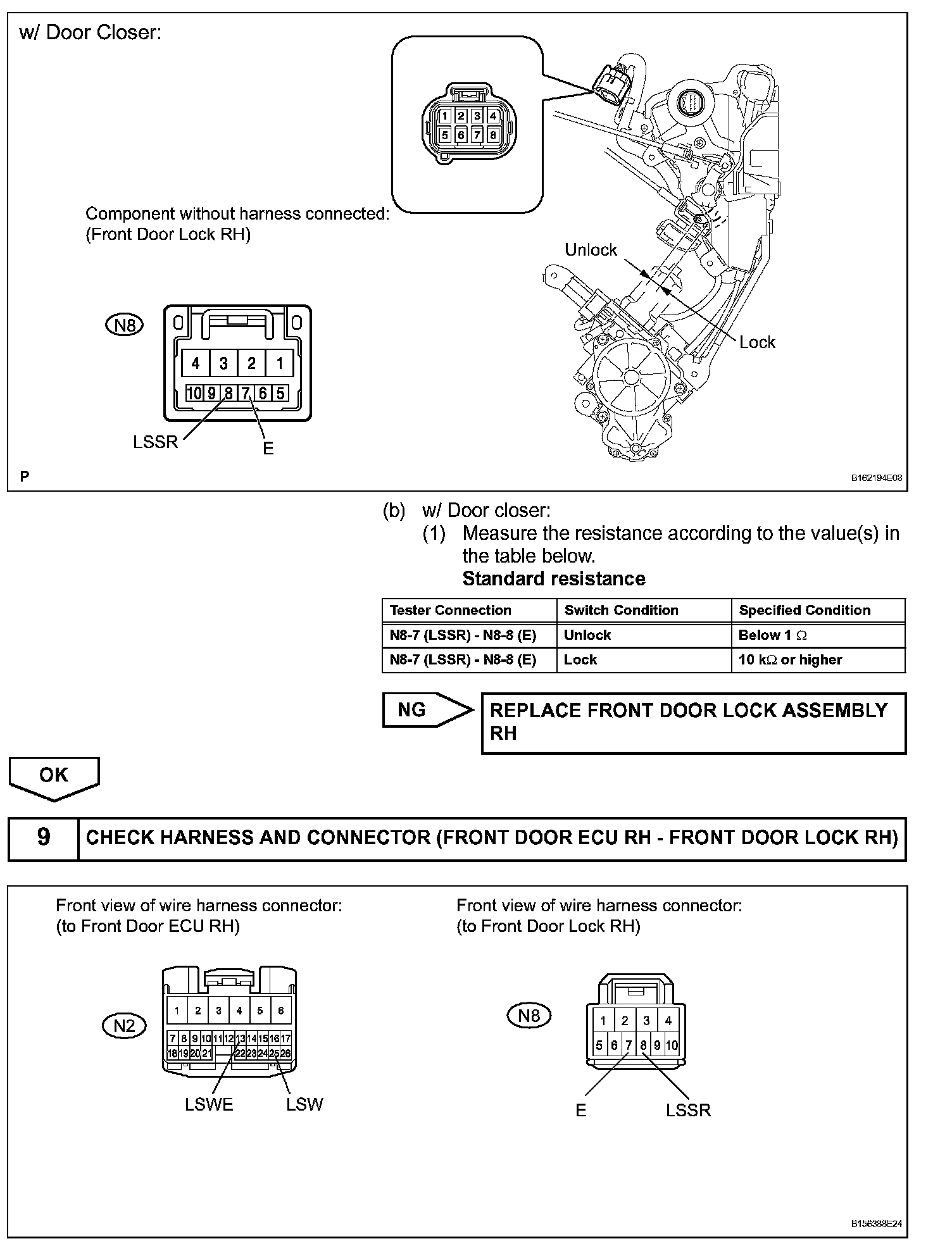

Step 8 (Continued)-9:
Step 9 (Continued):
INSPECTION PROCEDURE
