Only Driver Door LOCK / UNLOCK Functions Do Not Operate

Only Driver Door LOCK / UNLOCK Functions do not Operate

DESCRIPTION
The front door ECU LH receives lock/unlock switch signals and activates the door lock motor according to these signals.

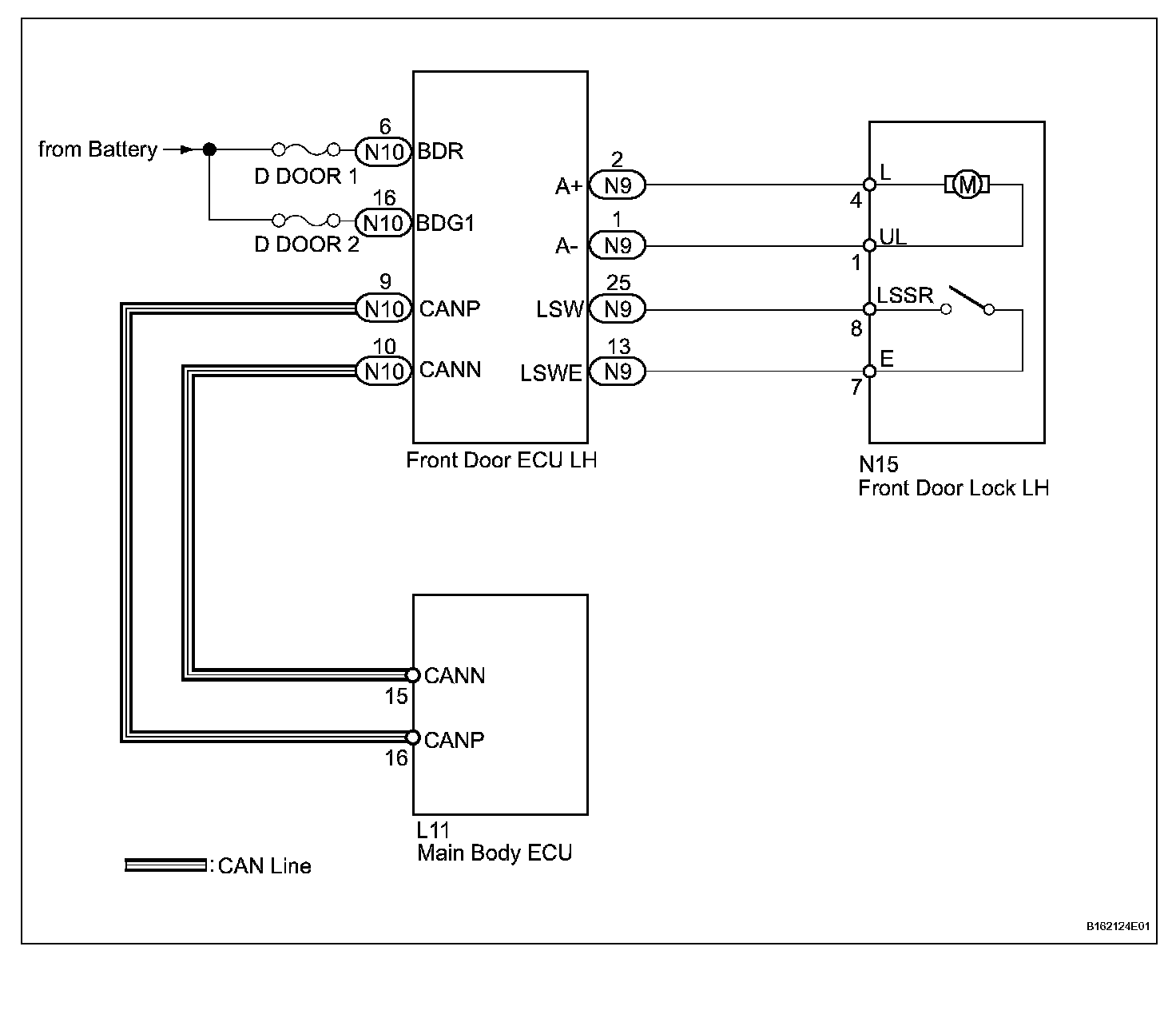

Wiring Diagram:

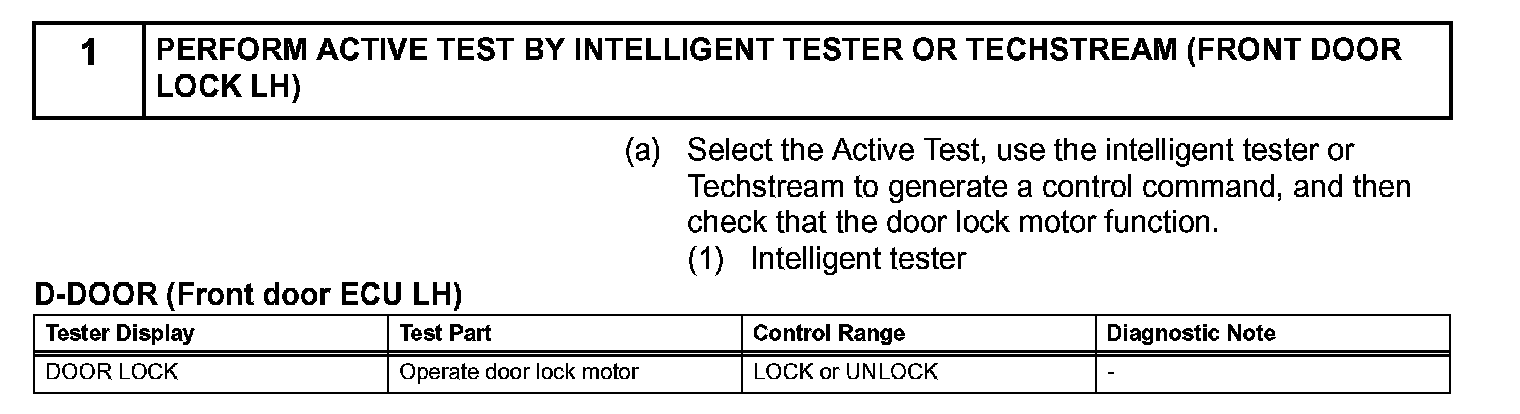

Step 1:

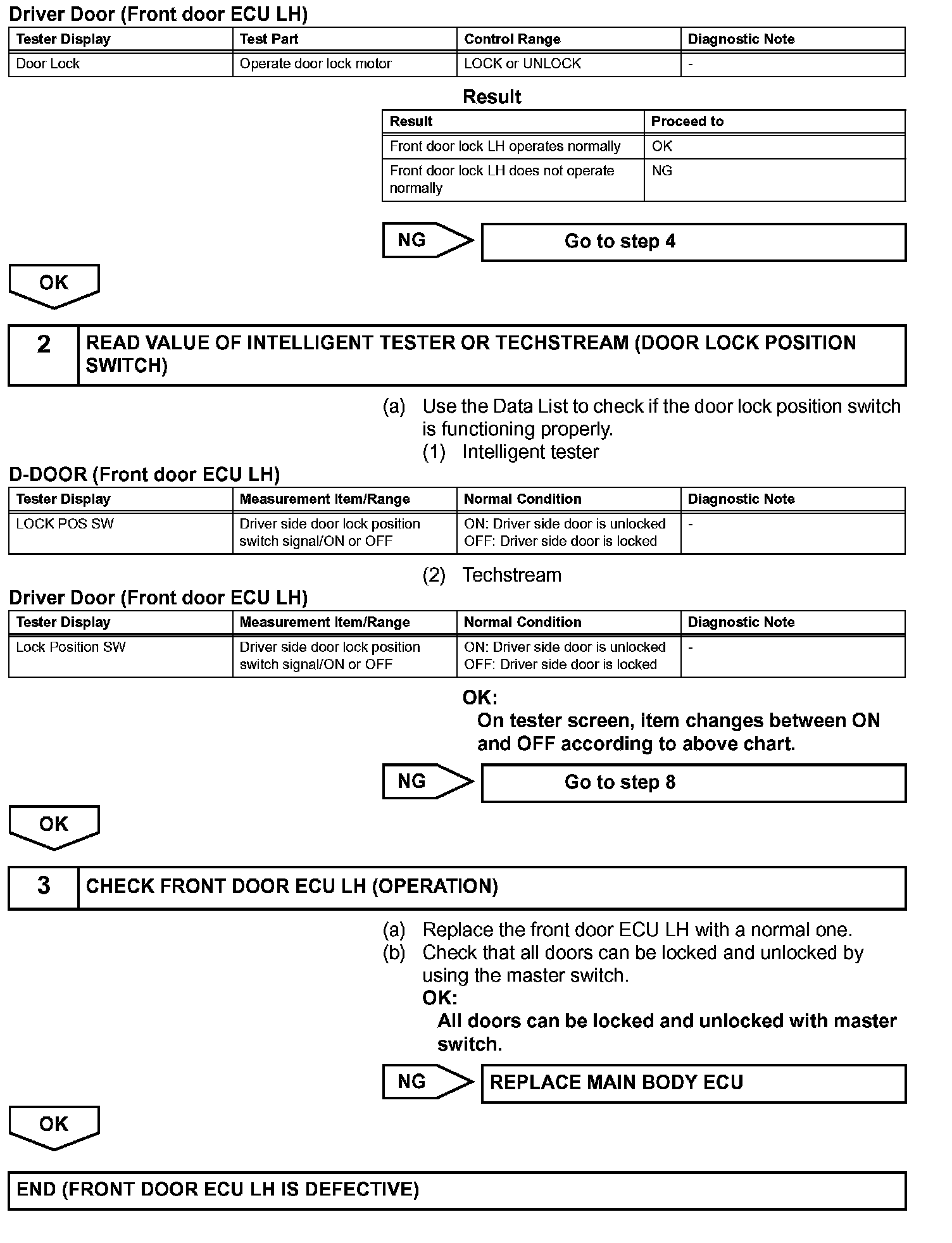

Step 1 (Continued)-3:

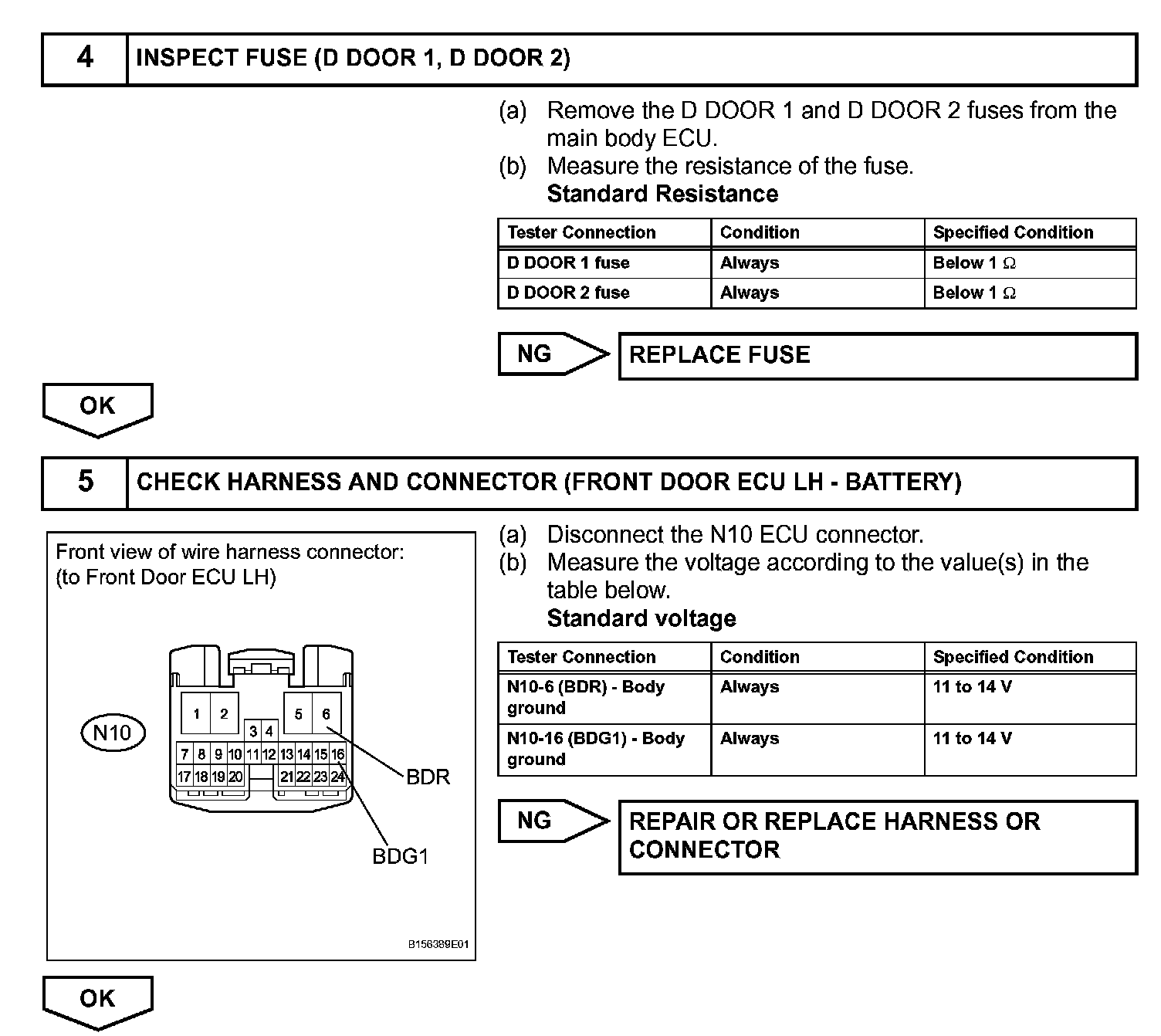

Step 4-5:

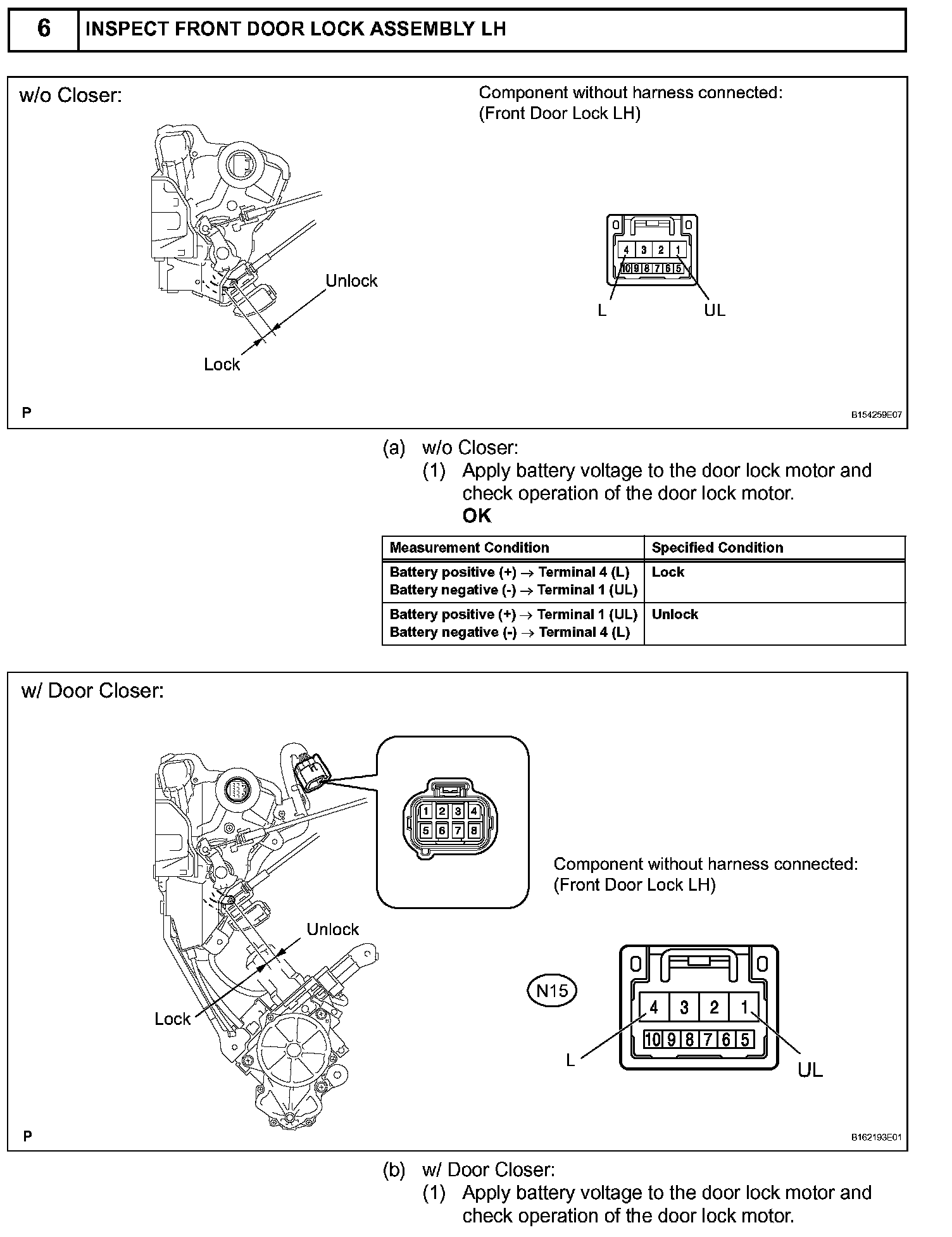

Step 6:

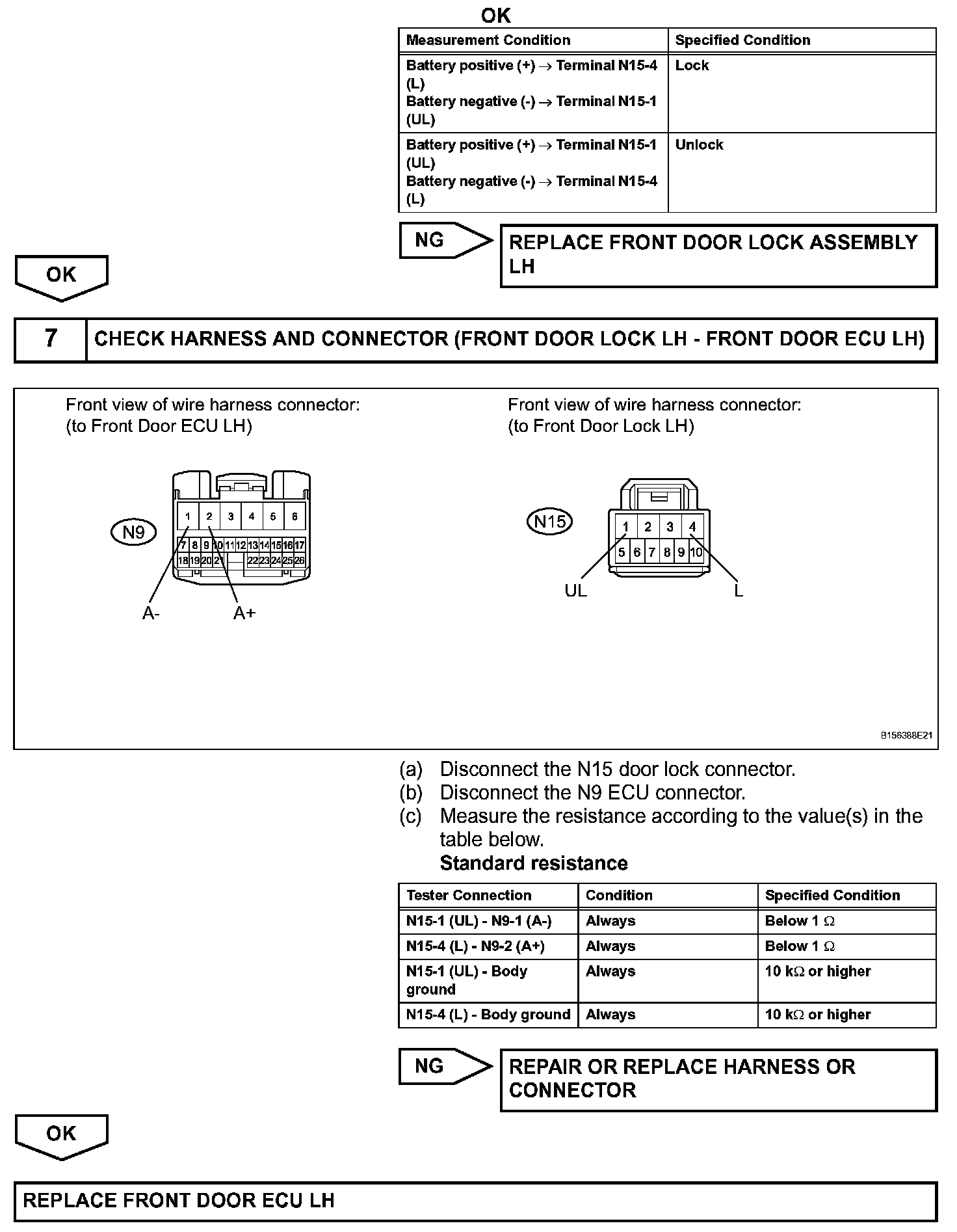

Step 6 (Continued)-7:

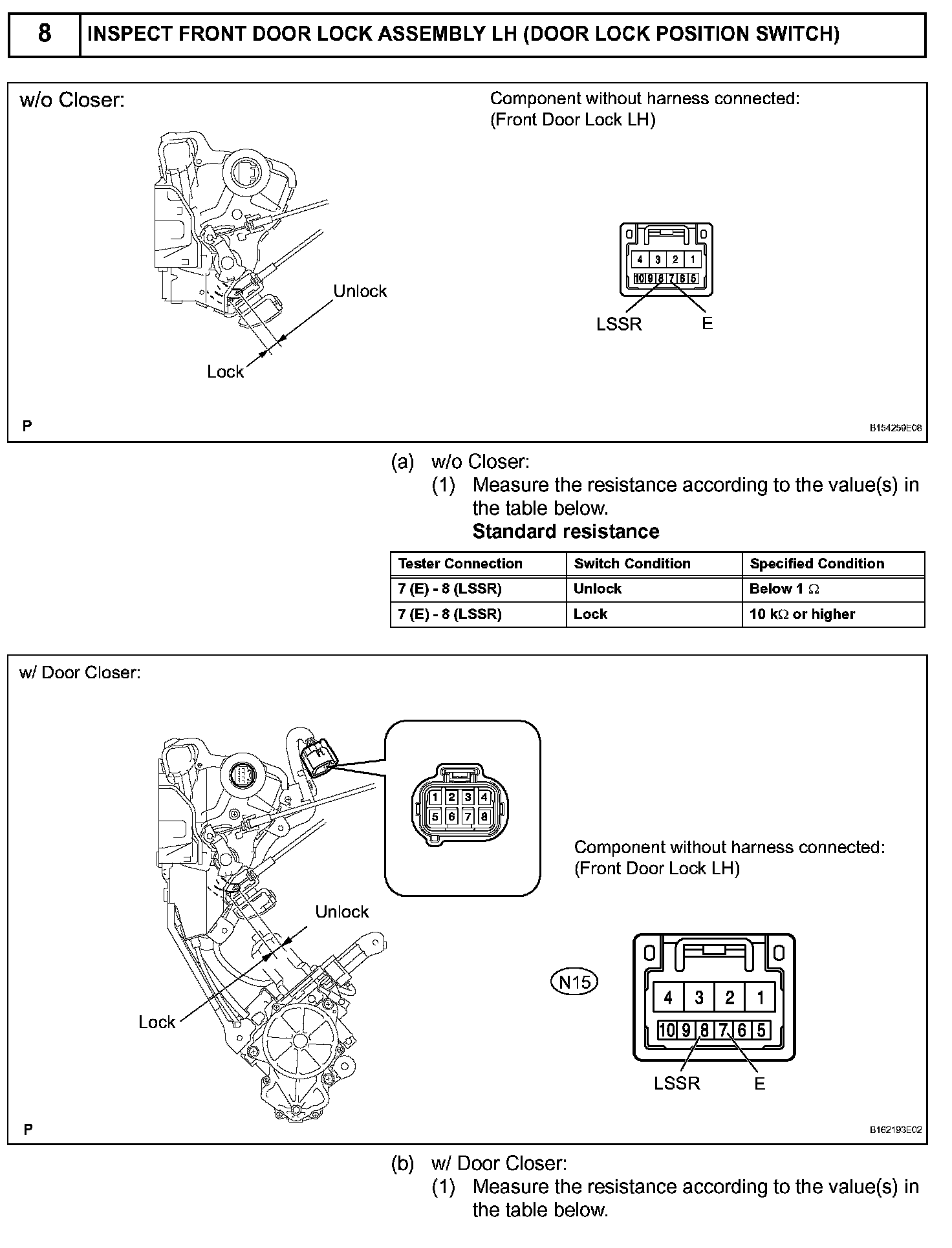

Step 8:

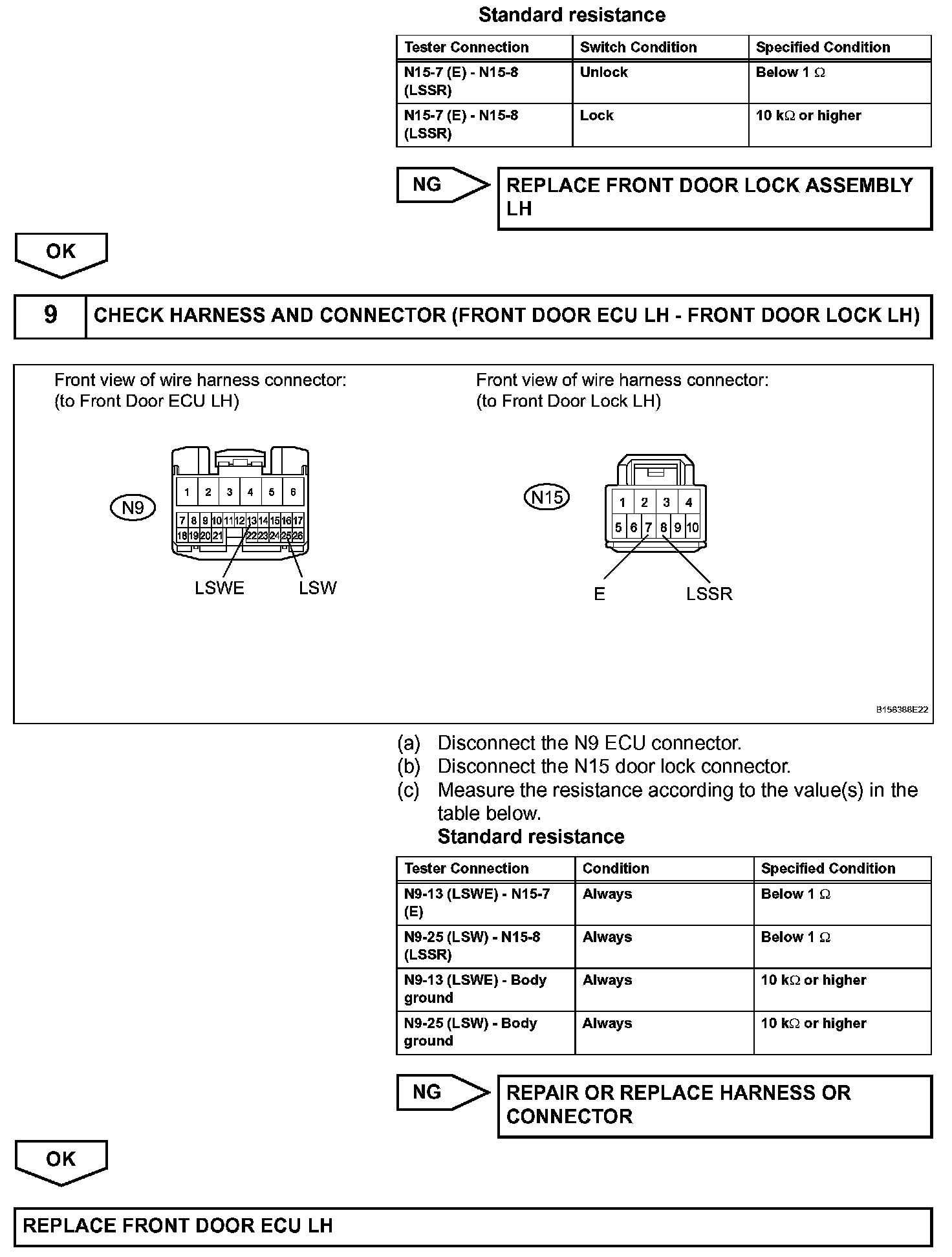

Step 8 (Continued)-9:

INSPECTION PROCEDURE
