All Doors LOCK / UNLOCK Functions Do Not Operate Via Master Switch, Driver Side Door Key Cylinder
All Doors LOCK / UNLOCK Functions do not Operate Via Master Switch, Driver Side Door Key CylinderDESCRIPTION
The main body ECU receives switch signals from the master switch and driver side door key cylinder switch signals from the front door ECU LH, and activates the door lock motor on each door according to these signals.

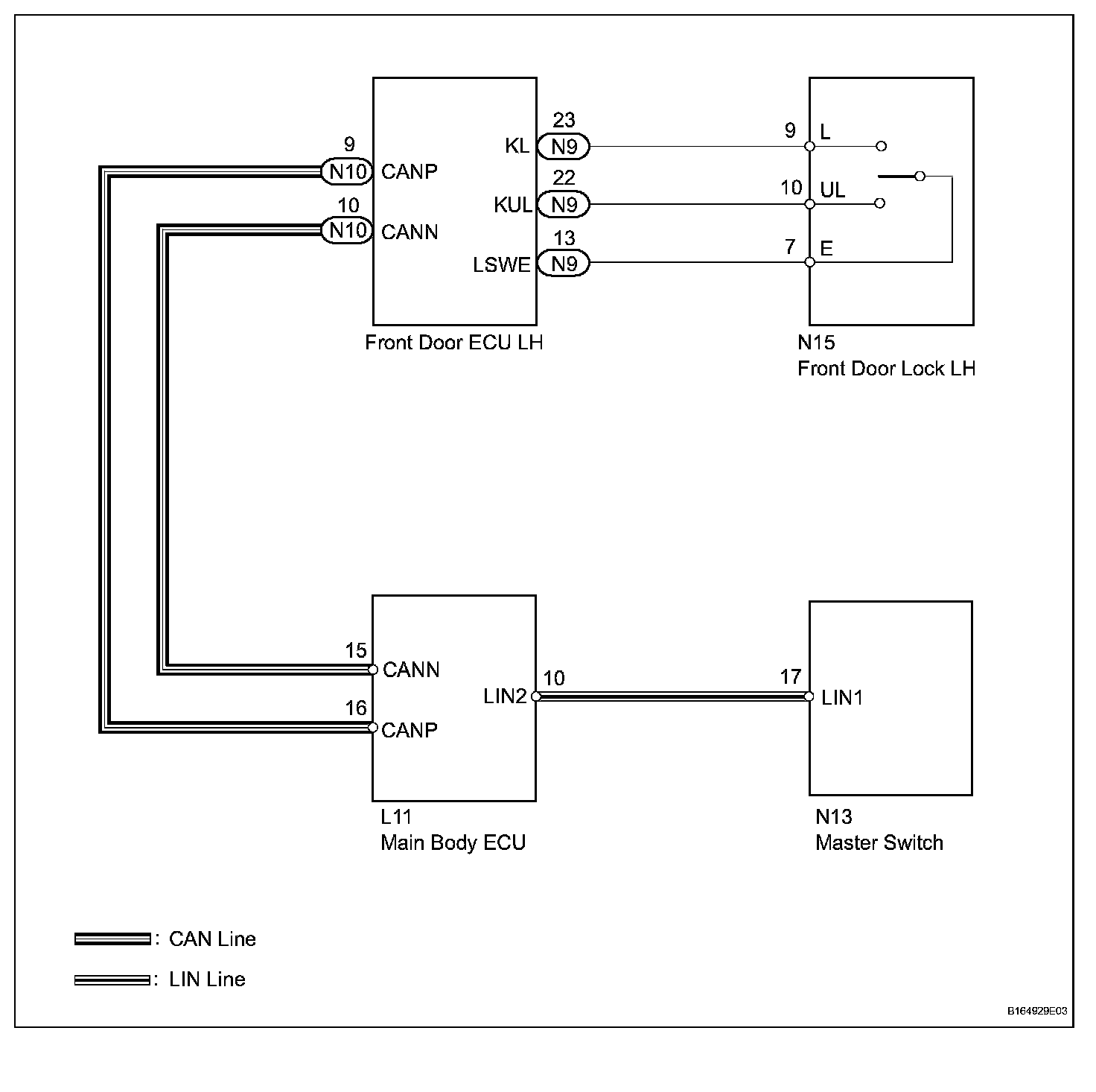

Wiring Diagram:

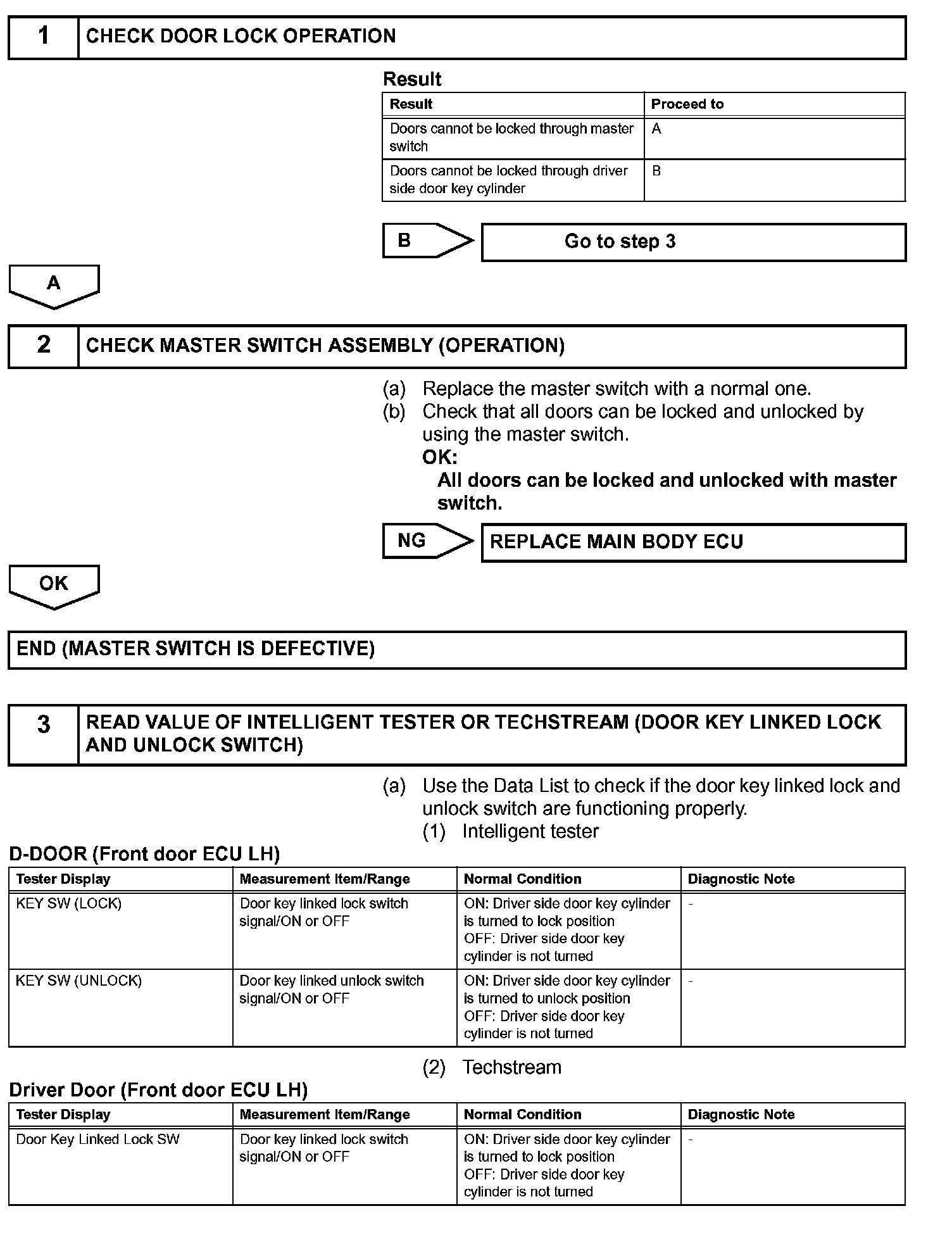

Step 1-3:

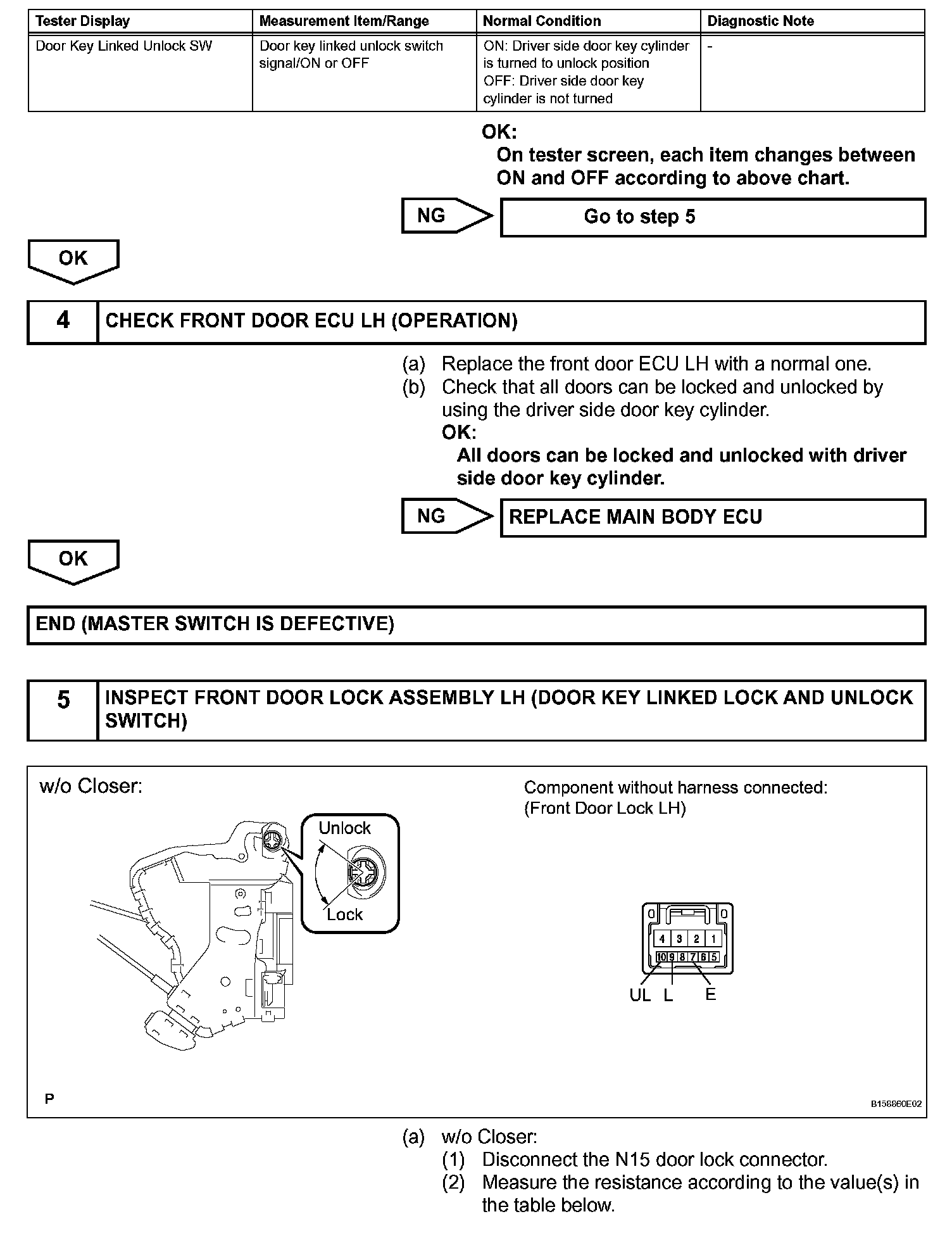

Step 3 (Continued)-5:

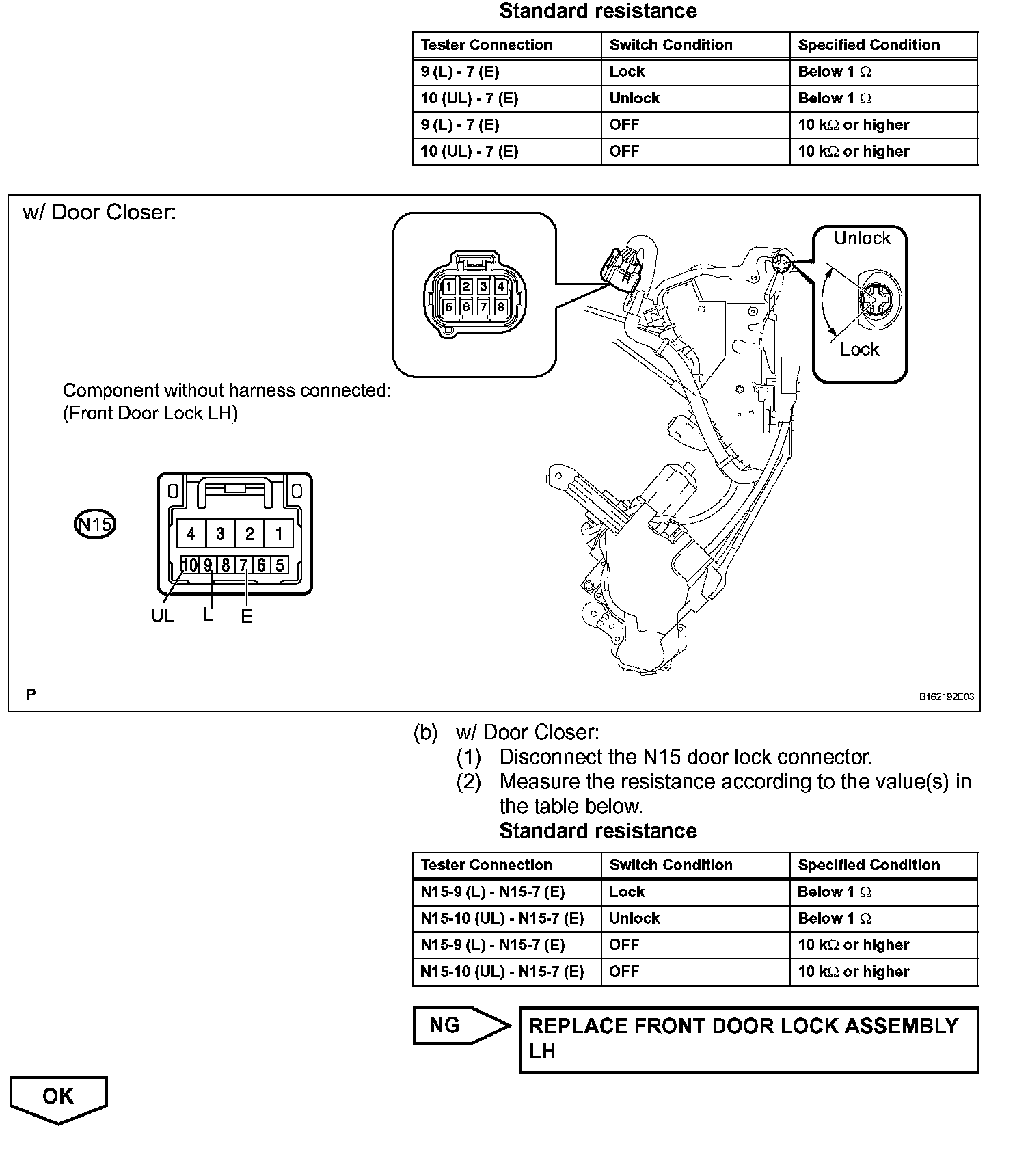

Step 5 (Continued):

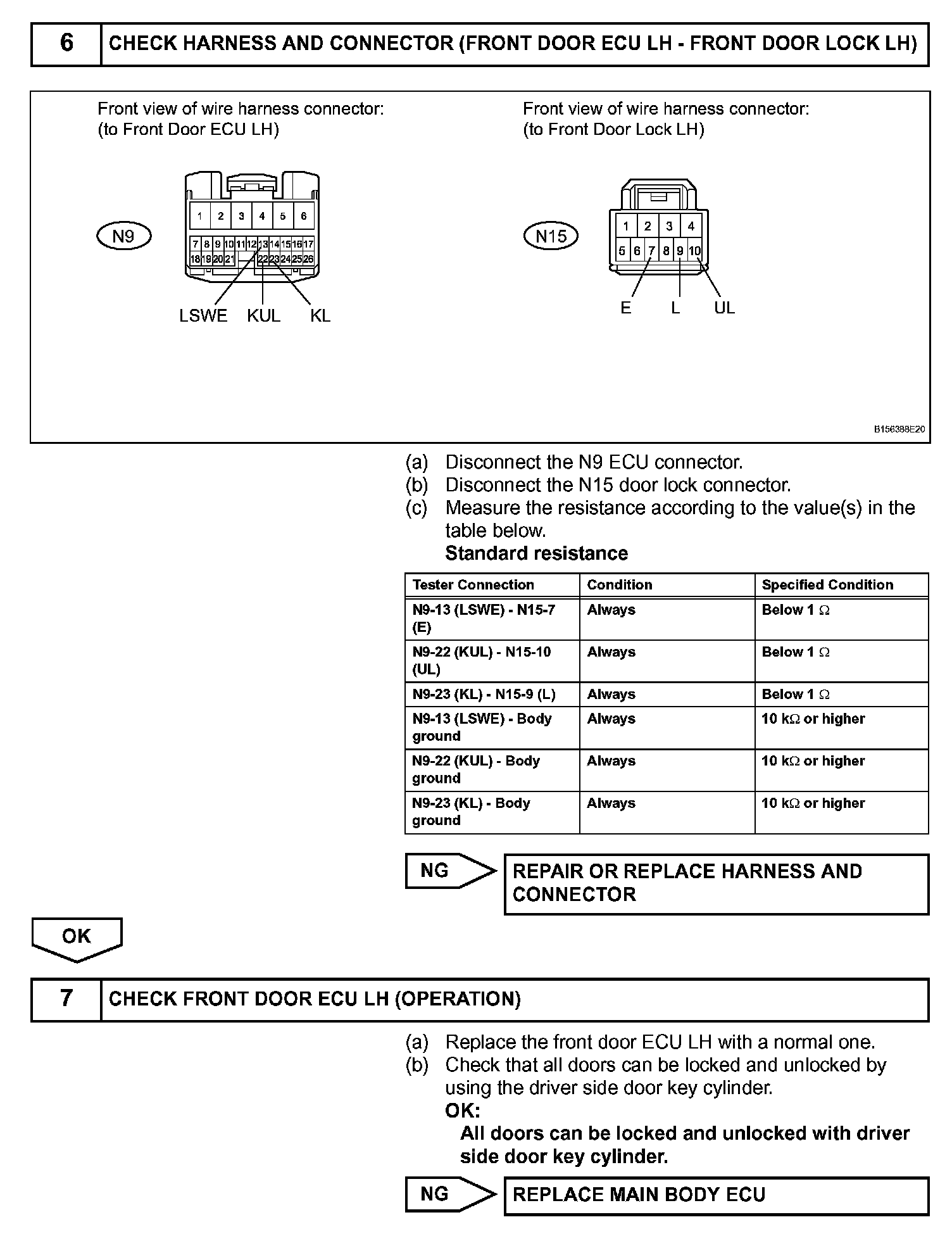

Step 6-7:

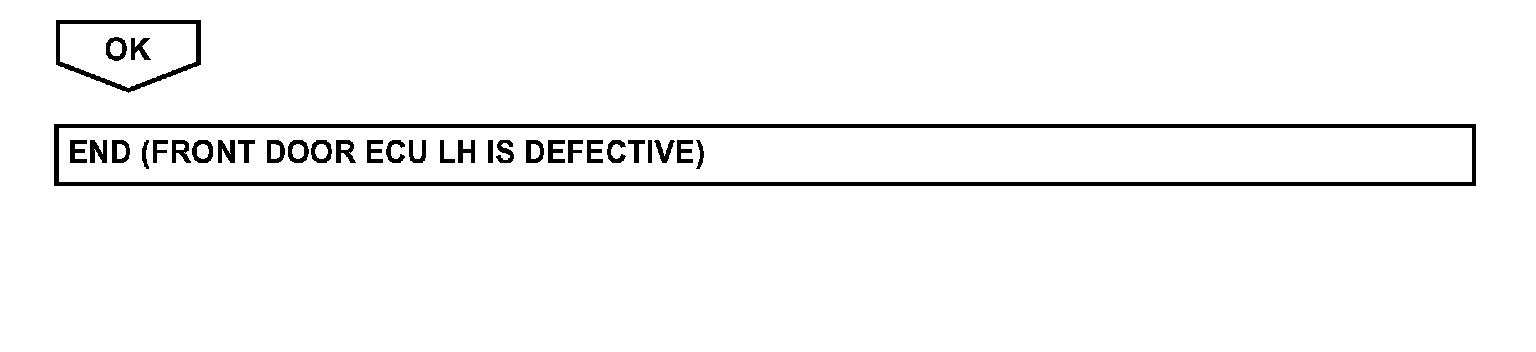

Step 7 (Continued):
INSPECTION PROCEDURE
