All Doors LOCK / UNLOCK Functions Do Not Operate Via Door Control Switch
All Doors LOCK / UNLOCK Functions do not Operate Via Door Control SwitchDESCRIPTION
The main body ECU receives switch signals from the door control switch and activates the door lock motor on each door according to these signals.

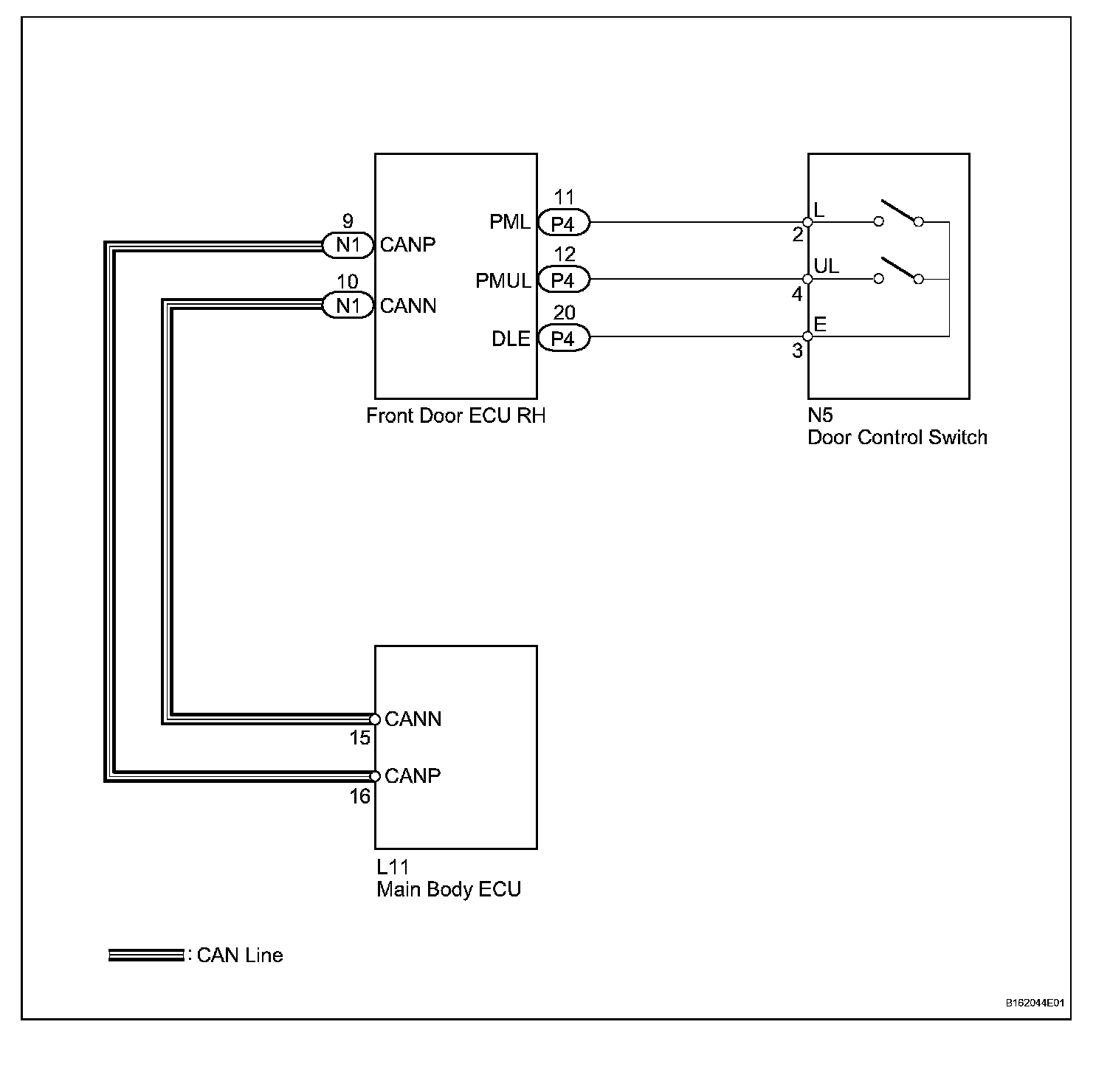

Wiring Diagram:

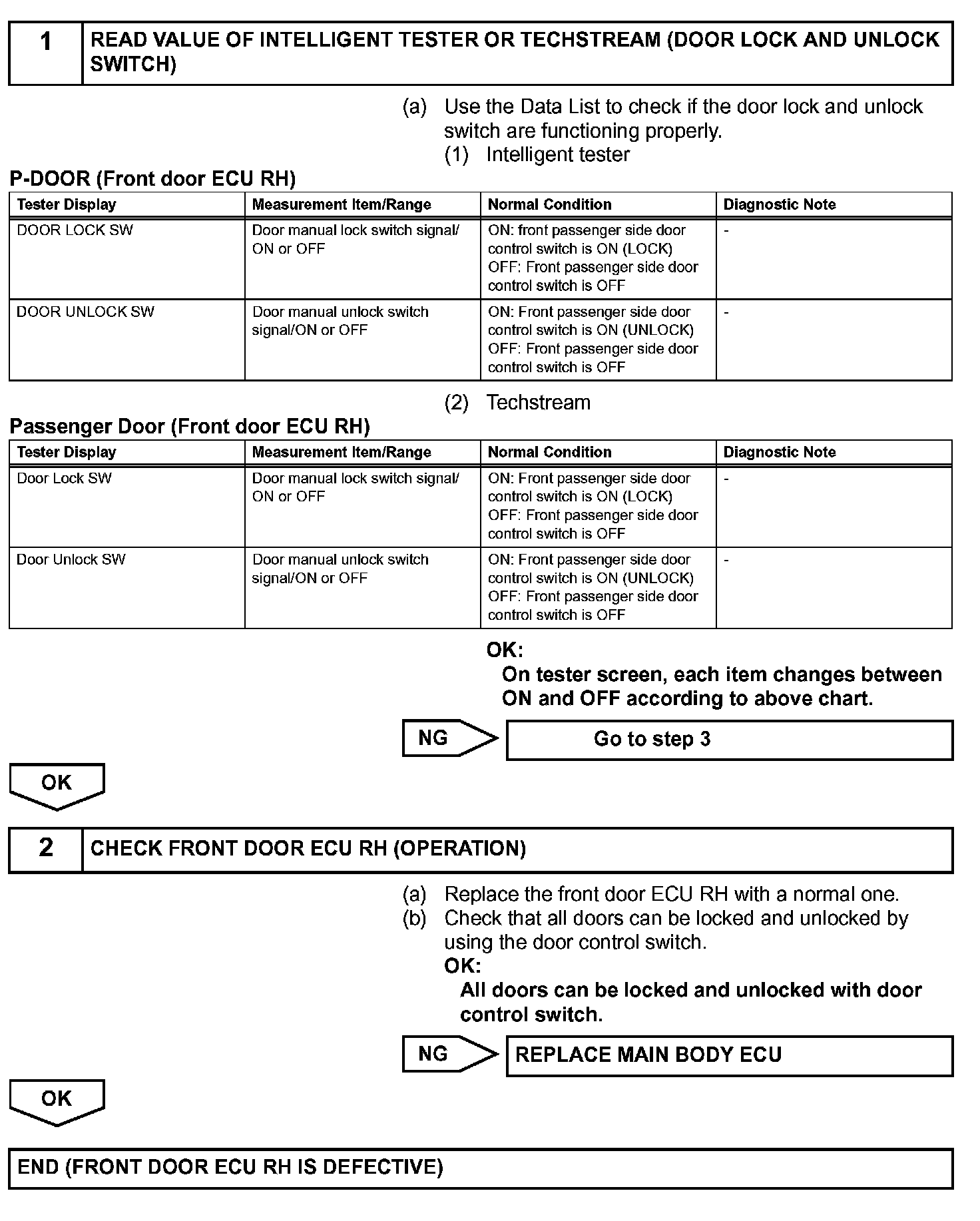

Step 1-2:

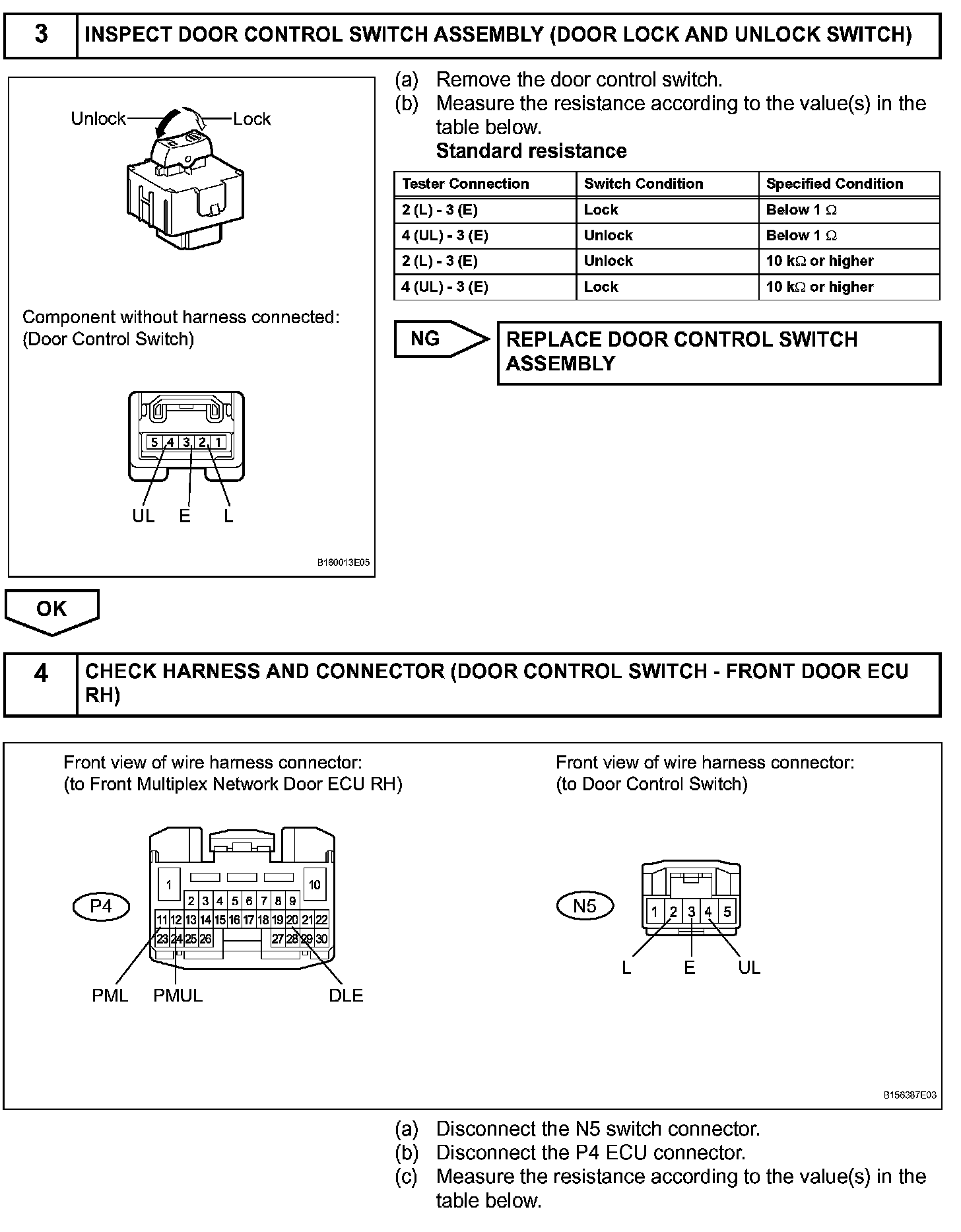

Step 3-4:

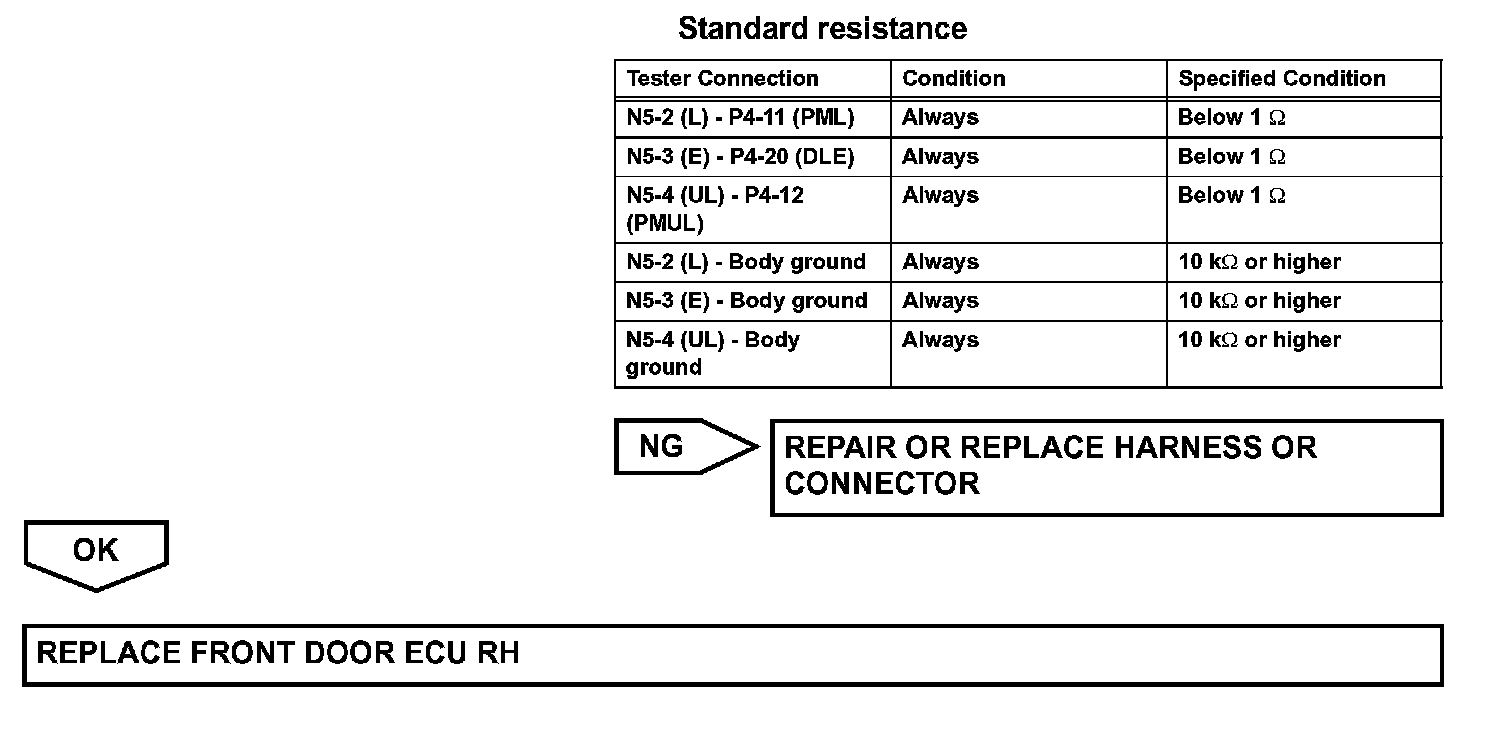

Step 4 (Continued):
INSPECTION PROCEDURE
