Driver Side Door Entry Lock and Unlock Functions Do Not Operate
Driver Side Door Entry Lock and Unlock Functions do not OperateDESCRIPTION
When the driver door entry lock and unlock functions do not operate, one of the following may be malfunctioning: 1) power door lock system, 2) driver side door electrical key oscillator, or 3) certification ECU.

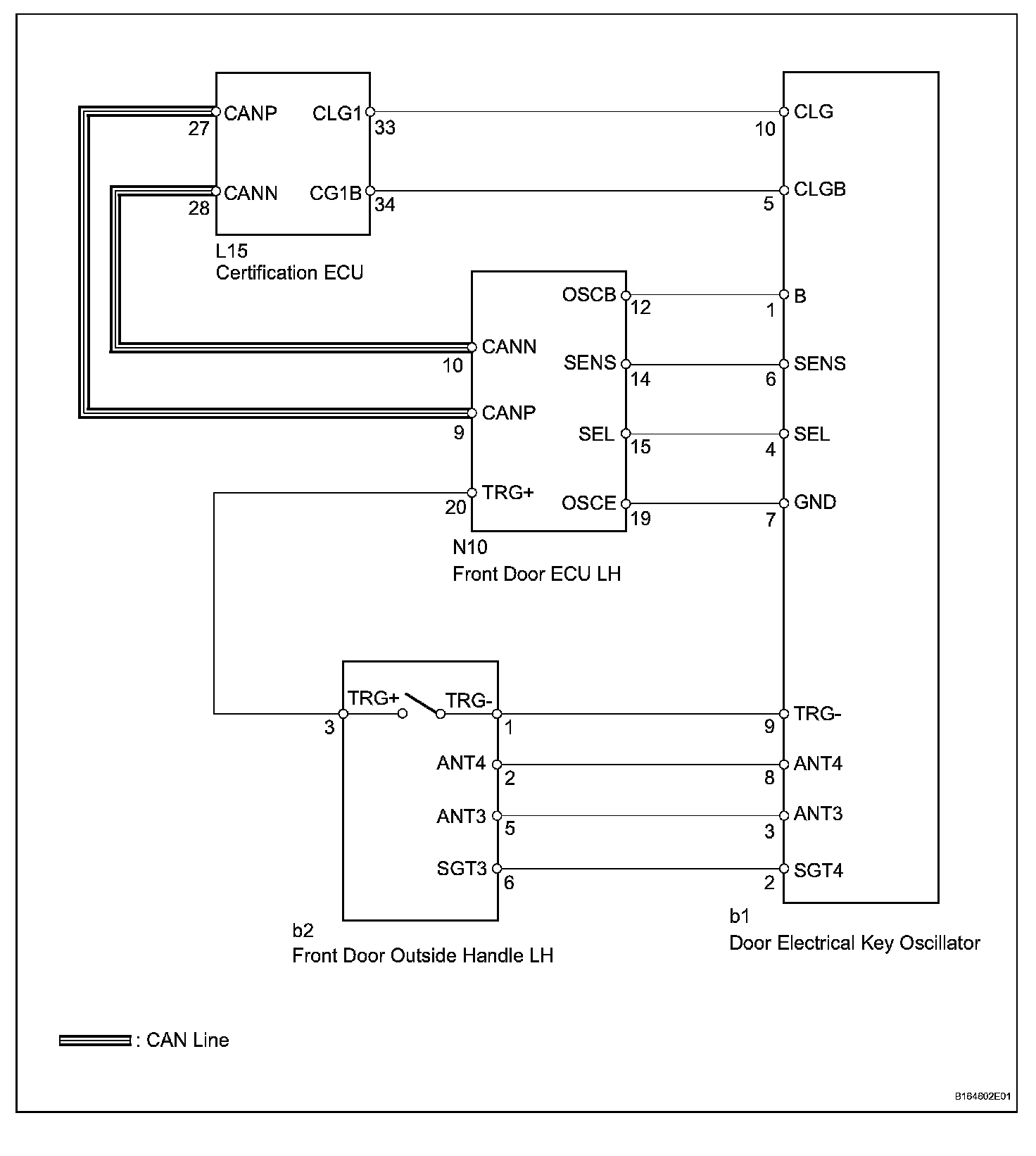

Wiring Diagram:

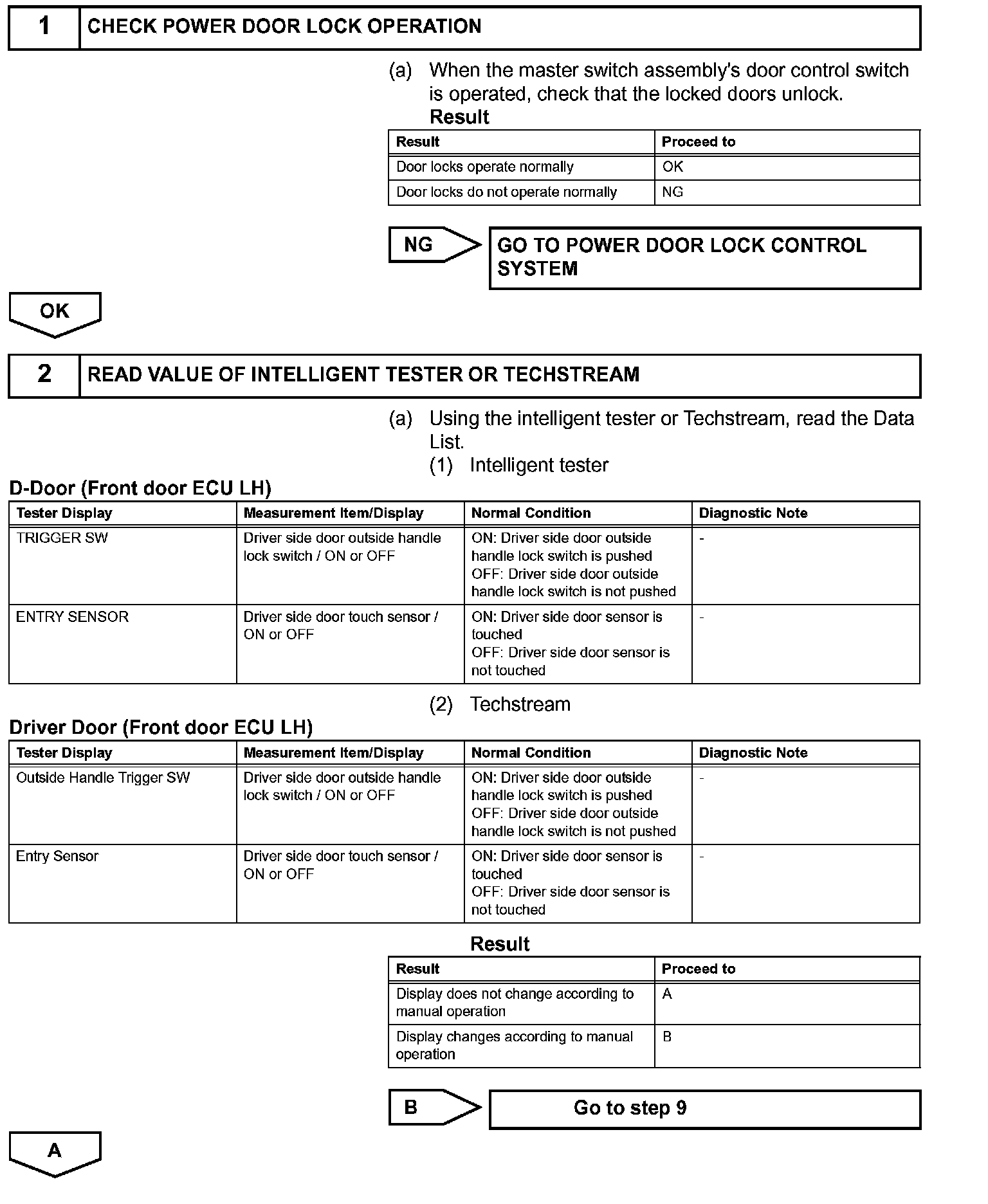

Step 1-2:

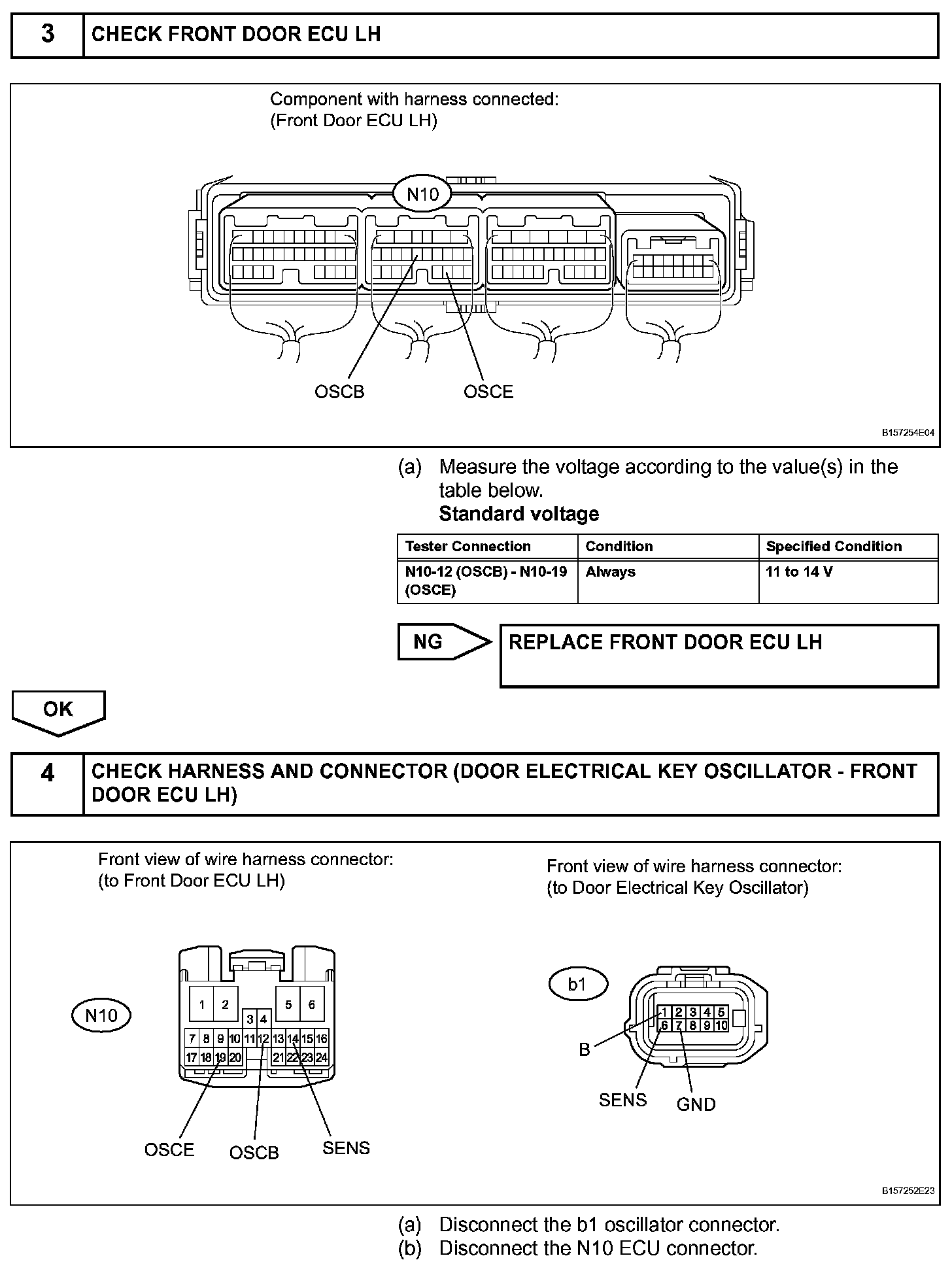

Step 3-4:

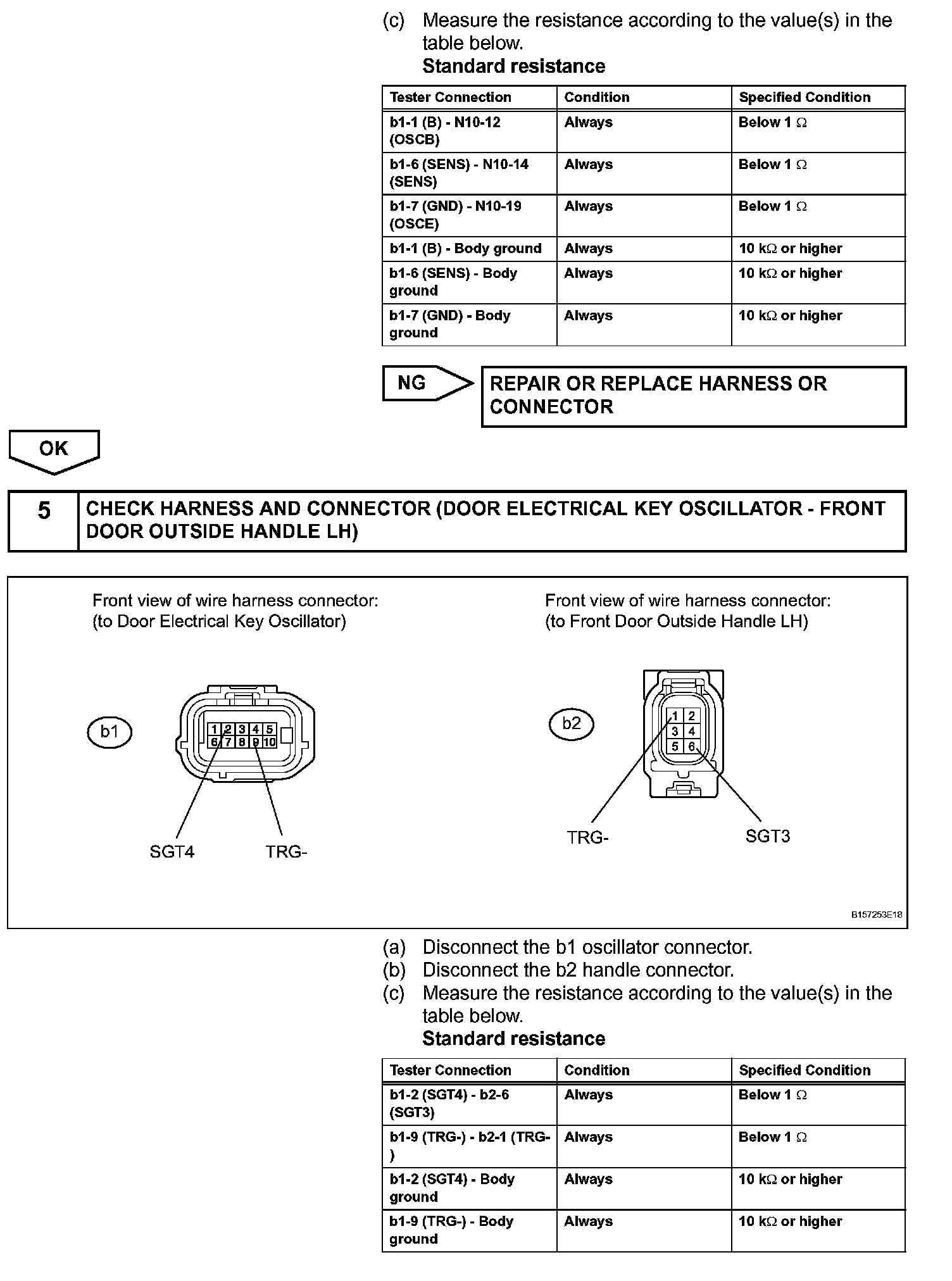

Step 4 (Continued)-5:

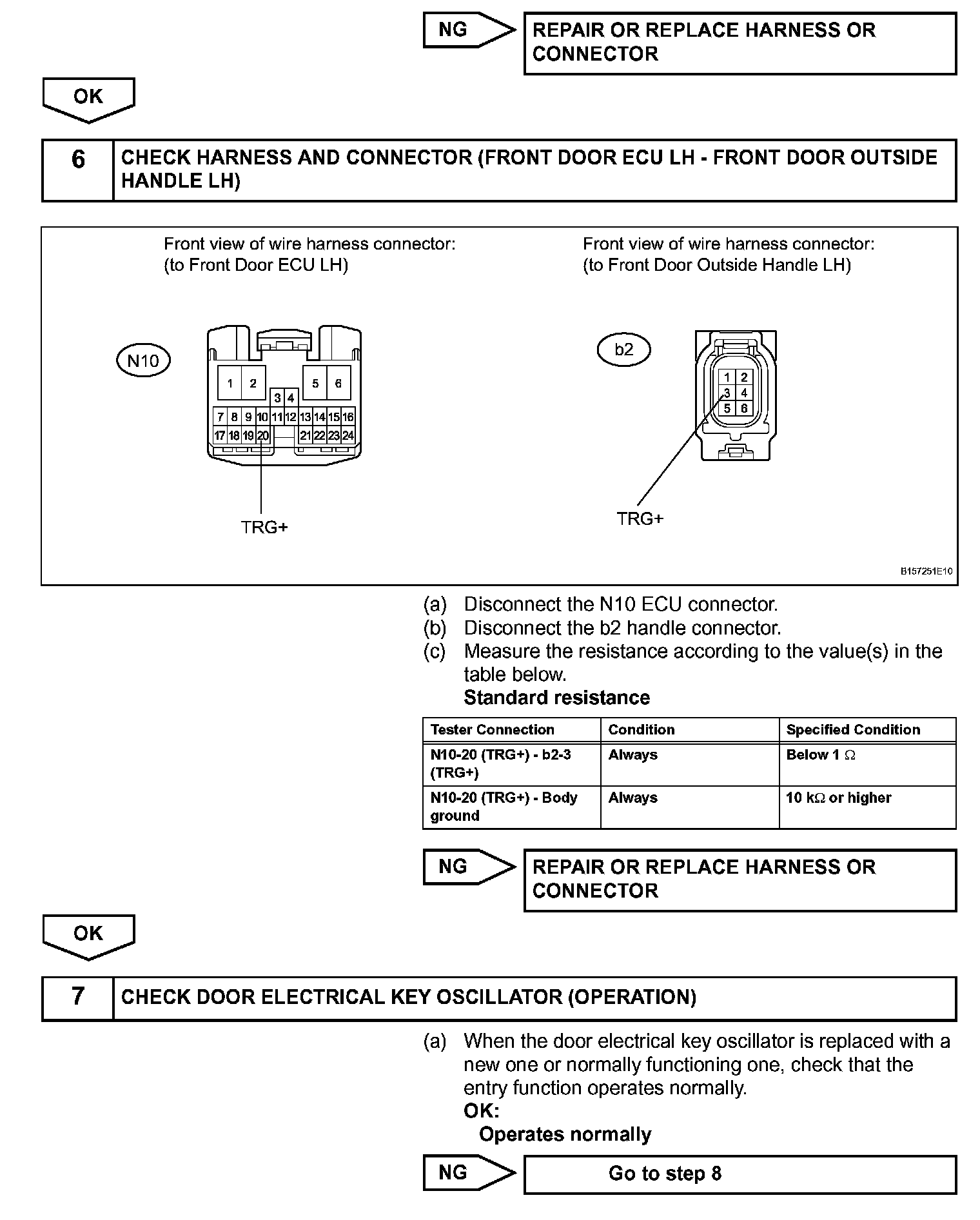

Step 5 (Continued)-7:

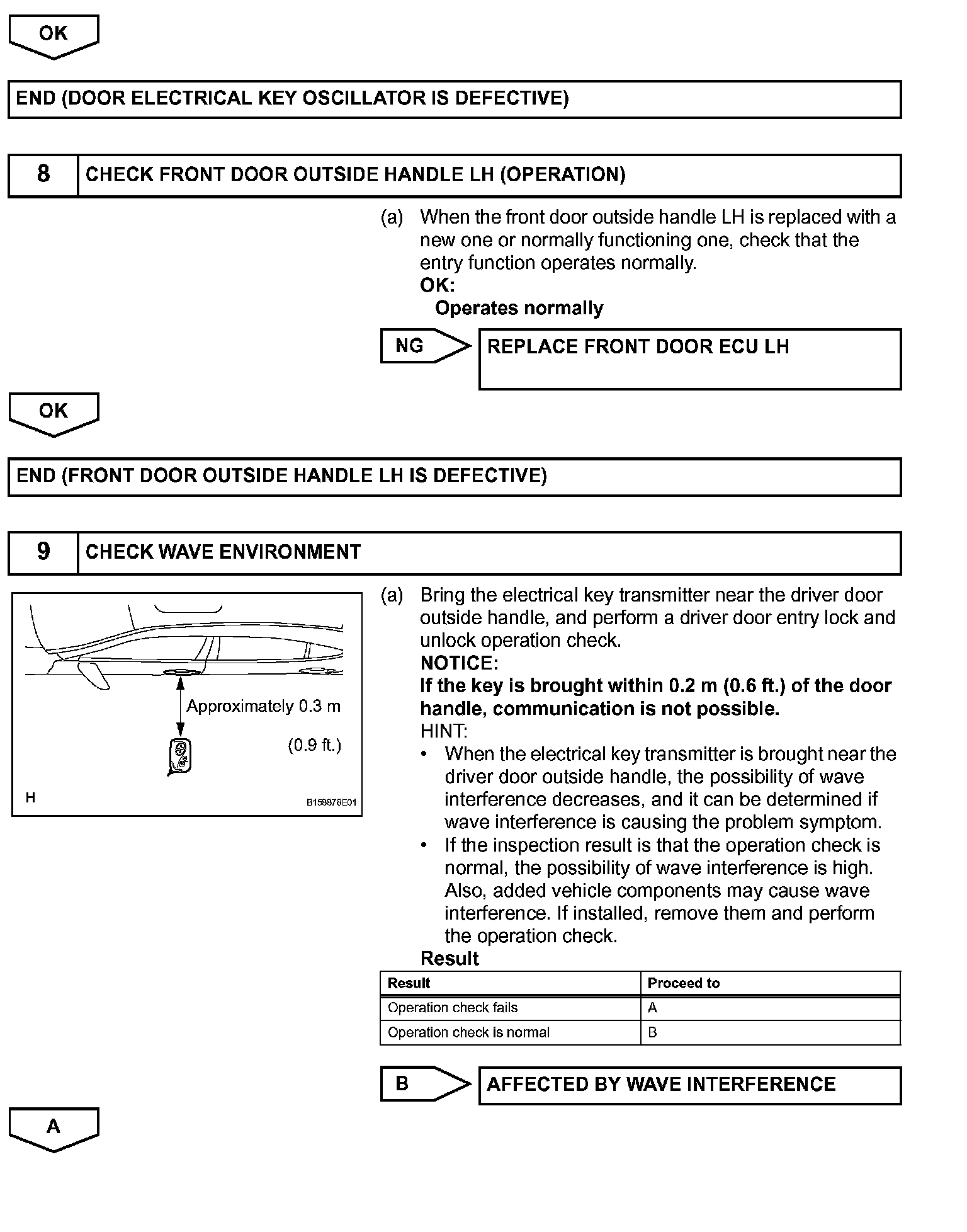

Step 7 (Continued)-9:

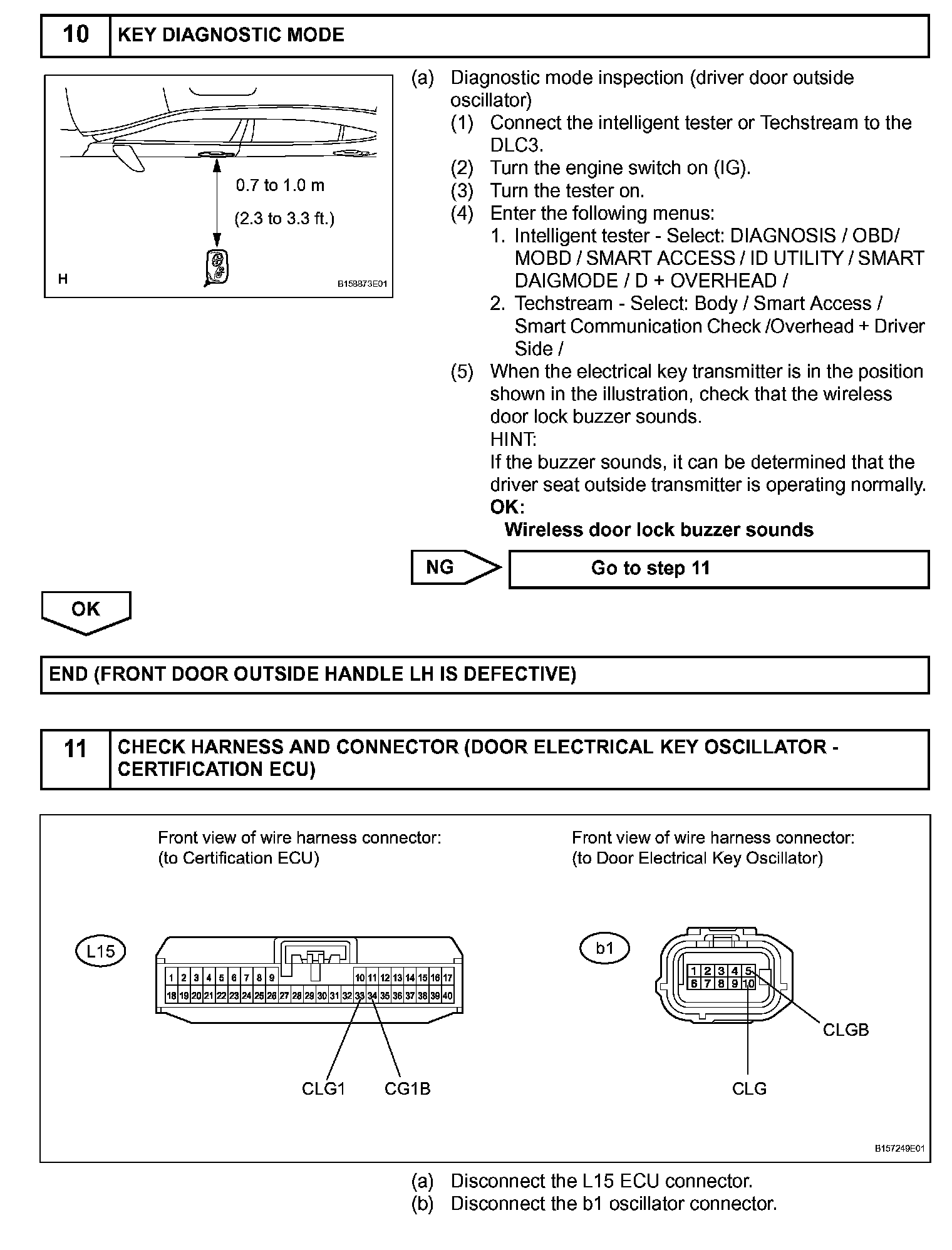

Step 10-11:
Step 11 (Continued)-12:

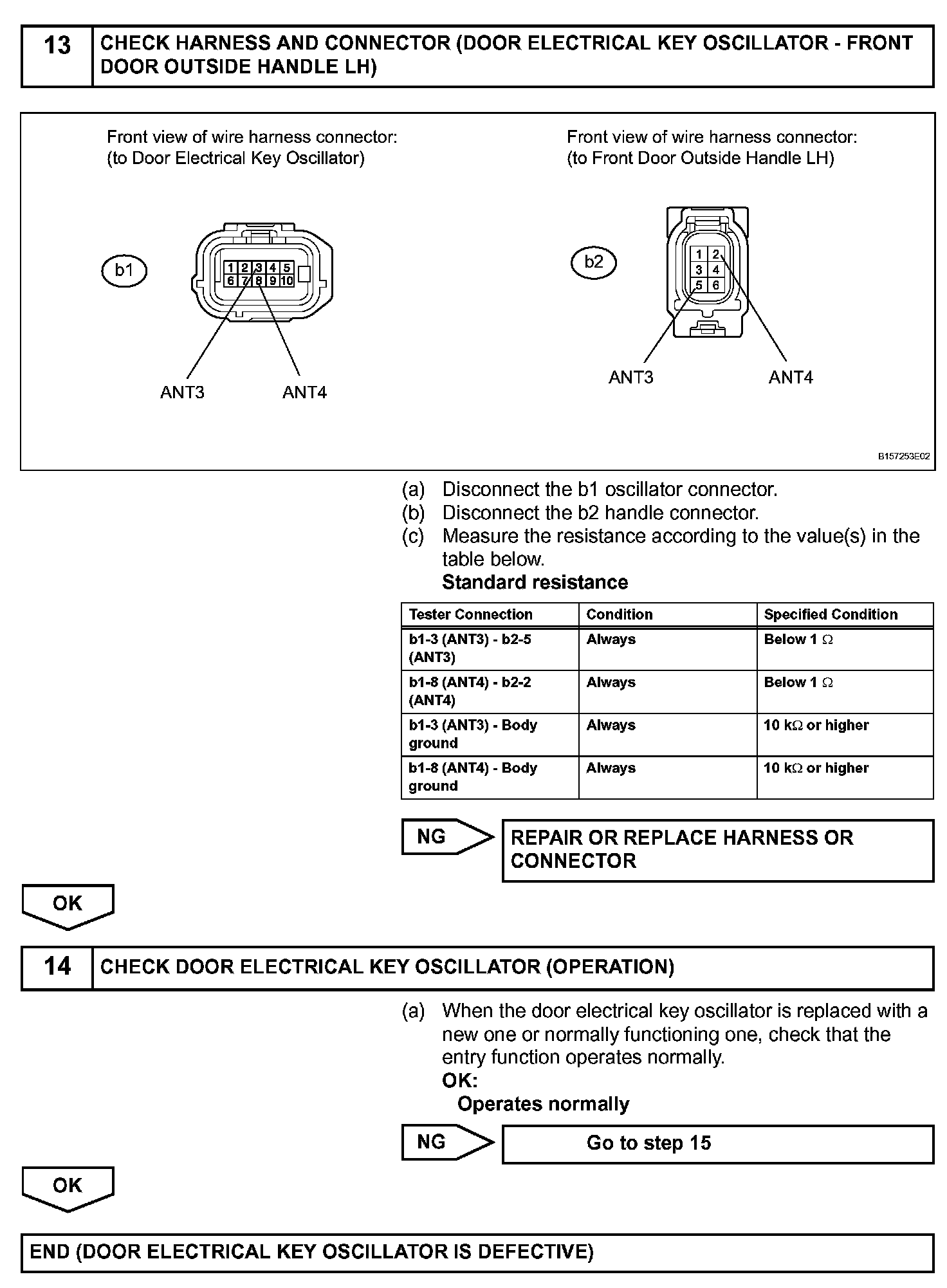

Sstep 13-14:

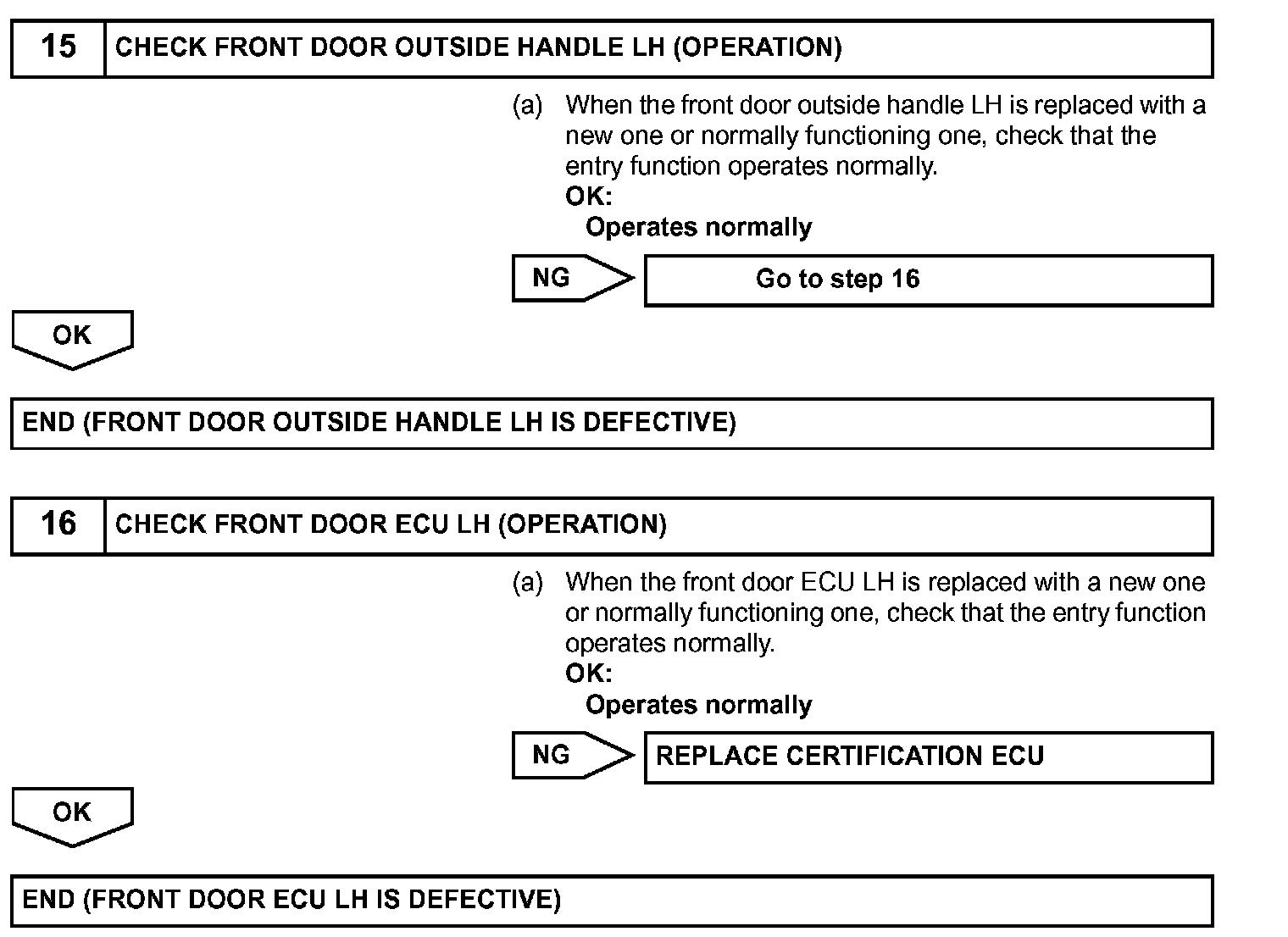

Step 15-16:
INSPECTION PROCEDURE
