Entry Lock and Unlock Switch (For Rear)

Entry Lock And Unlock Switch (for Rear):

ENTRY LOCK AND UNLOCK SWITCH (for Rear)

REMOVAL

HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. REMOVE COWL TOP VENTILATOR LOUVER RH
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

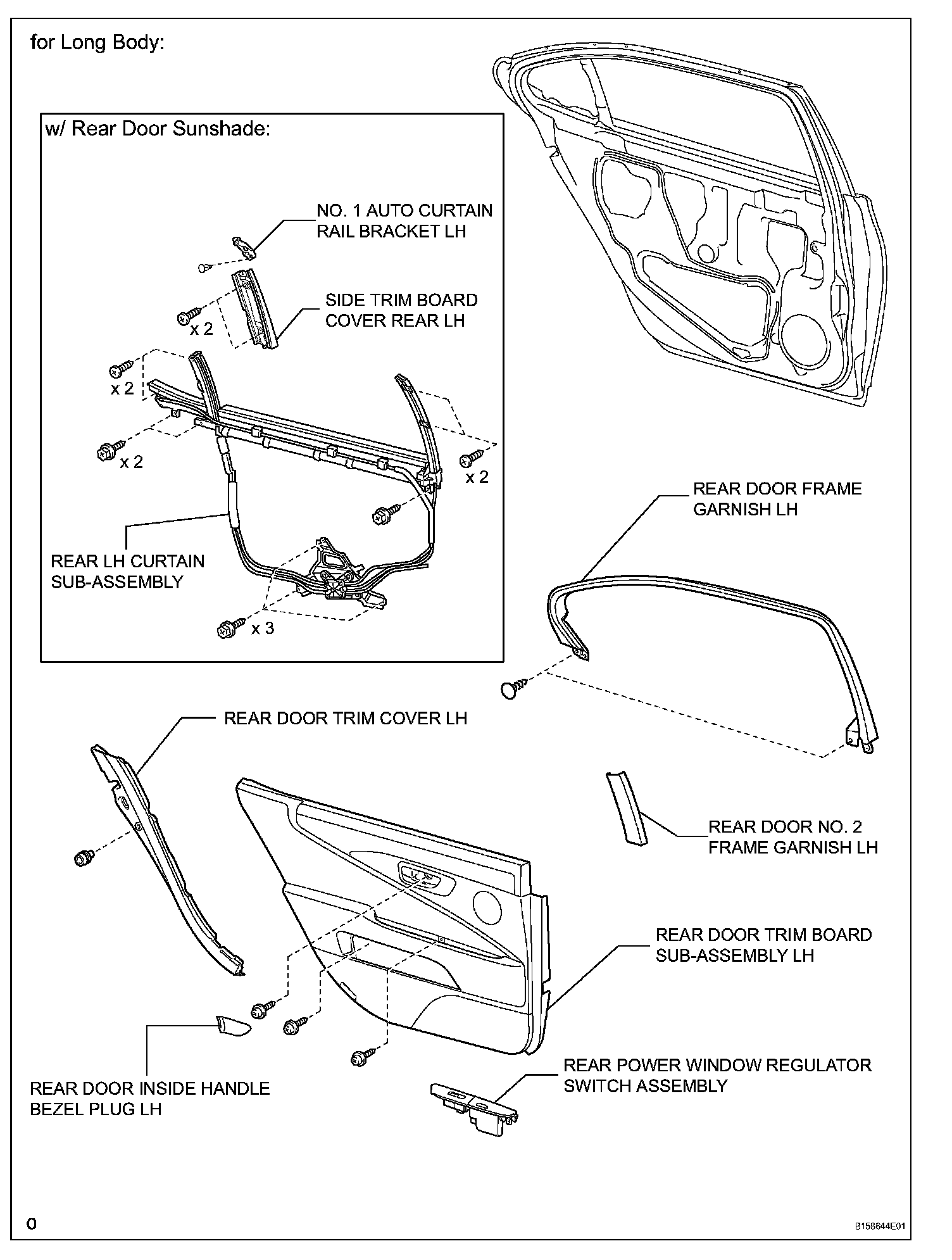

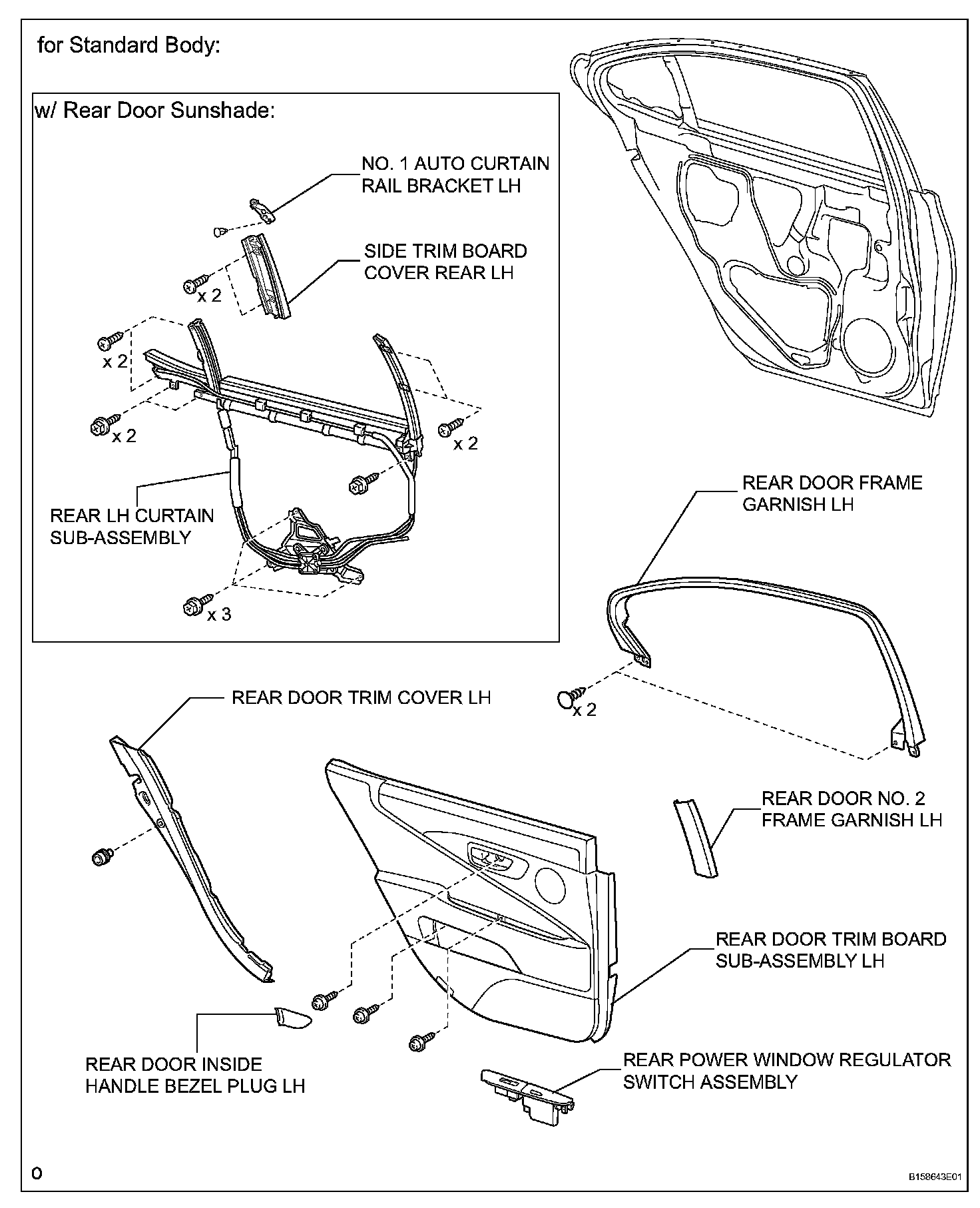

3. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG LH
4. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY
5. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH
6. REMOVE REAR DOOR TRIM COVER LH
7. REMOVE REAR DOOR FRAME GARNISH LH
8. REMOVE REAR DOOR NO.2 FRAME GARNISH LH
9. REMOVE REAR LH CURTAIN SUB-ASSEMBLY (w/ Rear Door Sunshade)
10. REMOVE NO.1 AUTO CURTAIN RAIL BRACKET LH (w/ Rear Door Sunshade)
11. REMOVE SIDE TRIM BOARD COVER REAR LH (w/ Rear Door Sunshade)

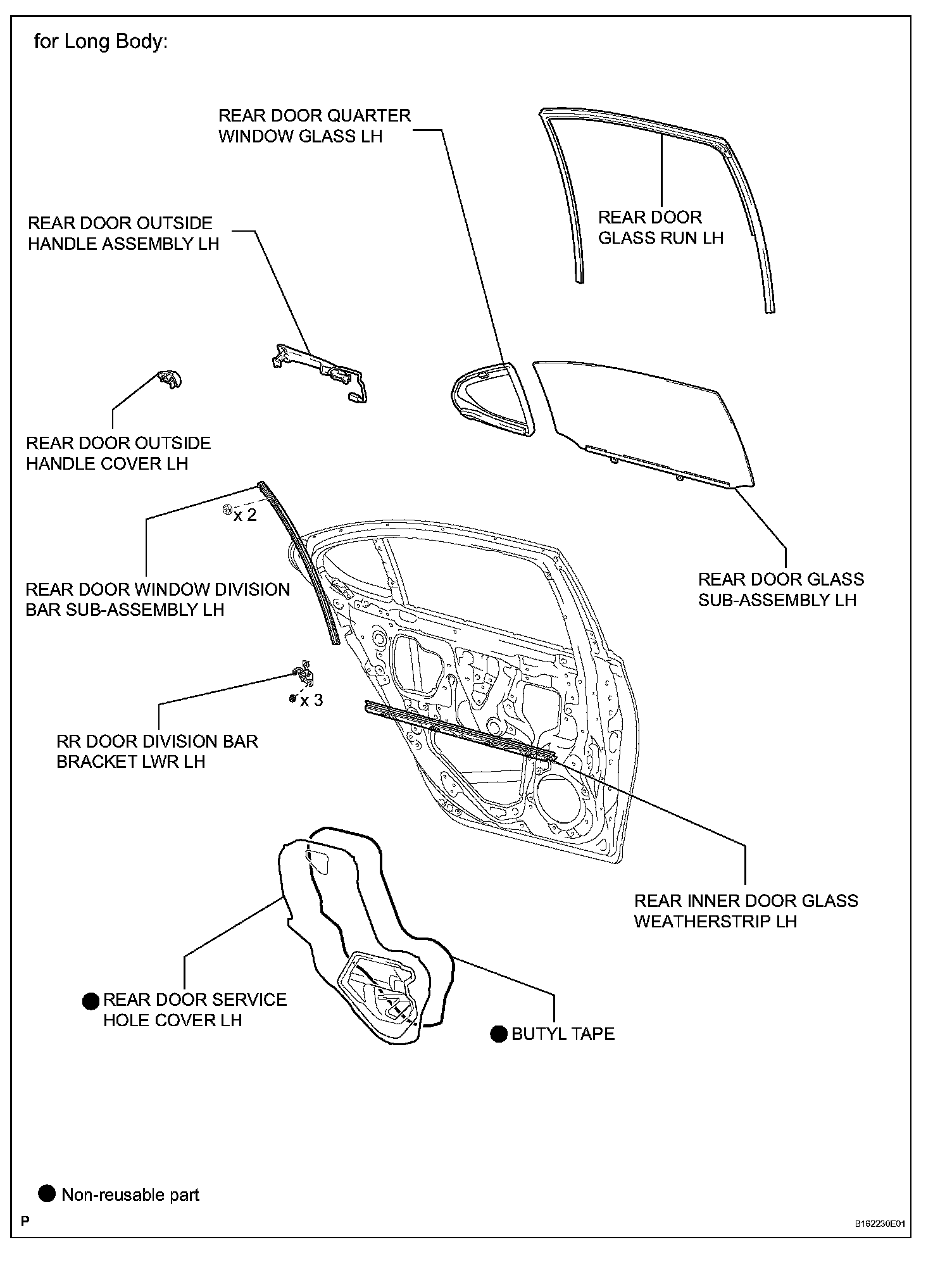

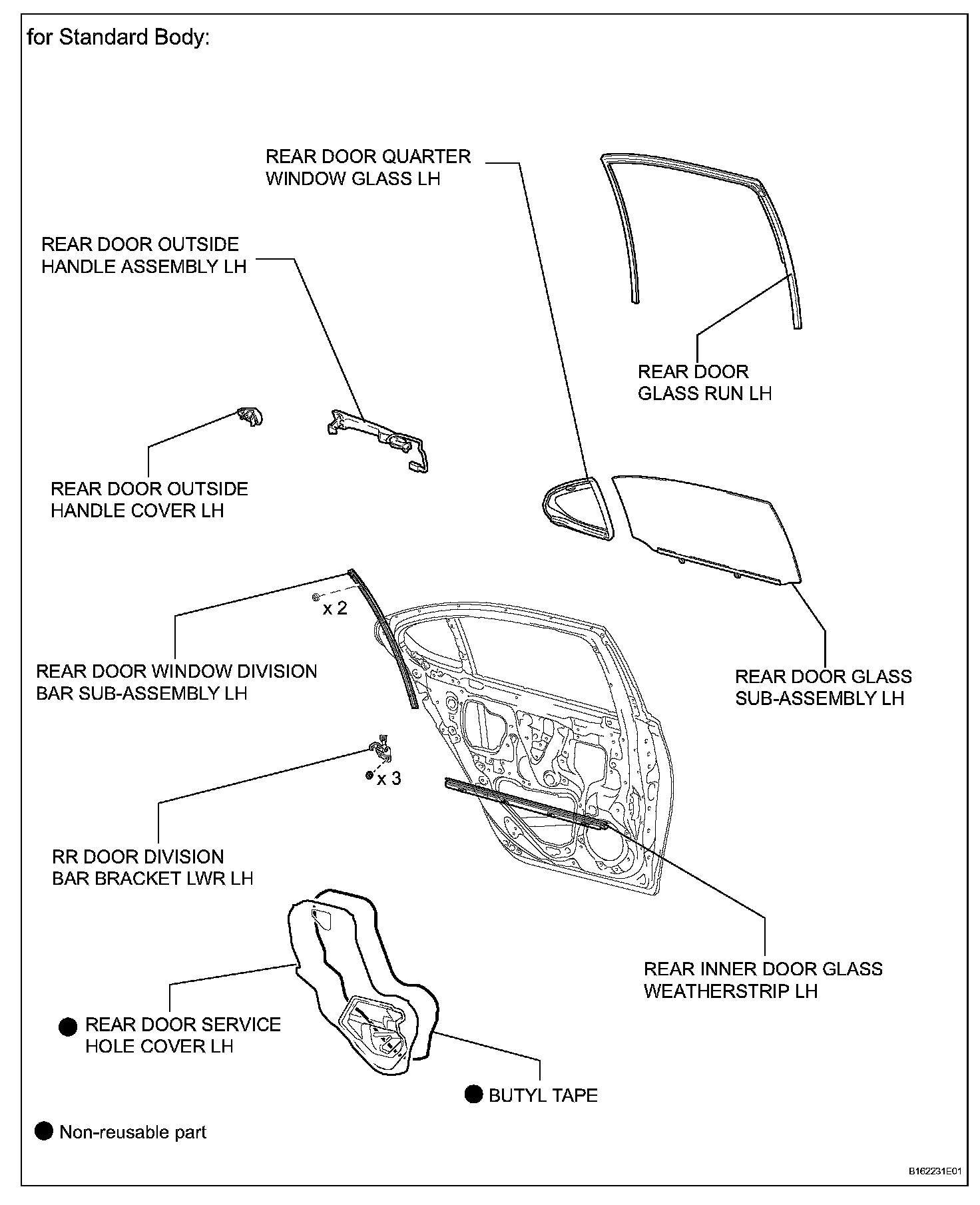

12. REMOVE REAR INNER DOOR GLASS WEATHERSTRIP LH
13. REMOVE REAR DOOR SERVICE HOLE COVER LH
14. REMOVE RR DOOR DIVISION BAR BRACKET LWR LH
15. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY LH
16. REMOVE REAR DOOR GLASS RUN LH
17. REMOVE REAR DOOR QUARTER WINDOW GLASS LH
18. REMOVE REAR DOOR GLASS SUB-ASSEMBLY LH
19. REMOVE REAR DOOR OUTSIDE HANDLE COVER LH
20. REMOVE REAR DOOR OUTSIDE HANDLE ASSEMBLY LH

INSTALLATION

HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. INSTALL REAR DOOR OUTSIDE HANDLE ASSEMBLY LH
2. INSTALL REAR DOOR OUTSIDE HANDLE COVER LH
3. INSTALL REAR DOOR GLASS SUB-ASSEMBLY LH
4. INSTALL REAR DOOR QUARTER WINDOW GLASS LH
5. INSTALL REAR DOOR GLASS RUN LH
6. INSTALL REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY LH
7. INSTALL RR DOOR DIVISION BAR BRACKET LWR LH
8. INSTALL REAR DOOR SERVICE HOLE COVER LH
9. INSTALL REAR INNER DOOR GLASS WEATHERSTRIP LH
10. INSTALL SIDE TRIM BOARD COVER REAR LH (w/ Rear Door Sunshade)
11. INSTALL NO.1 AUTO CURTAIN RAIL BRACKET LH (w/ Rear Door Sunshade)
12. INSTALL REAR LH CURTAIN SUB-ASSEMBLY (w/ Rear Door Sunshade)
13. INSTALL REAR DOOR NO.2 FRAME GARNISH LH
14. INSTALL REAR DOOR FRAME GARNISH LH
15. INSTALL REAR DOOR TRIM COVER LH
16. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY LH
17. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY REAR
18. INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG LH
19. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
20. INSTALL COWL TOP VENTILATOR LOUVER RH
21. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
