Rear Console Box (For Ottoman)

REAR CONSOLE BOX (for Ottoman)

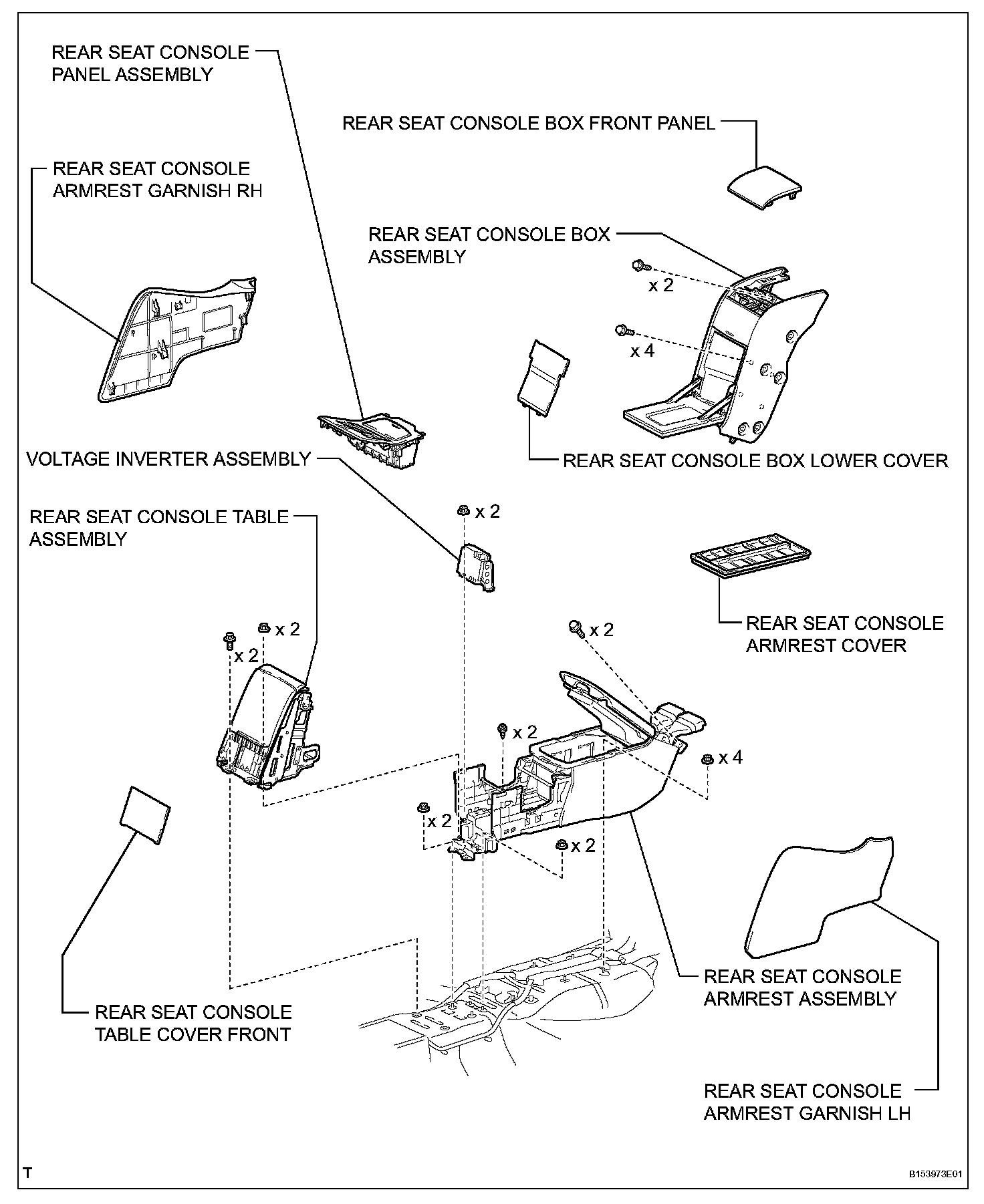

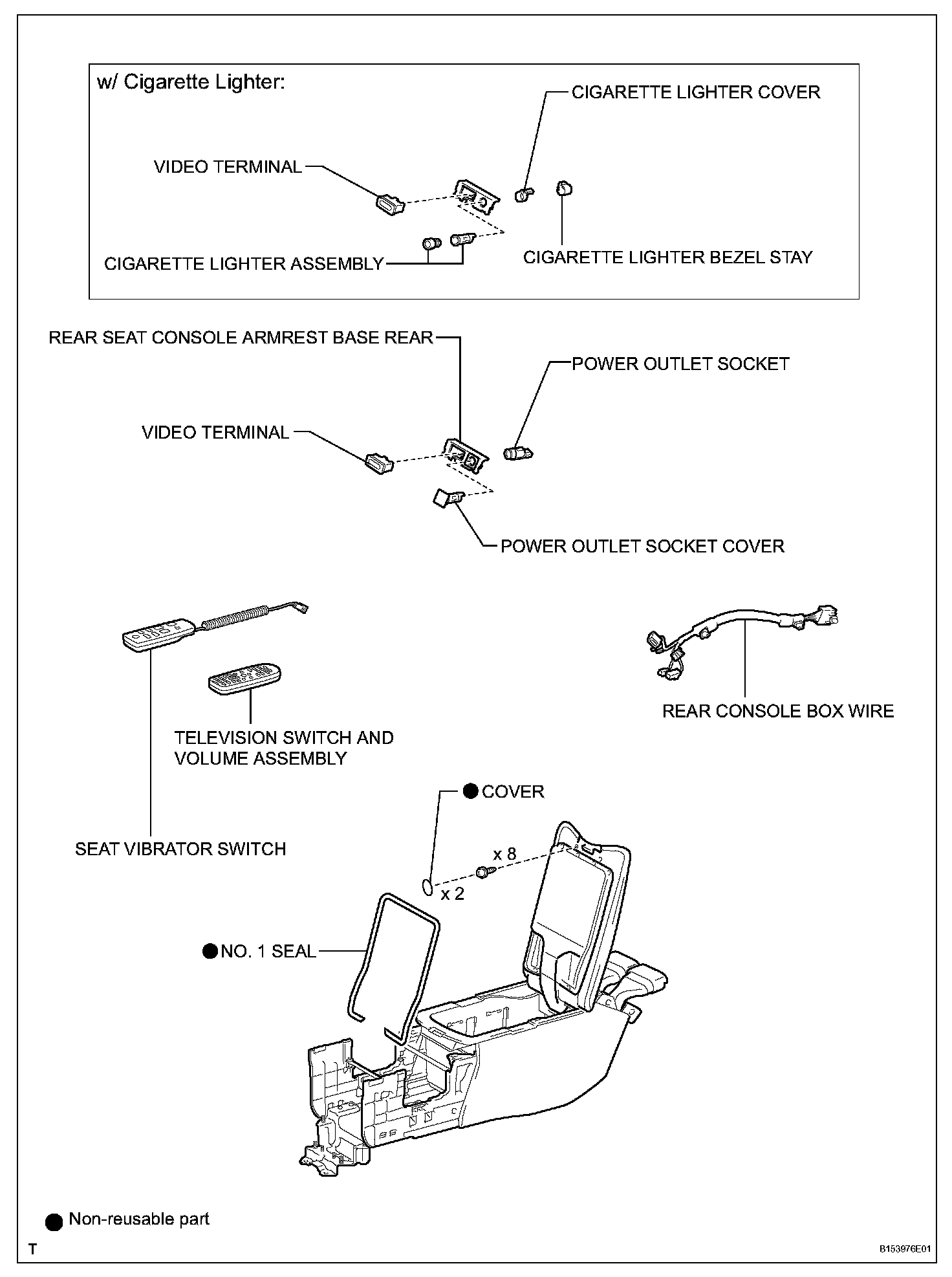

Rear Console Box (For Ottoman):

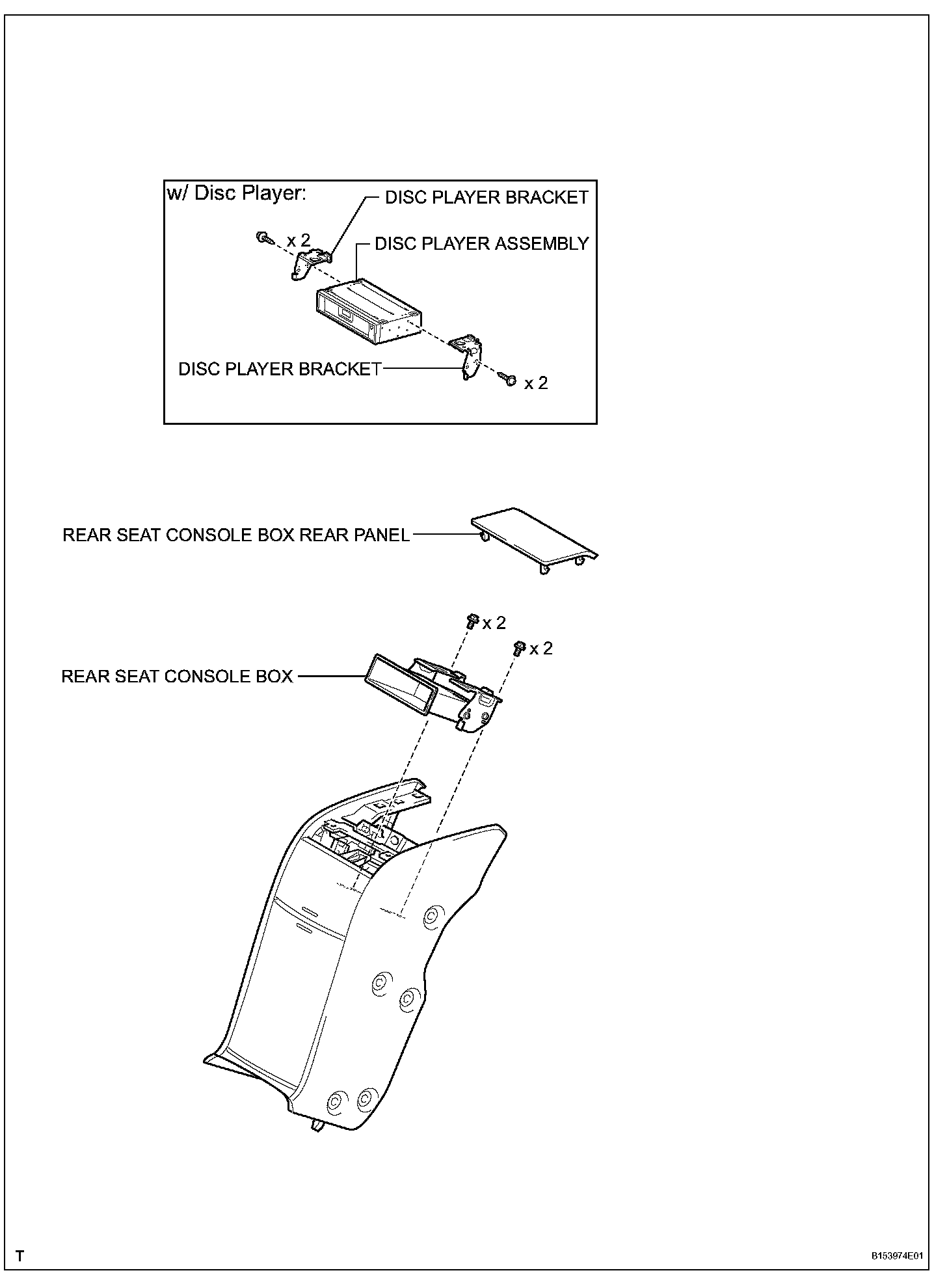

Rear Console Box (For Ottoman):

Rear Console Box (For Ottoman):

REMOVAL

1. REMOVE REAR SEAT CONSOLE BOX ASSEMBLY

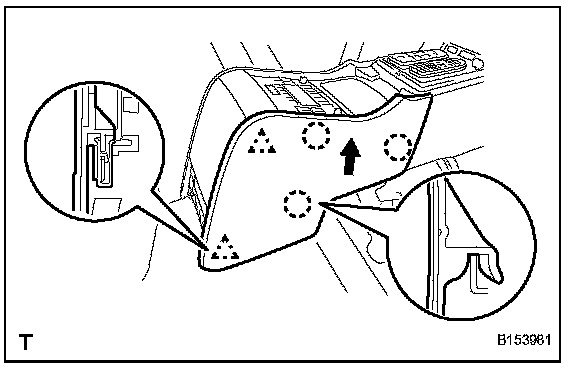

a. Using a screwdriver, detach the 4 clips and remove the rear seat console box front panel.

HINT: Tape the screwdriver tip before use.

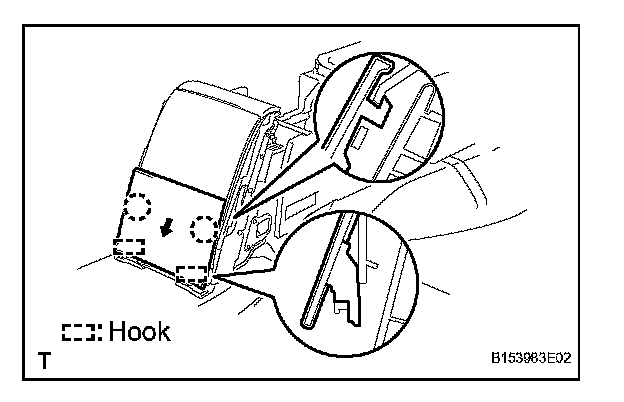

b. Using a screwdriver, detach the 4 claws, Then detach the 2 hooks and remove the rear seat console box lower cover.

HINT: Tape the screwdriver tip before use.

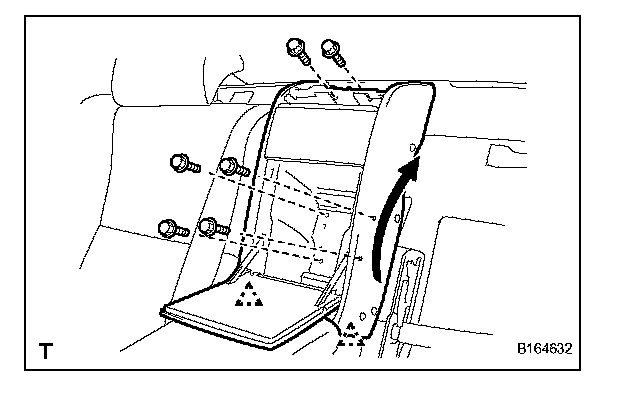

c. Remove the 6 bolts, and move the console box in the direction of the arrow shown in the illustration. Then detach the 2 clips, and remove the console box.

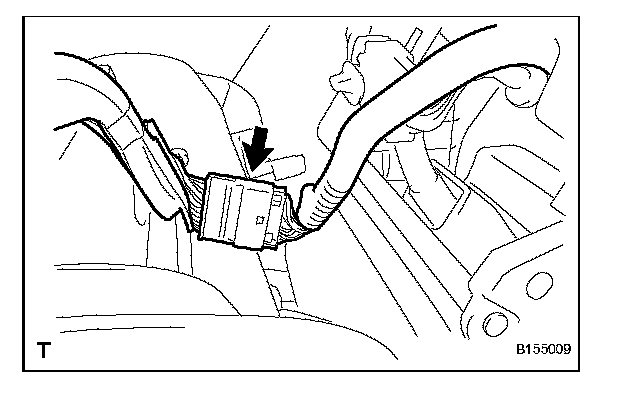

d. Disconnect the connector.

2. REMOVE REAR SEAT CONSOLE ARMREST GARNISH LH
a. Open the console door.





b. While pulling up the armrest garnish, detach the 3 claws and 2 clips to remove it.

3. REMOVE REAR SEAT CONSOLE ARMREST GARNISH RH

HINT: Use the same procedures described for the LH side.

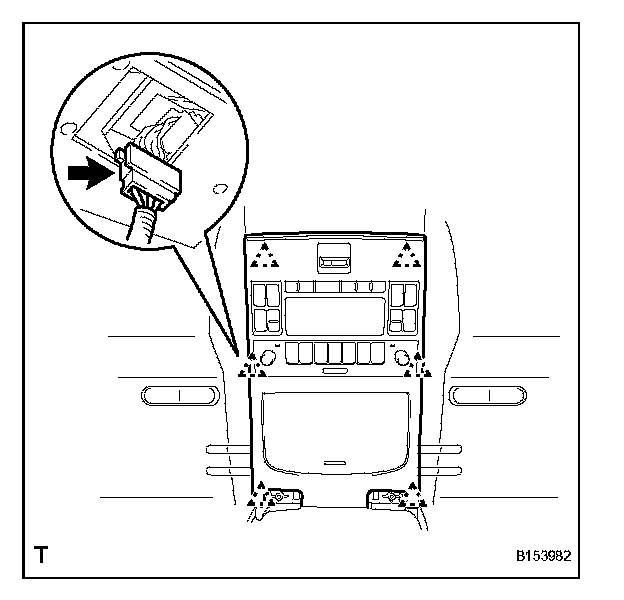

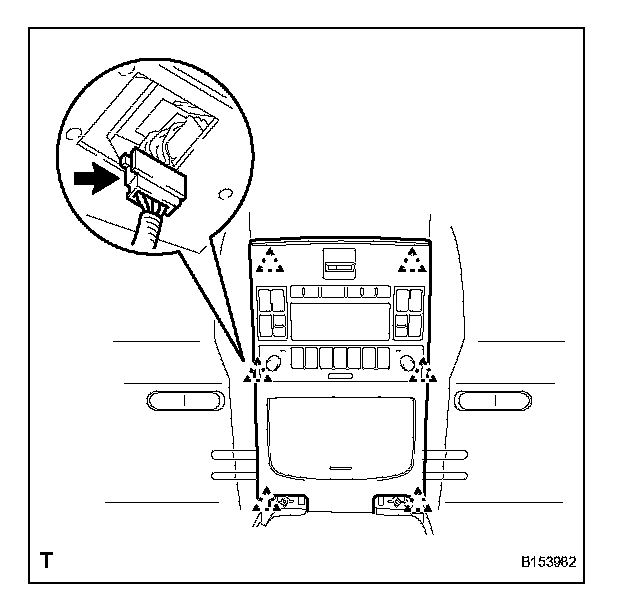

4. REMOVE REAR SEAT CONSOLE PANEL ASSEMBLY

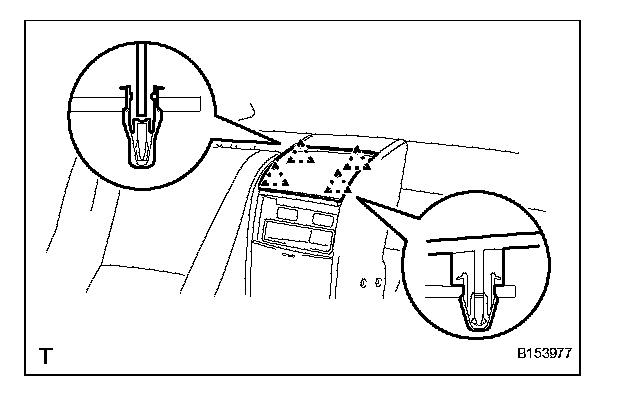

a. Using a screwdriver, detach the 6 clips and remove the console panel.

HINT: Tape the screwdriver tip before use.

b. Disconnect the connector.

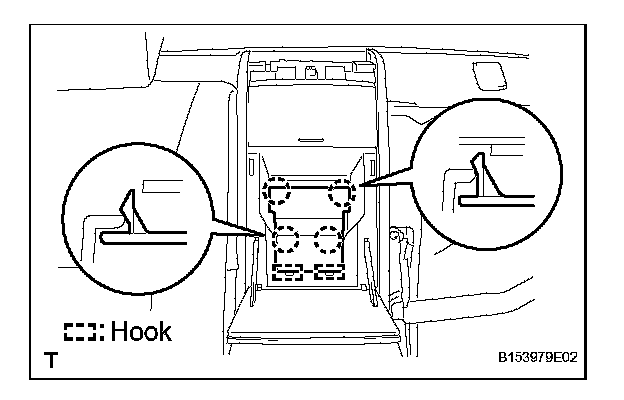

5. REMOVE REAR SEAT CONSOLE TABLE COVER FRONT

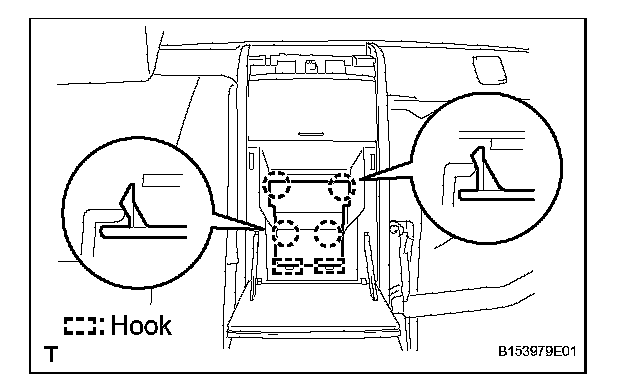

a. Using a screwdriver, detach the 2 claws.

HINT: Tape the screwdriver tip before use.

b. Pull up the table cover and detach the 2 hooks to remove it.

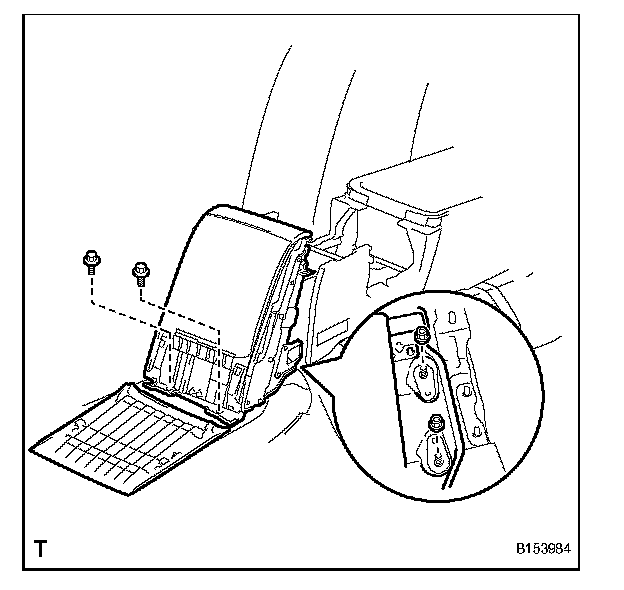

6. REMOVE REAR SEAT CONSOLE TABLE ASSEMBLY

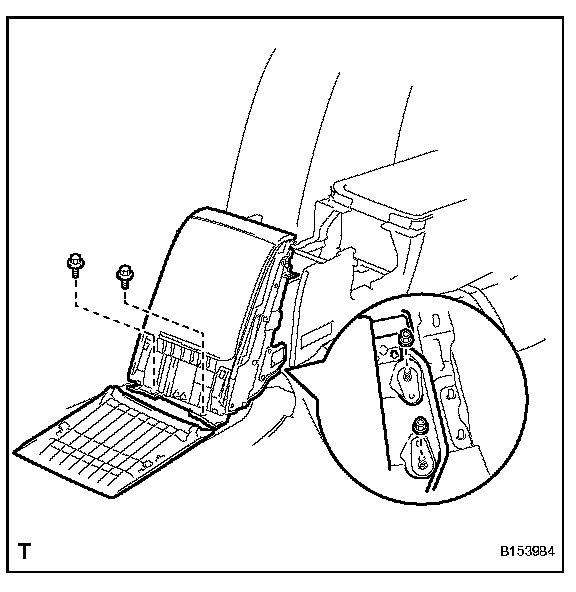

a. Remove the 2 bolts, 2 nuts and console table.

7. REMOVE VOLTAGE INVERTER ASSEMBLY
8. REMOVE REAR SEAT CONSOLE ARMREST ASSEMBLY

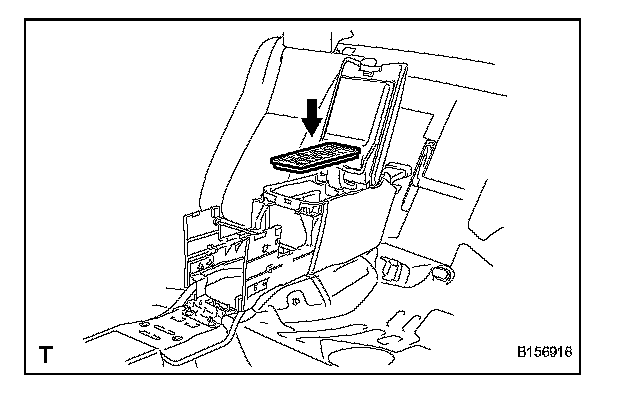

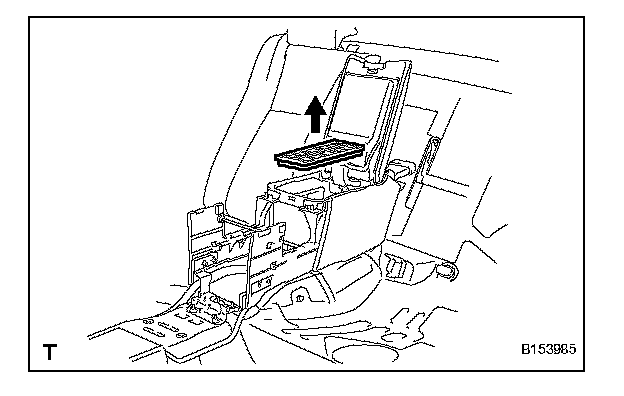

a. Take out the console armrest cover.

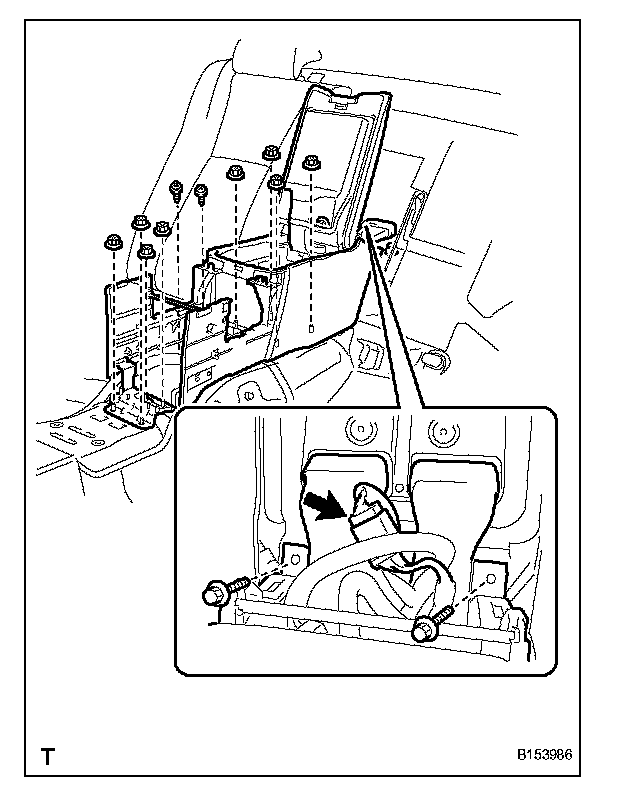

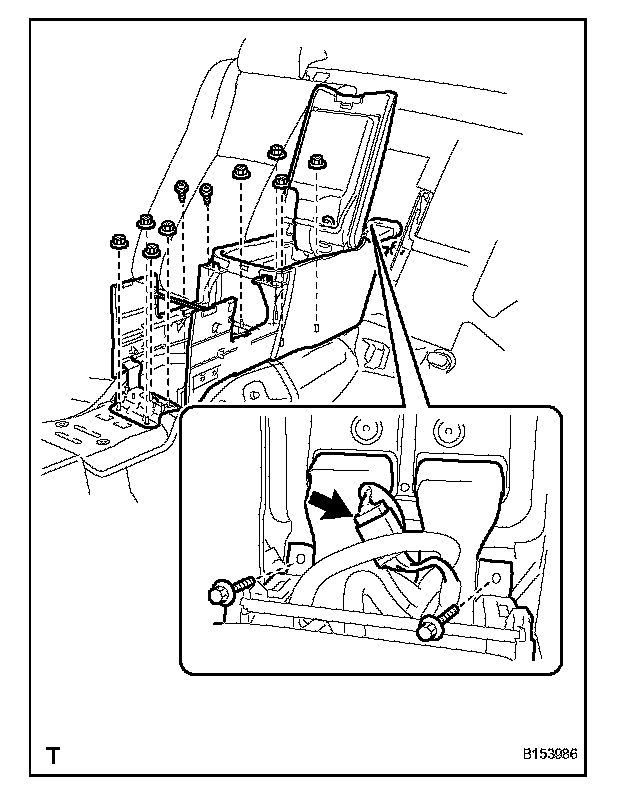

b. Remove the 8 nuts and 2 bolts.
c. Remove the 2 screws and console armrest.
d. Disconnect the connector.

INSTALLATION

HINT: A bolt without a torque specification is shown in the standard bolt chart.

1. INSTALL REAR SEAT CONSOLE ARMREST ASSEMBLY





a. Connect the connector.
b. Install the console armrest with the 2 screws.
c. Install the 8 nuts and 2 bolts.





d. Install the console armrest cover.

2. INSTALL VOLTAGE INVERTER ASSEMBLY
3. INSTALL REAR SEAT CONSOLE TABLE ASSEMBLY





a. Install the console table with the 2 nuts and 2 bolts.

4. INSTALL REAR SEAT CONSOLE TABLE COVER FRONT





a. Push down the table cover and attach the 2 hooks.
b. Attach the 2 claws to install the table cover.

5. INSTALL REAR SEAT CONSOLE PANEL ASSEMBLY
a. Connect the connector.





b. Attach the 6 clips to install the console panel.

6. INSTALL REAR SEAT CONSOLE ARMREST GARNISH RH





a. While lowering the armrest garnish, attach the 3 claws and 2 clips to install it.

7. INSTALL REAR SEAT CONSOLE ARMREST GARNISH LH

HINT: Use the same procedures described for the RH side.

8. INSTALL REAR SEAT CONSOLE BOX ASSEMBLY





a. Connect the connector.

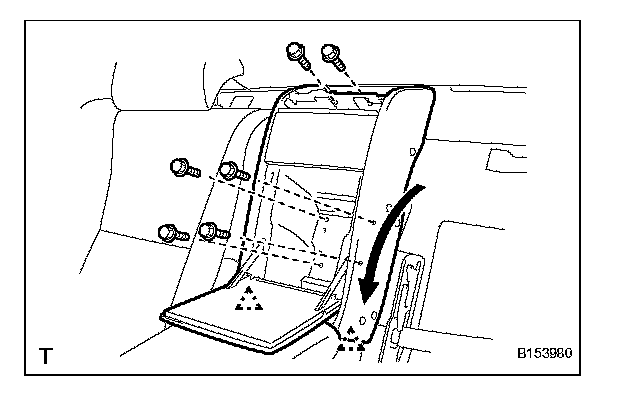

b. Move the console box in the direction of the arrow shown in the illustration, and attach the 2 clips. Then install the console box with the 6 bolts.





c. Attach the 2 hooks and install the rear seat console box lower cover to the console box.
d. Attach the 4 claws.

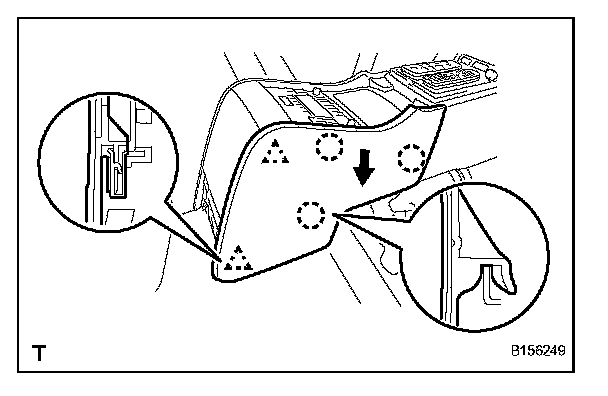

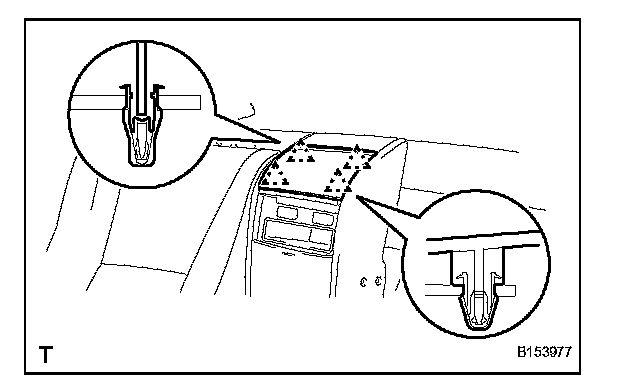

e. Attach the 4 clips to install the rear seat console box front panel.
