Front Console Box

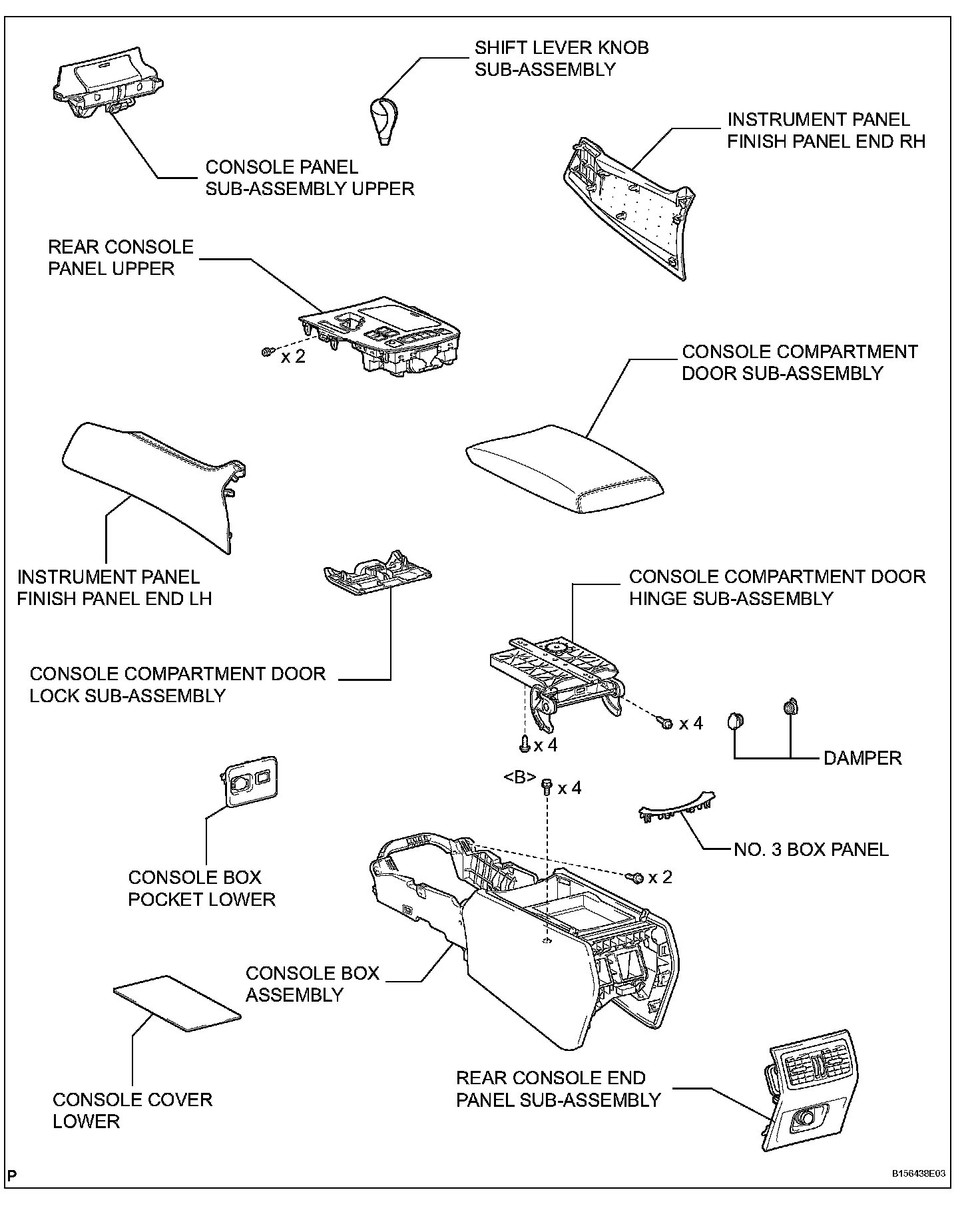

FRONT CONSOLE BOX

Front Console Box:

REMOVAL

1. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

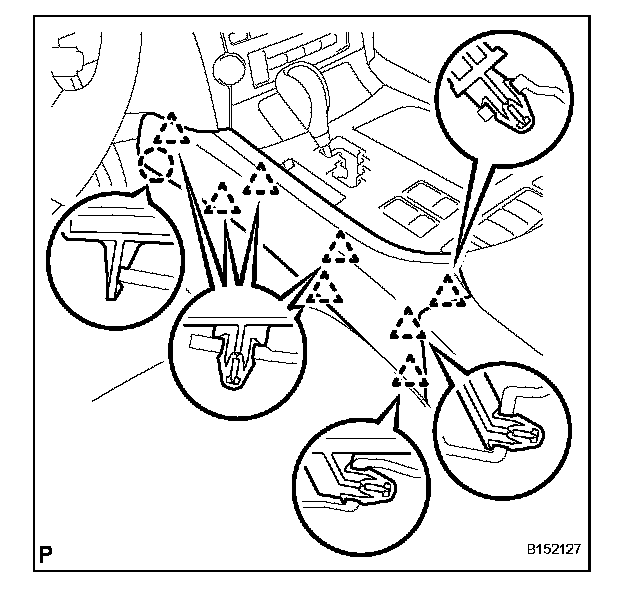

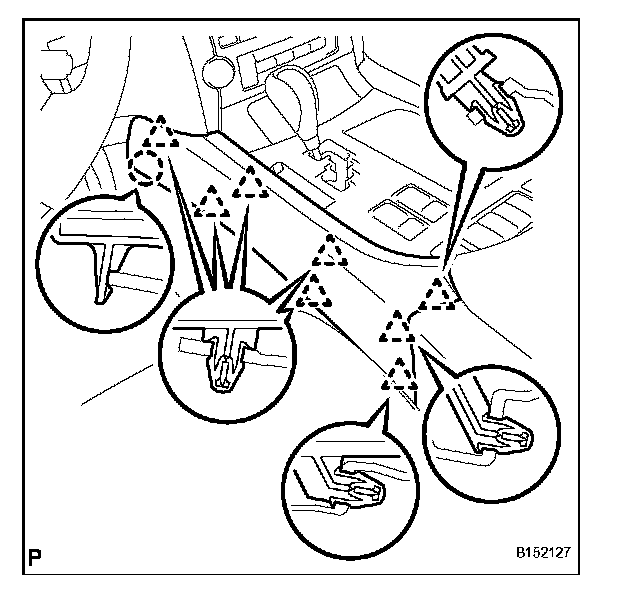

a. Using a moulding remover, detach the 8 clips and claw.
b. Remove the finish panel.

2. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

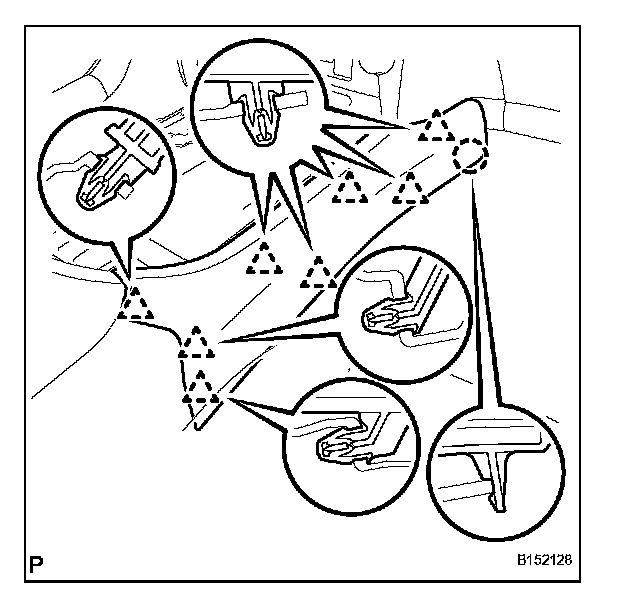

a. Using a moulding remover, detach the 8 clips and claw.
b. Remove the finish panel.

3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

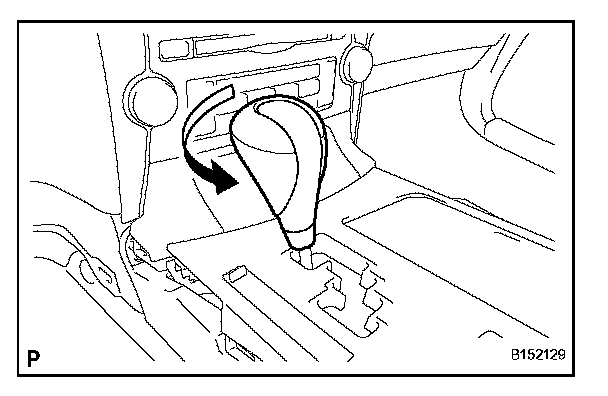

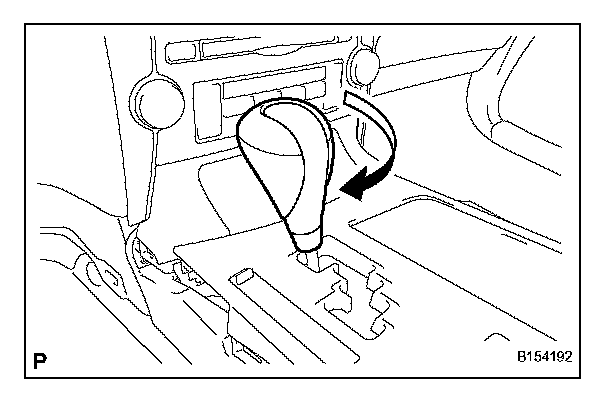

a. Twist the shift lever knob in the direction indicated by the arrow and remove it.

4. REMOVE NO. 3 BOX PANEL

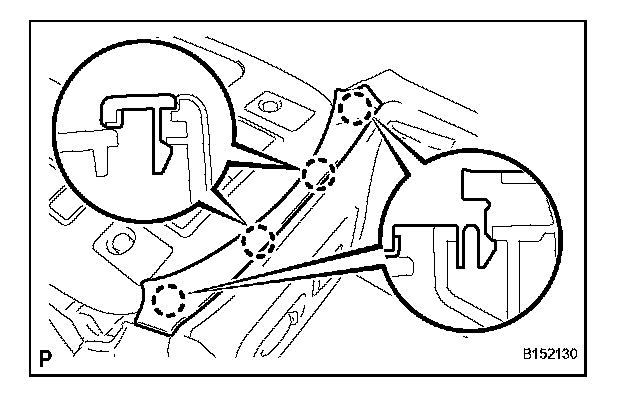

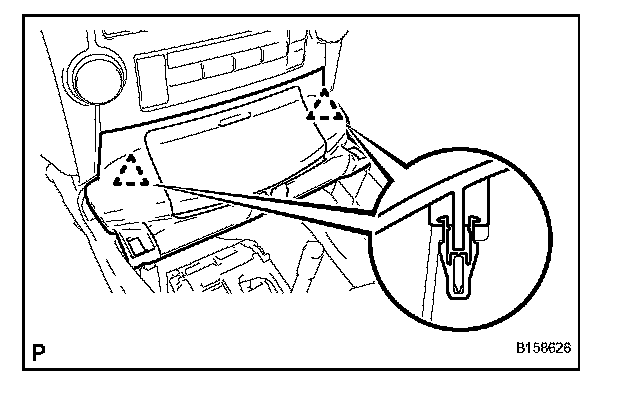

a. Using a screwdriver, detach the 4 claws.

HINT: Tape the screwdriver tip before use.

b. Remove the box panel.

5. REMOVE REAR CONSOLE PANEL UPPER

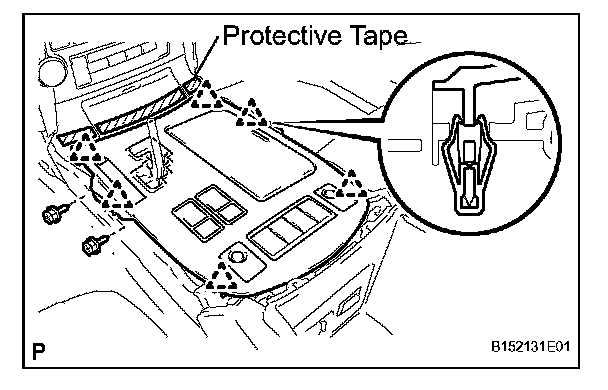

a. Place protective tape as shown in the illustration.
b. Move the shift lever to N.
c. Remove the 2 screws.

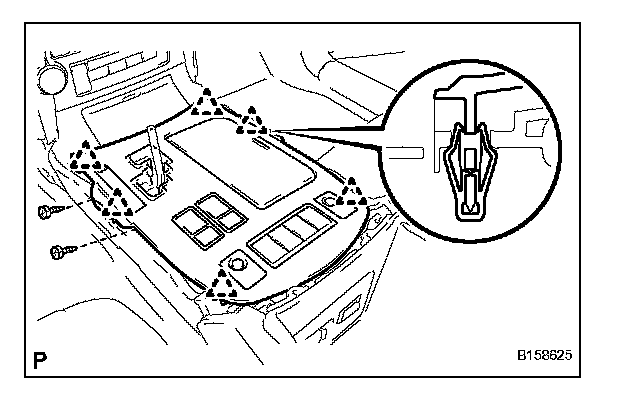

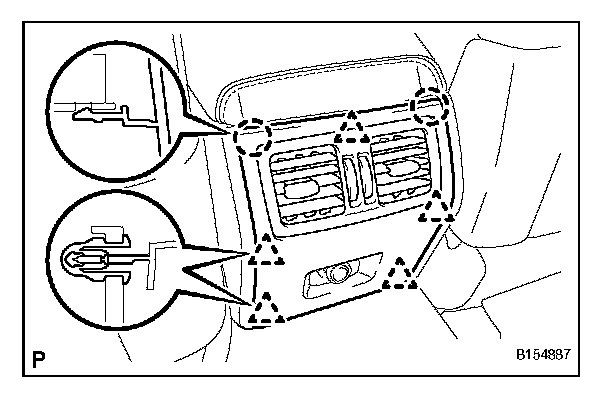

d. Using a screwdriver, detach the 6 clips.

HINT: Tape the screwdriver tip before use.

e. Remove the panel and disconnect the connectors.

6. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER





a. Place protective tape as shown in the illustration.
b. Detach the 2 clips.
c. Remove the console panel and disconnect the connector.

7. REMOVE REAR CONSOLE END PANEL SUB-ASSEMBLY

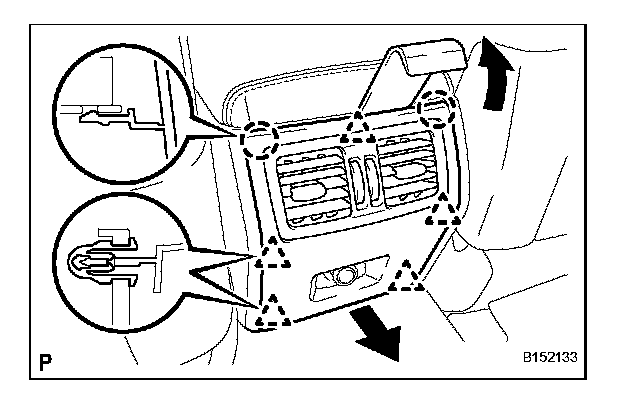

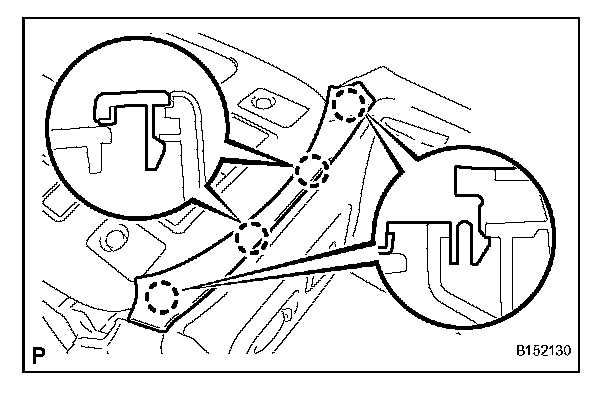

a. Using a moulding remover, detach the 5 clips and 2 claws.
b. Remove the end panel and disconnect the connector.

8. REMOVE CONSOLE COVER LOWER
a. Remove the cover.

9. REMOVE CONSOLE BOX ASSEMBLY

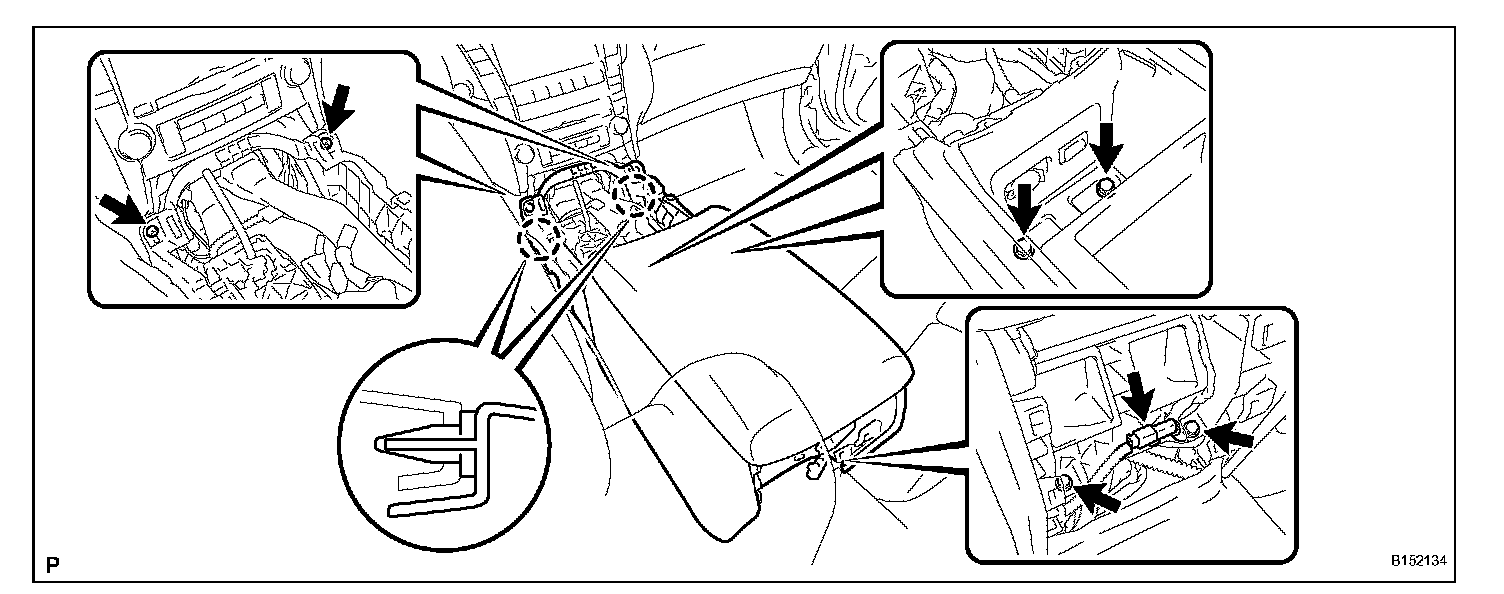

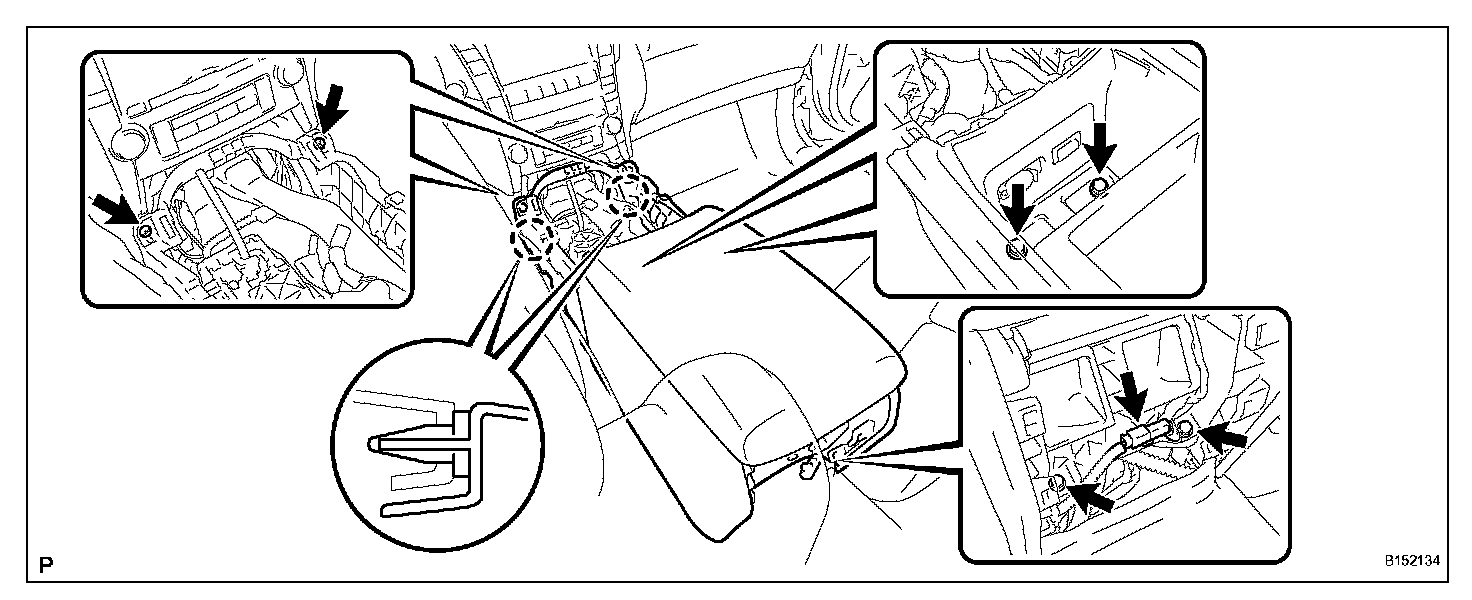

a. Remove the 4 bolts and 2 screws.
b. Disconnect the connectors.
c. Detach the 2 claws and remove the console box.





INSTALLATION

HINT: A bolt without a torque specification is shown in the standard bolt chart.

1. INSTALL CONSOLE BOX ASSEMBLY
a. Attach the 2 claws.
b. Connect the connectors.
c. Install the console box with the 4 bolts and 2 screws.





2. INSTALL CONSOLE COVER LOWER
a. Install the cover.

3. INSTALL REAR CONSOLE END PANEL SUB-ASSEMBLY





a. Connect the connector.
b. Attach the 5 clips and 2 claws to install the end panel.

4. INSTALL CONSOLE PANEL SUB-ASSEMBLY UPPER





a. Connect the connector.
b. Attach the 2 clips to install the console panel.

5. INSTALL REAR CONSOLE PANEL UPPER





a. Connect the connectors.
b. Attach the 6 clips.
c. Install the panel with the 2 screws.

6. INSTALL NO. 3 BOX PANEL





a. Attach the 4 claws to install the box panel.

7. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY





a. Install the shift lever knob and twist it in the direction indicated by the arrow.

8. INSTALL INSTRUMENT PANEL FINISH PANEL END RH





a. Attach the 8 clips and claw to install the finish panel.

9. INSTALL INSTRUMENT PANEL FINISH PANEL END LH





a. Attach the 8 clips and claw to install the finish panel.
