Trunk / Liftgate Motor: Service and Repair

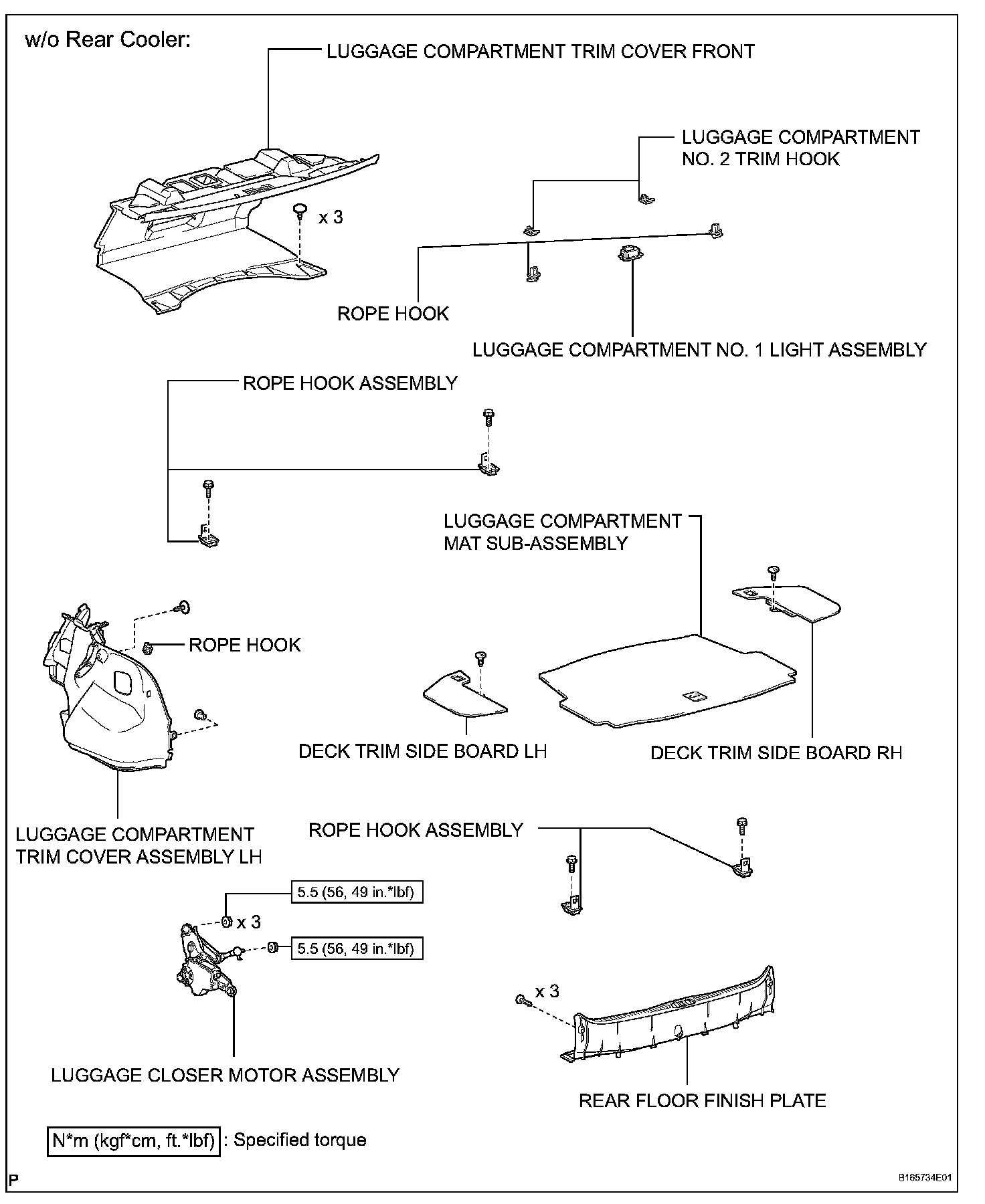

TRUNK LID ACTUATORTrunk Lid Actuator (Without Rear Cooler):

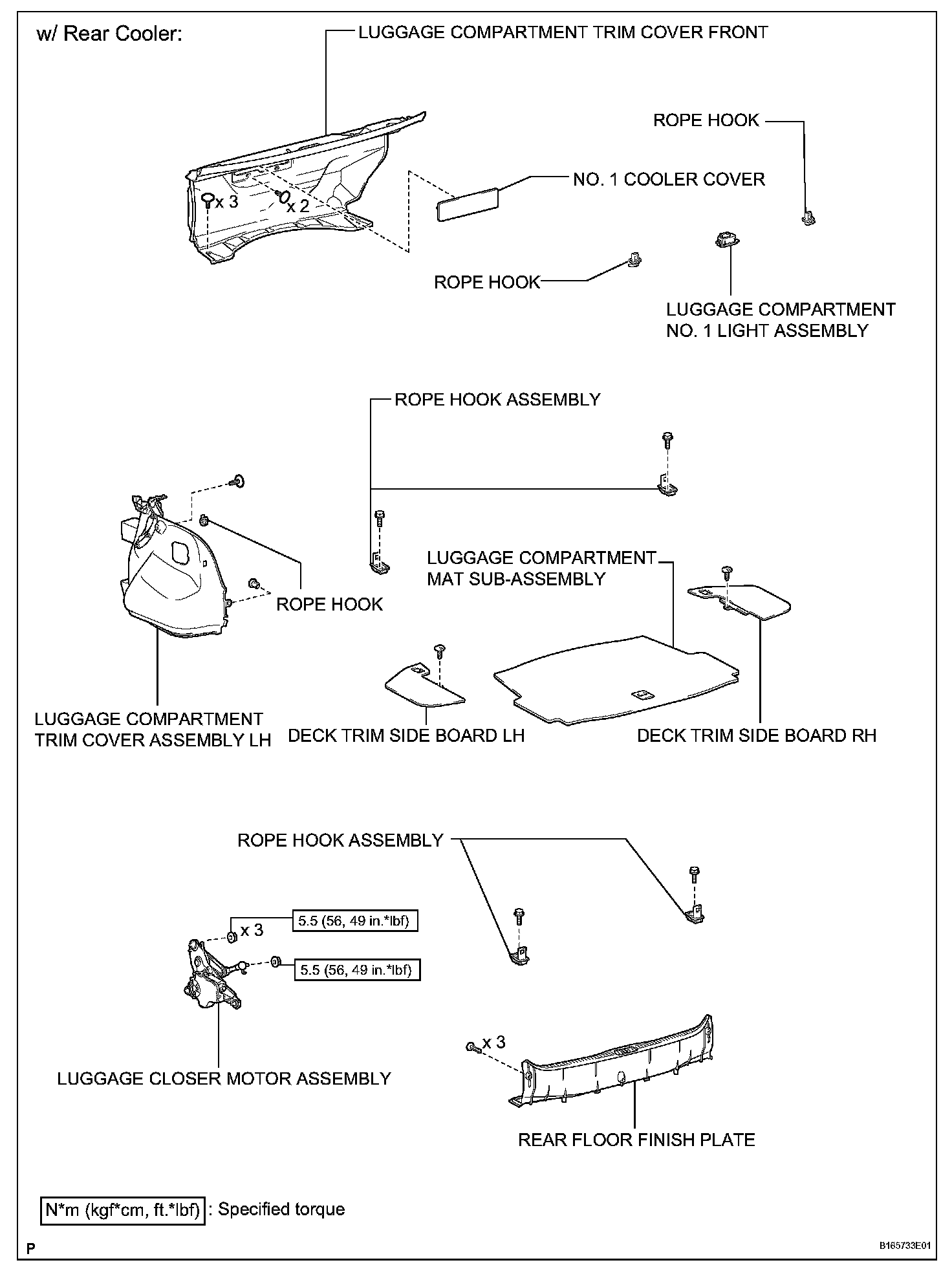

Trunk Lid Actuator (With Rear Cooler):
REMOVAL
1. REMOVAL COWL TOP VENTILATOR LOUVER RH
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation
NOTICE: After the power switch is turned OFF, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the power switch OFF, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
3. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
4. REMOVE ROPE HOOK
5. REMOVE DECK TRIM SIDE BOARD LH
6. REMOVE DECK TRIM SIDE BOARD RH
7. REMOVE LUGGAGE COMPARTMENT NO. 1 LIGHT ASSEMBLY
8. REMOVE LUGGAGE COMPARTMENT NO. 2 TRIM HOOK (w/o Rear Cooler)
9. REMOVE NO. 1 COOLER COVER (w/ Rear Cooler).
10. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT
11. REMOVE REAR FLOOR FINISH PLATE
12. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH

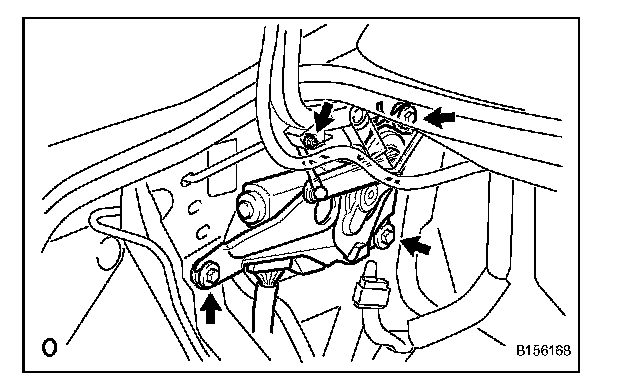

13. REMOVE LUGGAGE CLOSER MOTOR ASSEMBLY
a. Disconnect the connector.
b. Remove the 3 bolts and nut.
c. Remove the luggage closer motor.
INSTALLATION
1. INSTALL LUGGAGE CLOSER MOTOR ASSEMBLY
a. Install the luggage closer motor with the 3 bolts and nut.
Torque: 5.5 N.m (55 kgf.cm, 49 in.lbf)
b. Connect the connector.
2. INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH
3. INSTALL REAR FLOOR FINISH PLATE
4. INSTALL LUGGAGE COMPARTMENT TRIM COVER FRONT
5. INSTALL LUGGAGE COMPARTMENT NO. 2 TRIM HOOK (w/o Rear Cooler)
6. INSTALL LUGGAGE COMPARTMENT NO. 1 LIGHT ASSEMBLY
7. INSTALL DECK TRIM SIDE BOARD RH
8. INSTALL DECK TRIM SIDE BOARD LH
9. INSTALL ROPE HOOK ASSEMBLY
10. INSTALL ROPE HOOK
11. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
13. INSTALL COWL TOP VENTILATOR LOUVER RH
14. PERFORM INITIALIZATION
a. Perform initialization.
NOTICE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
