Power Trunk Lid Does Not Operate

Power Trunk Lid does not Operate

DESCRIPTION
The main body ECU continuously monitors the luggage compartment door opener cancel switch. When the luggage compartment door opener cancel switch assembly is OFF, a luggage compartment door opener switch signal is sent to the luggage closer motor assembly from the main body ECU via CAN communication. This actuates the power trunk opener operation, which opens the luggage door. When the luggage compartment door closer switch is ON, the luggage closer motor assembly actuates the power trunk closer operation. When the key is held, and the luggage compartment door opener switch is ON or the key's LUGGAGE switch is pressed, the luggage closer motor assembly actuates the power trunk lid opener operation.

WIRING DIAGRAM

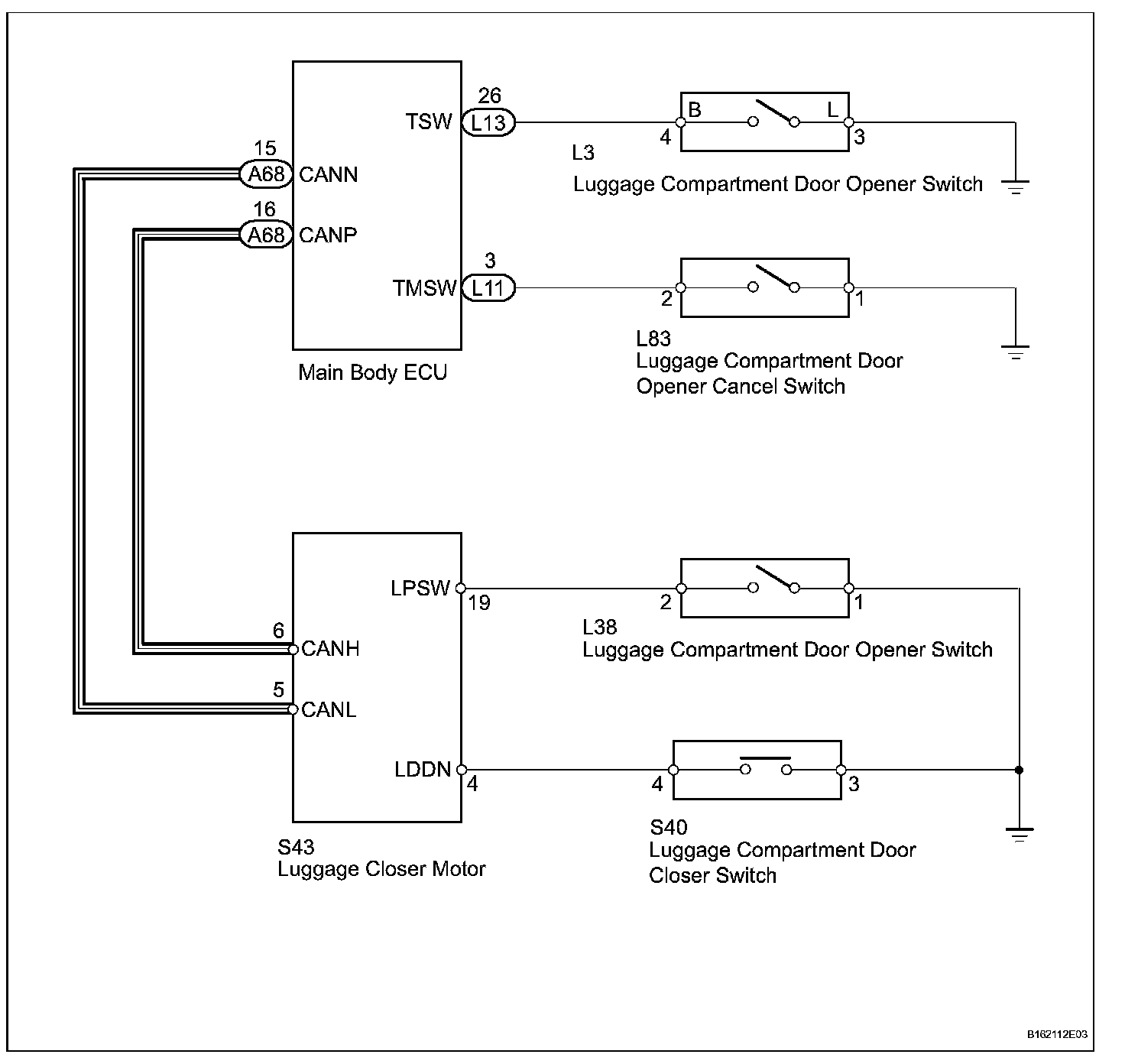

Wiring Diagram:

INSPECTION PROCEDURE

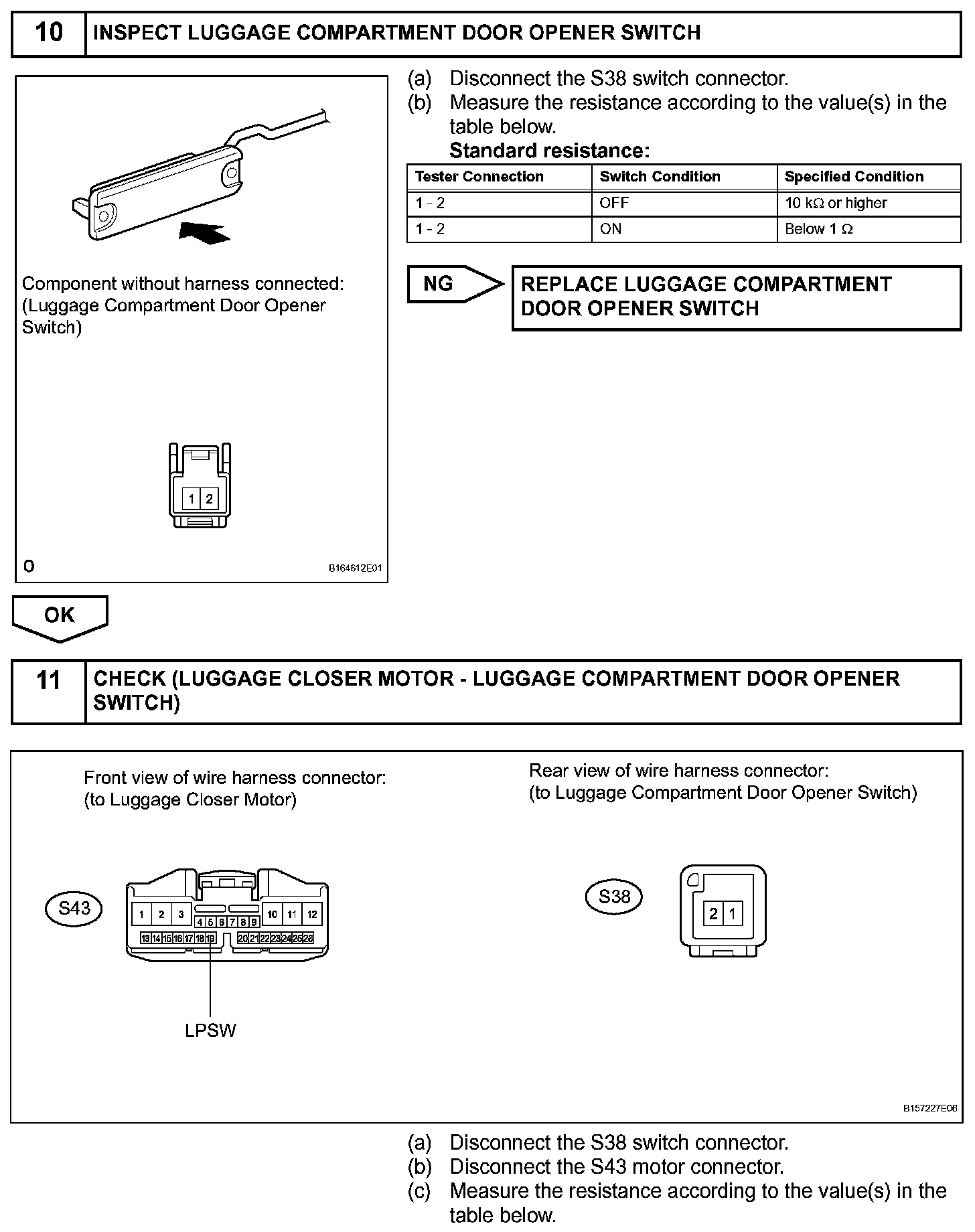

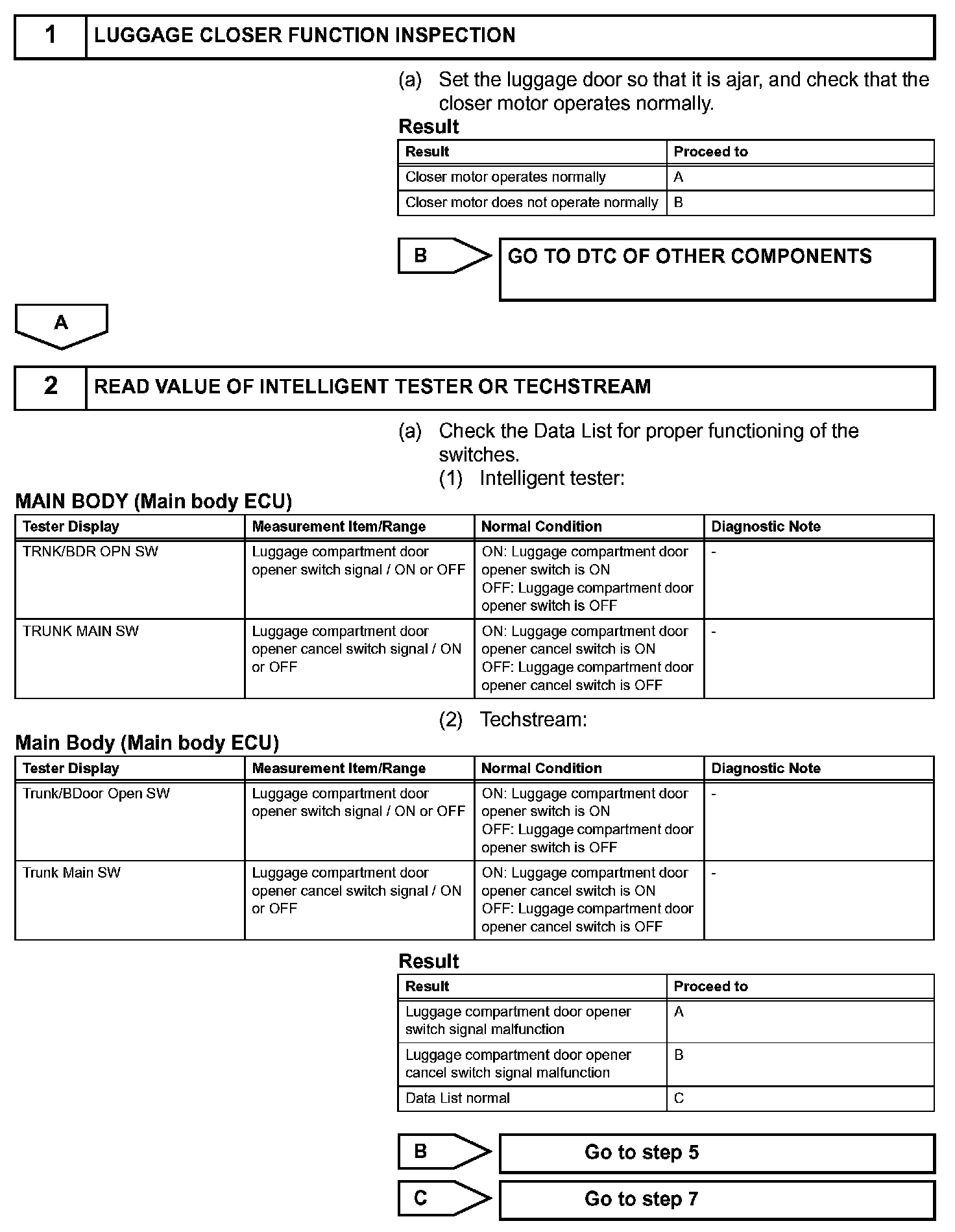

Step 1 - 2:

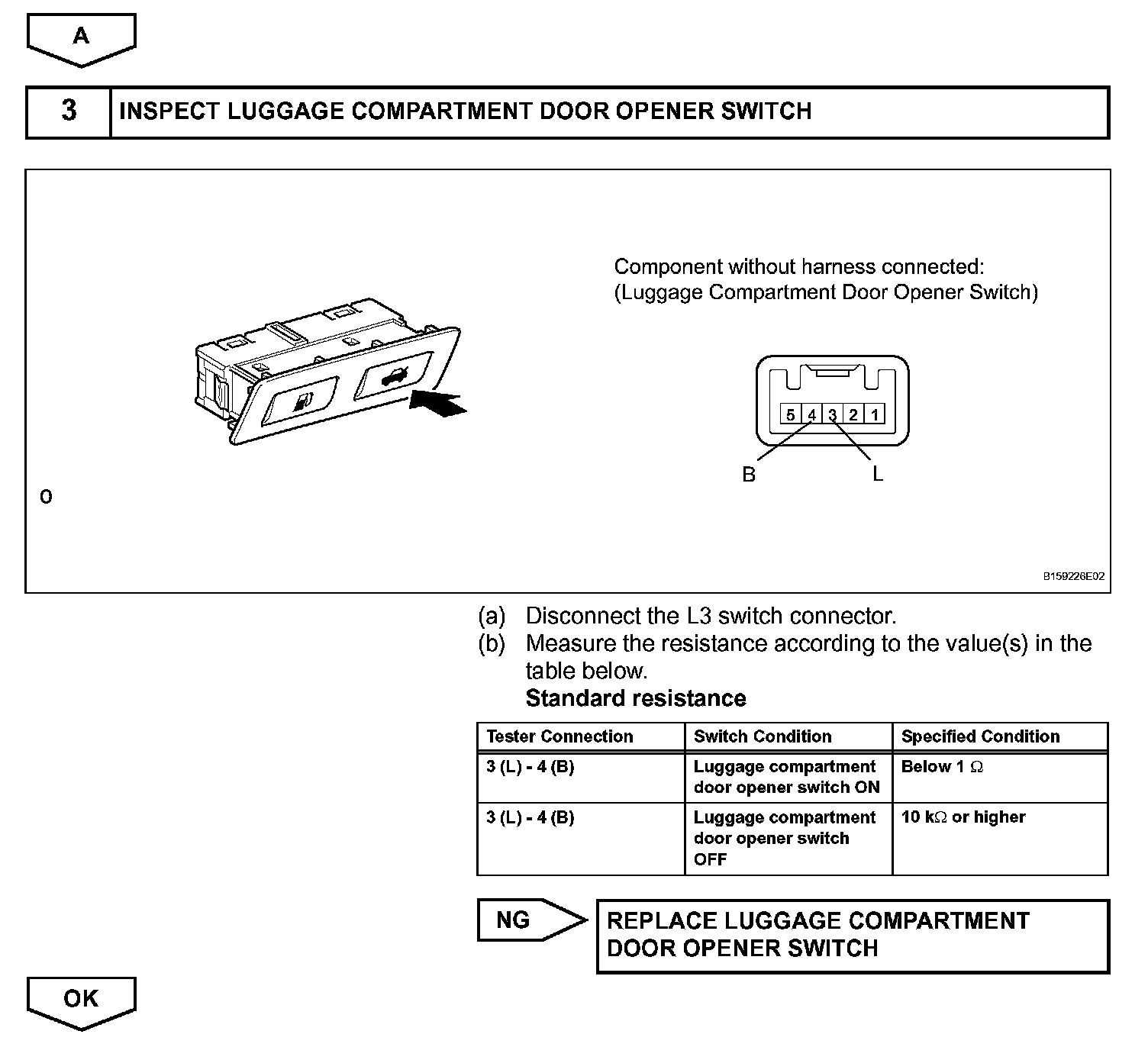

Step 2(Continued) - 3:

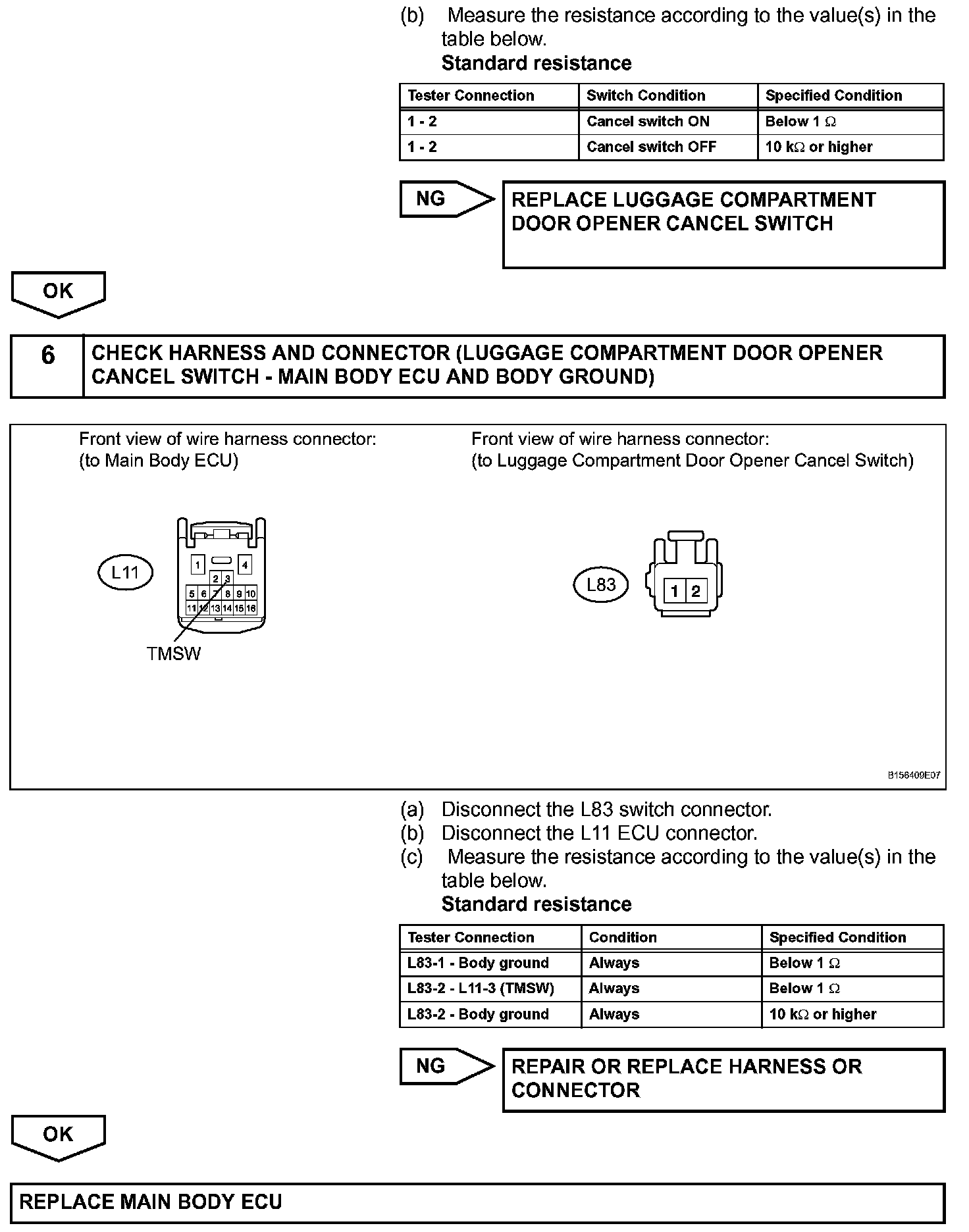

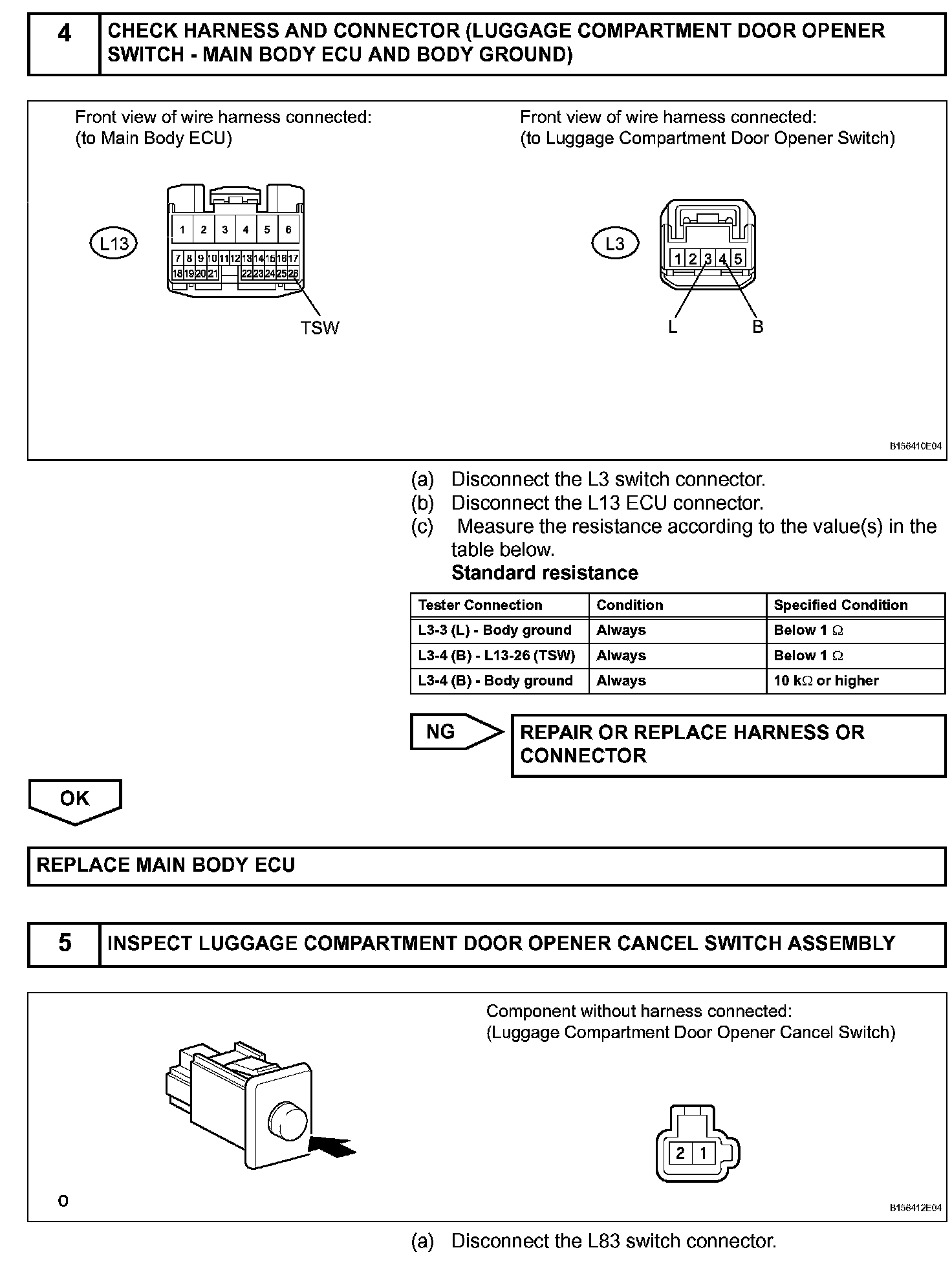

Step 4 - 5:

Step 5(Continued) - 6:

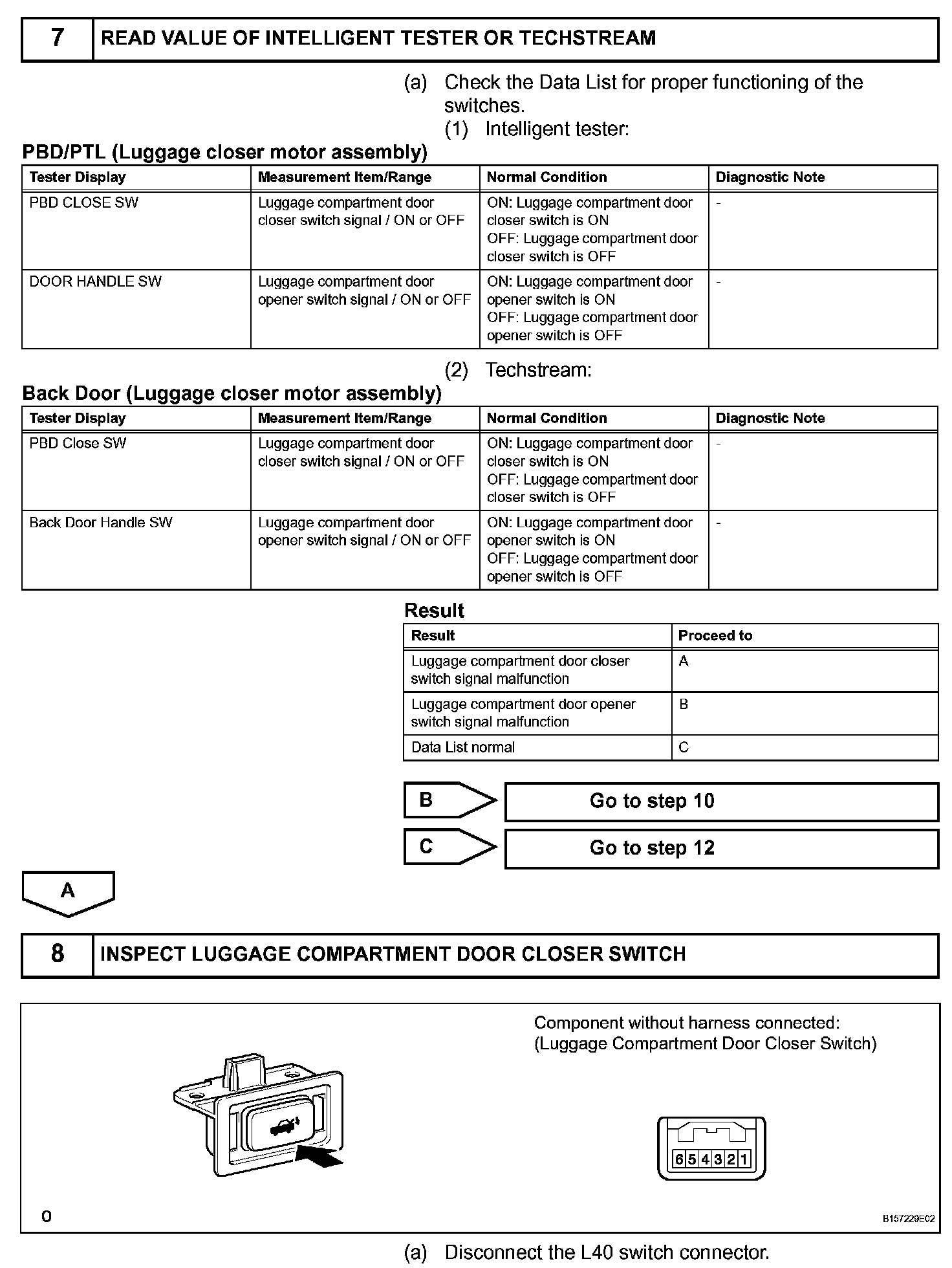

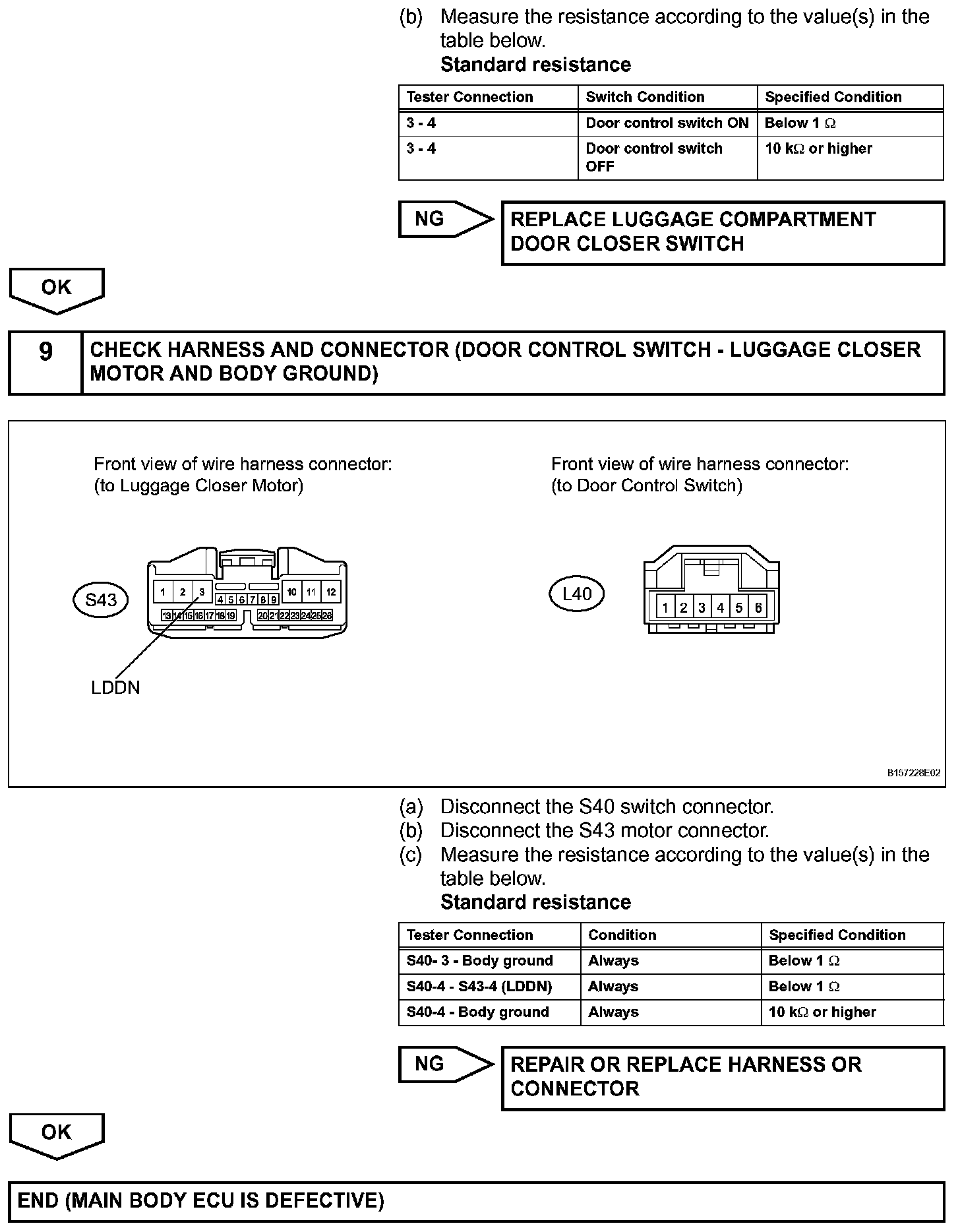

Step 7 - 8:

Step 8(Continued) - 9:

Step 10 - 11:

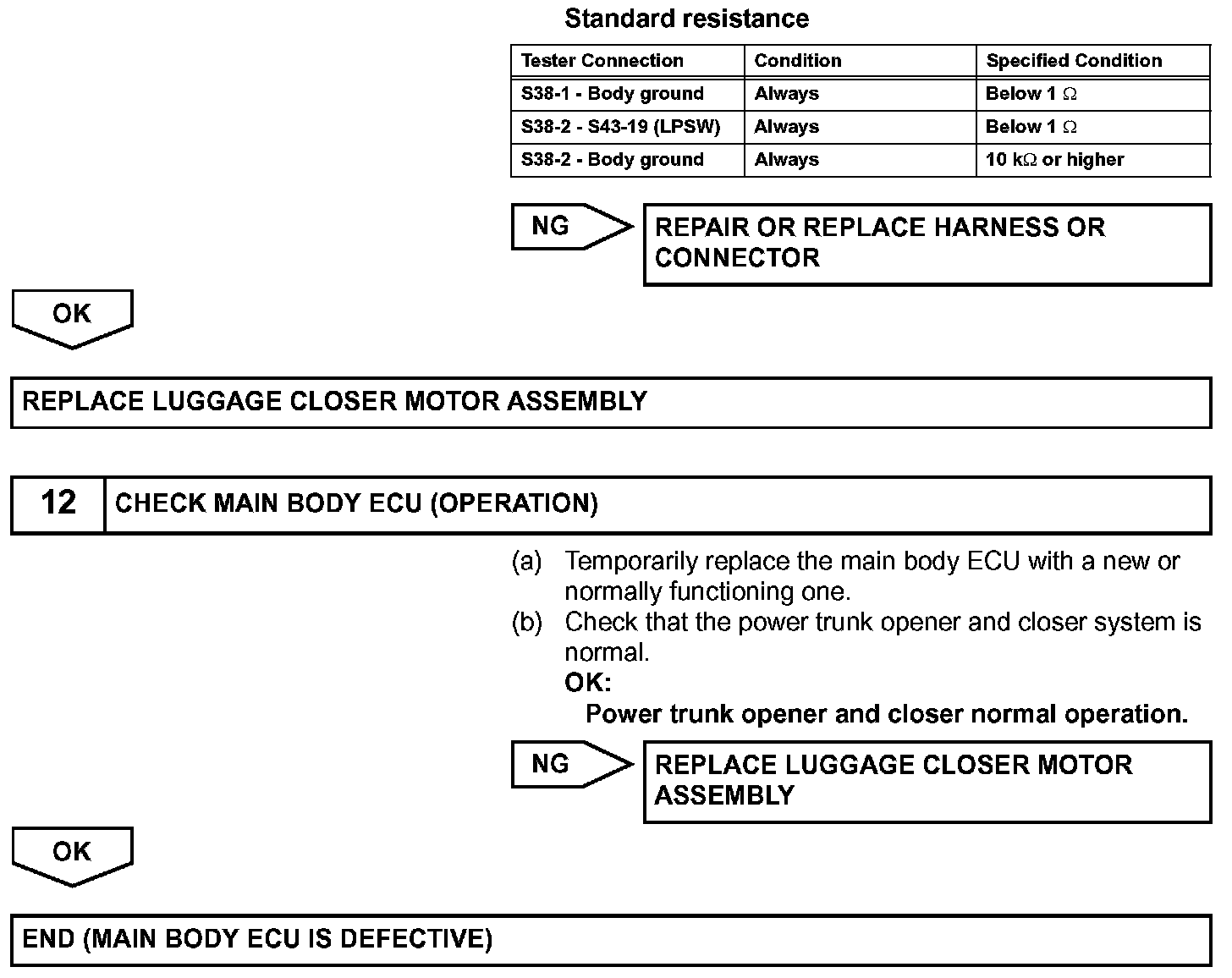

Step 11(Continued) - 12:
