Luggage Compartment Door Closer Does Not Operate

Luggage Compartment Door Closer does not Operate

DESCRIPTION
The luggage compartment door closer is controlled by the power trunk opener and closer ECU. The closer motor is activated according to the switch signals in the luggage compartment door closer assembly.

WIRING DIAGRAM

Wiring Diagram:

INSPECTION PROCEDURE

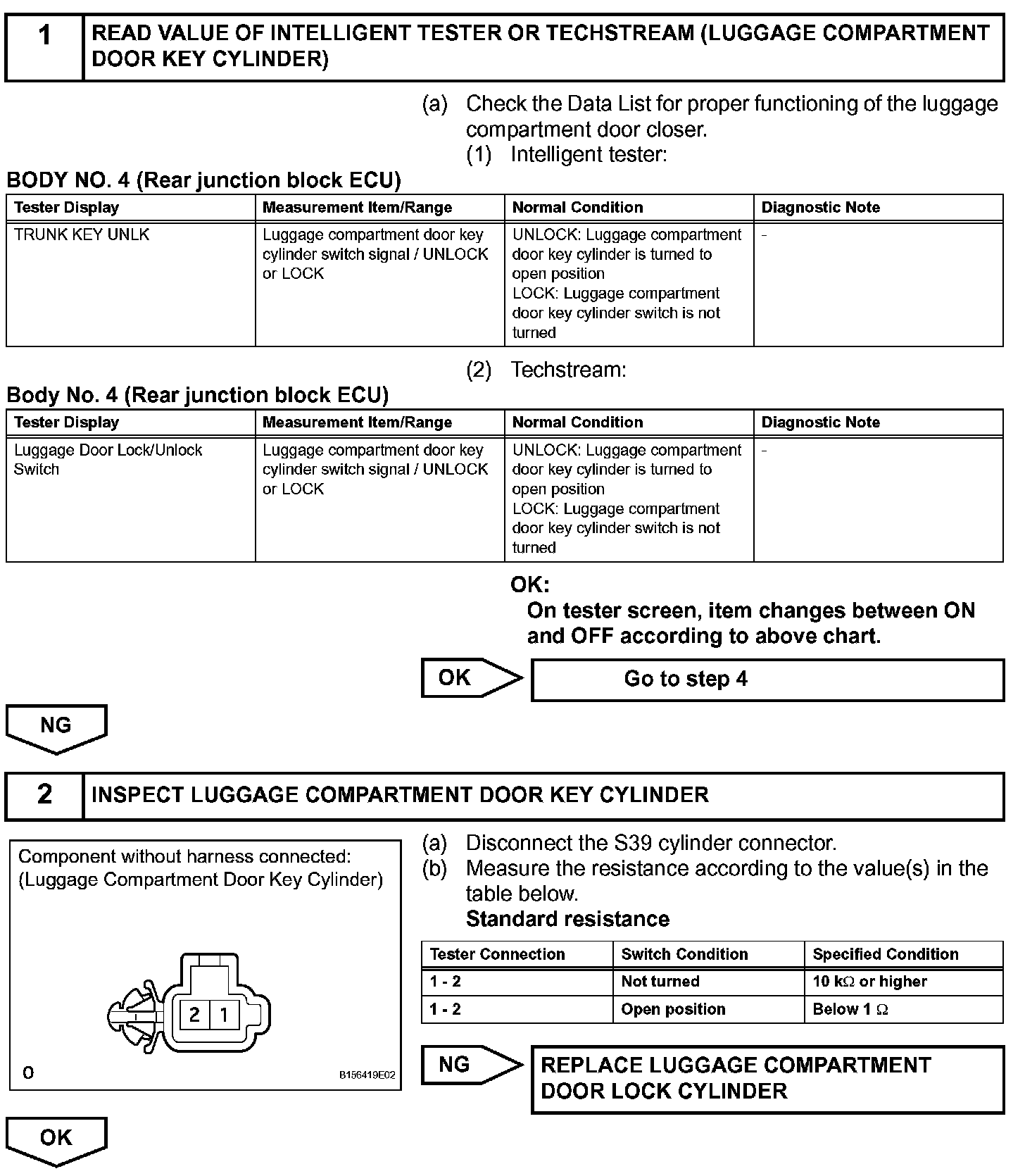

Step 1 - 2:

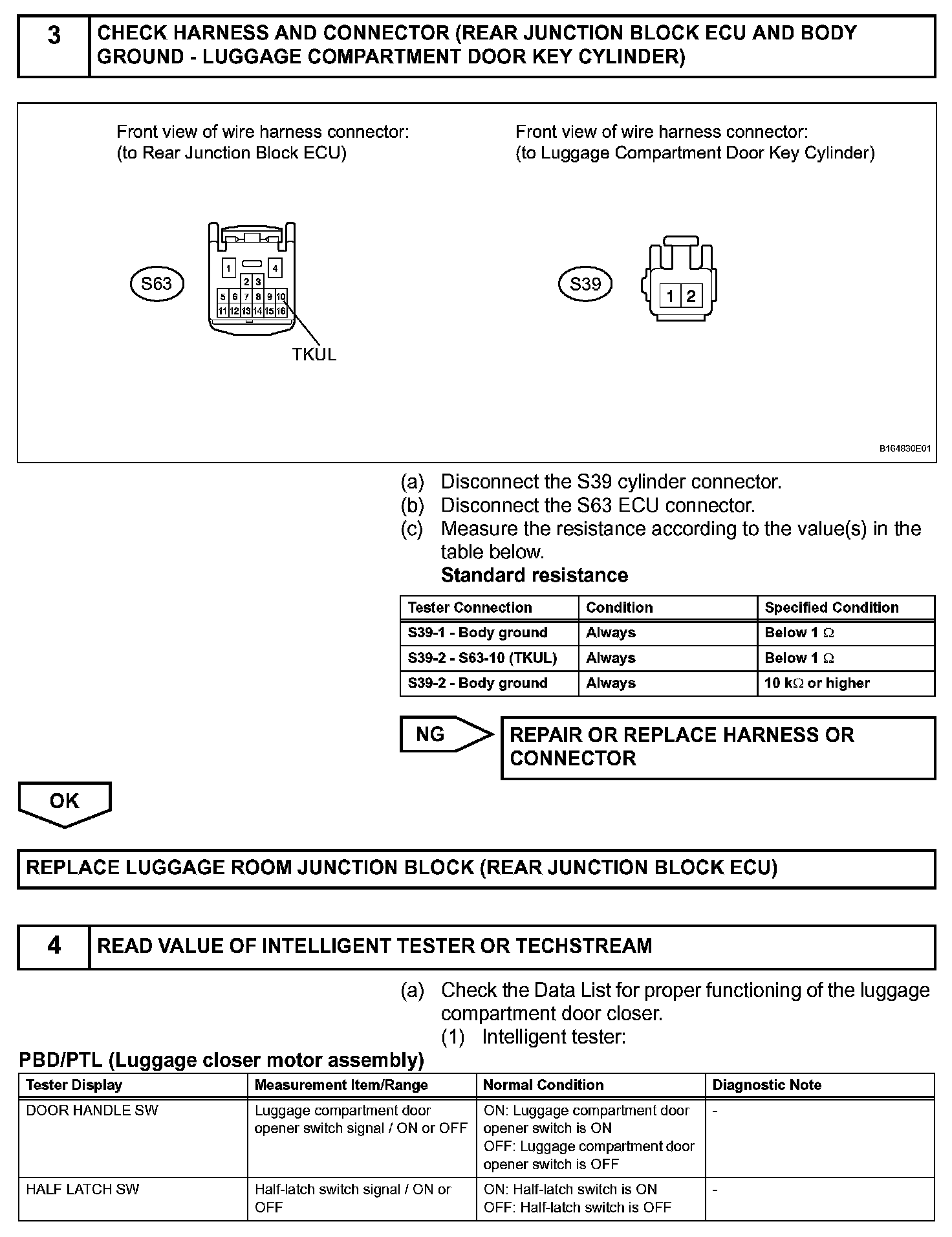

Step 3 - 4:

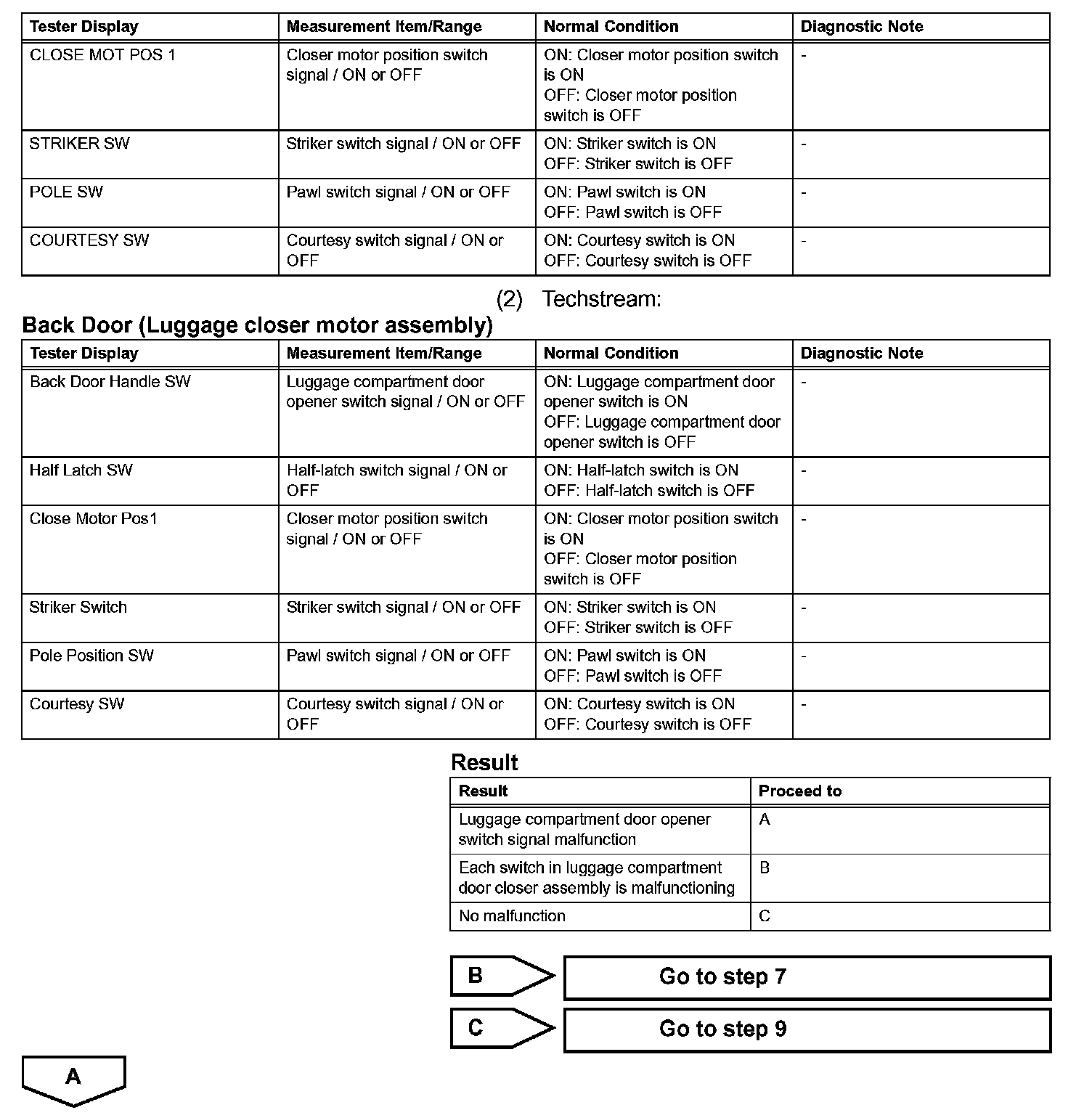

Step 4(Continued):

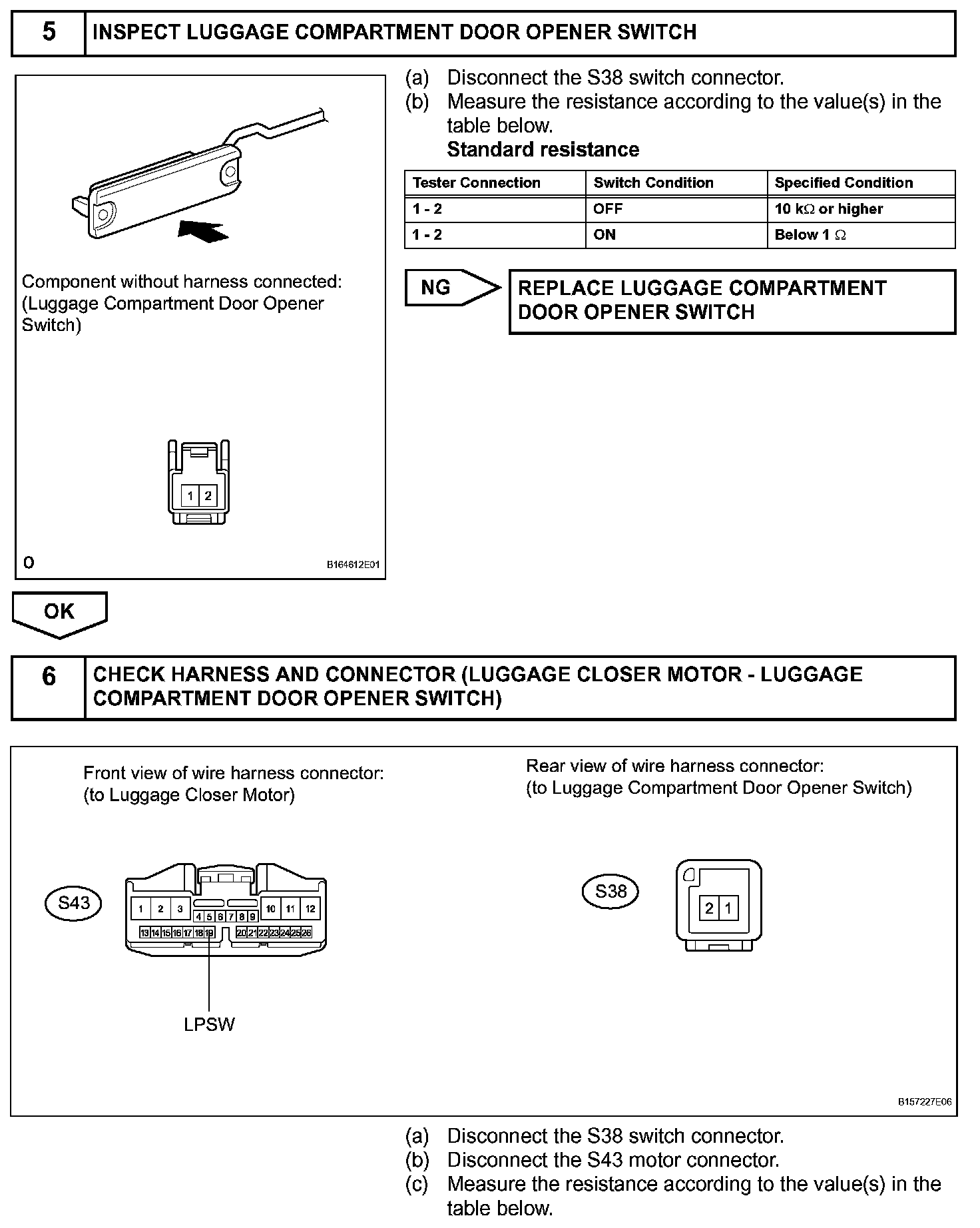

Step 5 - 6:

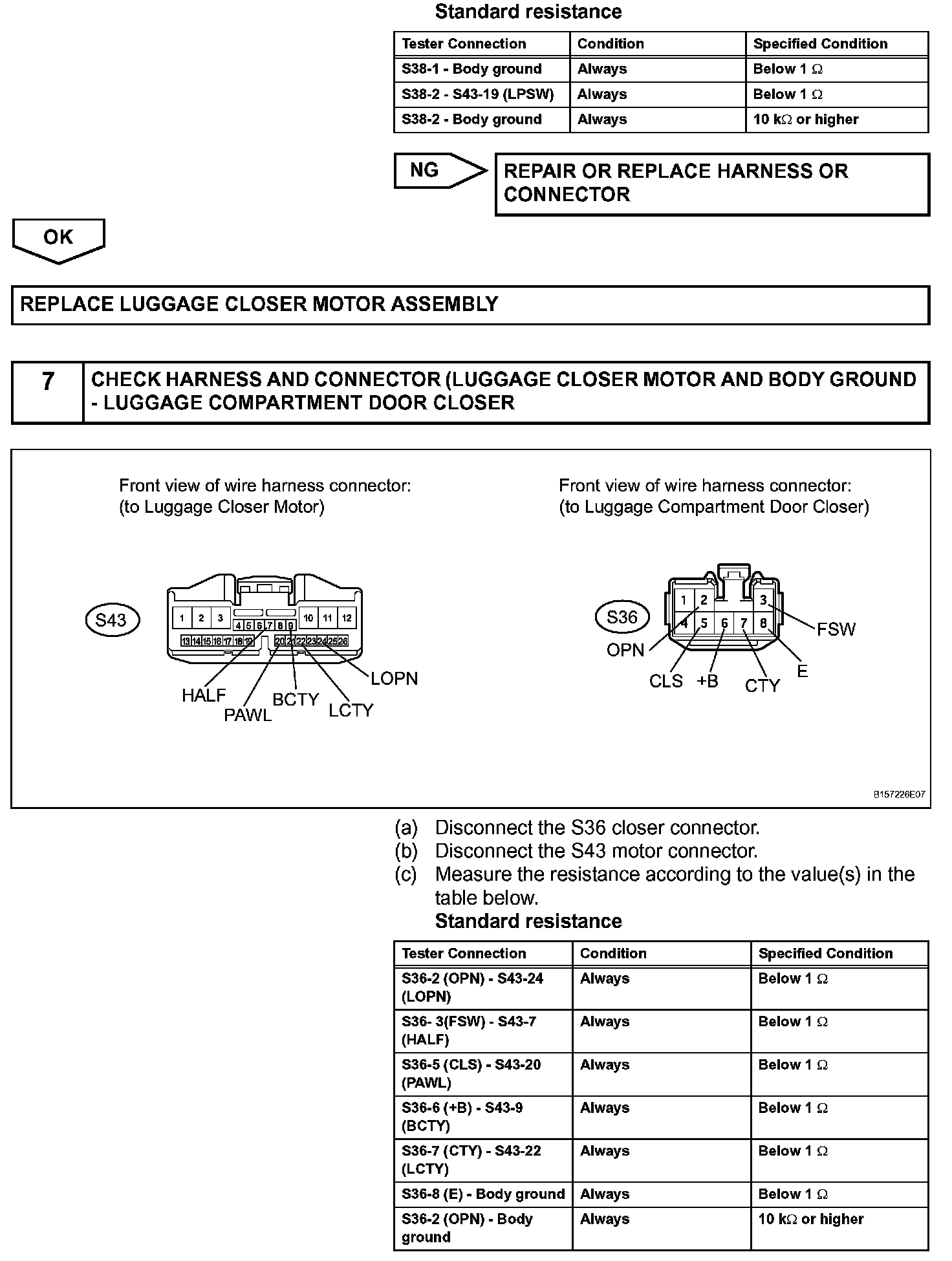

Step 6(Continued) - 7:

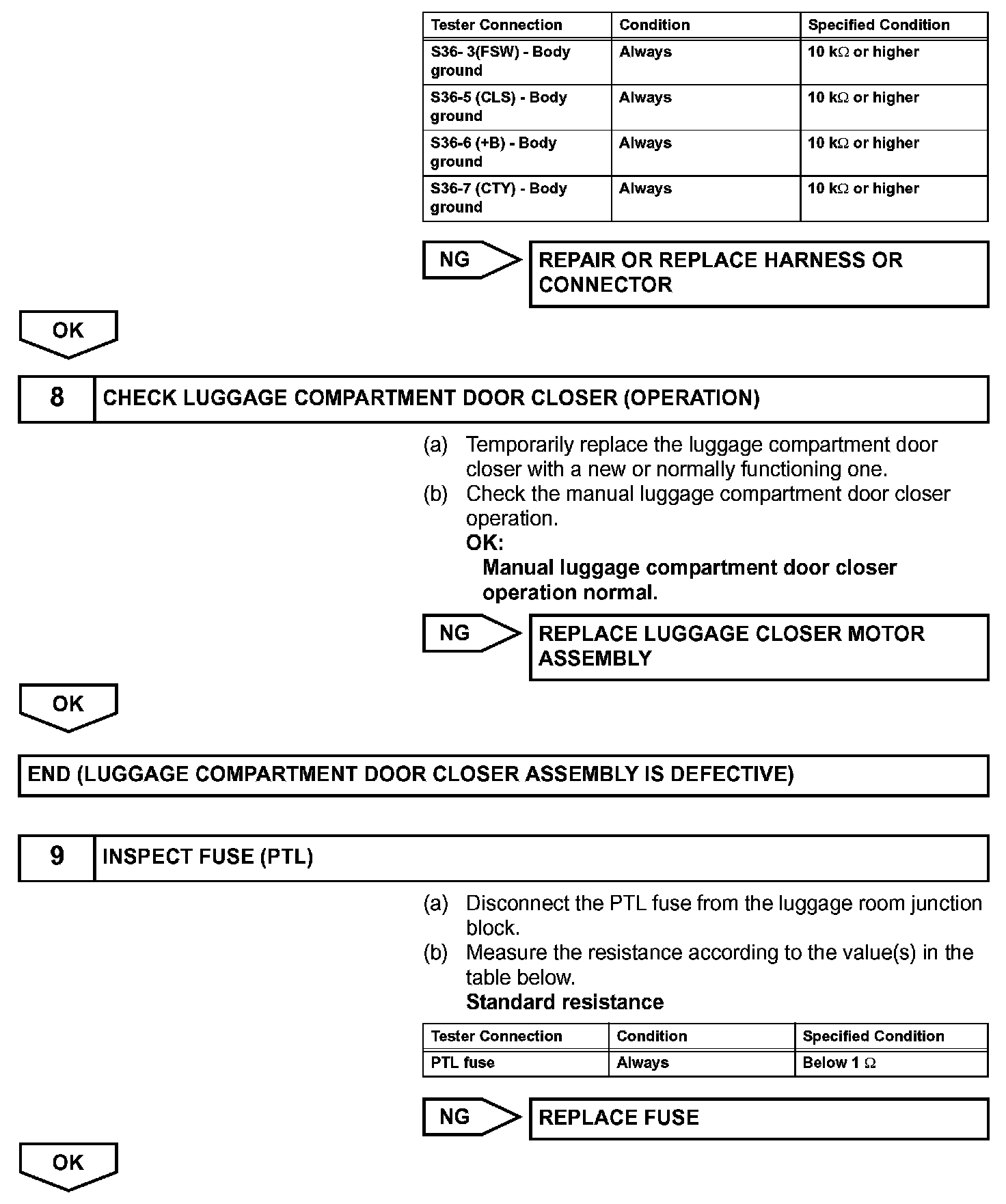

Step 7(Continued) - 9:

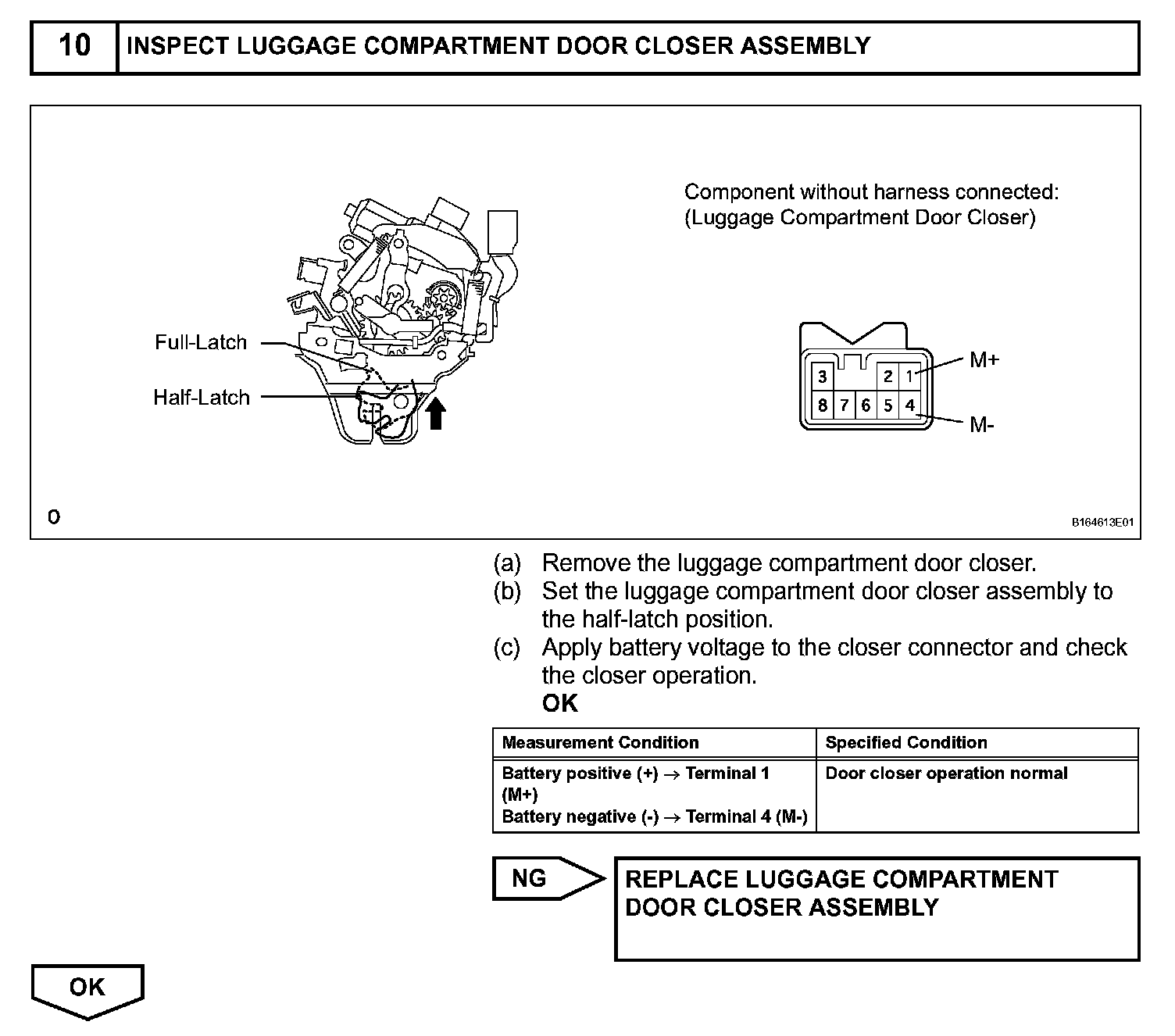

Step 10:

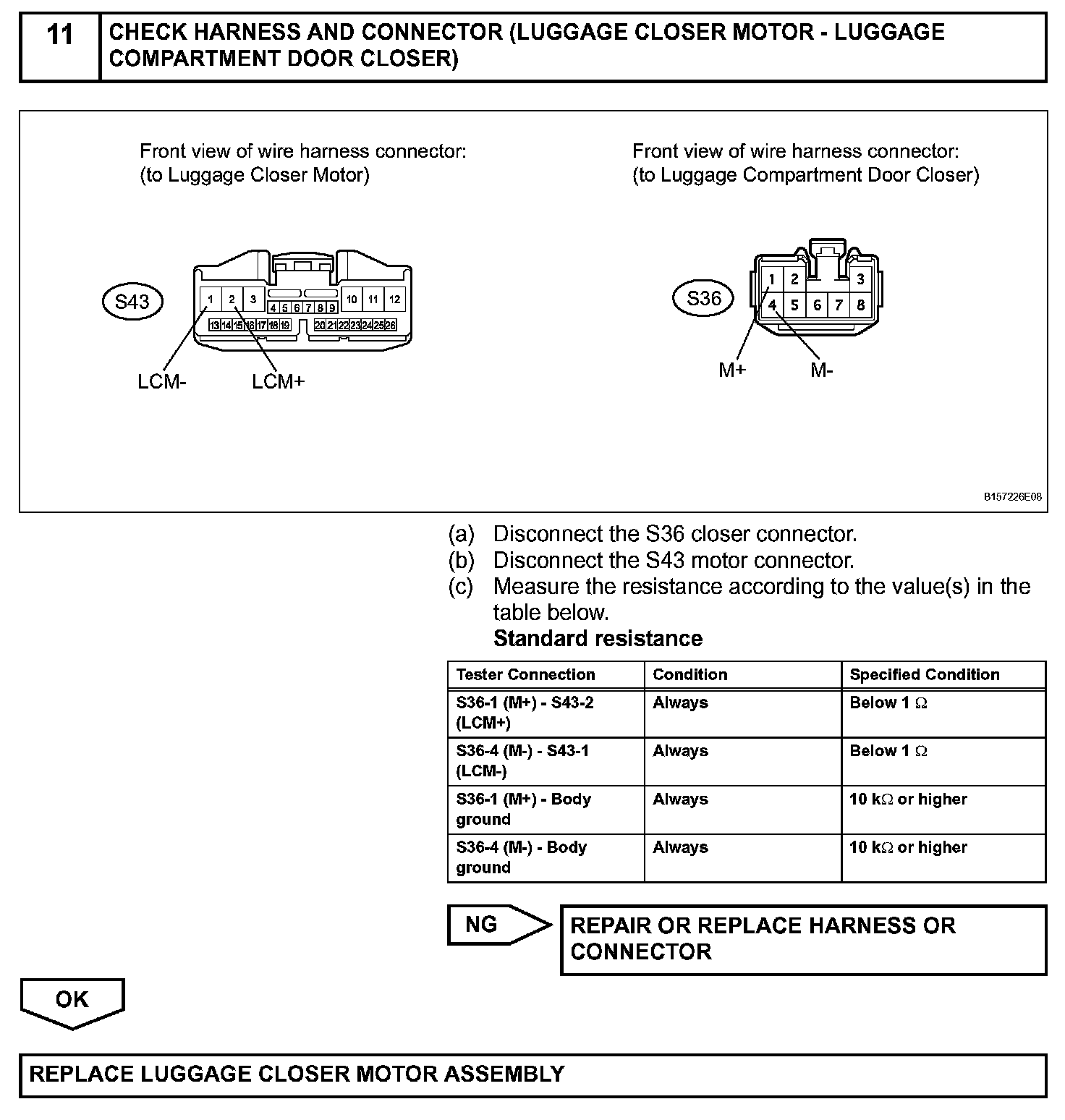

Step 11:
