Luggage Compartment Door Opener Does Not Operate

Luggage Compartment Door Opener does not Operate

DESCRIPTION
The main body ECU continuously receives the luggage compartment door opener cancel switch ON / OFF signal. When the luggage compartment door opener cancel switch signal is OFF, and the luggage compartment door opener switch is ON, the luggage room junction block activates the luggage compartment door closer, and opens the luggage compartment door.

WIRING DIAGRAM

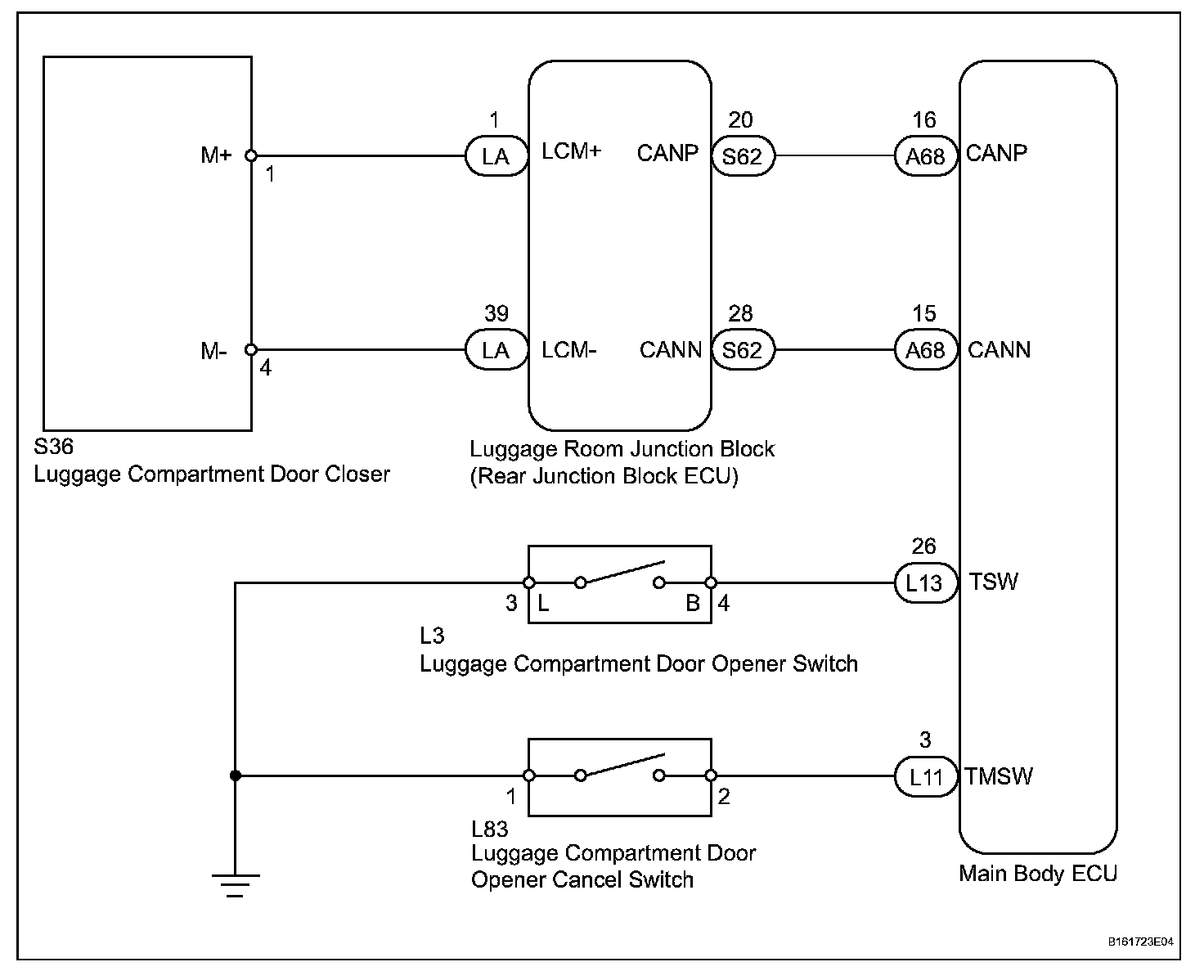

Wiring Diagram:

INSPECTION PROCEDURE

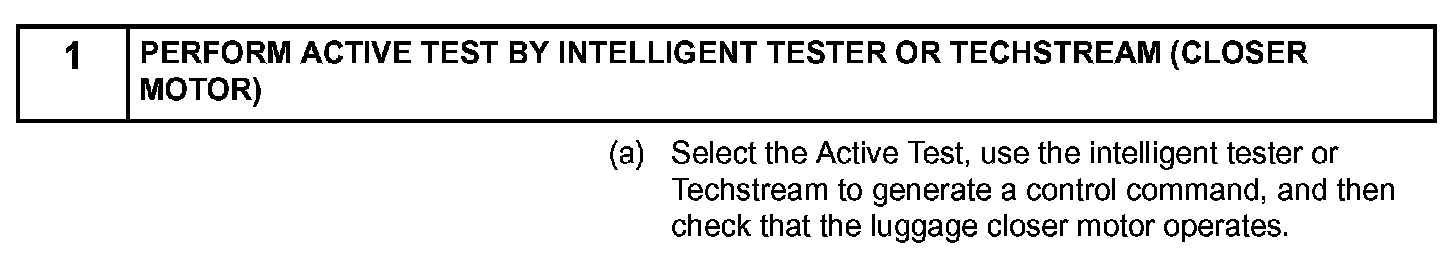

Step 1:

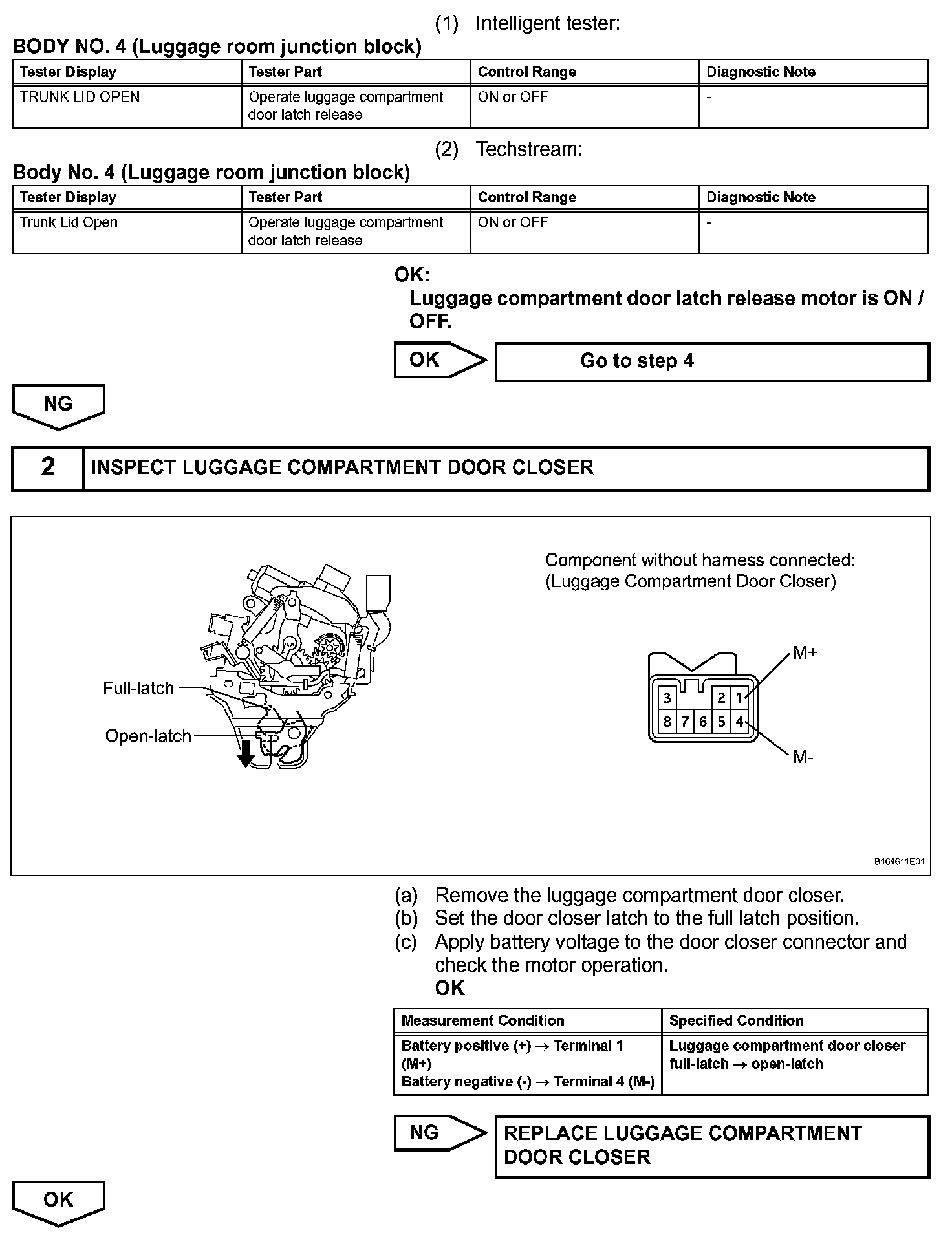

Step 1(Continued) - 2:

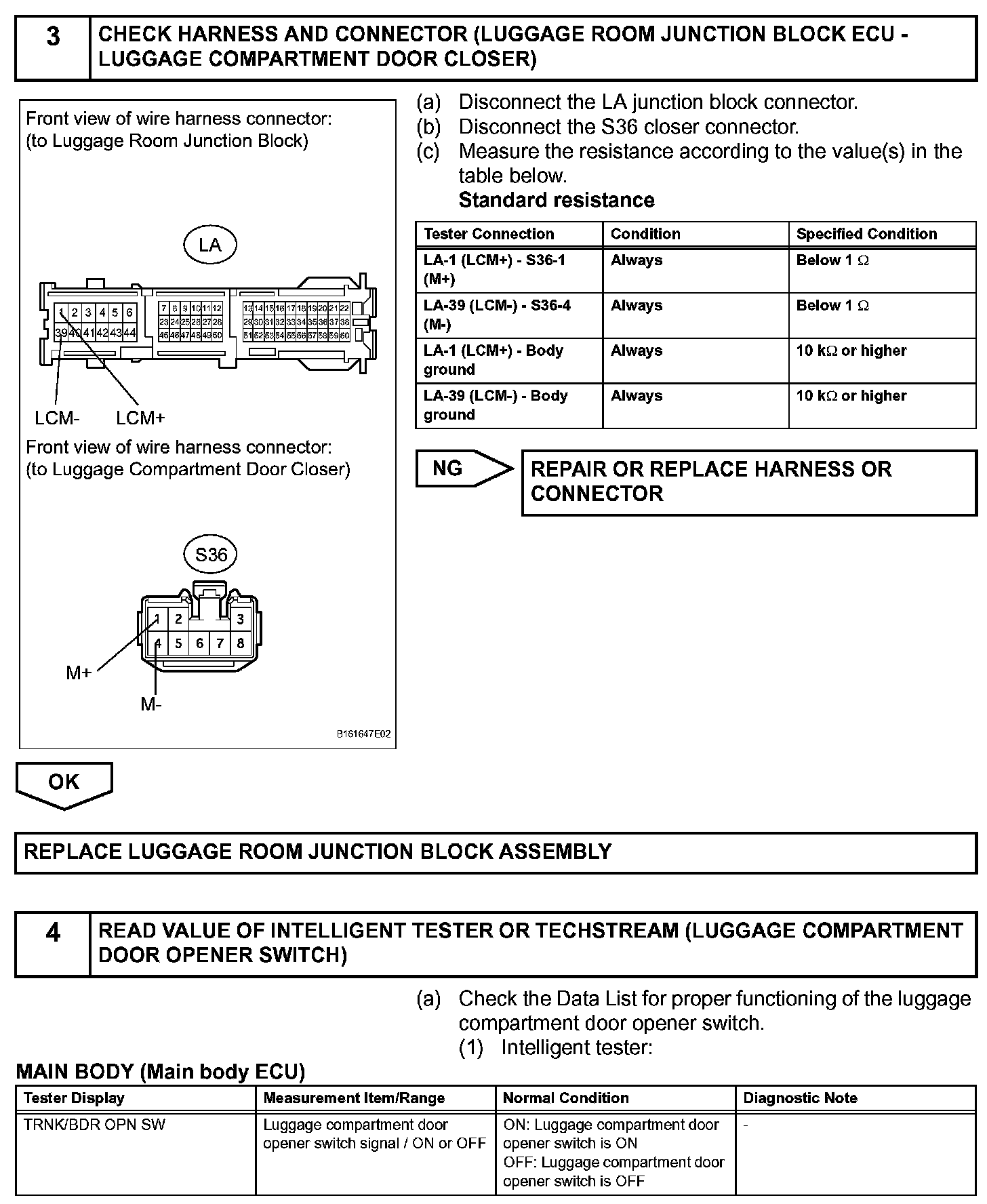

Step 3 - 4:

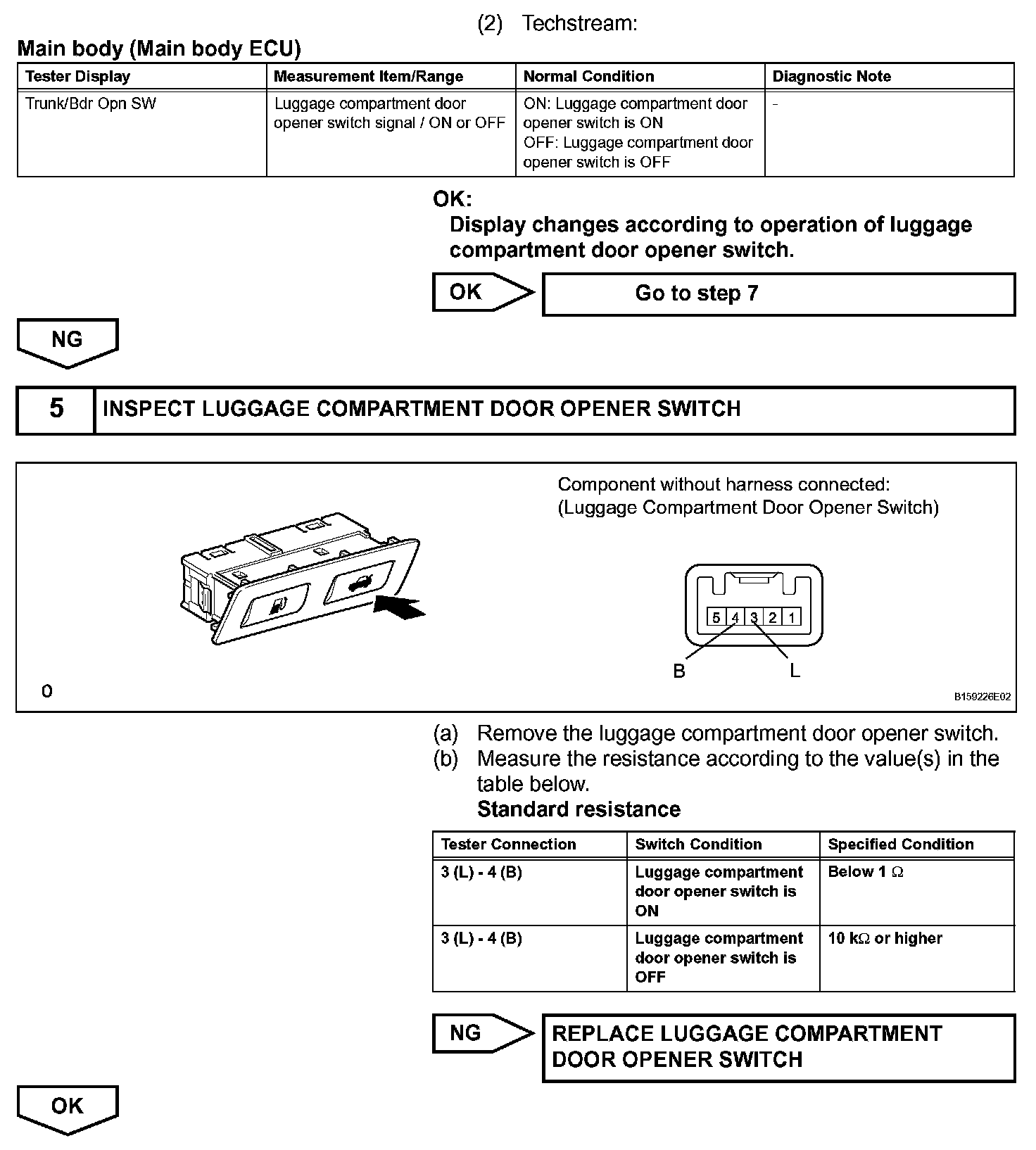

Step 4(Continued) - 5:

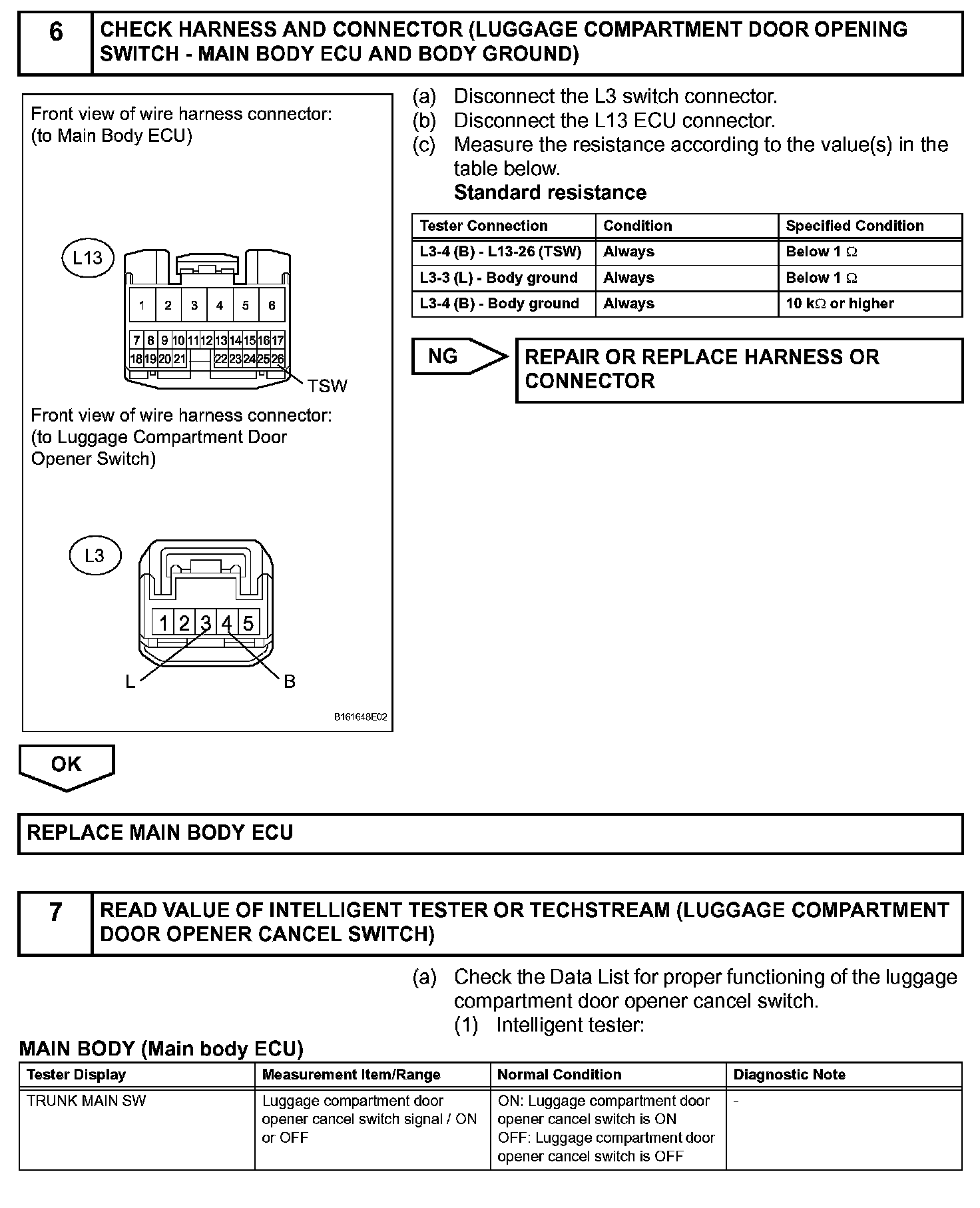

Step 6 - 7:

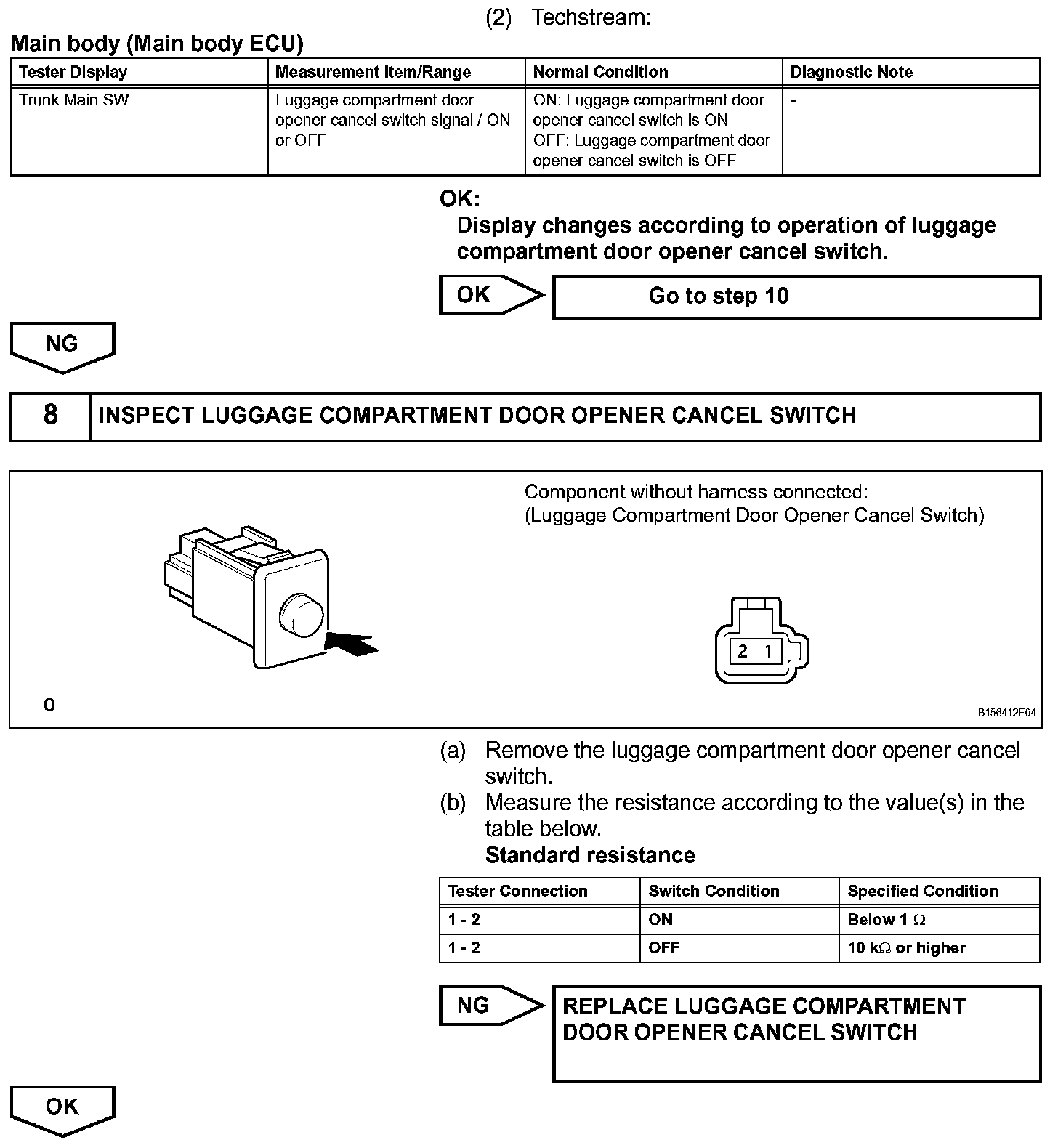

Step 7(Continued) - 8:

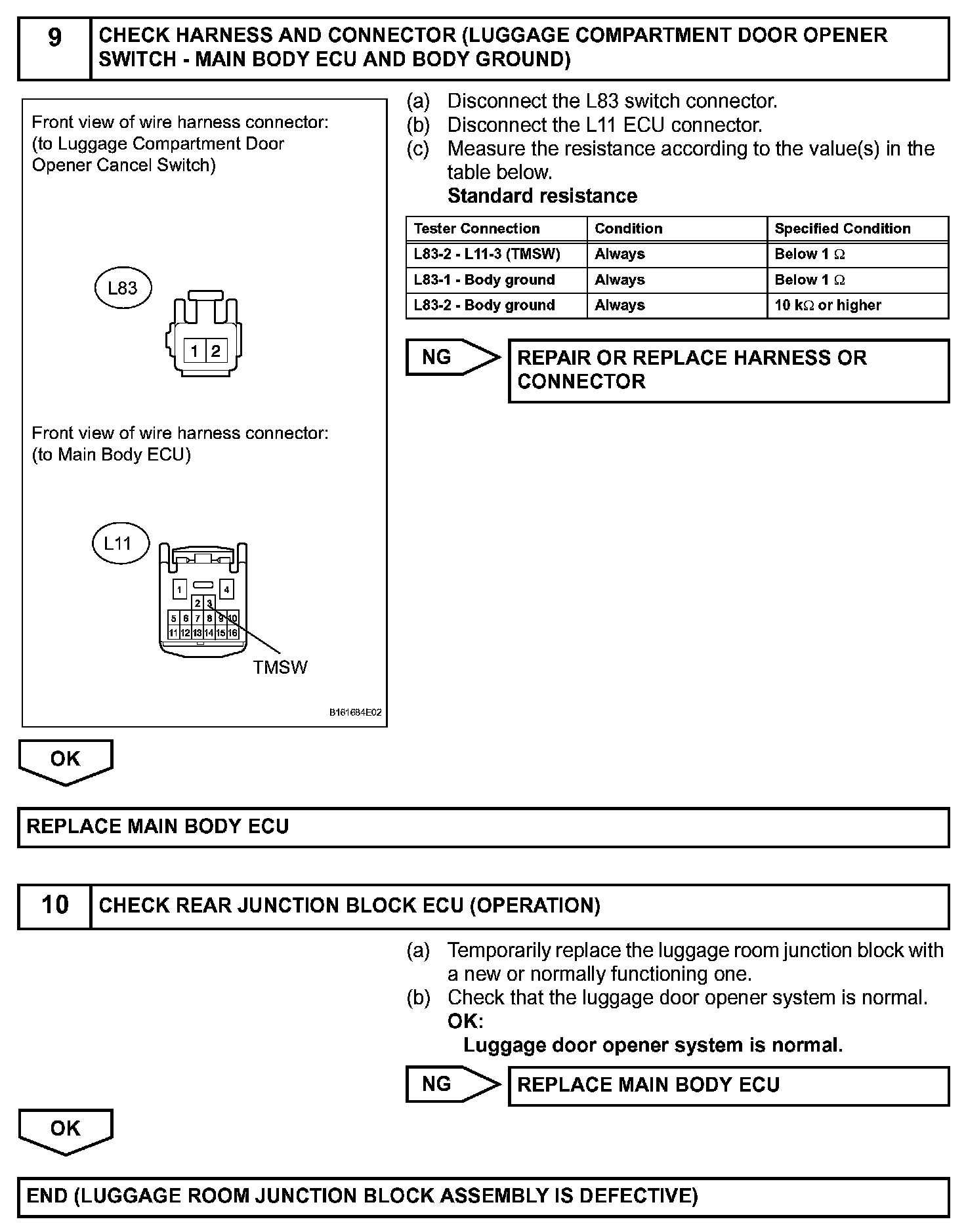

Step 9 - 10:
