Luggage Compartment Door Closer Assembly
LUGGAGE COMPARTMENT DOOR CLOSER ASSEMBLYINSPECTION

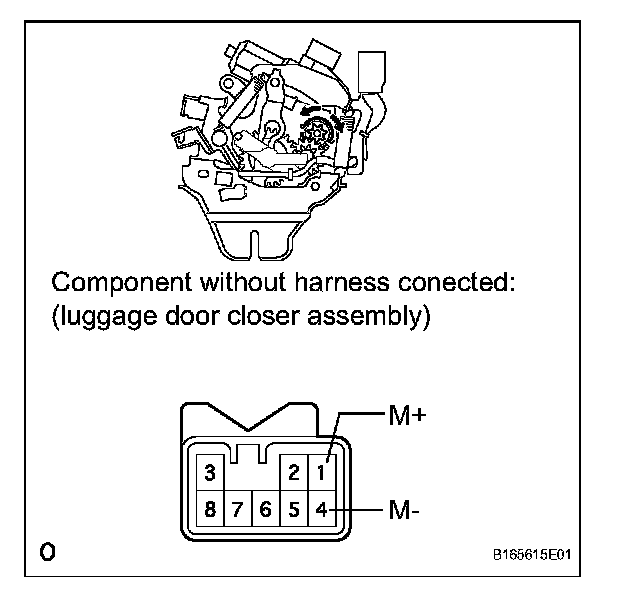

1. INSPECT LUGGAGE DOOR CLOSER ASSEMBLY

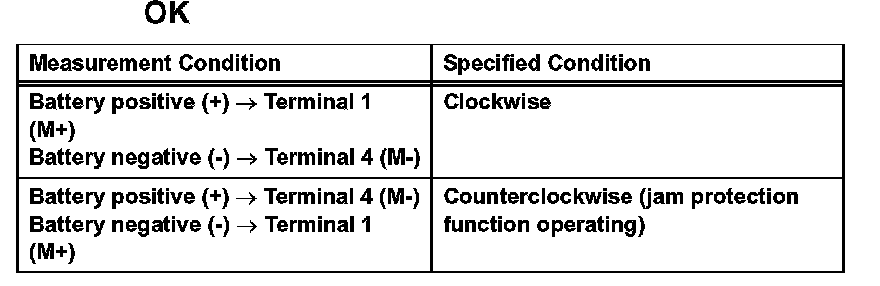

a. Apply battery voltage to the closer motor and check operation of the motor.
If the result is not as specified, replace the closer.

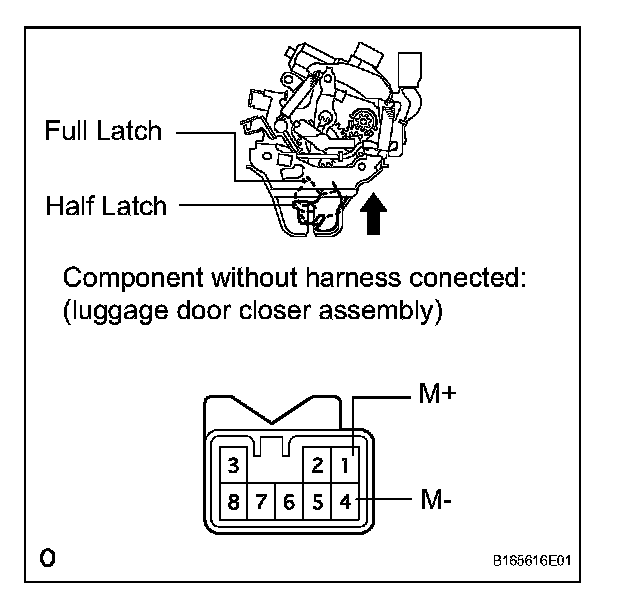

b. Set the luggage door closer assembly to half latch.

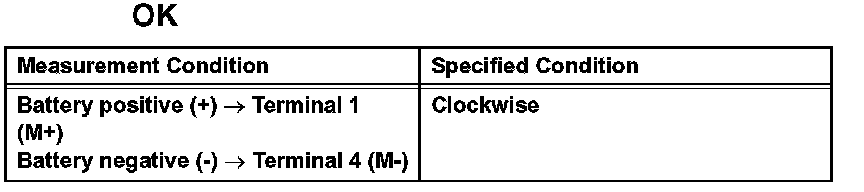

c. Apply battery voltage to the closer connector and check the closer operation.
If the result is not as specified, replace the closer.

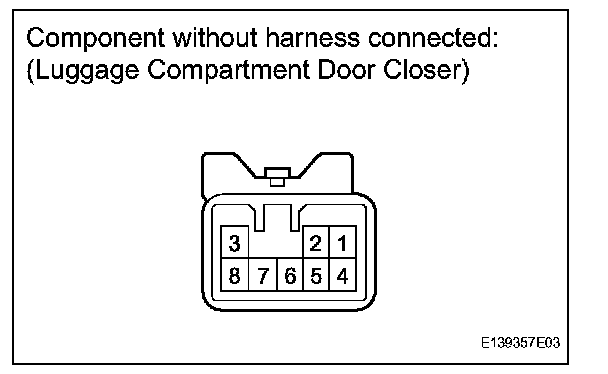

2. INSPECT LUGGAGE COMPARTMENT DOOR CLOSER ASSEMBLY

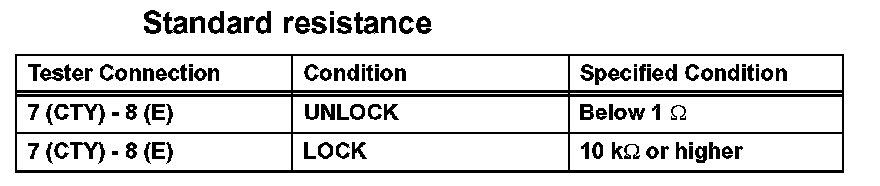

a. Measure the resistance according to the value(s) in the table.
If the result is not as specified, replace the luggage compartment door closer.
