Power Trunk Opener and Closer

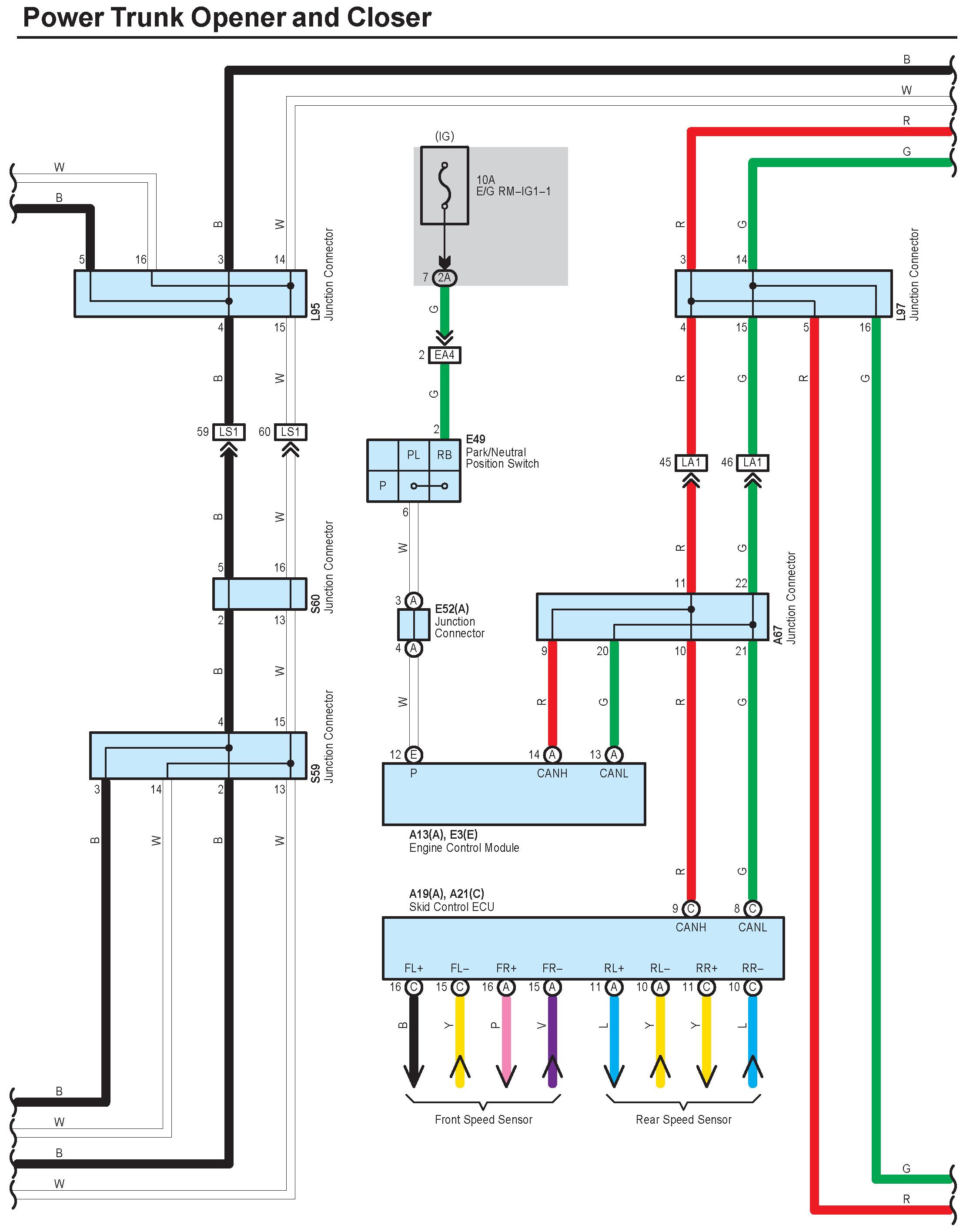

Power Trunk Opener And Closer Part 1:

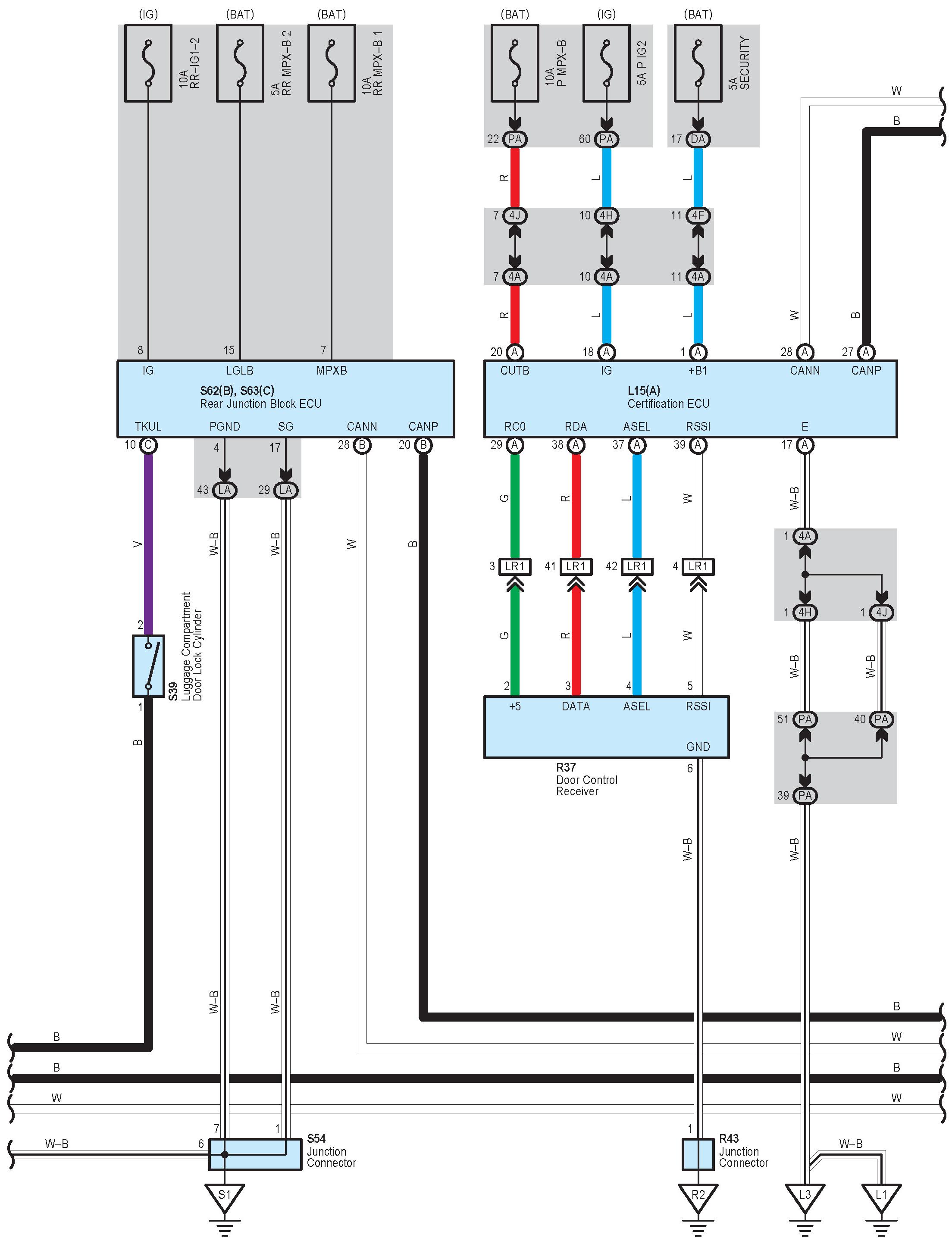

Power Trunk Opener And Closer Part 2:

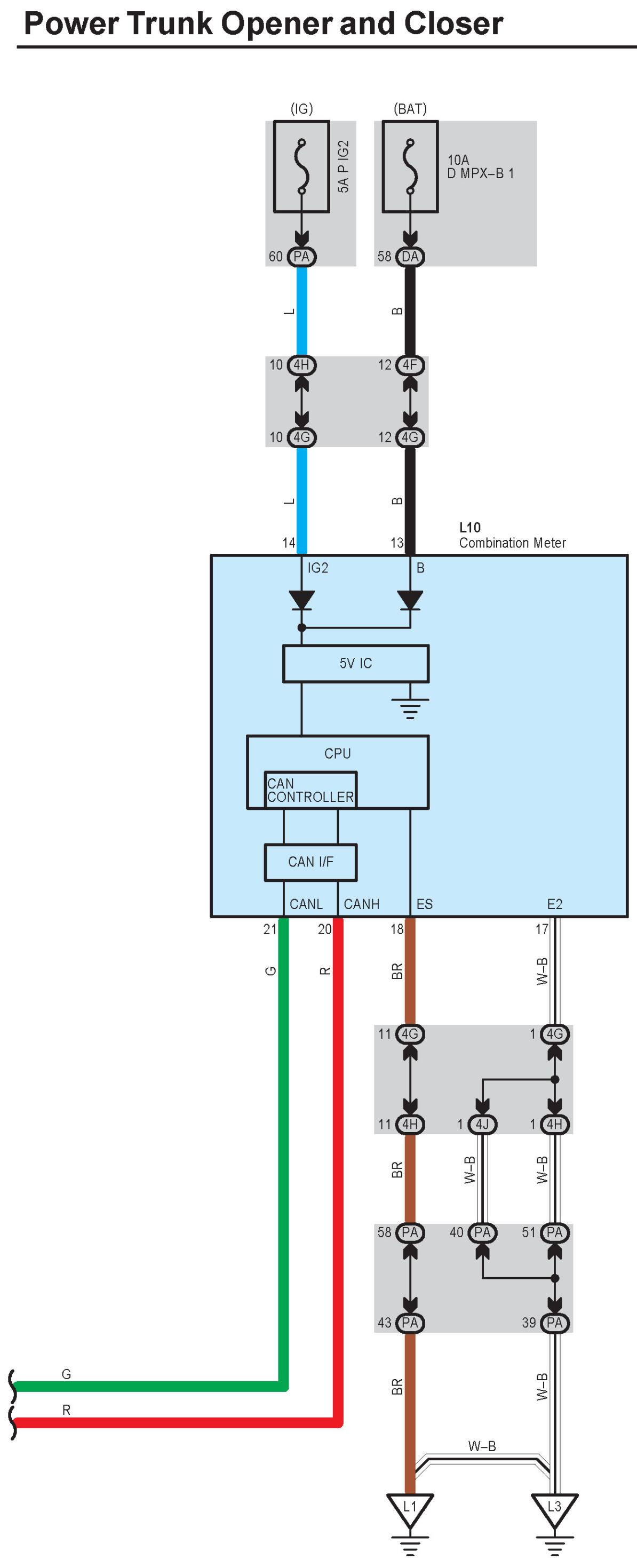

Power Trunk Opener And Closer Part 3:

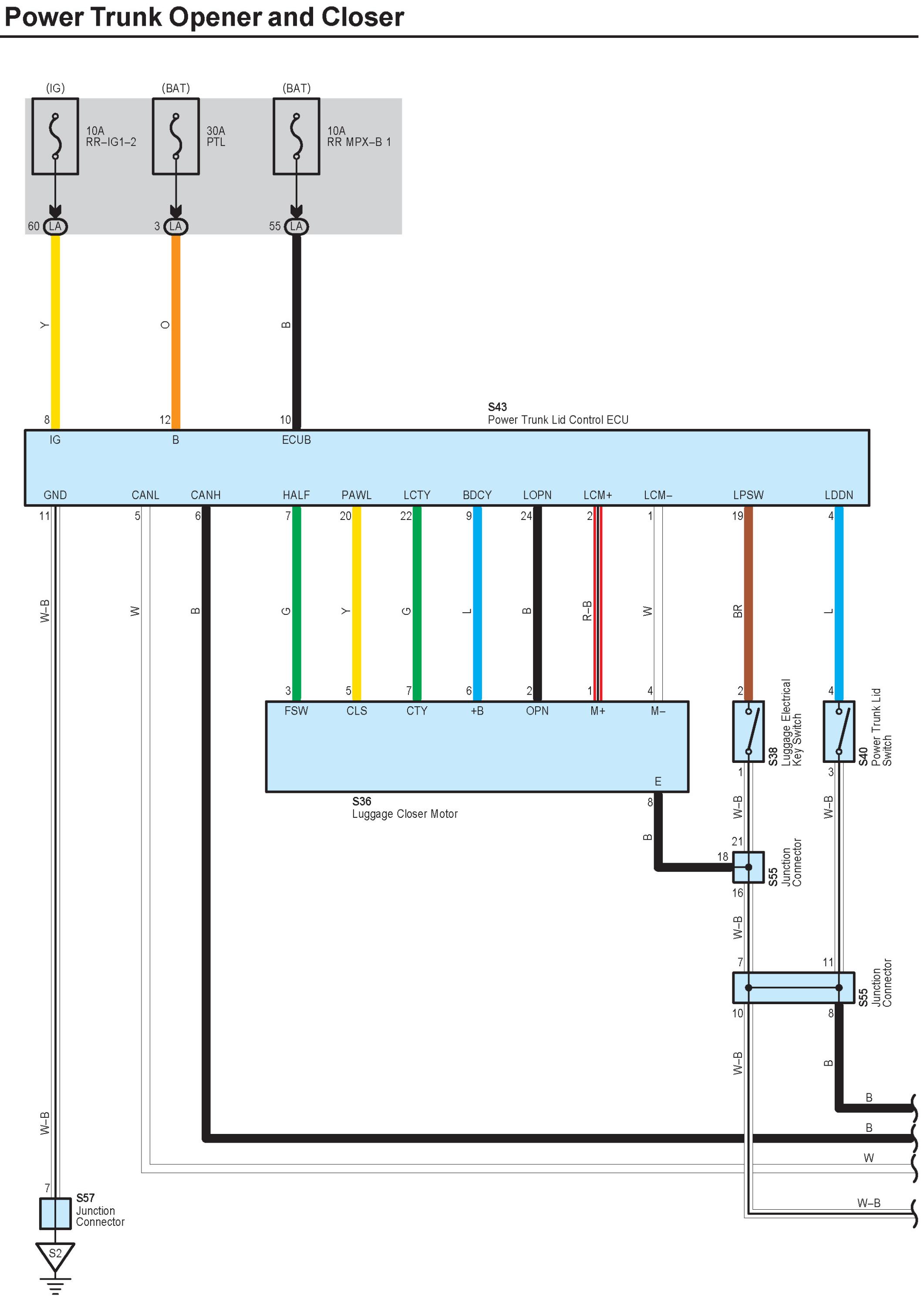

Power Trunk Opener And Closer Part 4:

Power Trunk Opener And Closer Part 5:

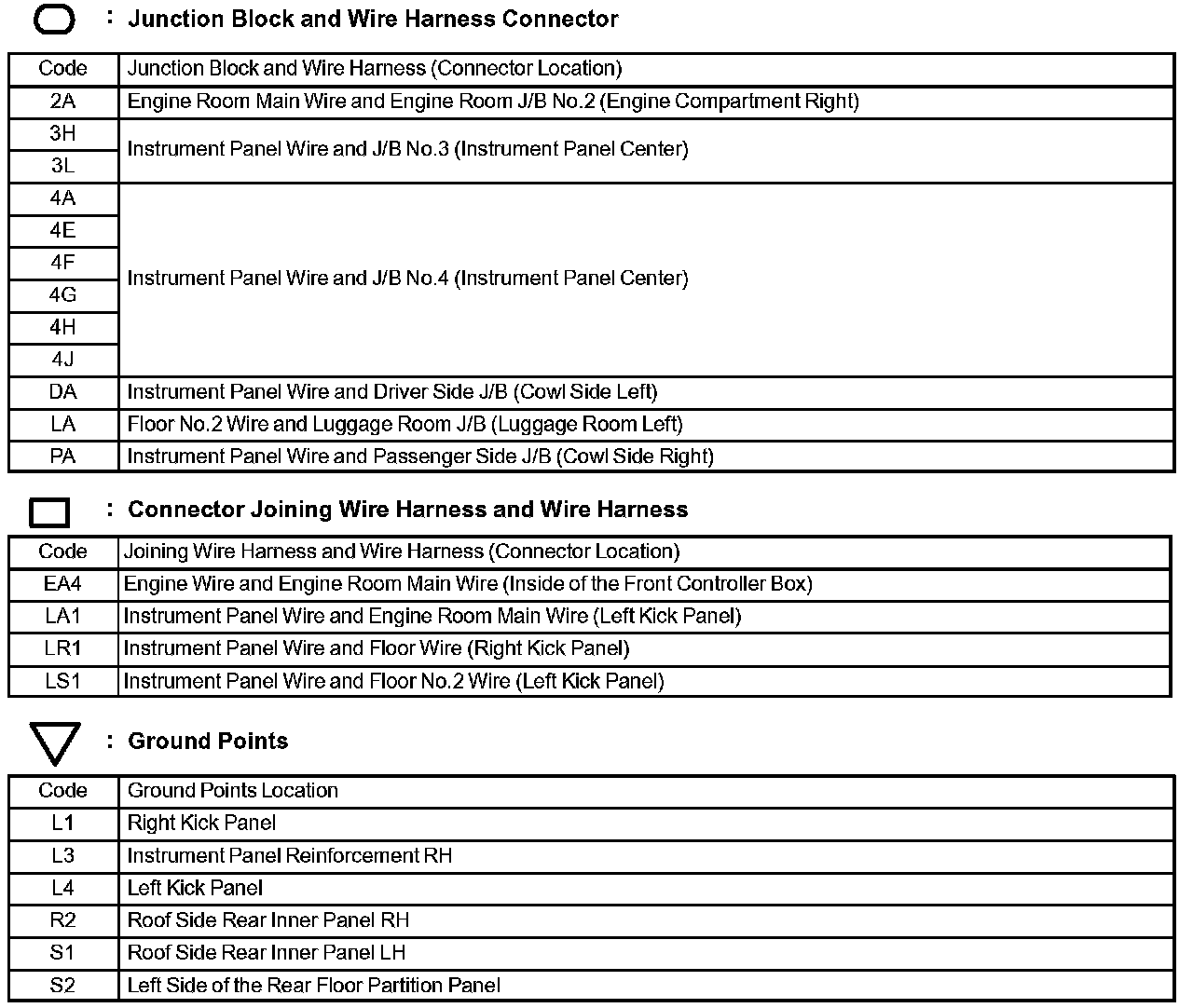

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
